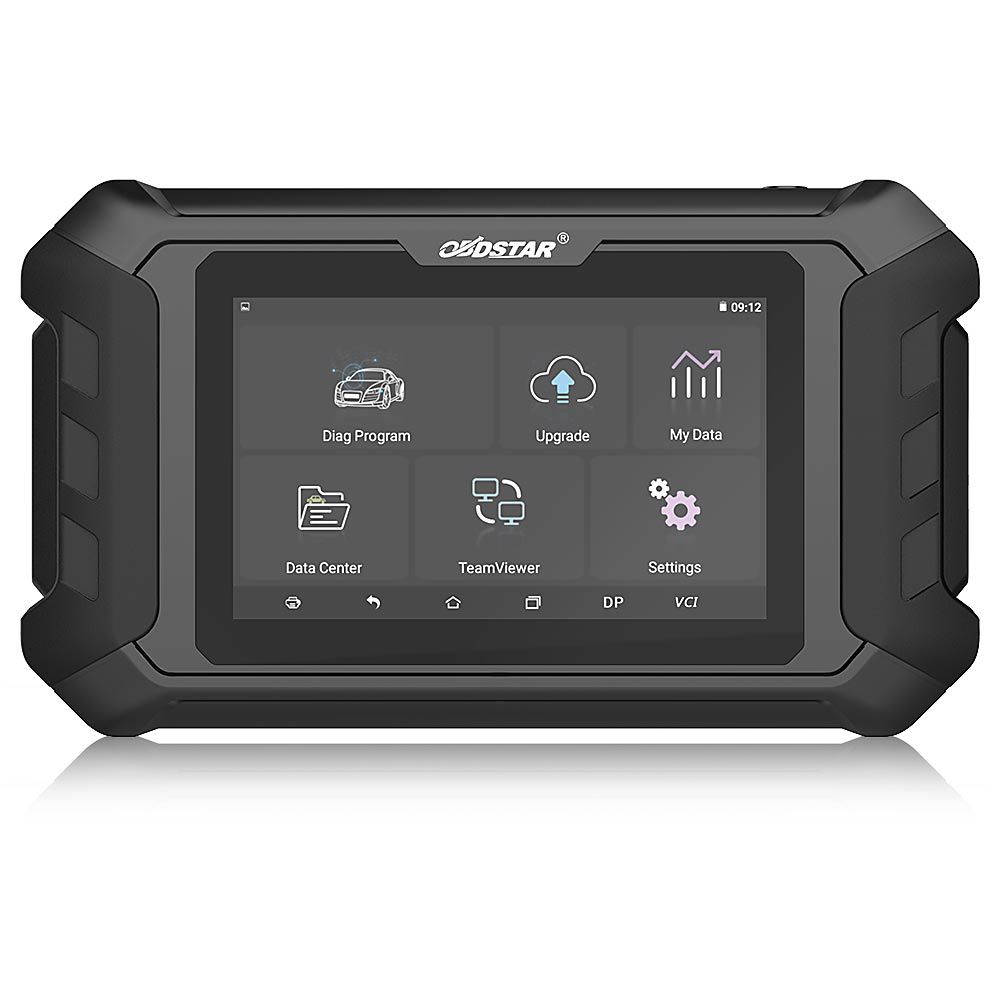

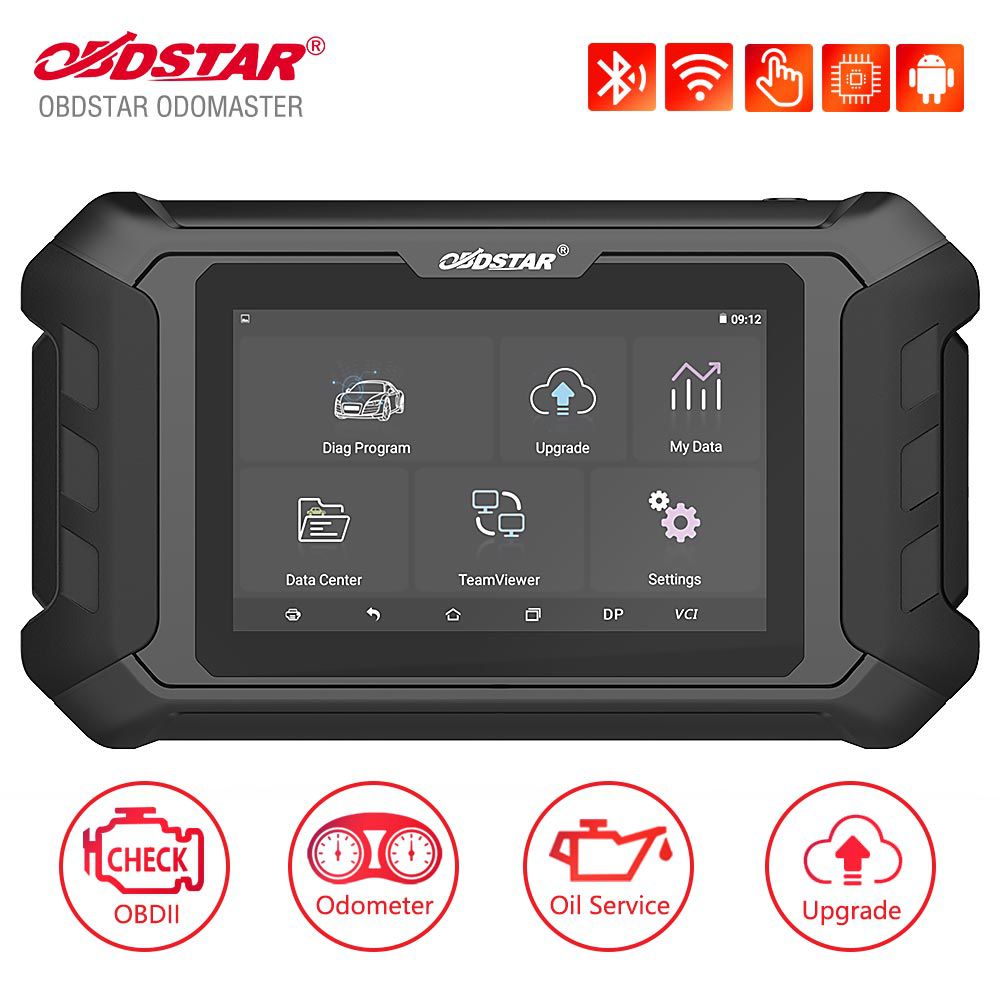

OBDSTAR ODO Master is a new Android based 5'' tablet, specialized for cluster calibration. It inherits the latest cluster calibration technology from OBDSTAR with various advantages of easy-to-use, wide model coverage, fast operation and durable features which can meet the actual needs of different users such as automobile repair plants and fast repair shops.
OBDSTAR ODO Master Highlights:
1. The update cycle is short and fast (updated every 2-3 days)
2. Free Update Online for One Year, after one year it will cost $300 per year. Dealer Code: 860755B1
3. Strong competitiveness and industry advantage
4. Some models can support 18/19 years of car (such as GM/Chrysler)

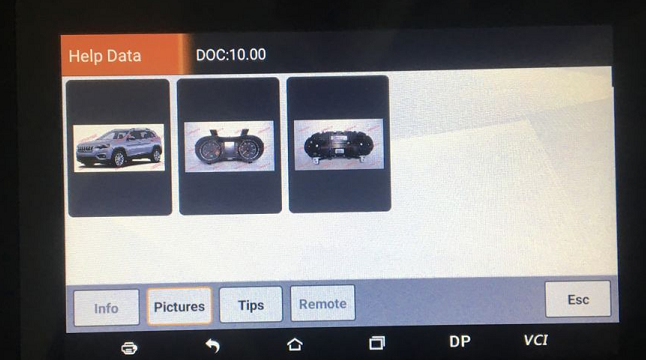

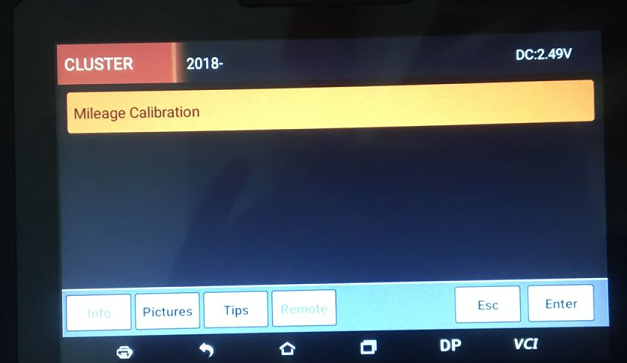

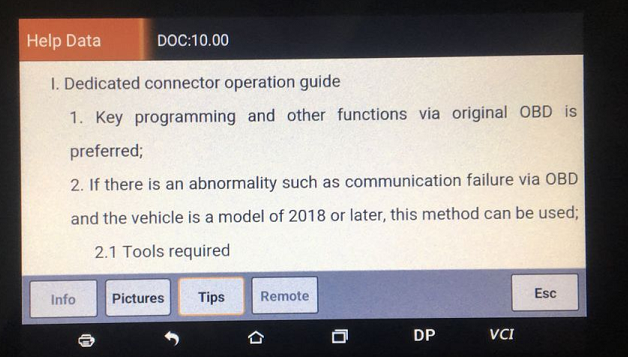

5. Add a new help function as shown below: (Applicable to some models, R & D information is being update)
OBDSTAR ODO Master Functions List:
1. Via OBDII
2. Data Backup
3. Data Recovery
4. Read Odometer
5. Write Odometer
6. Odometer Reset
7. Oil Service Reset

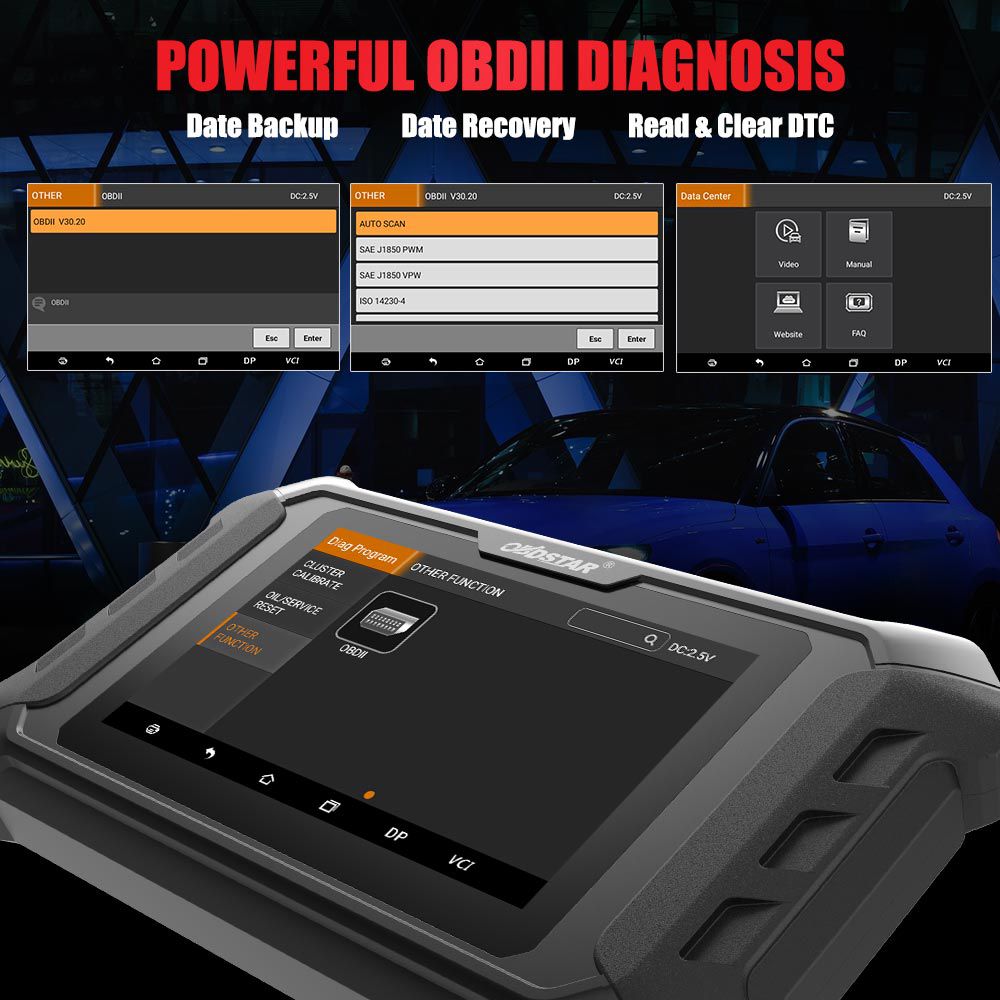

8. Read & Clear DTC
9. One-Click Upgrade
10. Instruction Documents
11. Wide Vehicle Coverage

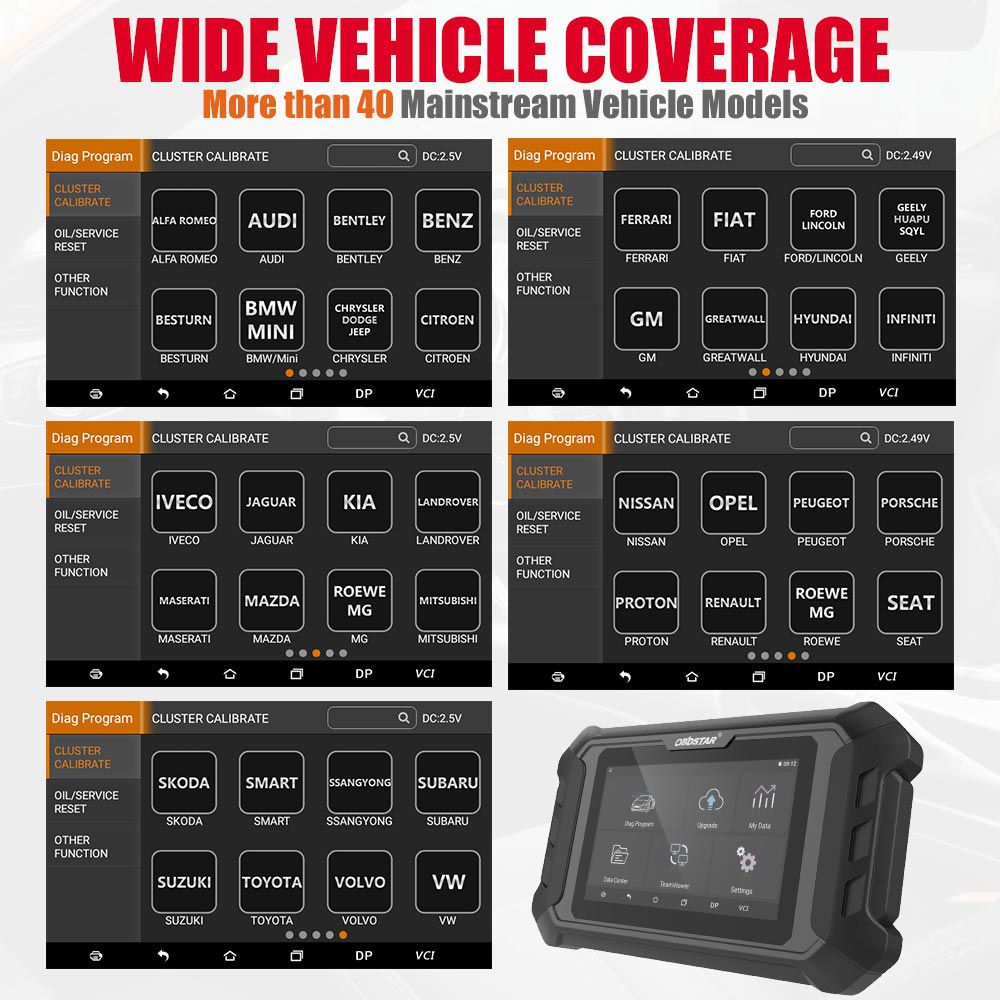

OBDSTAR ODO Master Support Car Software list:
Europe:
ALFA ROMEO,AUDI,BENTLEY,BENZ,BMW/Mini,CITROEN,PEUGEOT,FERRARI,FLAT,JAGUAR,LANCIA,Land Rover,MASERATI,OPEL,PORSCHE,Renault,VOLVO,IVECO,SKODA,SEAT,VW
Japan:
ISUZU,MAZDA,MITSUBISHI,INFINITE,NISSAN,SUBARU,TOYOTA
Korea:
HYUNDAI,KIA,SANGYONG
America:
FORD/LINCOLN,CHRYSLER,GM
China:
GEELY,BESTURN,CHANGAN,ROEWE MG,ROEWE
| Car Models Coveraged | ODO Master | X300M | |
| FORD | Fiesta | 2017- | 2013- |
| Focus | 2019 | 2013- | |
| Transit | √ | × | |
| KA | 2018- | 2005- | |
| GM | Colorado | 2018- | 2010- |
| Cruze | 2017- | 2015- | |
| Escalade | 2018- | / | |
| XT6 | 2019 | ||
| Yukon | 2017- | 2014- | |
| Chrysler | Cherokee | 2018- | 2015 |
| RAM | 2018- | 2011- | |
| Durango | 2018- | 2014- | |
| Land Rover | Discovery 4 | 2015- | / |
| Range Rover Sport | 2017- | 2014 | |
| VW | MQB 2012-2014.06 | √ | × |
| MQB 2014.06- | √ | √ | |
| Renault | Captur | 2017- | / |
| Trafic IV | 2017- | / | |
| KIA CEED | 24C16 | √ | √ |
| D70F3423 | √ | √ | |
| D70F3XXX | √ | × | |
| D70F3421 | √ | × | |
| D70F35XX | √ | × | |
| NEC | √ | × | |
| NEC+24C16 | √ | × | |
| KIA Optima | 24C16 | √ | √ |
| D70F3536 | √ | √ | |
| D70F3421 | √ | × | |
| D70F352X | √ | × | |
| D70F35XX | √ | × | |
| NEC | √ | × | |
| NEC+24C16 | √ | × | |
| Nissan | Altima 2013 | √ | √ |
| KICKS 2017- | √ | × | |
| Mitsubishi | Outlander | √ | × |
| Triton 2015- | √ | × | |

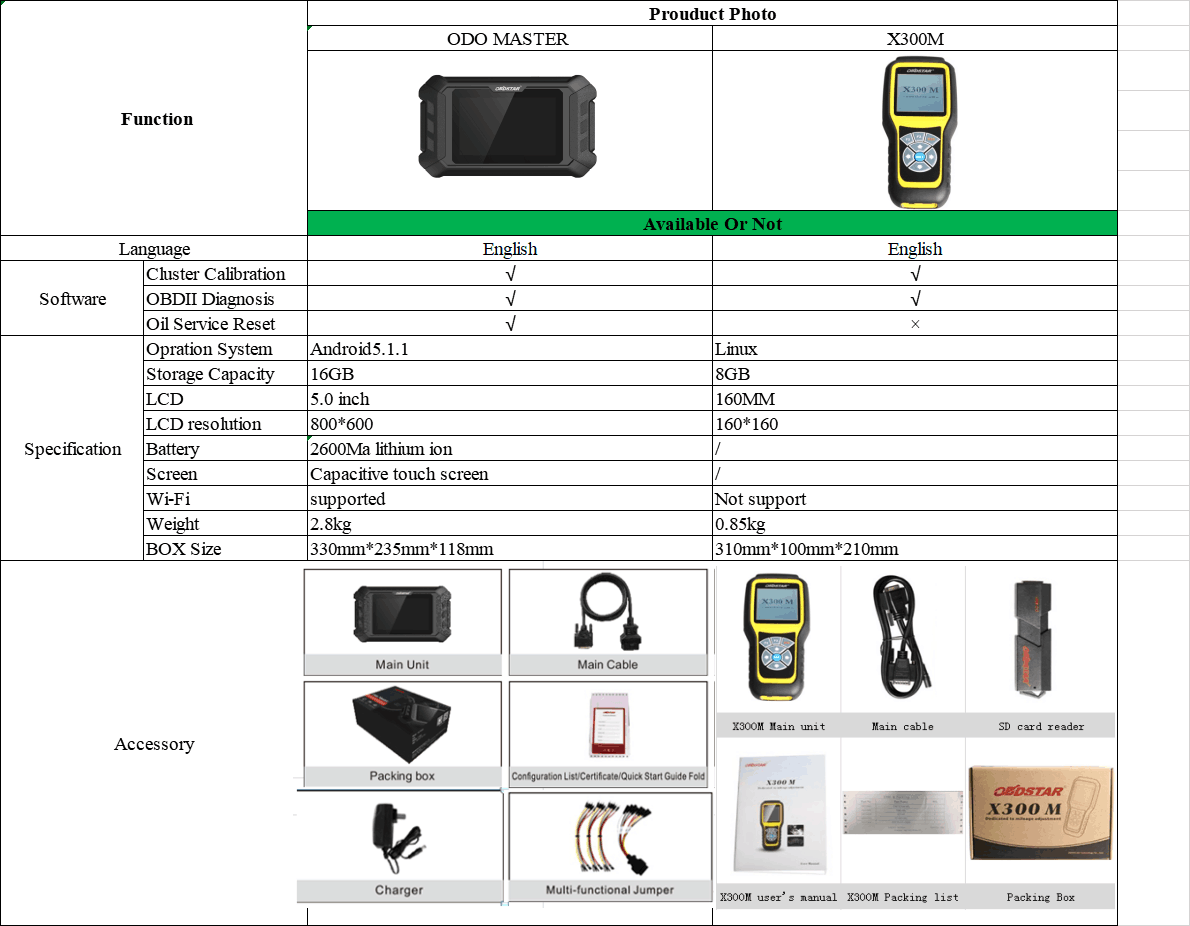

OBDSTAR ODO Master Hardware Comparison with OBDSTAR X300M:
OBDSTAR ODO Master Specifications:
| Operation System | Android 5.1.1 |
| CPU | RK3128 Quad-Core ARM Cortex A7 1.2GHz |
| Battery | 2600mA, rechargeable polymer lithium battery |
| Extension Memory Card | 32G Micro SD (TF) card supported |
| Memory Capacity | 16GB |
| Storage Capacity | 32GB |
| LCD | 5.0 inch |
| LCD Resolution | 8000*600 |
| Touch Screen | Capacitive touch screen |
| Camera | 5 mega rear view camera |
| Wi-Fi | supported |
| Working Temperature | -20℃ ~ 55℃（14℉ ~ 131℉） |
| Storage Temperature | -20℃ ~ 70℃（-4℉ ~ 158℉） |
| Dimension | 140mm*89*mm*18mm |
| Weight | About 700g |

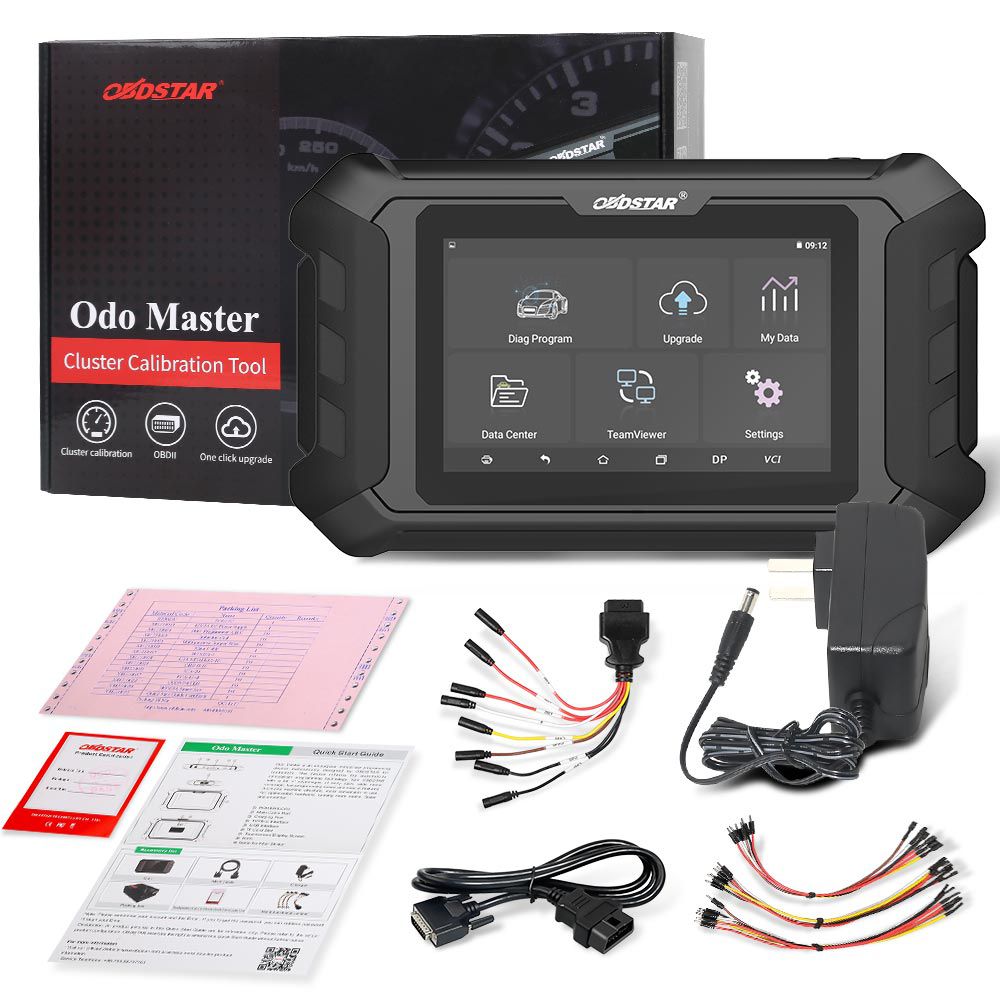

OBDSTAR ODO Master Package includes:
1pc x Configuration List
