Description

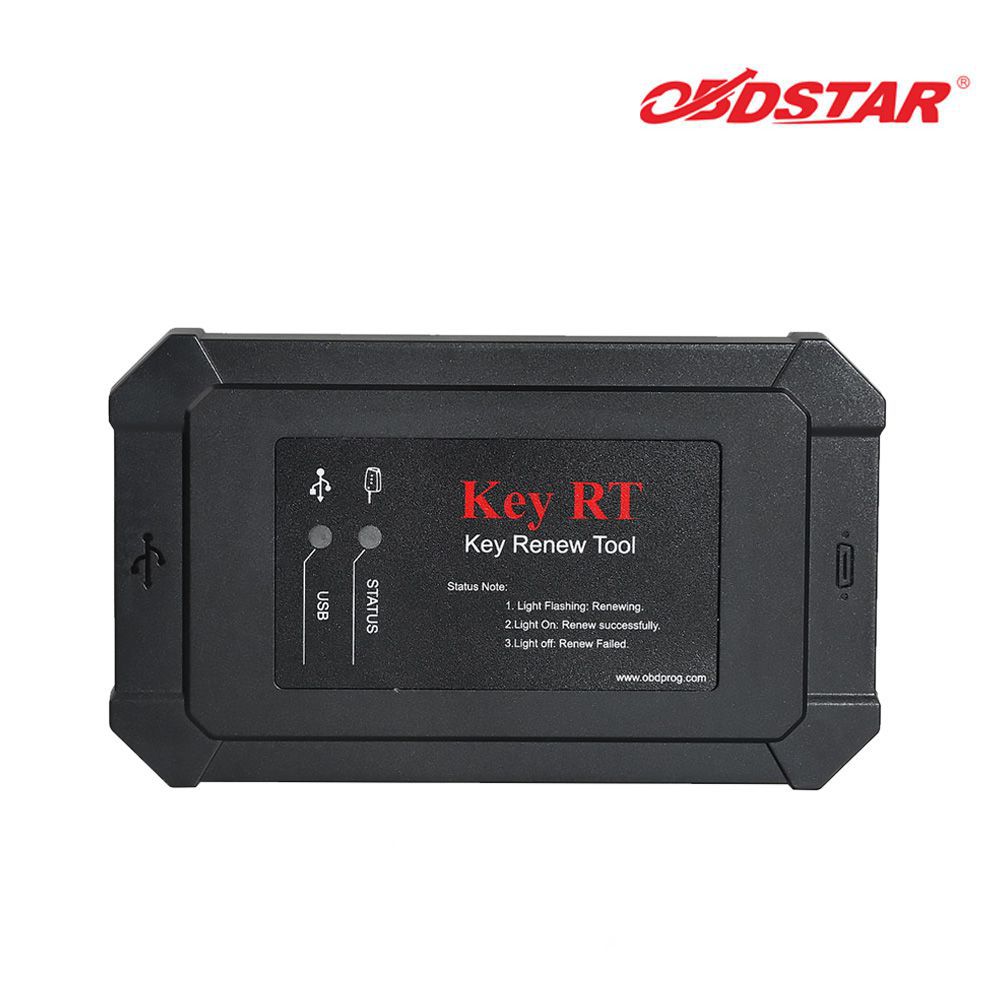

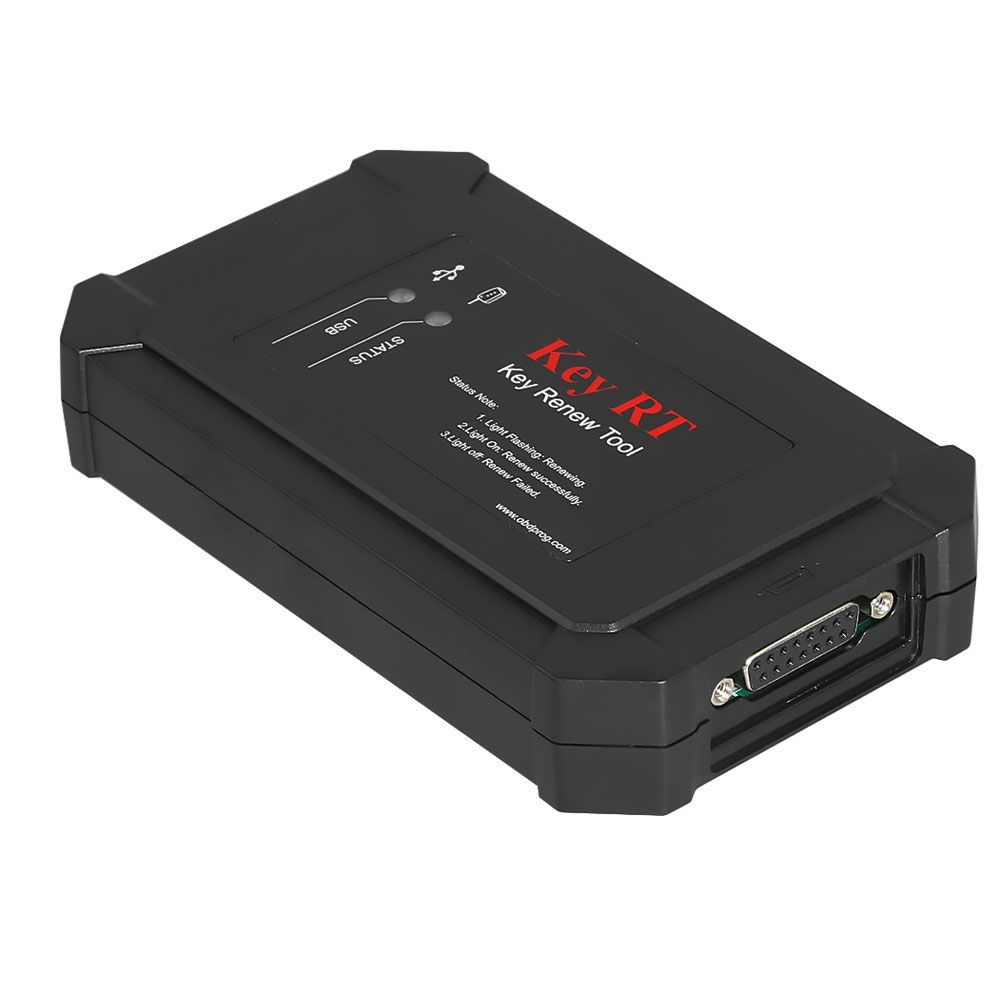

1pc x Key RT Key Renew Tool

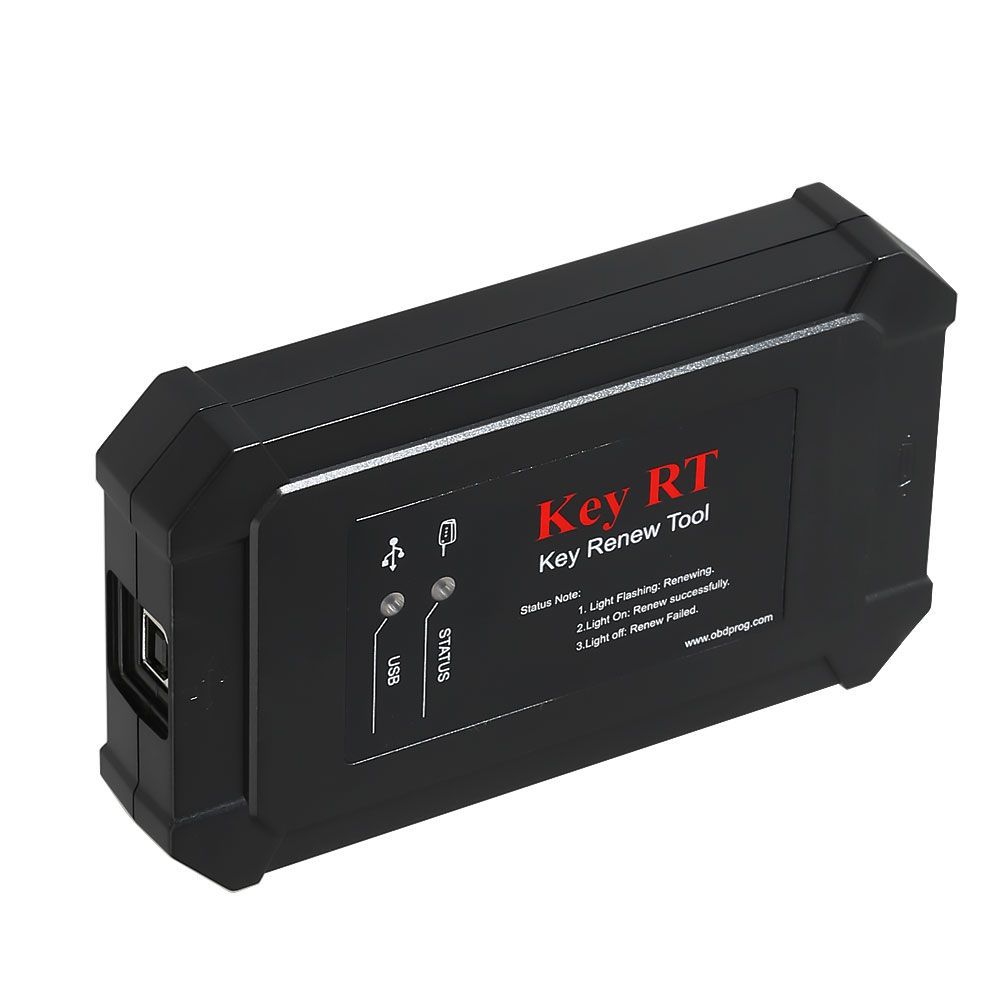

OBDSTAR Key RT Key Rene Tool
Top 6 Reasons to Get OBDSTAR Key RT Key Renew Tool
- PC software, renewing box, chip wiring board and w001 wiring.
- Supports a variety of car key chip renewing that can be repeated to renew
- Supports Windows7 and above operating systems,with use USB2.0/3.0 communication
- Supported chip types: PCF7341, PCF7345, PCF7941, PCF7945, PCF7952, PCF7953, and PCF7961
- If the original key is renewed, the Key RT box and the original key are connected via w001 wiring

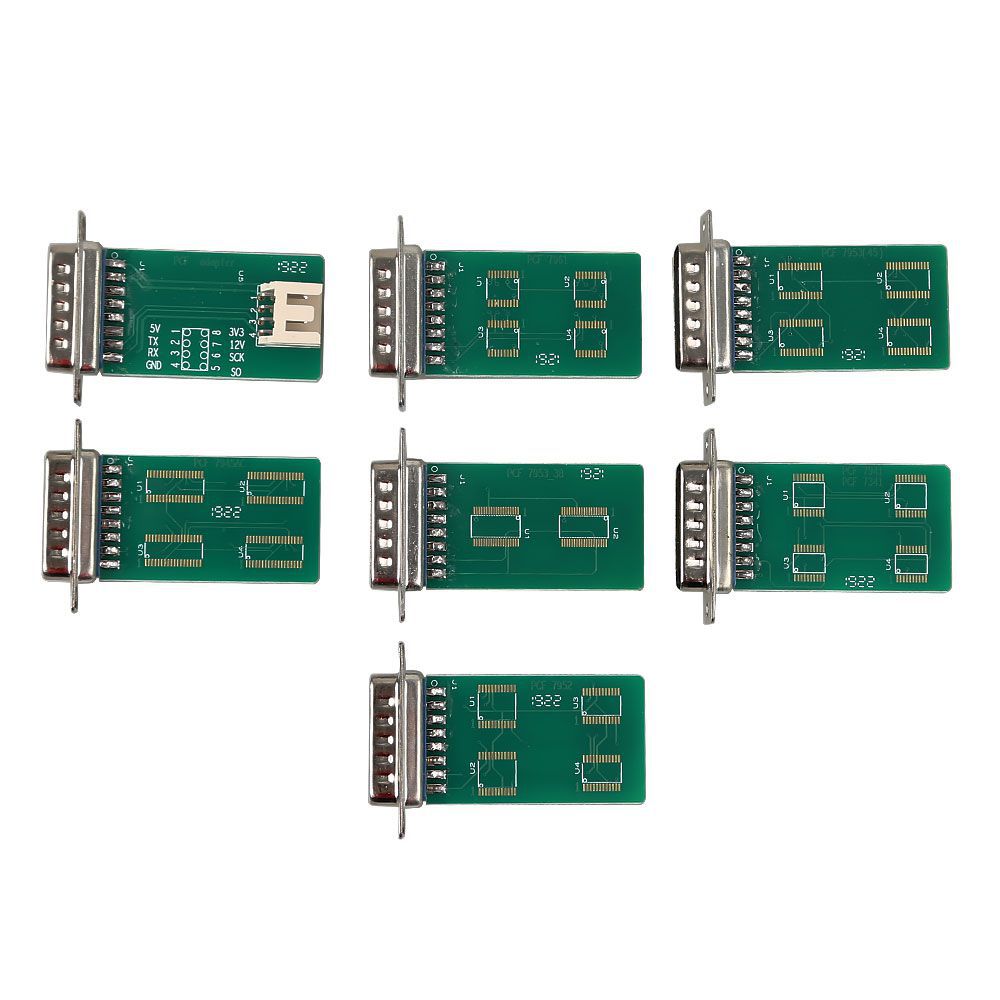

- If there is no original key, the chip small board can be used to solder the chip and connect to the key RT box to renew

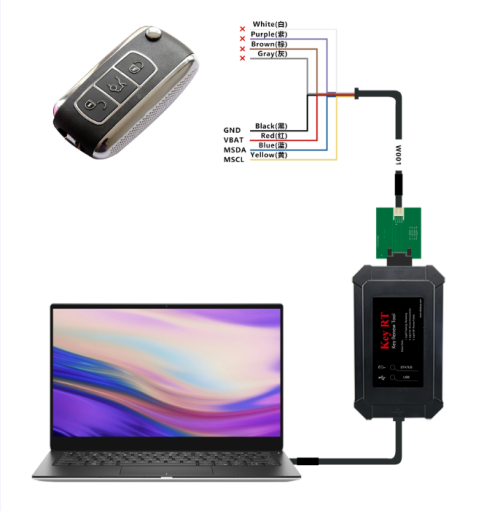

The Specific Connection Method is Shown in Figure:
OBDSTAR Key RT Renew Vehicle List & PC Software Installation Guide
OBDSTAR Key RT Renew Vehicle List & PC Software Installation Guide
How to do Key Renewing:

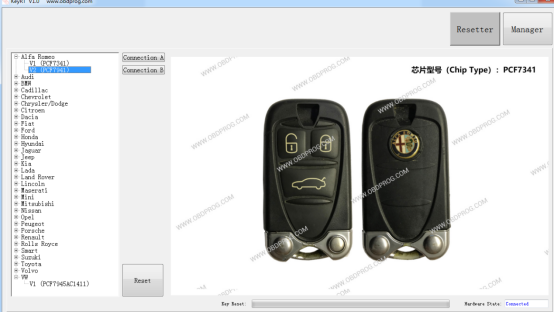

1)Select chip type shown in figure:(Take Alfa Romeo PCF794)
As shown in Figure:
After selecting the vehicle model and chip type,
the right side will display the appearance of the key to be renewed, and select the connection method to view the specific connection method.

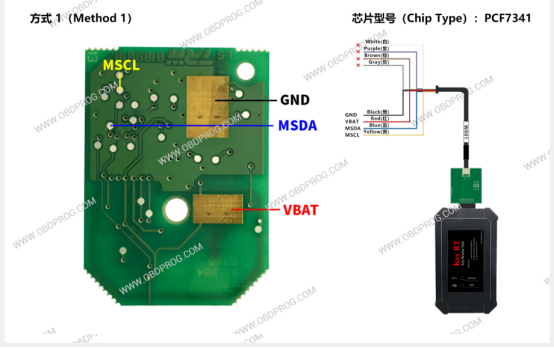

The welding method shown in Figure:

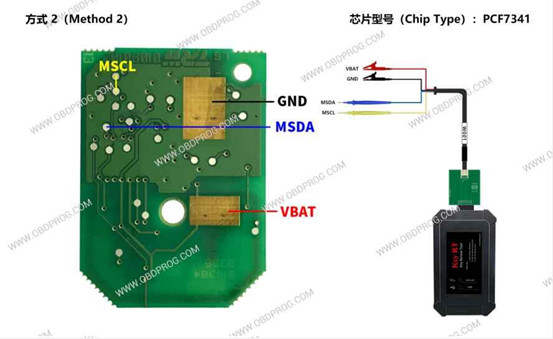

The fixture method shown in Figure:
The welding method shown in Figure:
The fixture method shown in Figure:
2) Execute renewing: Click the Reset button to execute the renewing
The renewing is successful as shown in Figure:
Chip Select:
Chip Select:
1) The key renewing window controls include:
supporting model catalog, key appearance and wiring mode picture window.
2) The supported chip types are PCF7341, PCF7345, PCF7941, PCF7945, PCF7952, PCF7953, and PCF7961.
3) Click on the model catalog to see the specific chip type, key appearance and wiring mode;
supporting welding and fixture connection method.

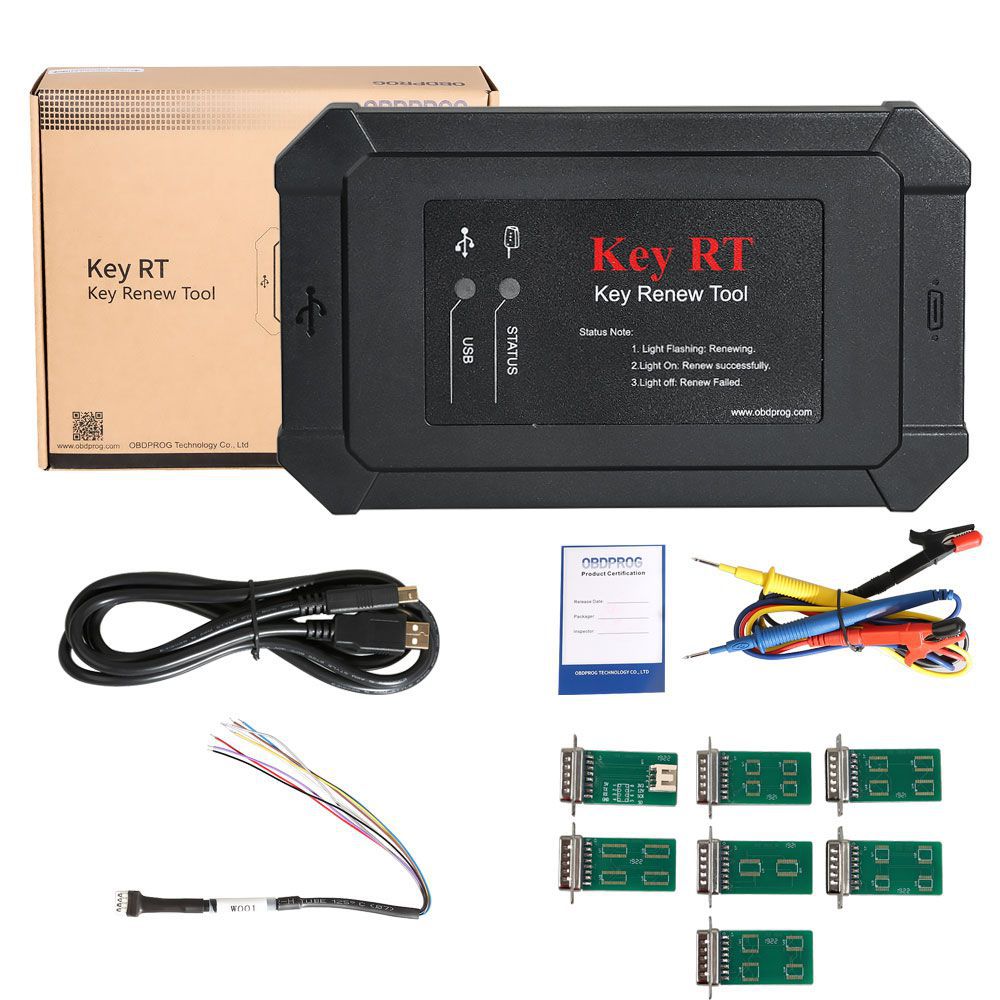

Package includes:
