Description
4. Supports WIFI connection, PAD support Android System
5. Supports online update for lifetime
6. Same Function as Xtool PS90
7. 2 Years warranty
Back View of EZ400 Tablet:
A: The notice prompts you to update your device. Well connect to network and run an upgrade.
XTOOL EZ400 Diagnosis System with WIFI Supports Android System and Online Update Same As Xtool PS90
Top 7 Reasons to Choose EZ400:
1. Extensive vehicle coverage for most US, Asian and European vehicle makes
2. Full System Diagnosis: Engine, ABS, Airbag, Transmission, Immobilizer, Body (ECM), Chassis……
3. Supports Special function: ABS bleeding, service light reset, DPF regeneration, steering angle calibration, battery reset, throttle body adaptation, Service light reset, Throttle Sensor Adjustment…..
4. Supports WIFI connection, PAD support Android System
5. Supports online update for lifetime
6. Same Function as Xtool PS90
7. 2 Years warranty
Layout of EZ400
1. SD Card Port: up to 32GB extension SD card
2. HDMI Port: Compatible with HDMI
3. Micro USB: Battery charge or data synchronization with PC.
4. Audi Port: For headphone
5. Power Button: Power on or off

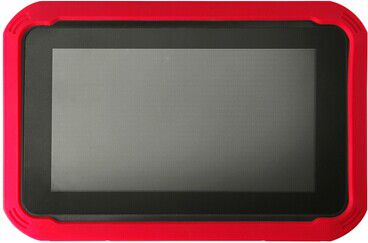

Front View of EZ400 Tablet:

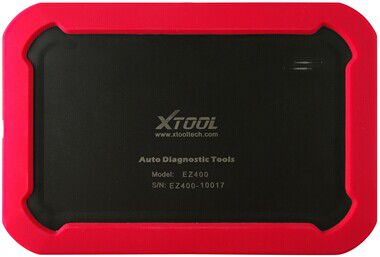

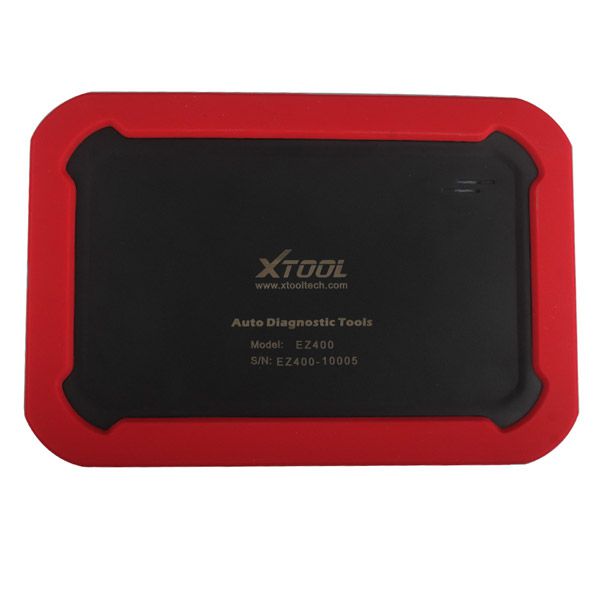

Back View of EZ400 Tablet:
Side View of EZ400 Tablet:

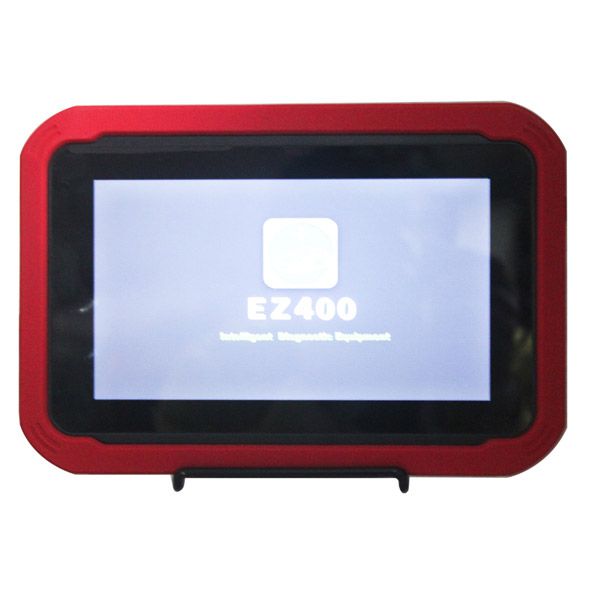

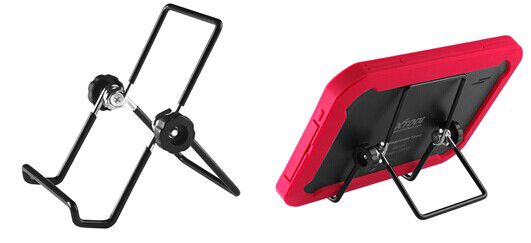

EZ400 with Stand

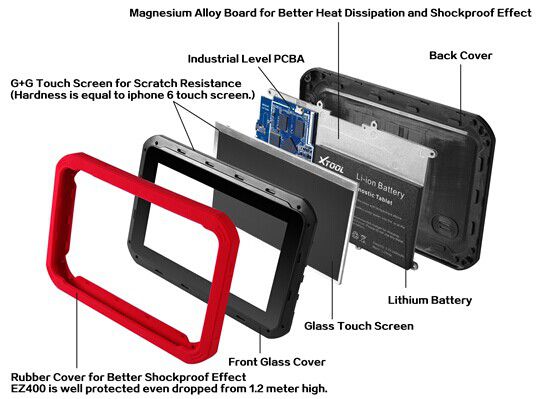

EZ400 Exploded Diagram

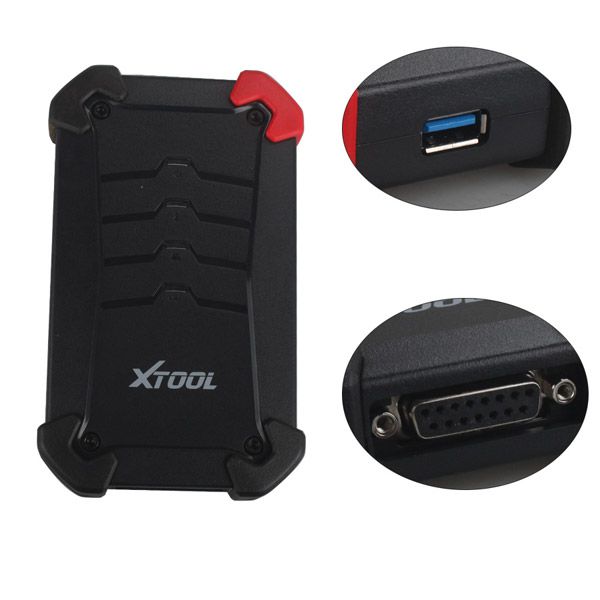

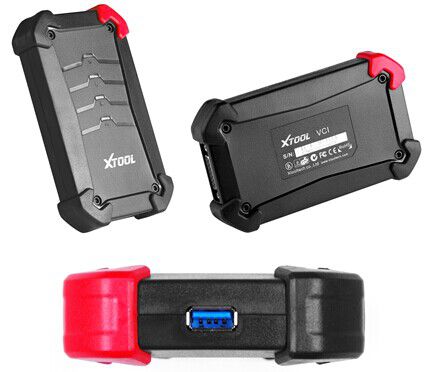

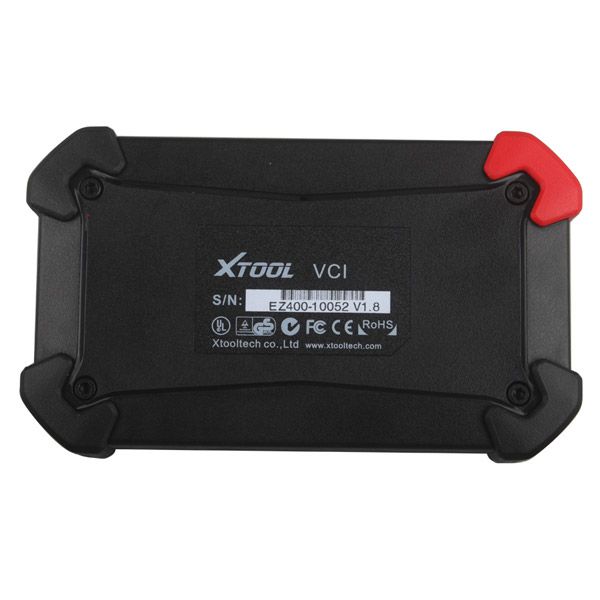

Introduction of EZ400 VCI Box:
1. Power Indicator: it turns green when power is on.
2. Bluetooth Indicator: it turns red when Bluetooth is not connected; it turns blue when Bluetooth is connected successfully.
3. Vehicle Indicator: When VCI box is connected with vehicle successfully, it turns green.
4. USB Indicator: When EZ400 tablet and VCI box are connected via USB cable, it turns green.
EZ400 Features:
*Easy registration with EZ400 connected to WIFI
*Wireless diagnosis via Bluetooth
*One-click software update via WIFI
*Remote access
*Diagnosis reports in PDF file
*Record and playback live data
*7 inch multi-touch screen
*On-board battery
*Extensive vehicle coverage for most US, Asian and European vehicle makes

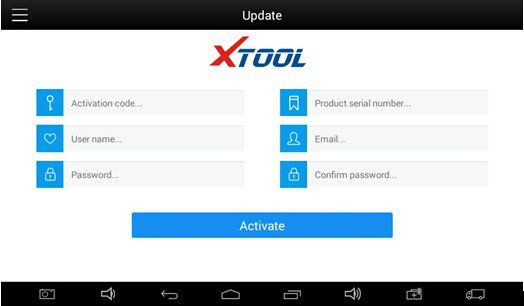

Easy registration with EZ400 connected to WIFI. Don’t bother to use PC for registration.

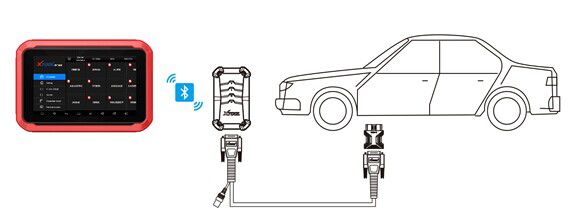

Wireless diagnosis via ultrafast Bluetooth technology

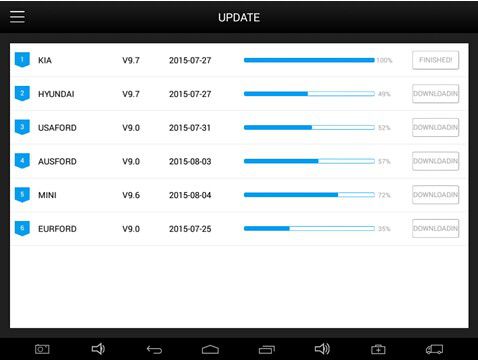

One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!

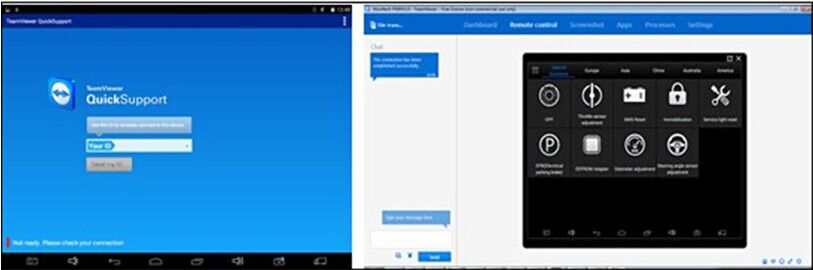

Remote access, which is perfect for training, demonstration and even remote diagnosis.

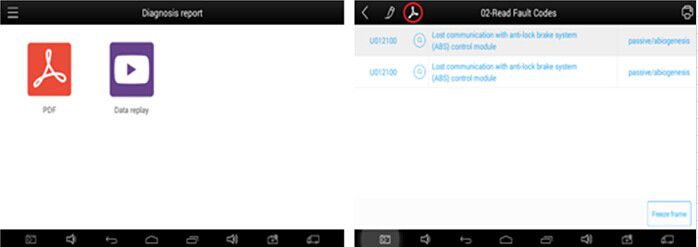

Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars. They will be really happy knowing what kinds of problems have been fixed for their cars.

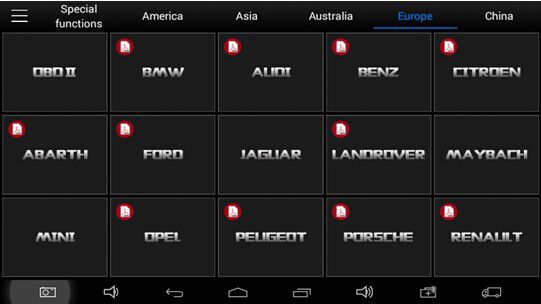

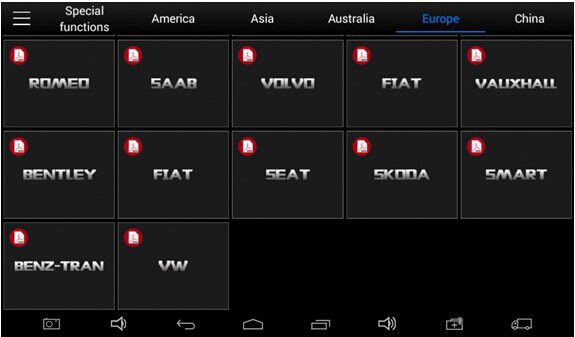

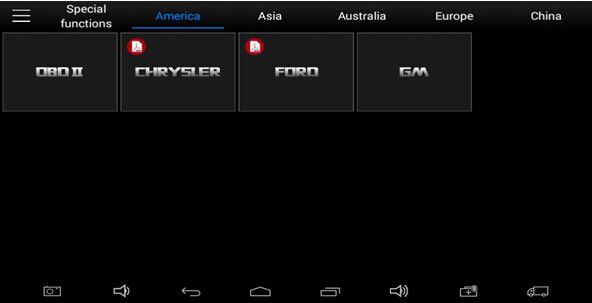

Extensive Vehicle Coverage for Most US, Asian and European Vehicle Makes
American: GM, Chrysler, Ford, Chevrolet, Hummer, Cadillac, Saturn
Europe: Volvo, Skoda, Land rover, Jaguar, Ford, Sprinter, Seat, Renault, Peugeot, Opel, Vauxhall, Fiat, Citroen, BMW, BENZ, AUDI, VW, Porsche, Lancia, MayBach, Rolls-Royce, Mini, Smart, Transporter, Lamborghini, Gugatti, Abarth, VW_CV

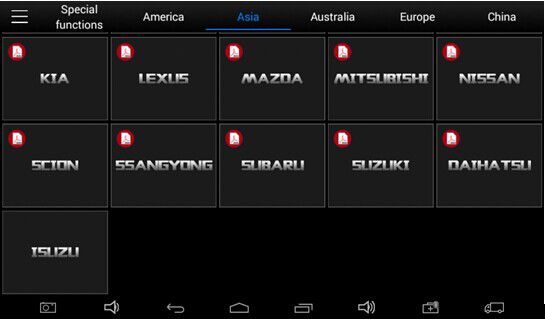

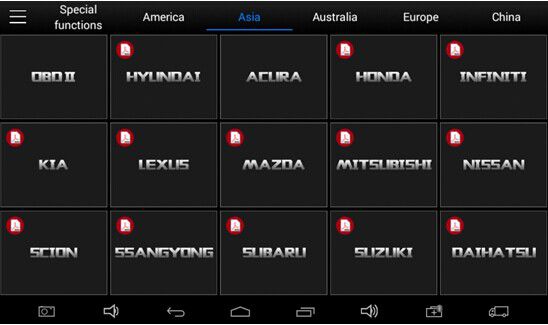

Asia: Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, SUZUKI, Kia, TOYOTA, Hyundai, Mazda, Daihatsu, Daewoo, Scion, Holden, AUFord and more…

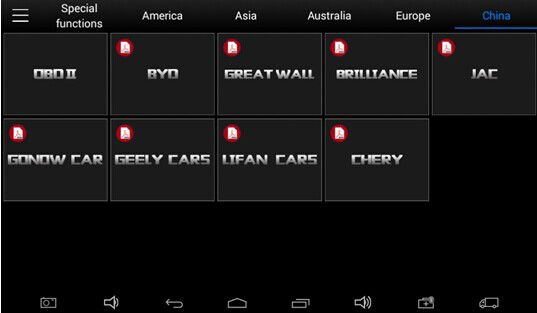

Chinese Vehicle: Geely, Chery, Greatwall, Jiao, Lifan, BYD, Brilliance and more...

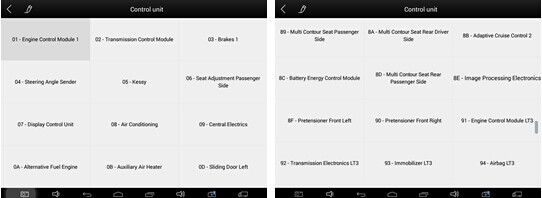

Full System Diagnosis: Engine, ABS, Airbag, Transmission, Immobilizer, Body (ECM), Chassis……

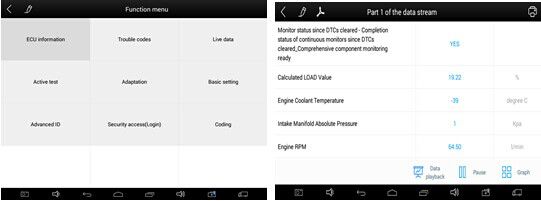

Basic Function: read fault codes, clear fault codes, live data, actuation

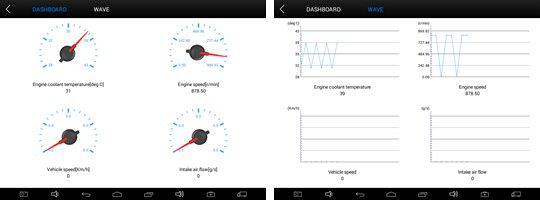

Accurate live data in both Wave and Dashboard form

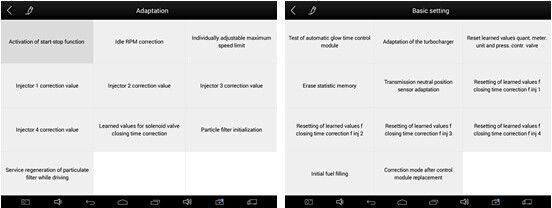

Special Function: ABS bleeding, service light reset, DPF regeneration, steering angle calibration, battery reset, throttle body adaptation, Service light reset, Throttle Sensor Adjustment…..
Operating System: Android 4.4.4
Memory: 1GB RAM,16GB Flash
CPU Quad Core, 1.3 GHz
Display 7 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
Sensors: Gravity Sensor, Light Sensor
Input/Output: Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USB Port, TF Card Port
Battery: 2400mAh, 3.7V
Power Voltage: 5V
Power Consumption: 8W
Operating Temperature: -20 to 50℃(-4 to 126℉).
midity: <90%
midity: <90%
Dimension: (L*W*H): 208*140*15.5mm
Customer Question:

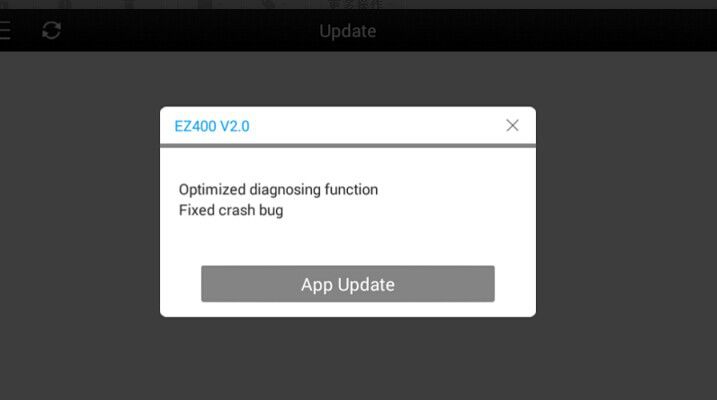

Q: When i install the Xtool EZ400 diagnostic system software, it gave me error "Optimized diagnosing function. Fixed crash bug", what should I do?
Customer Question:
Q: When i install the Xtool EZ400 diagnostic system software, it gave me error "Optimized diagnosing function. Fixed crash bug", what should I do?
A: The notice prompts you to update your device. Well connect to network and run an upgrade.

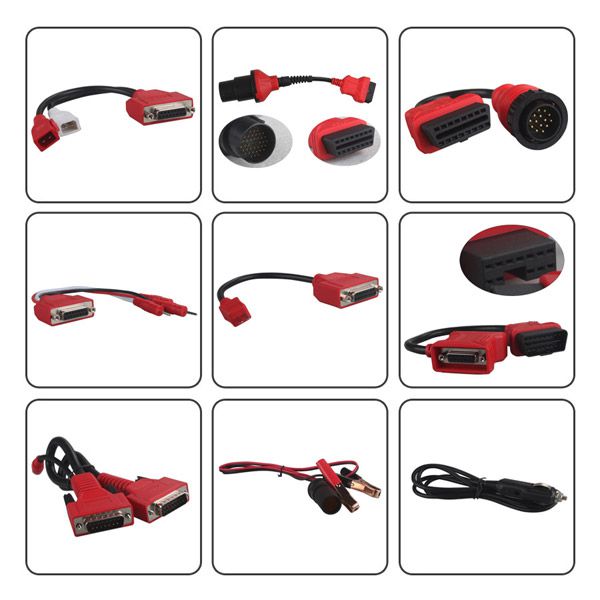

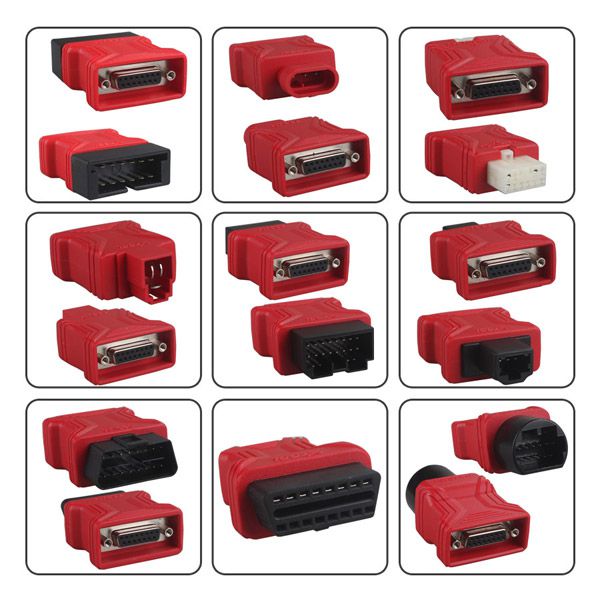

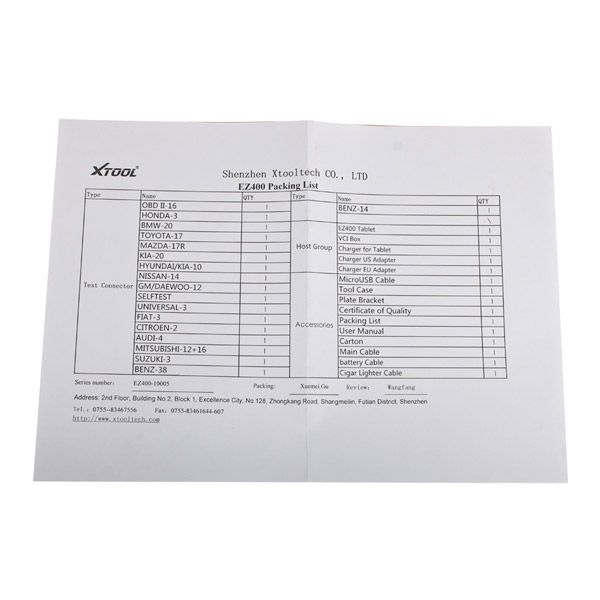

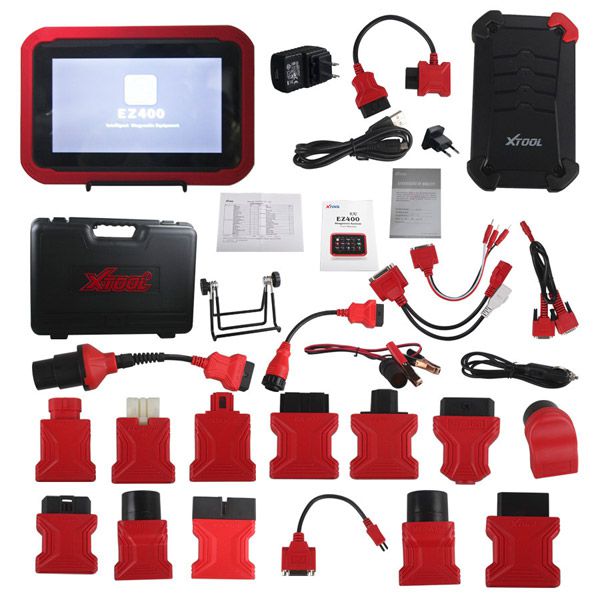

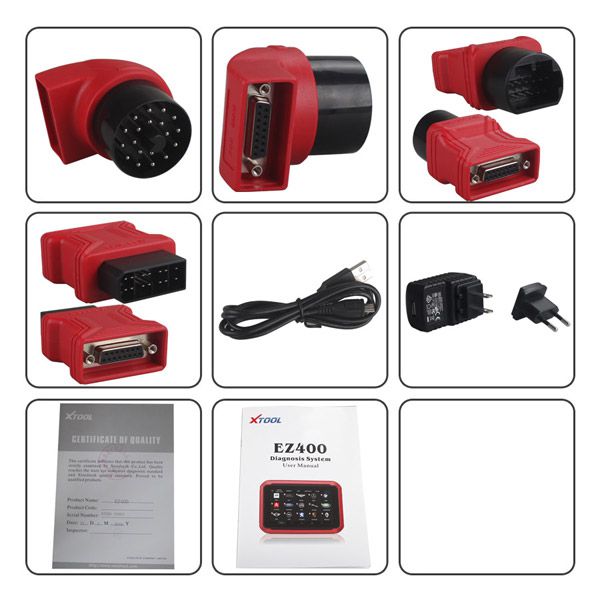

Package Including:
OBD II-16
HONDA-3
BMW-20
TOYOTA-17
MAZDA-17R
KIA-20
HYUNDAI/KIA-10
NISSAN-14
GM/DAEWOO-12
SELFTEST
UNIVERSAL-3
SUZUKI-3
FIAT-3
CITROEN-2
AUDI-4
MITSUBISHI-12+16
BENZ-38
BENZ-14
Main Cable
battery Cable
Cigar Lighter Cable
EZ400 Tablet
VCI Box
Charger for Tablet
US Power Adapter
EU Power Adapter
Micro USB Cable

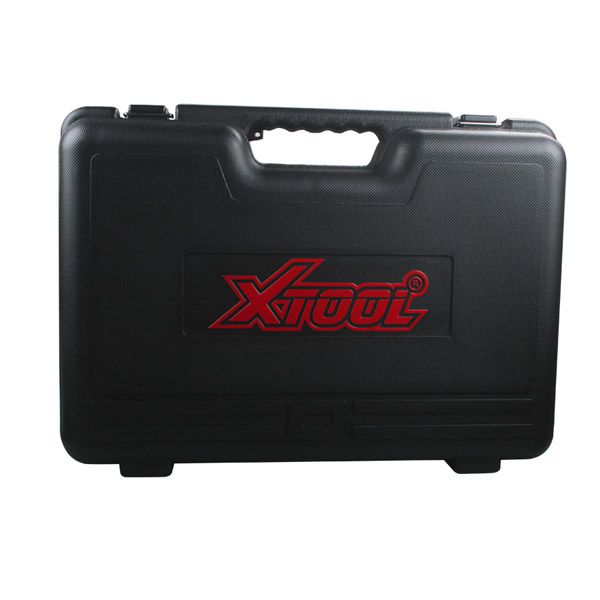

Case
Stand for EZ400
Certificate of Quality
Packing List
User Manual
Carton
