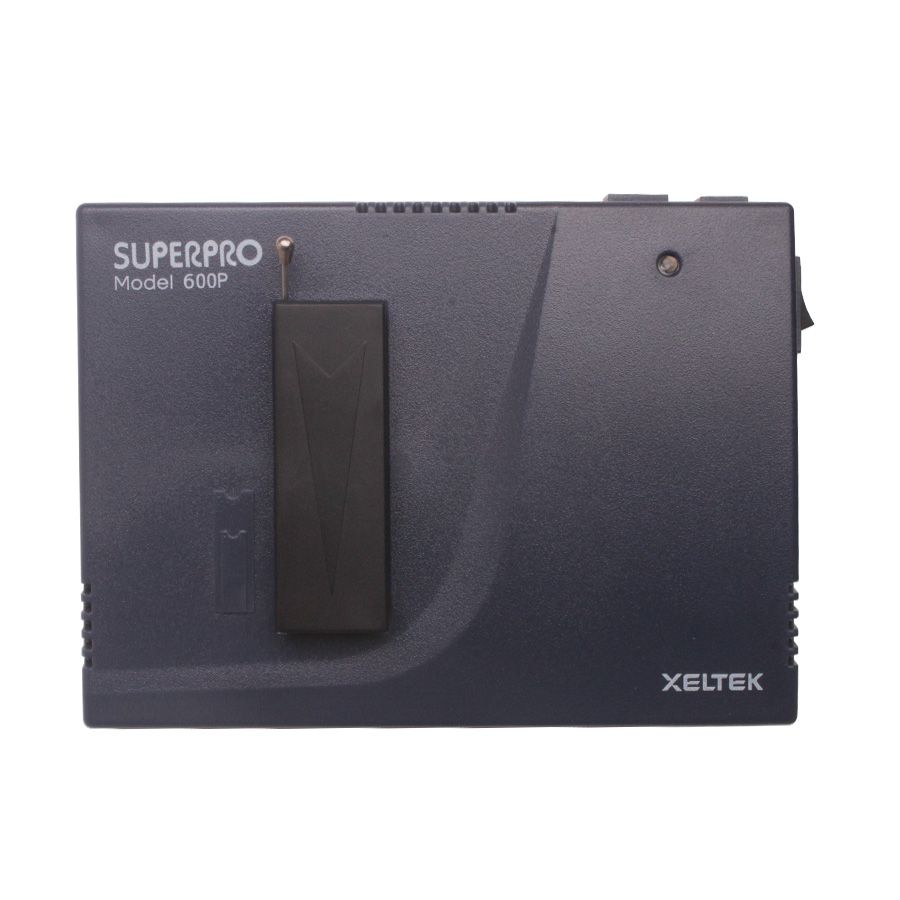

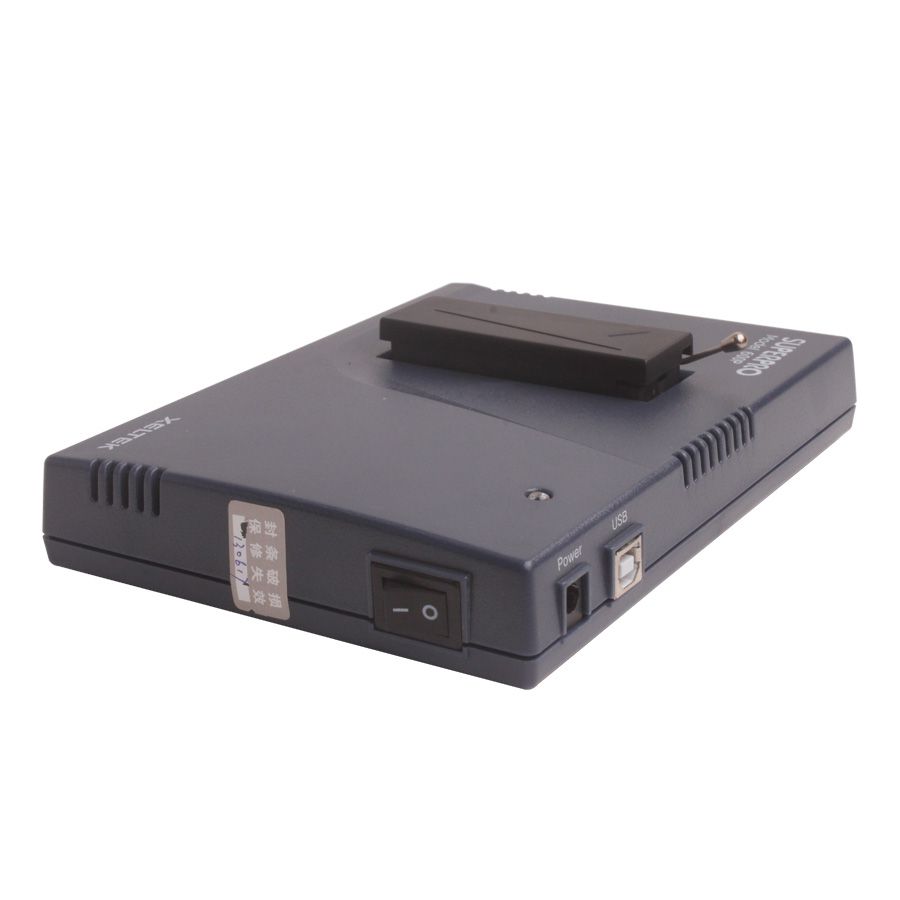

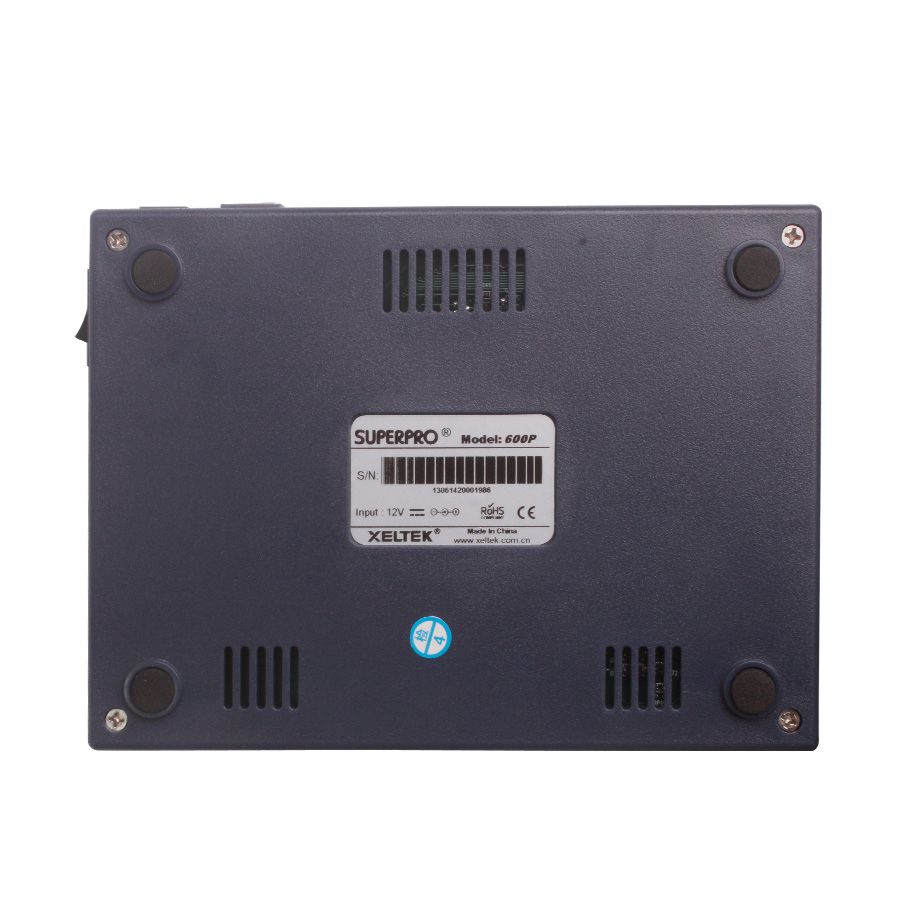

Xeltek USB Superpro 600P Universal Programmer
Features:
Support 218 IC manufacturer, 30493 pcs devices.
Support devices with Vcc from 1.2V to 5V.
Extremely fast speed hign than SUPERPRO/500P.
Built with 48 universal pin-drivers.
PC hosted mode and stand-alone mode. Under PC hosted mode the programmer is controlled by a PC via USB2.0 (high speed) to program a chip.
ISP/ICP programming capability available via ISP/ICP adaptor.
Only IC manufacturer approved programming algorithms are used for high reliability. (+5%~-5%) and (10%~-10%) Vcc verification enhances programming reliability.
Advanced and Powerful Functions.
Production mode start chip operation at the moment the chip is inserted in the socket properly.
Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one touch step.
Password can be set for project files and production volume control
Batch command combines device operations like program, verify, security into a single command at any sequence.
Serial numbers generators are available as standard or customer-specific functions.
Log file is useful for quality tracking.
Over-current and over-voltage protection for safety of the chip and programmer hardware.
WINDOWS XP/Vista compatibility/Win7
| Device | P+V(s) | Compare with SP3000U | type |
| AT28C64B | 0.8(P)+0.1(V)= 0.9(s) | 1.2(P)+0.8(V)= 2.0(s) | 64Kb EEPROM |
| 24AA128 | 2.7(P)+1.8(V)= 4.5(s) | 5.0(P)+4.0(V)= 9.0(s) | 128Kb EEPROM |
| QB25F640S33B60 | 29.0(P)+14.4(V)= 43.4(s) | 55.2(P)+41.4(V)= 96.6 (s) | 64Mb EEPROM |
| AT89C55WD | 2.5(P)+0.4(V)=2.9(s) | 3.3(P)+1.0(V)=4.3(s) | 20KB FLASH MCU |
| S25FL064A | 43.9(P)+14.7(V)= 58.6(s) | 72.8(P)+41.4(V)= 114.2(s) | 64Mb SPI EEPROM |
| PIC16F876A | 10.1(P)+0.8(V)=10.9(s) | 22.1(P)+06.2(V)=28.3(s) | |
| PIC18F442 | 5.1(P)+1.1(V)=6.2(s) | 13.6(P)+06.7(V)=20.3(s) |
Hardware & Electrical Specifications:
Supported devices: EPROM, Paged EPROM, Parallel and Serial EEPROM, BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU. Packages supported: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, CSP, SCSP , ...
PC interface: USB2.0
Stand-alone Feature: None .
Electrical spec. of the AC adapter: AC input 90V to 250V, 50/60Hz, DC output 12V/2A; power:15W
Mechanical parameter: Main unit: Size: 178*130*40 mm Weight: -Kg.
Accessories:

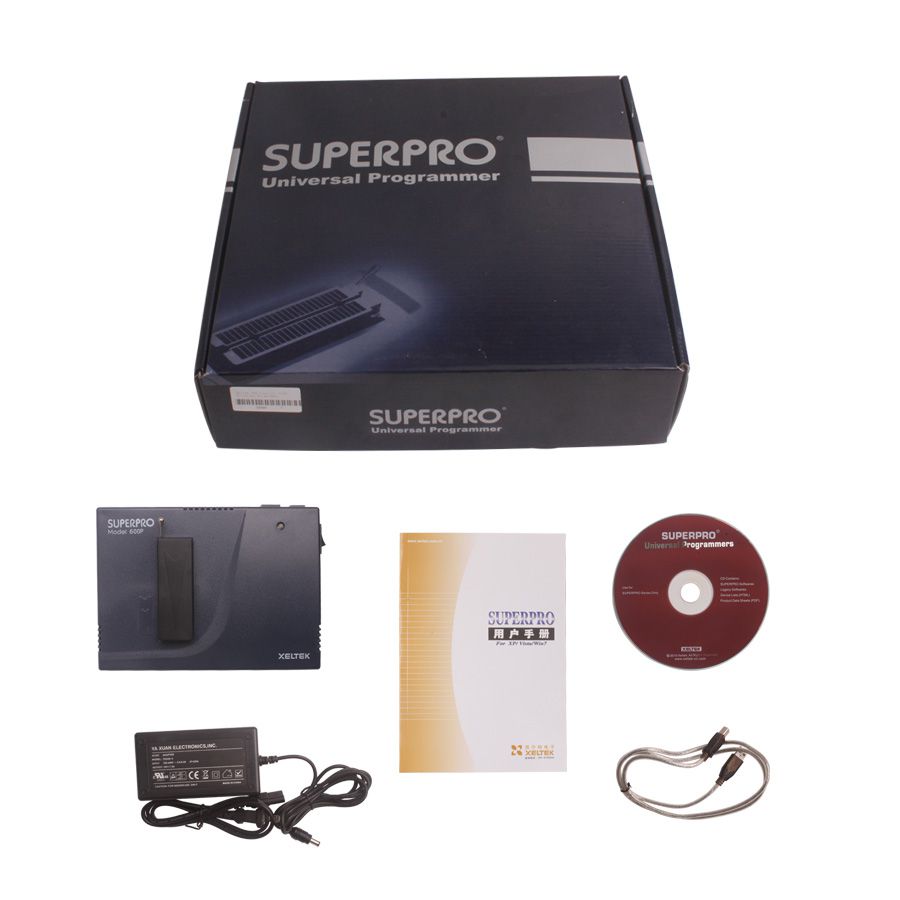

Main unit with a DIP48 adaptor, AC adaptor, USB2.0 cable, software CD (include: install software, user manual), register card
Optional accessories: adaptor in varies packages.
