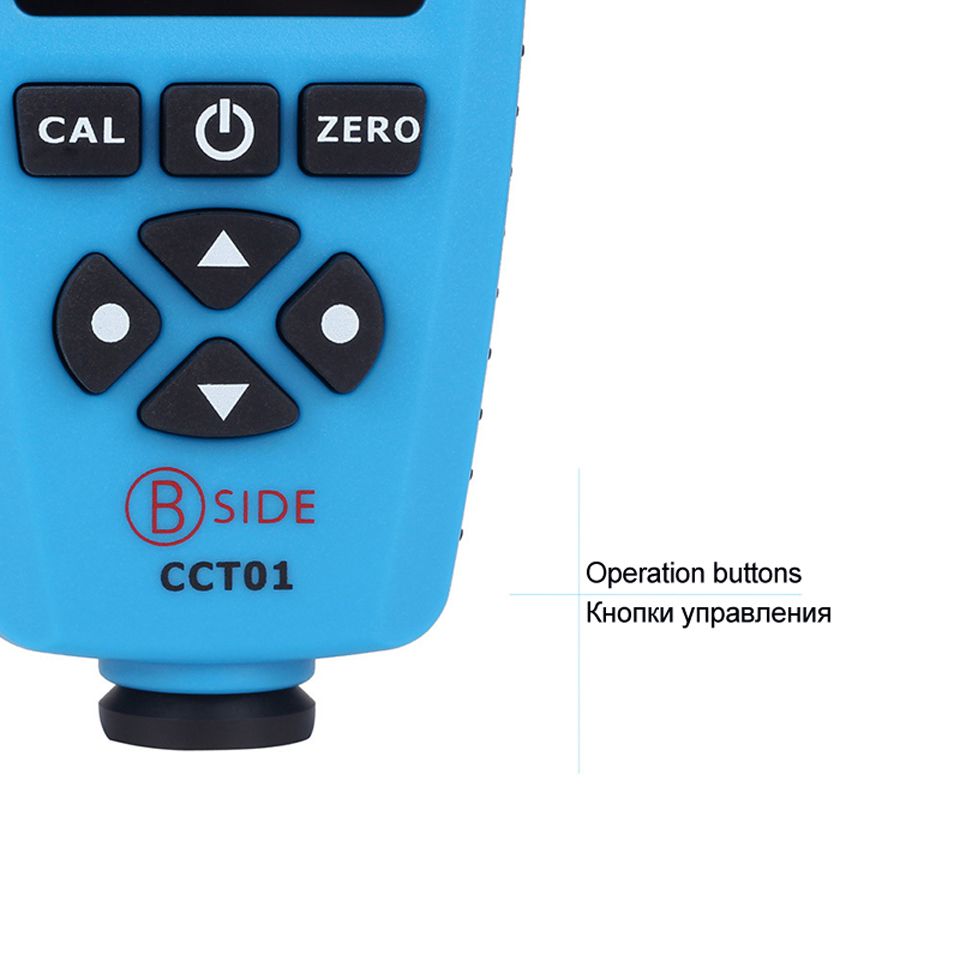

128 x 128 LCD display, standard menu operations.
Two measure modes: single and continuous.
Three probe modes: auto, magnetic and eddy current.

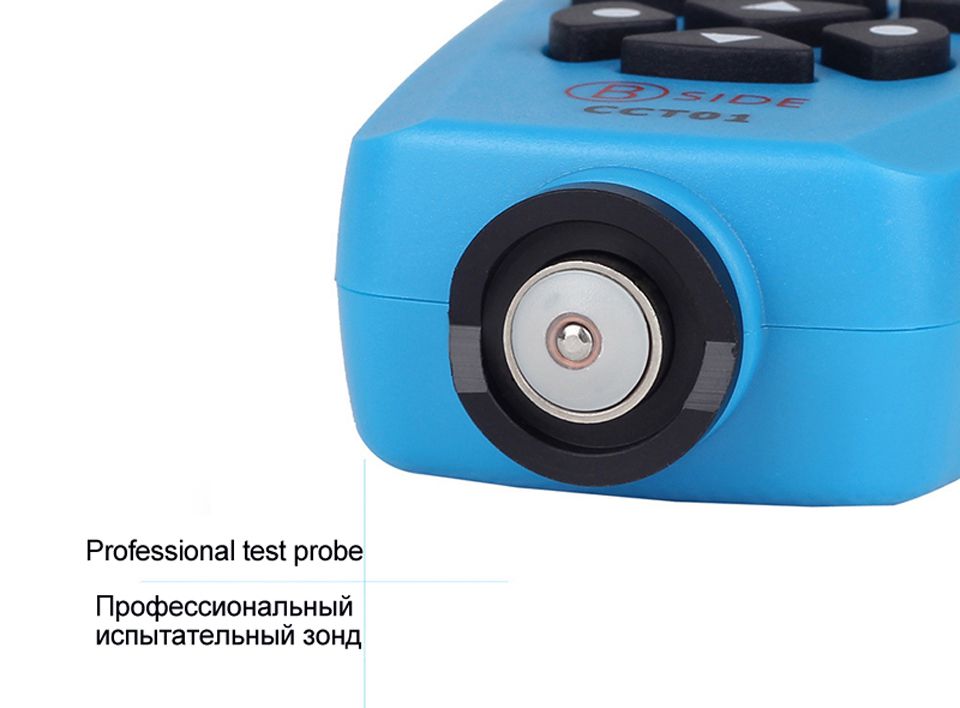

Measuring principle: Magnetic induction (F-probe) and eddy current (N-probe).
Measuring Range: 0~2000μm(0 to 78.769mil)
Accuracy: (F-probe:3%+1μm),(N-probe:3%+1.5μm)
Resolution: 0~99.9 (0.1μm); 100~999 (1μm); ＞1000μm (0.01mm).
Two group modes: direct (DIR) and general (GEN), readings will be lost when power off in direct mode, and not be lost in general mode.
Zero point calibration and multi-point calibration (up to 4 points) for each group.
The users can recall, delete specified readings, or delete group readings.
Statistics display: mean, minimum, maximum and standard deviation.
User can set high or low limit alarm for each group.
Support for English/German Or Russian.

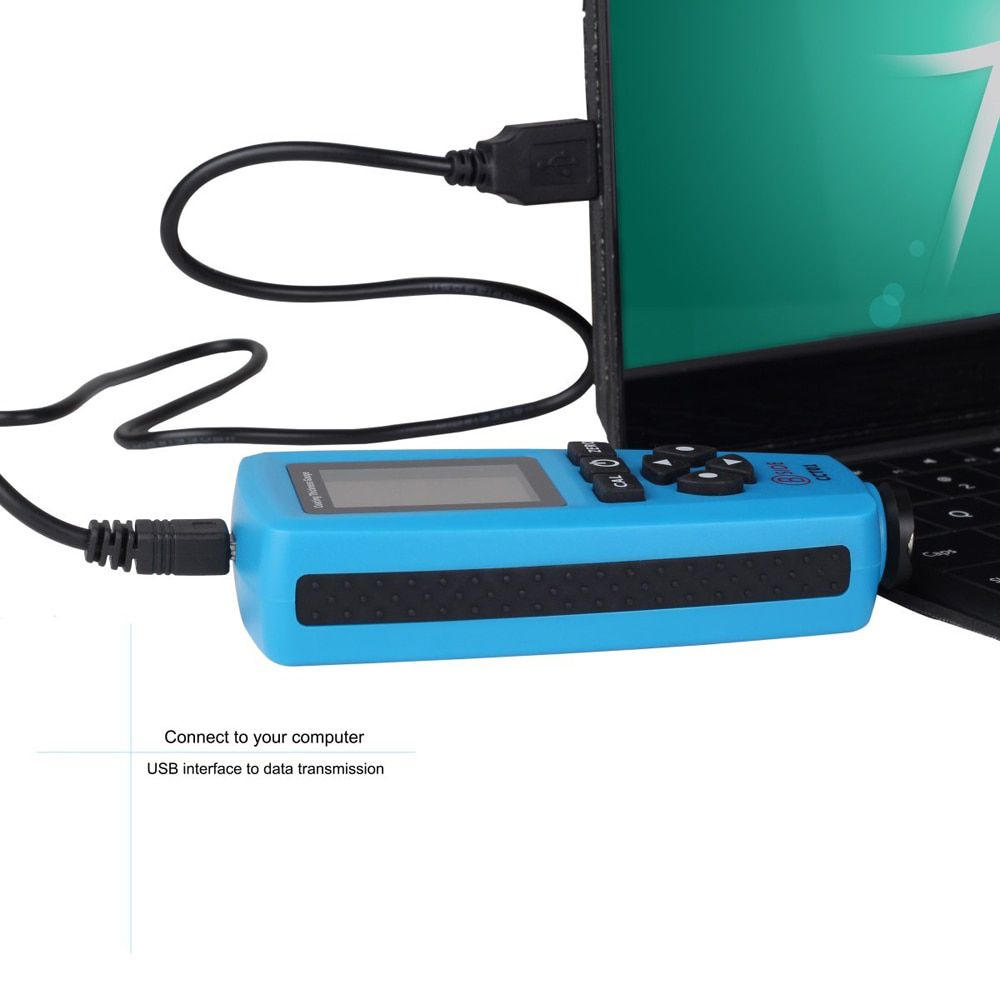

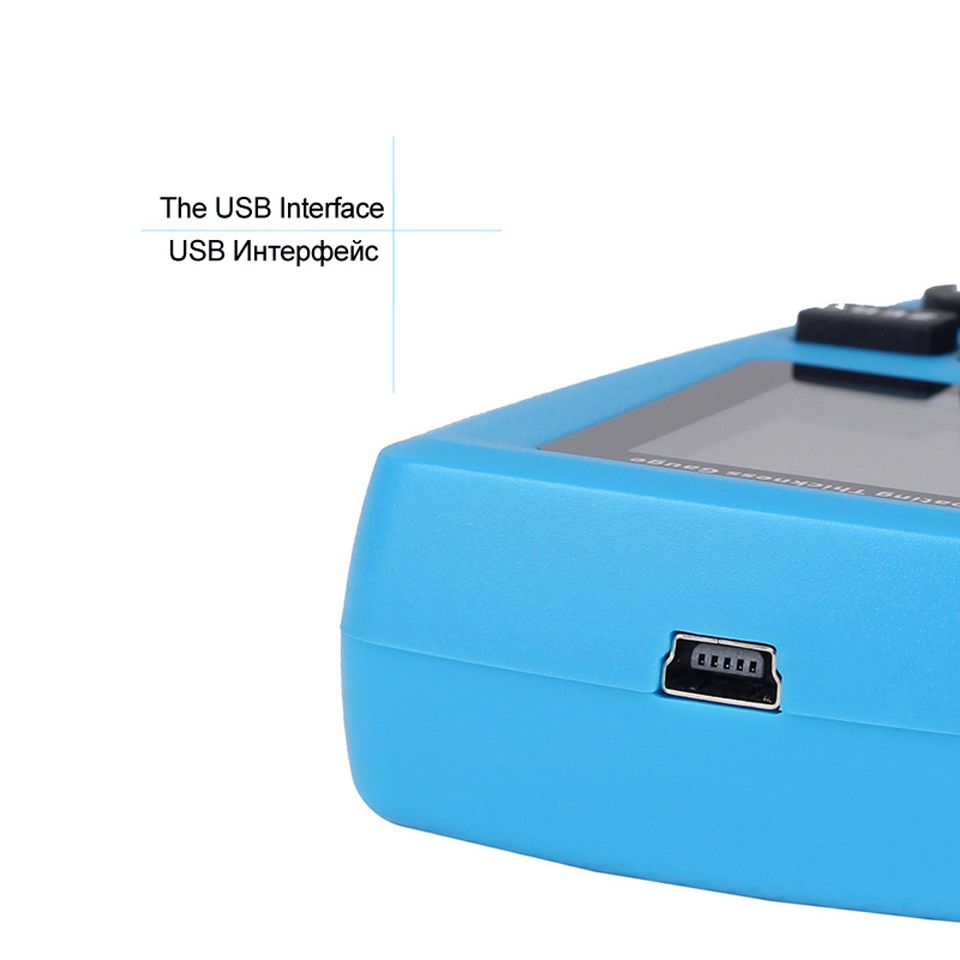

With USB interface for data transmission.

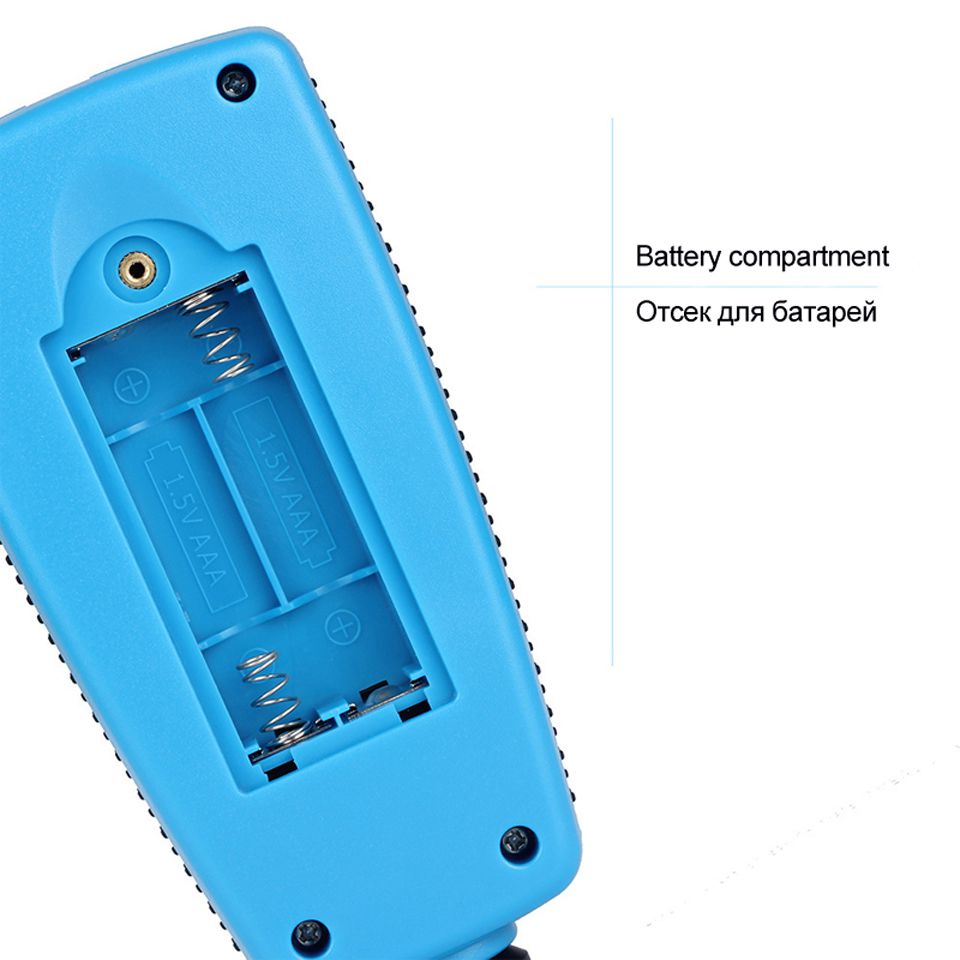

Has Auto Power off, Low battery and error indication function.

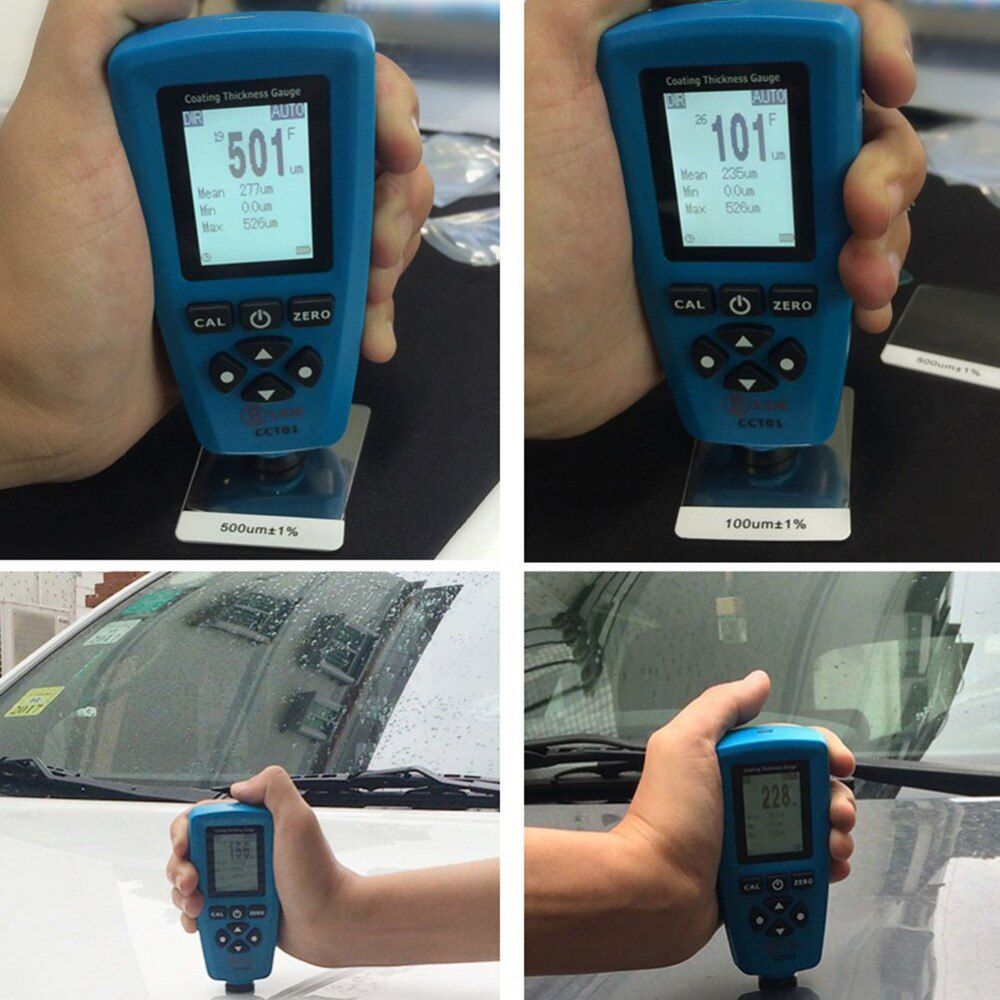

The outstanding advantages of this product: CCT01 coating thickness gauge has excellent compatibility and can test most cars. Can meet your different needs !
Test characteristics:
[Measuring Range]:
-
From 0 to 2000um (0 to 78.769mils); Units: um, mm and mils; Minimum thickness of substrate: F-probe: 0.5mm (0.02"), N-probe: 0.3mm (0.012"); Statistics: No. of readings, mean, minimum, maximum and standard deviation.
[F-Probe/Magnetic Induction]:
-
Can measure the thickness of Non-magnetic coating layers On magnetic substrate. Such as: (aluminum, chrome, copper, enamel, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel).
[N-Probe/Eddy Current]:
-
Can measure the thickness of nonconductive coating layers covered on nonferrous substrate. Such as: (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on nonferrous substrate (aluminum, brass, zinc, tin and nonmagnetic stainless steel).
[Easy to Use]:
-
User does all operations via standard menu so easily; Power off automatically; USB interface to data transmission; Low battery and error indication; User can set high or low limit alarm for each group. Support for English and German.
[Wide Application]:
-
Ideal for manufacturing company, shipbuilding, aircraft industries, metal machinery industry, chemical industry, especially in automobile/car trading.

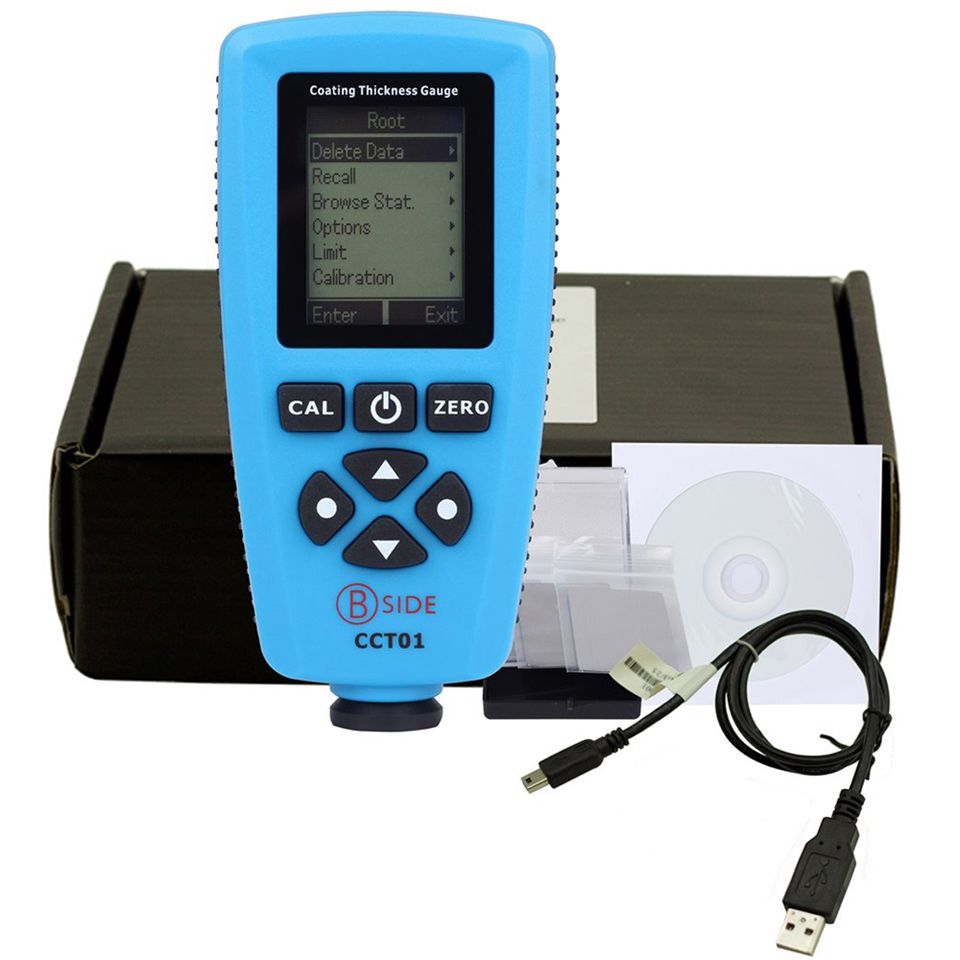

Package Includes:
-
1 x CCT01 Thickness Gauge
-
1 x Fe Substrate
-
1 x Al Substrate
-
1 x USB Cable
-
1 x Software CD
-
5 x Calibration Card
-
1 x Technical manua
