OBDSTAR iScan Harley Motorcycle Diagnostic Tool and Key Programmer

OBDSTAR iScan Harley Motorcycle Diagnostic Tool and Key Programmer

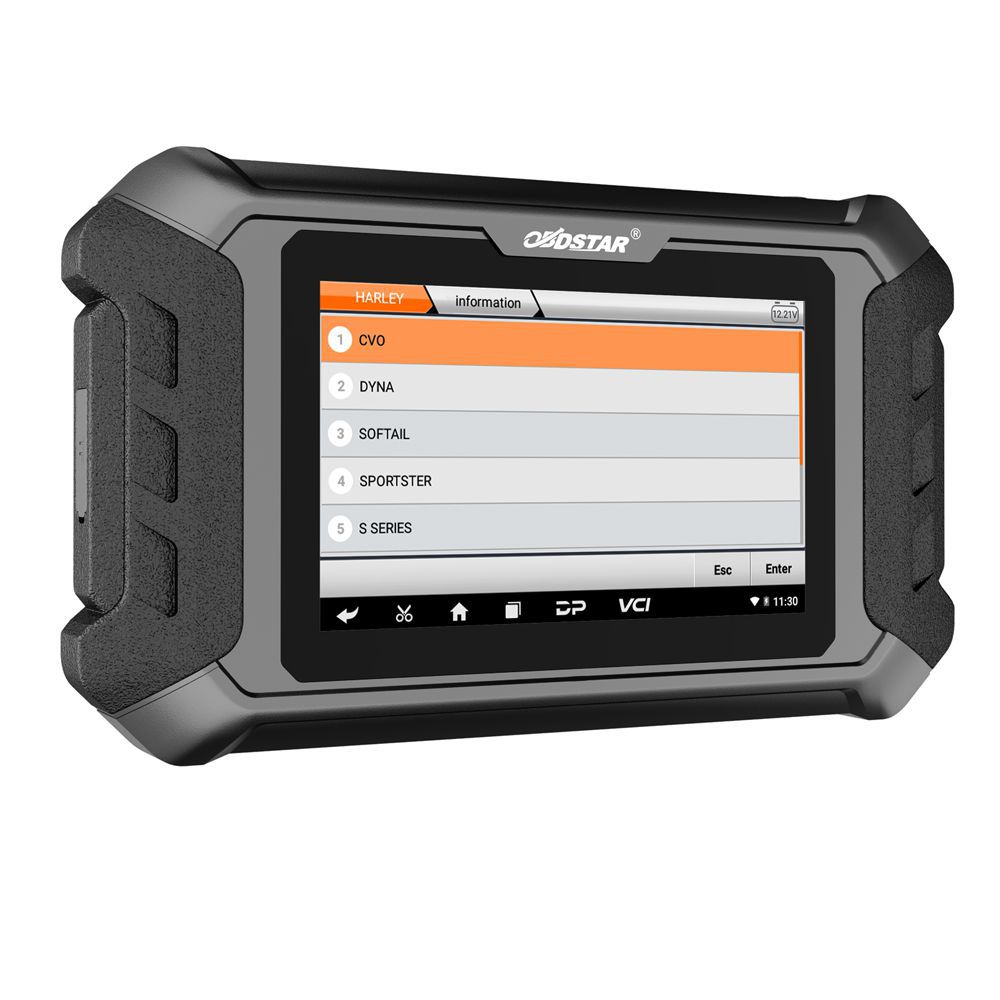

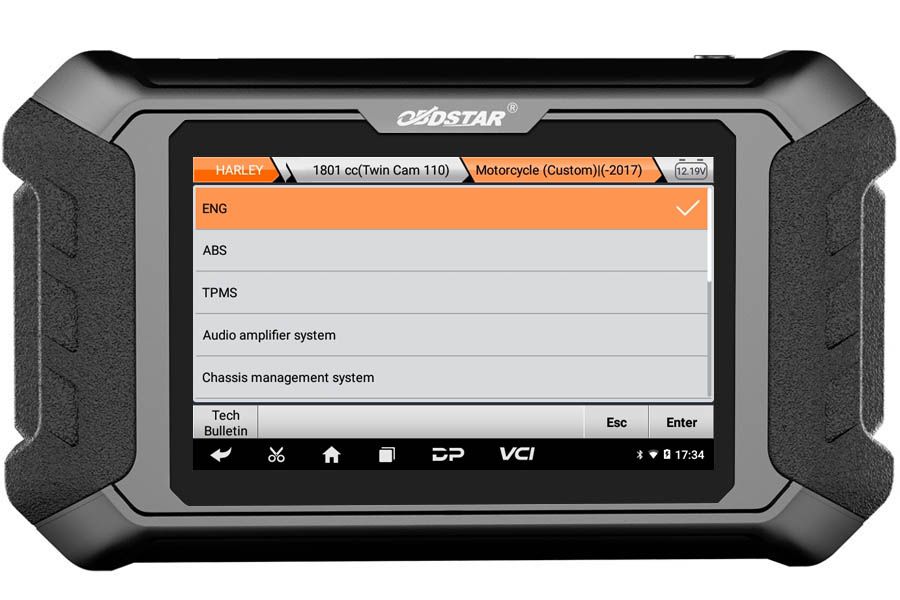

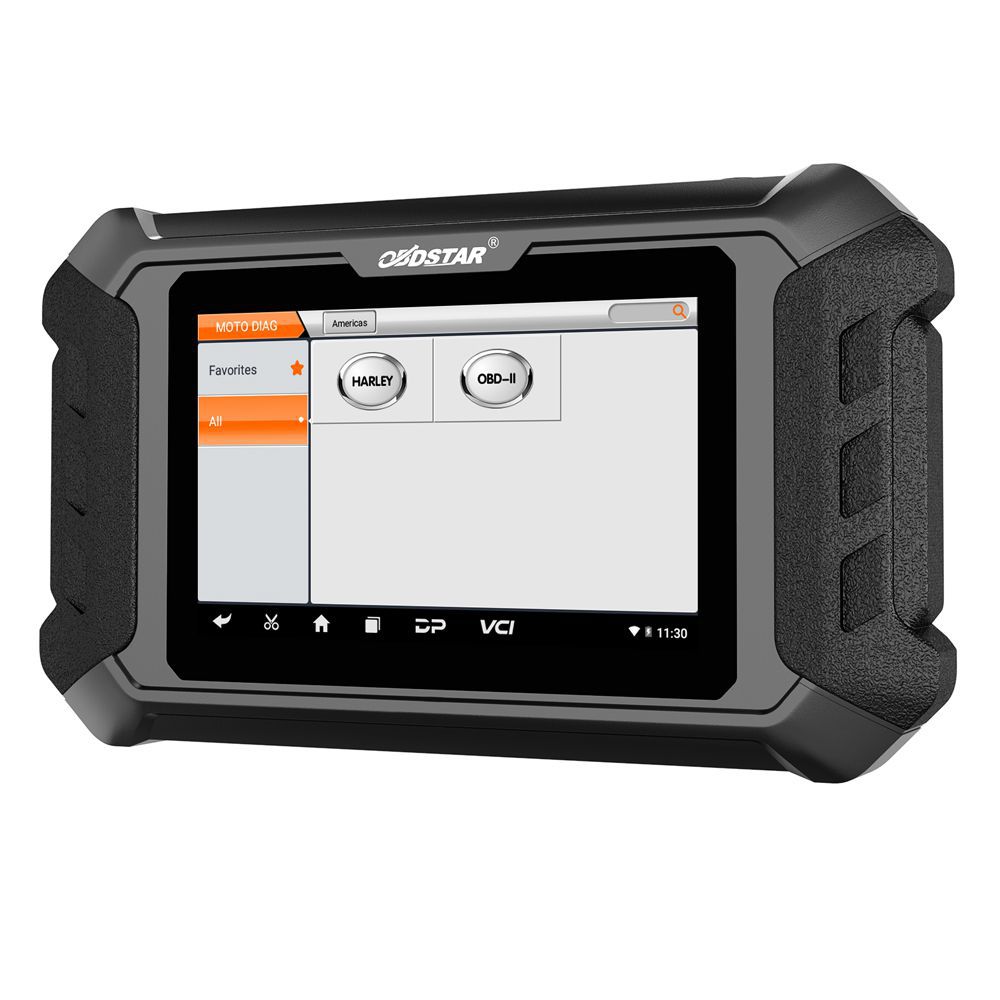

OBDSTAR iScan Harley is a professional Harley motorcycle diagnostic scanner and immobilizer tool. It is a portable tablet with stylish appearance. Designed with ingenuity and practicality, it is a perfect tool for Harley motorcycle maintenance and repair. Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, OBDSTAR iScan Harley brings its customers professional diagnostic experience and good user experience.


OBDSTAR iScan Harley is a new generation of intelligent motorcycle diagnostic equipment which supports automatic scanning and VIN recognition, IMMO, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset and clear computer memory, etc.

Basic Functions of OBDSTAR iScan Harley:

1. New android 5.1.1 operation system;

2. Simple and intuitive menu guidance allows you to quickly understand how to use the tablet;

3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;

4. Menu selection is more convenient and quick;

5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;

6. Wi-Fi connection to the internet, one-click software upgrade;

7. One-click remote function, OBDSTAR technical staff offer remote assistance.

Advanced Functions of OBDSTAR iScan Harley:

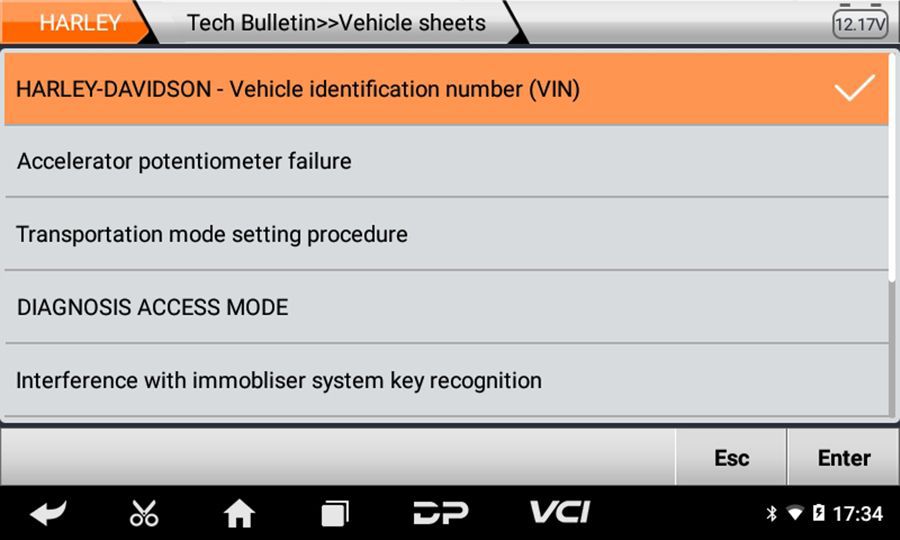

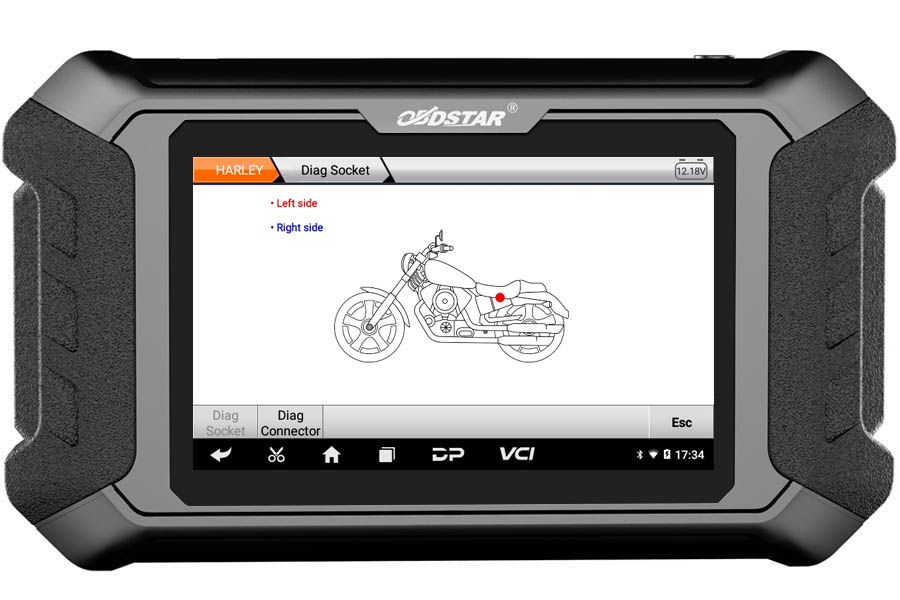

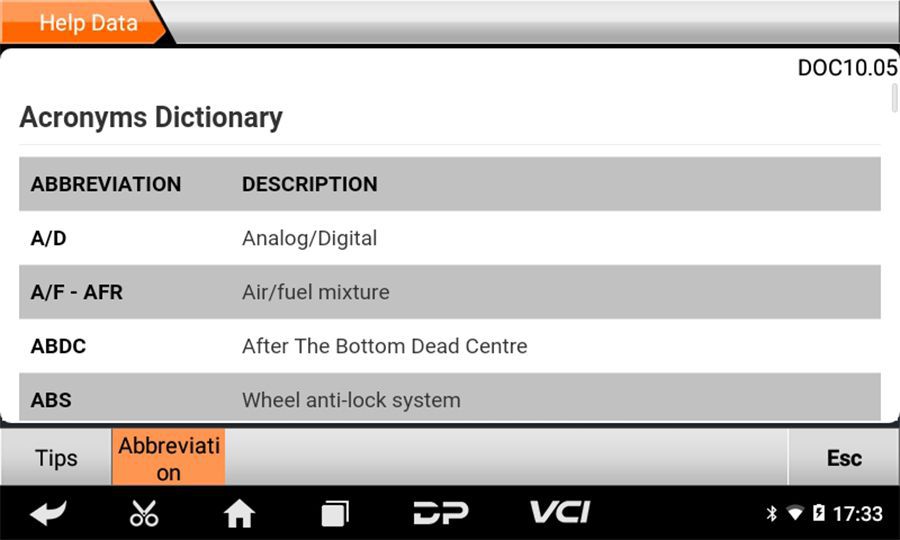

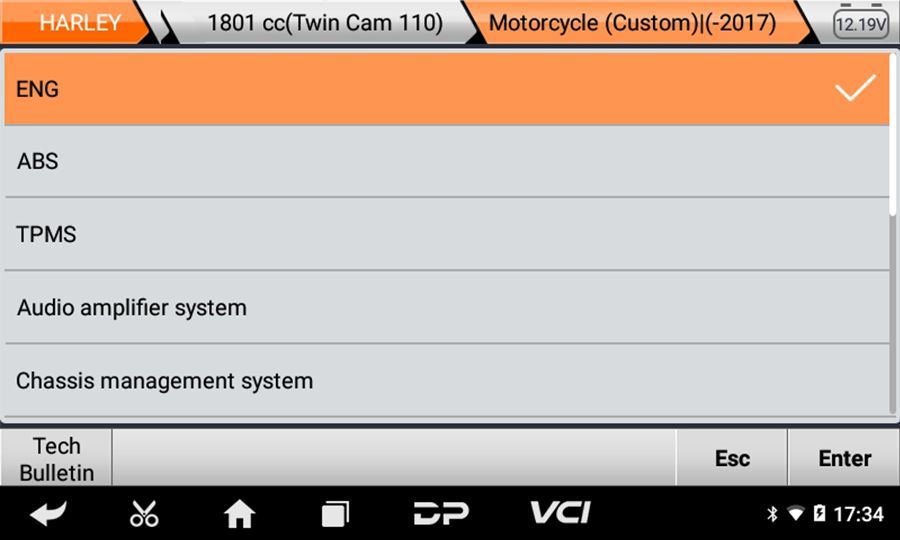

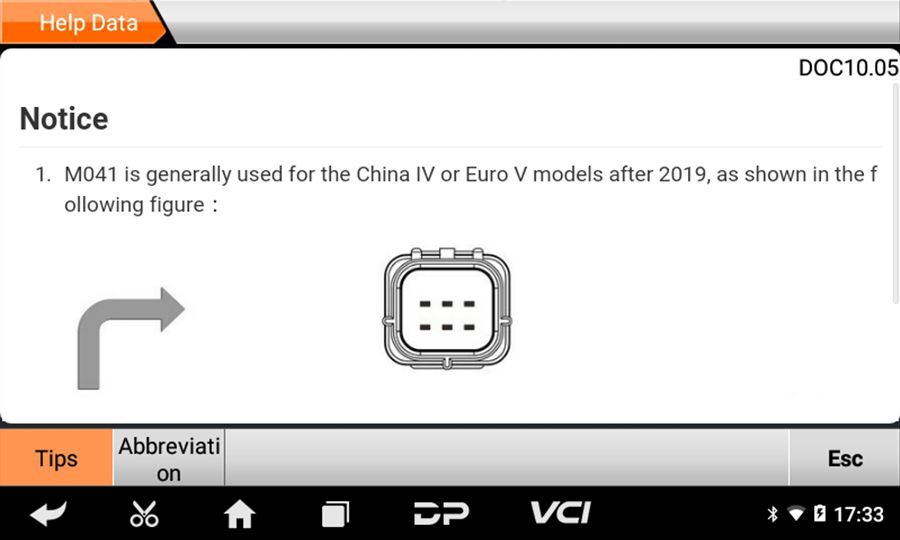

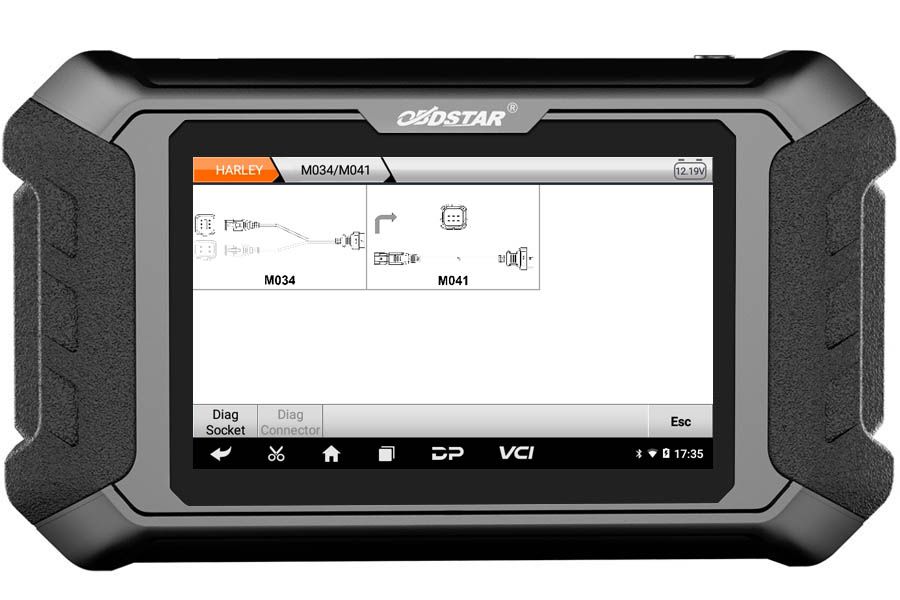

1. The first fault guidance, help data, technical bulletin, diag socket etc help you diagnose accurately and efficiently;

2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allow you to easily analyze faults;

3. Automatic scanning, automatic VIN recognition, IMMO, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.

The Specifications of OBDSTAR iScan Harley:

Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	2600mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
Storage capacity	16GB
LCD	5.0 inch
LCD resolution	800*480
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-20℃~55℃ (14℉~131℉)
Storage temperature	-20℃~70℃ (-4℉~158℉)
Weight	About 700g

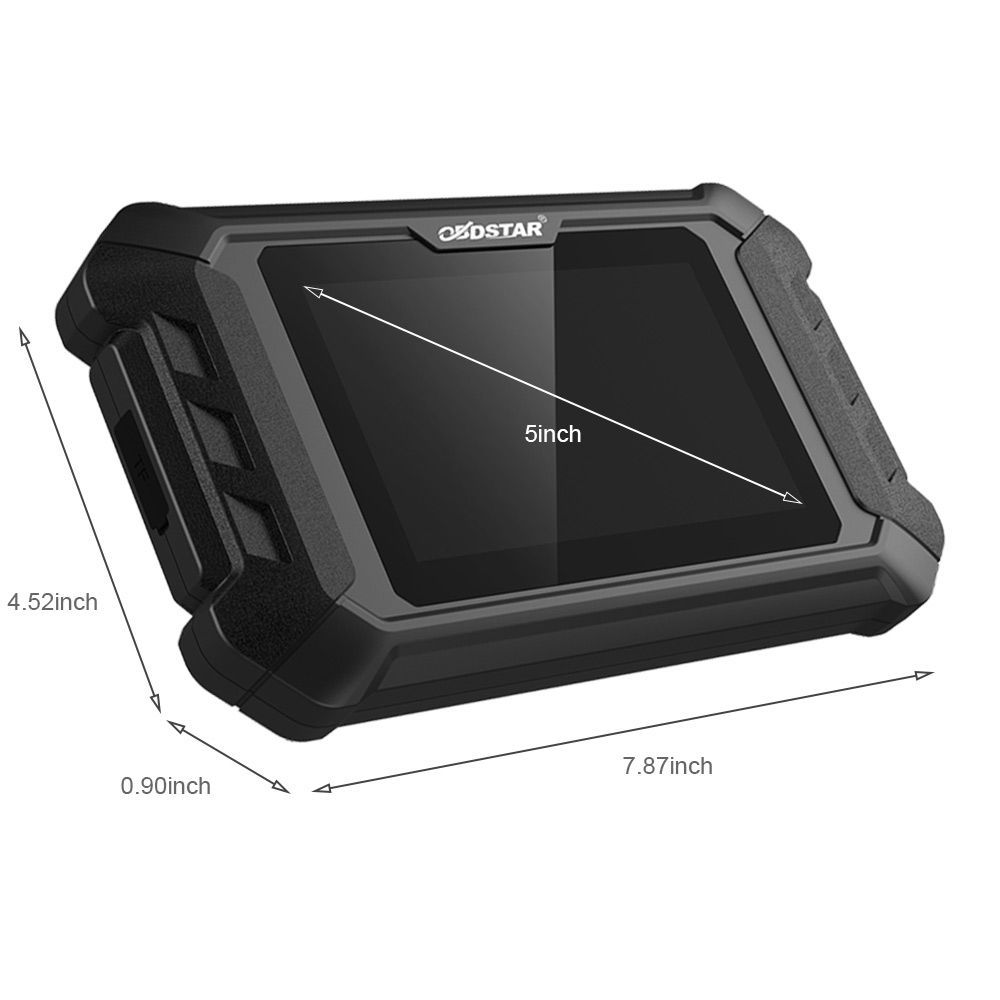

Dimension	198mm*115*mm*31mm

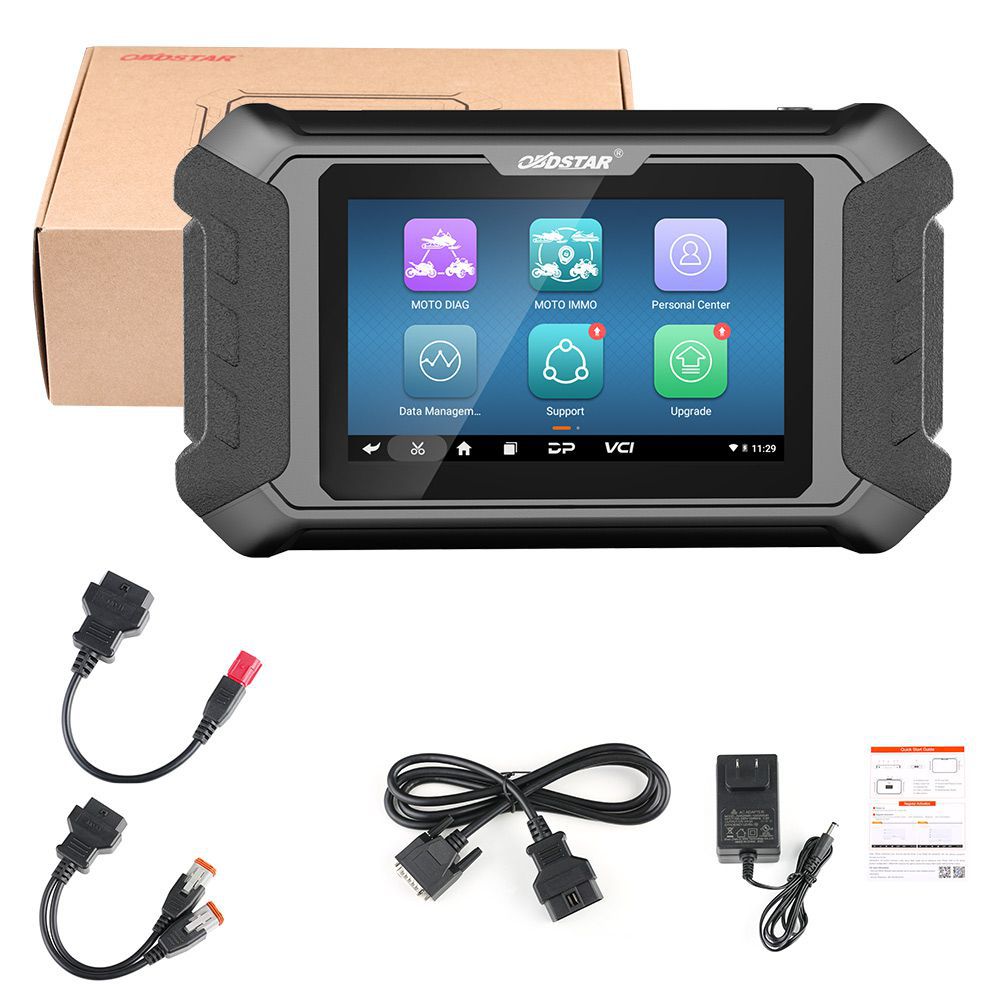

Package Includes:

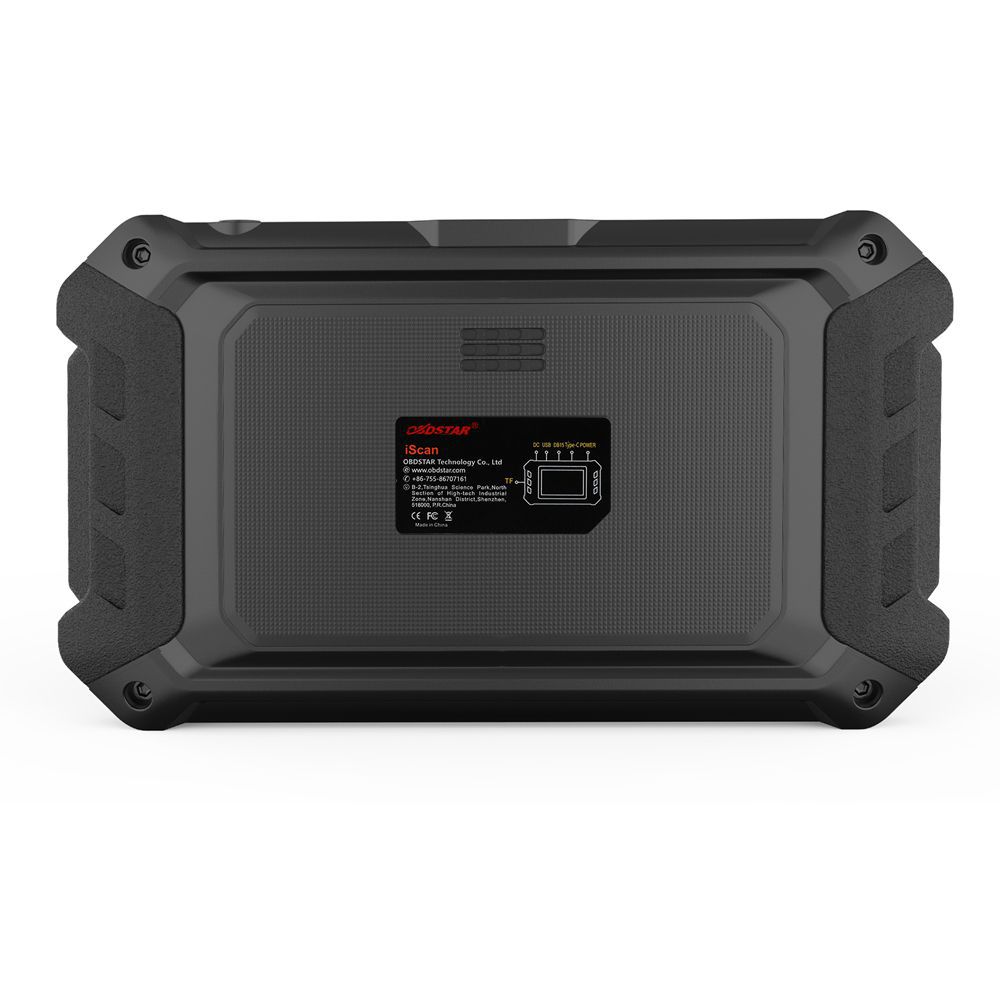

1pc x iScan Harley Main Unit

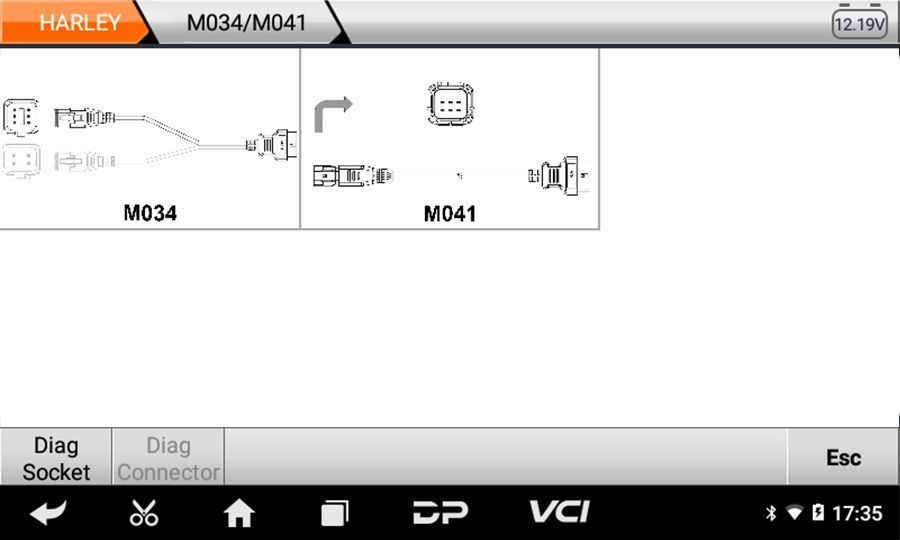

1pc x M001 iScan Harley Main Cable

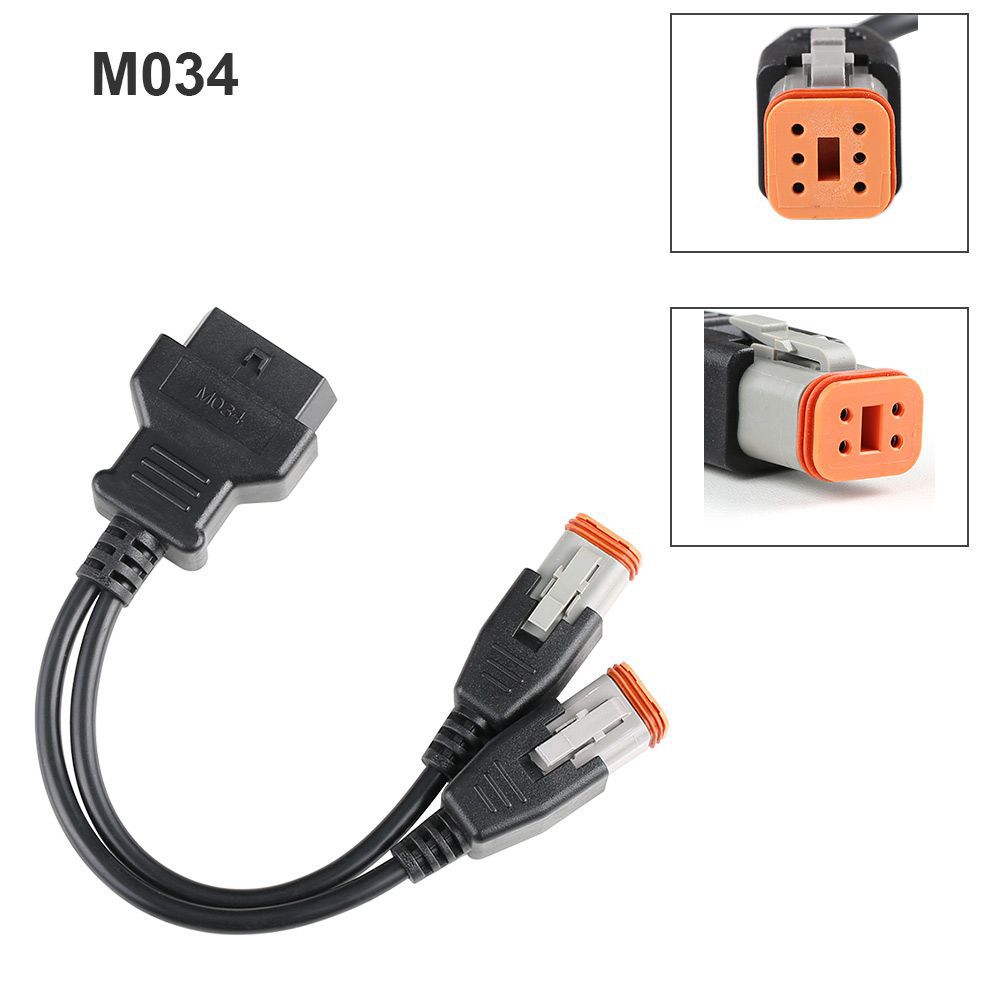

1pc x M034 Harley Davidson

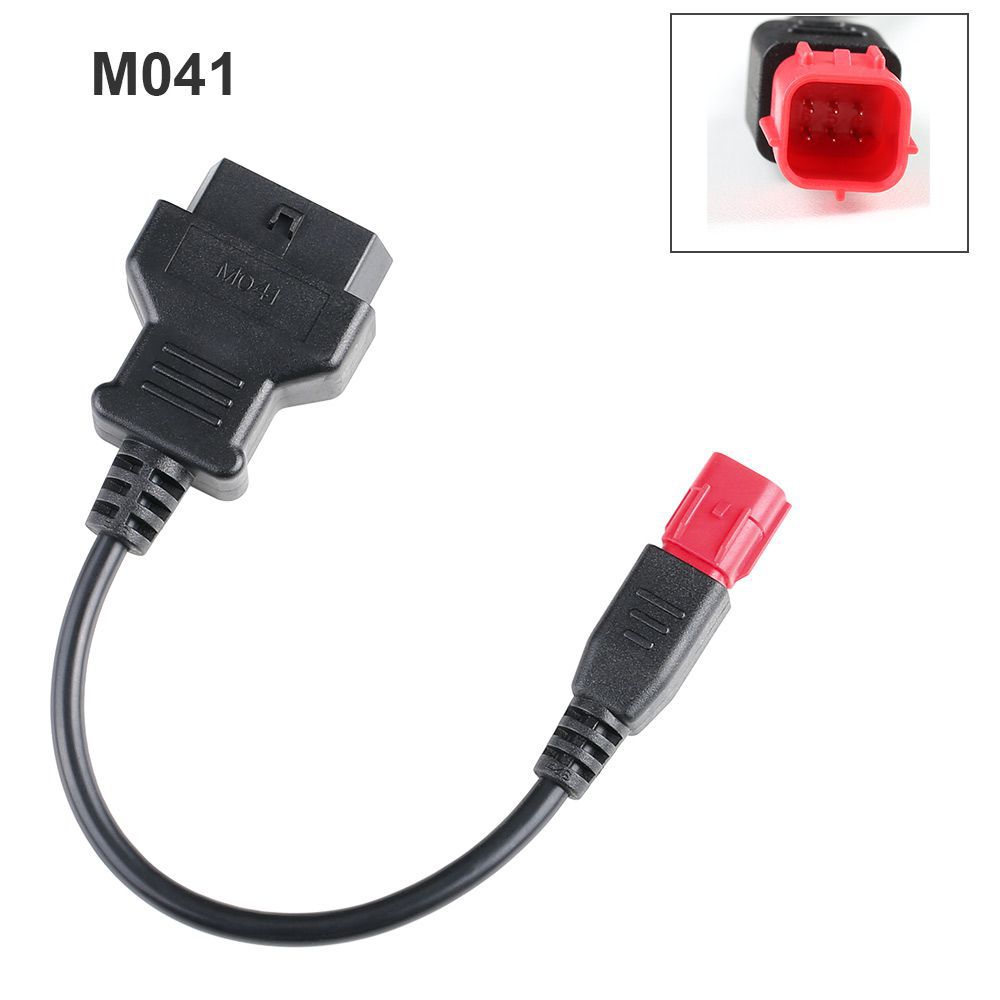

1pc x M041 Euro V
1pc x 12V2A charger
1pc x English Manual
