Description
0-60 Degree Cabinet Mechanical Temperature Controller Normally Open / Closed Compact Thermostat Thermoregulator for Heating Cooling
Feature:
The temperature control range is from 0° to 60°, and the thermostat shell is made of high-quality plastic material, with fine workmanship, environmental protection, safety, and durability.

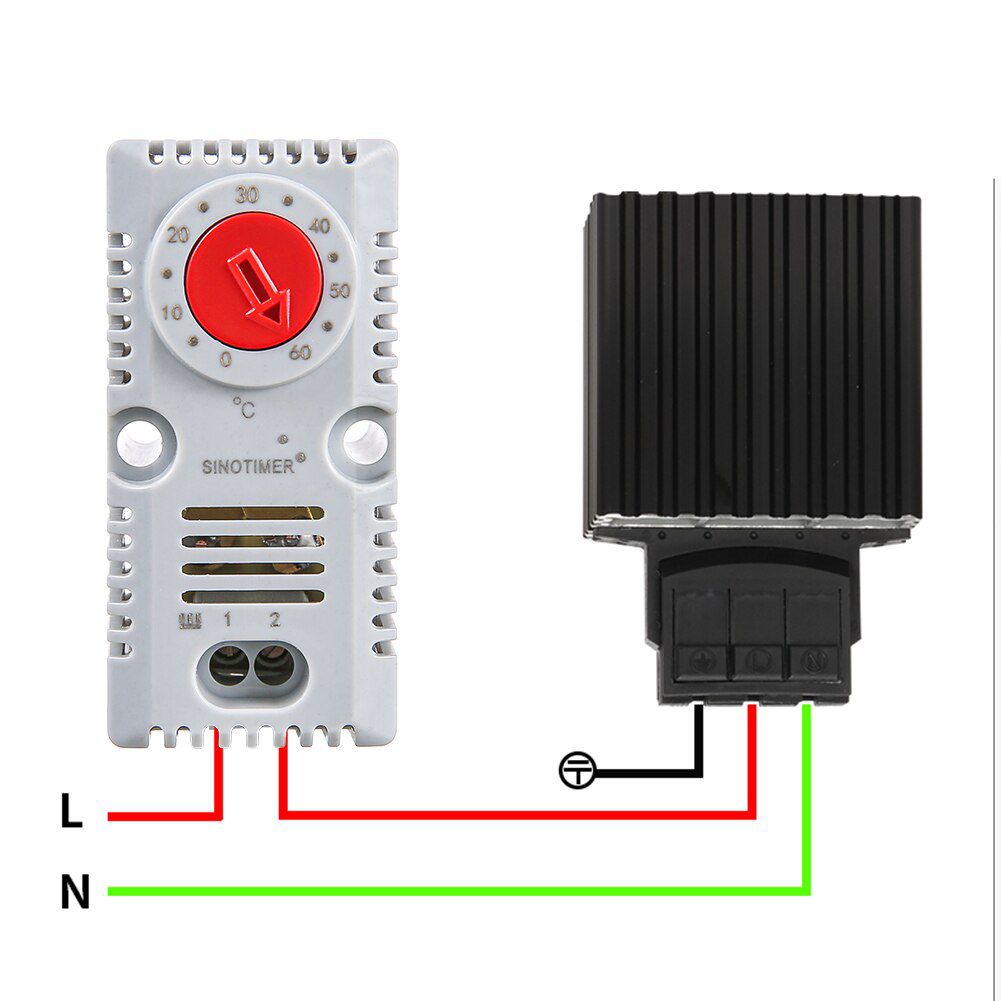

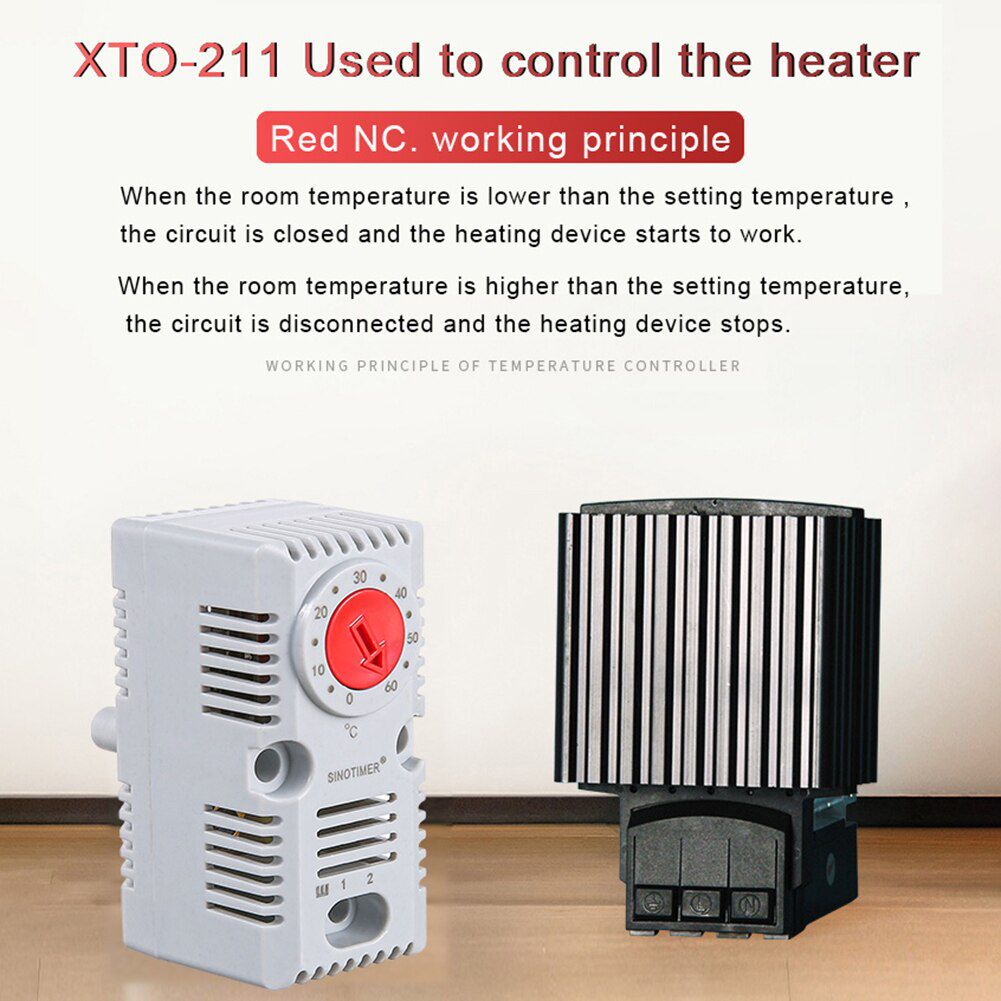

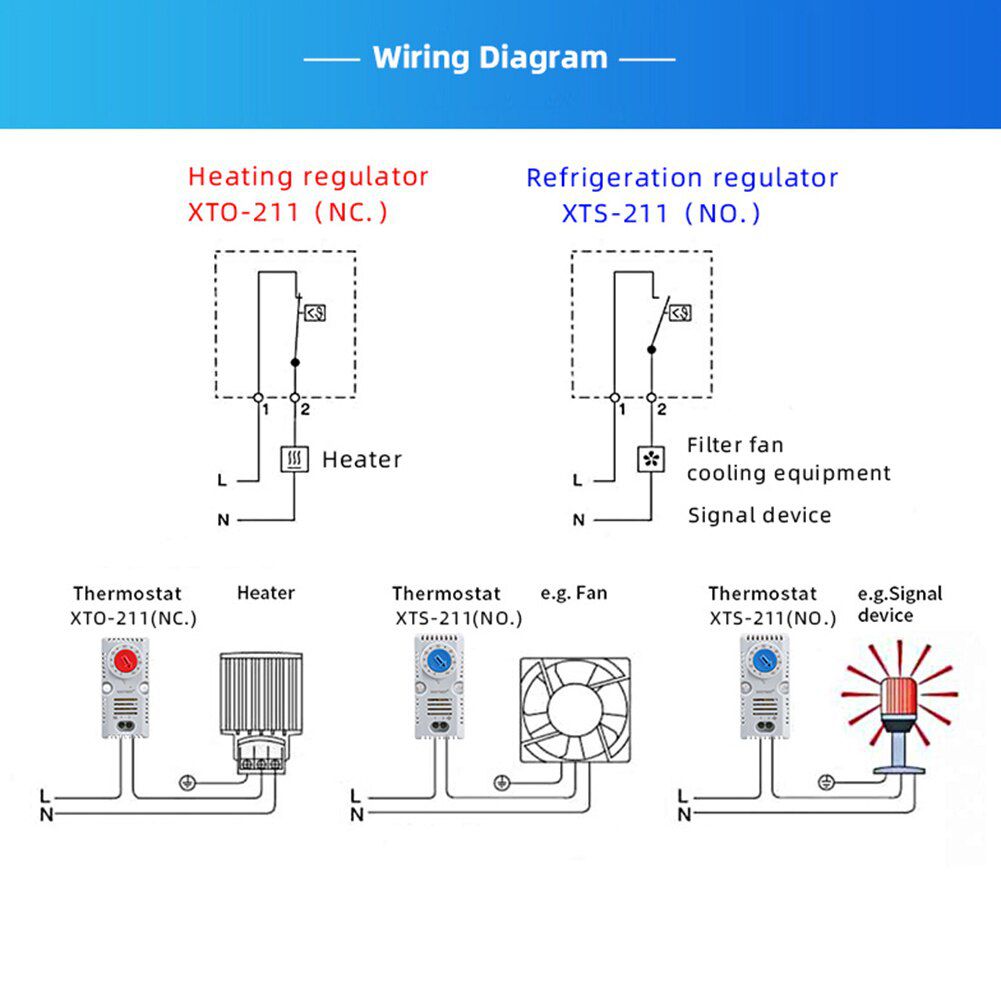

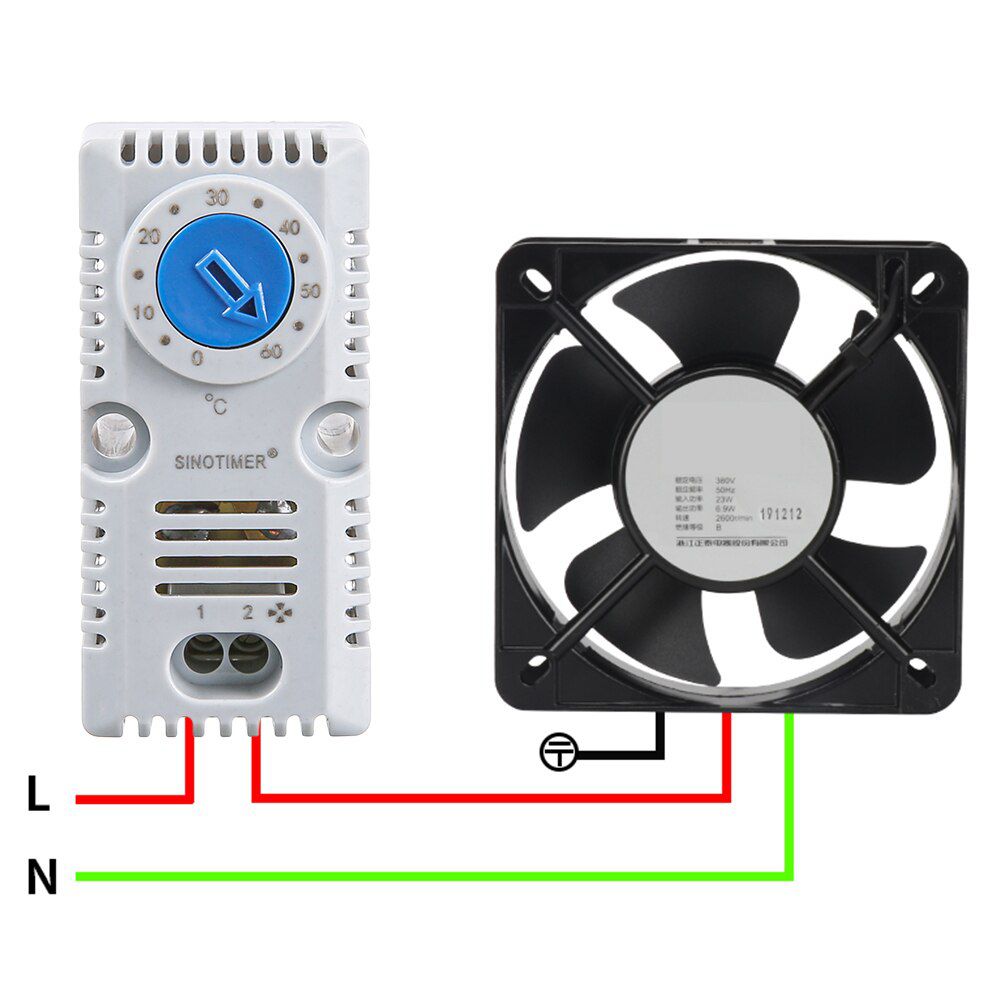

The temperature controller is used to regulate heating equipment, cooling equipment, filter fans and heat exchangers.

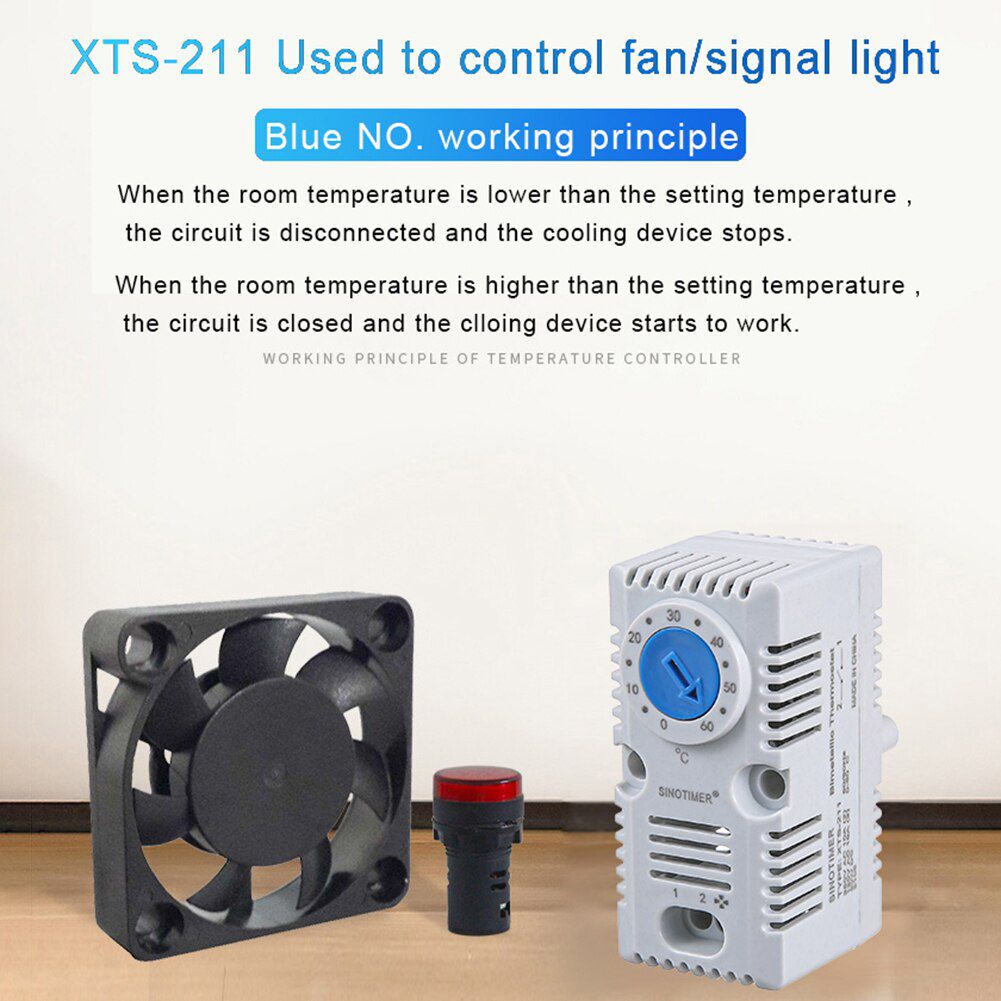

In addition, the temperature controller can also be used as a switch contact of a signal device, as a low temperature or high temperature alarm.

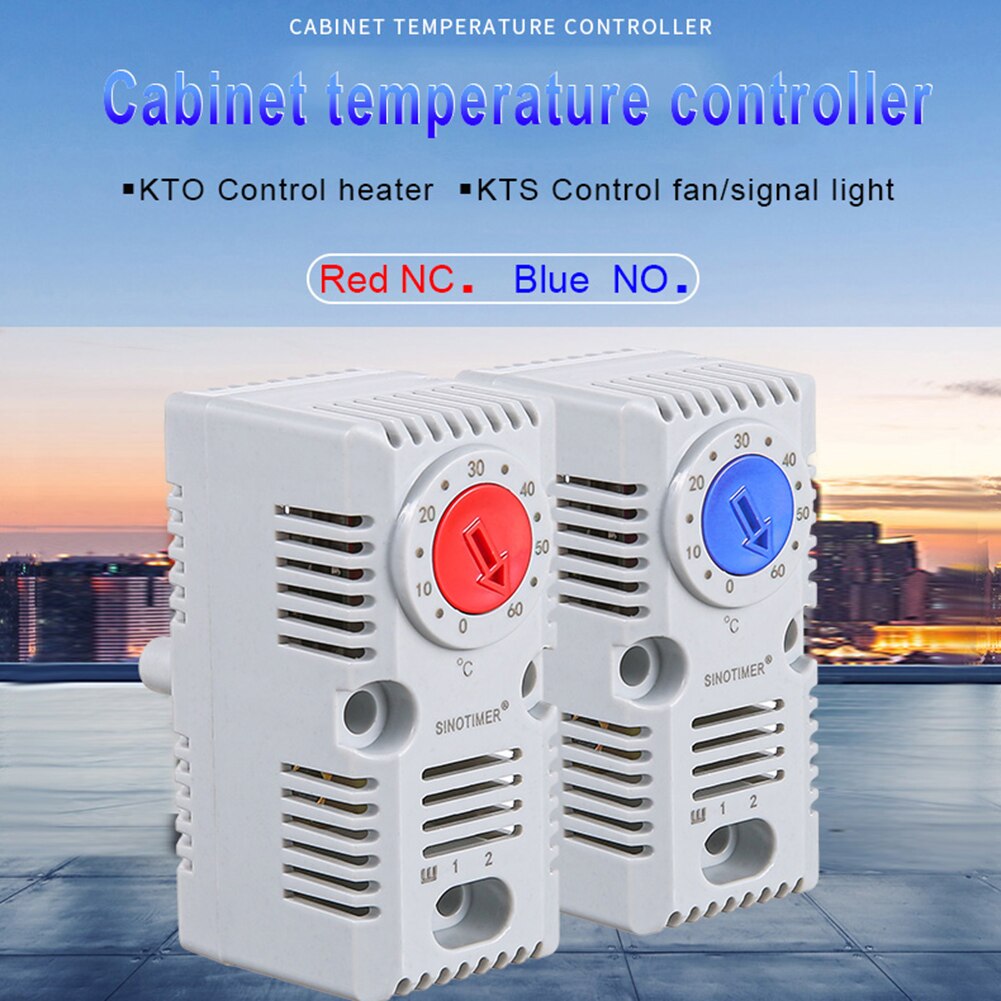

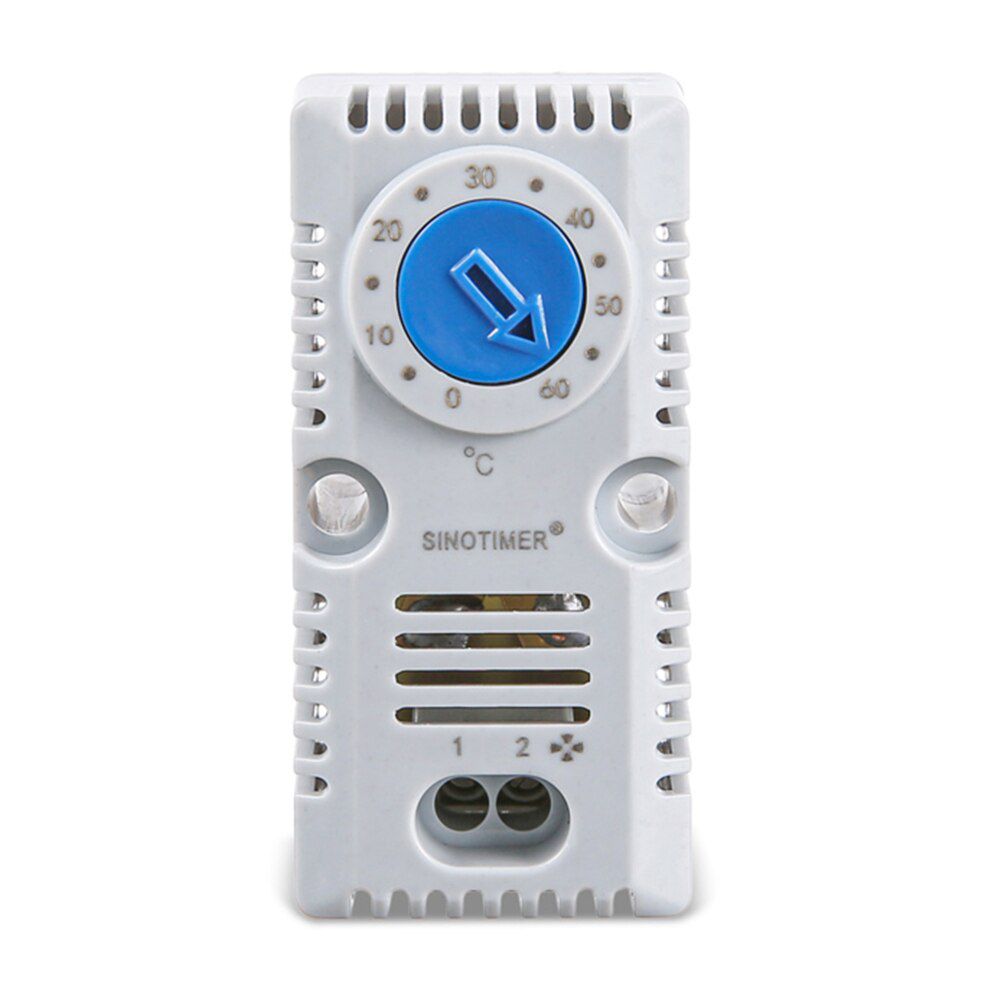

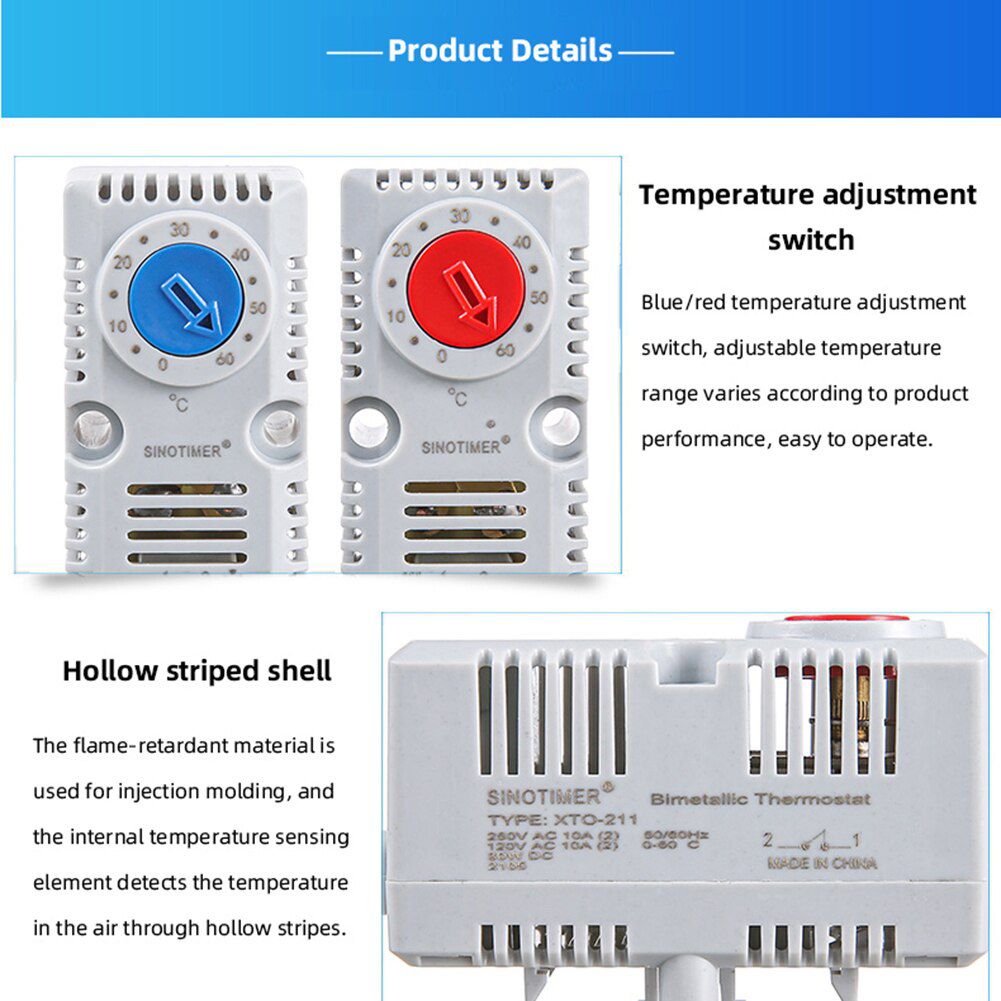

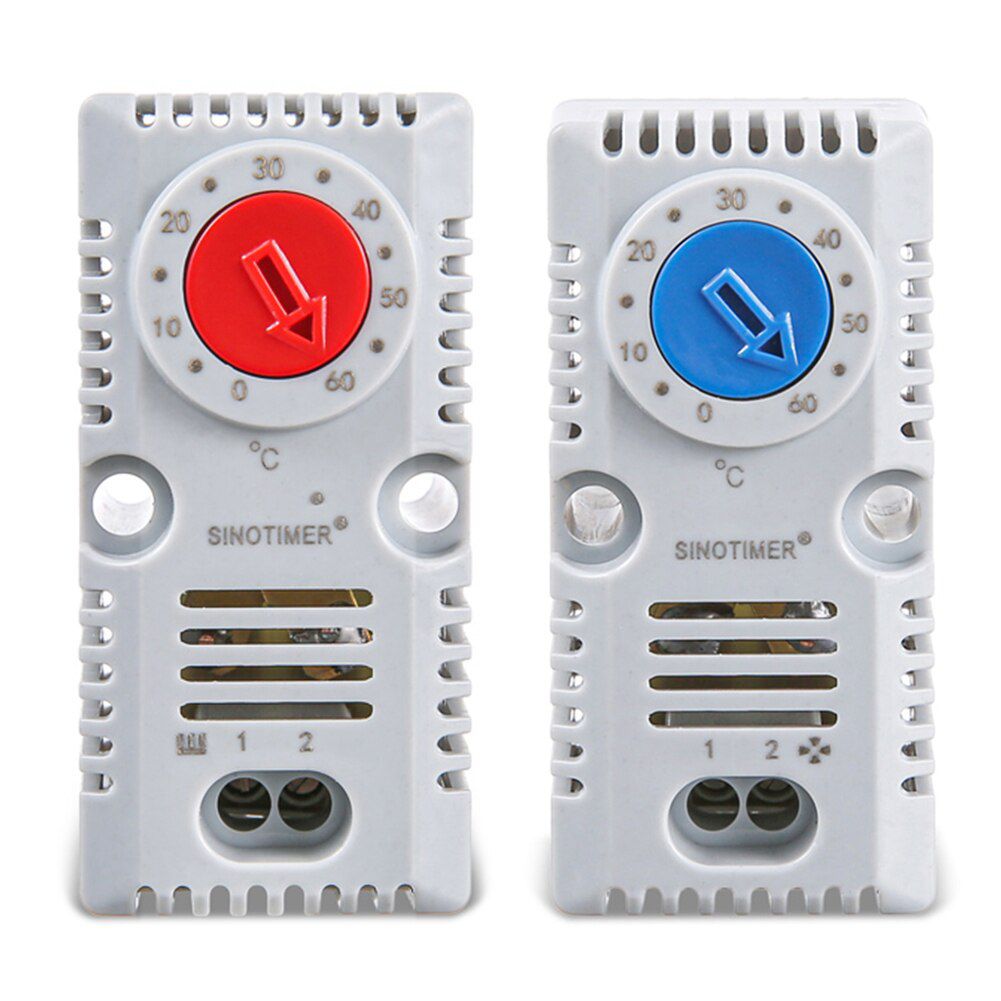

Large data scale, adjustable buttons, easy and convenient to adjust and control the temperature, and the button color(red/blue) of thermostat could be choose for you.

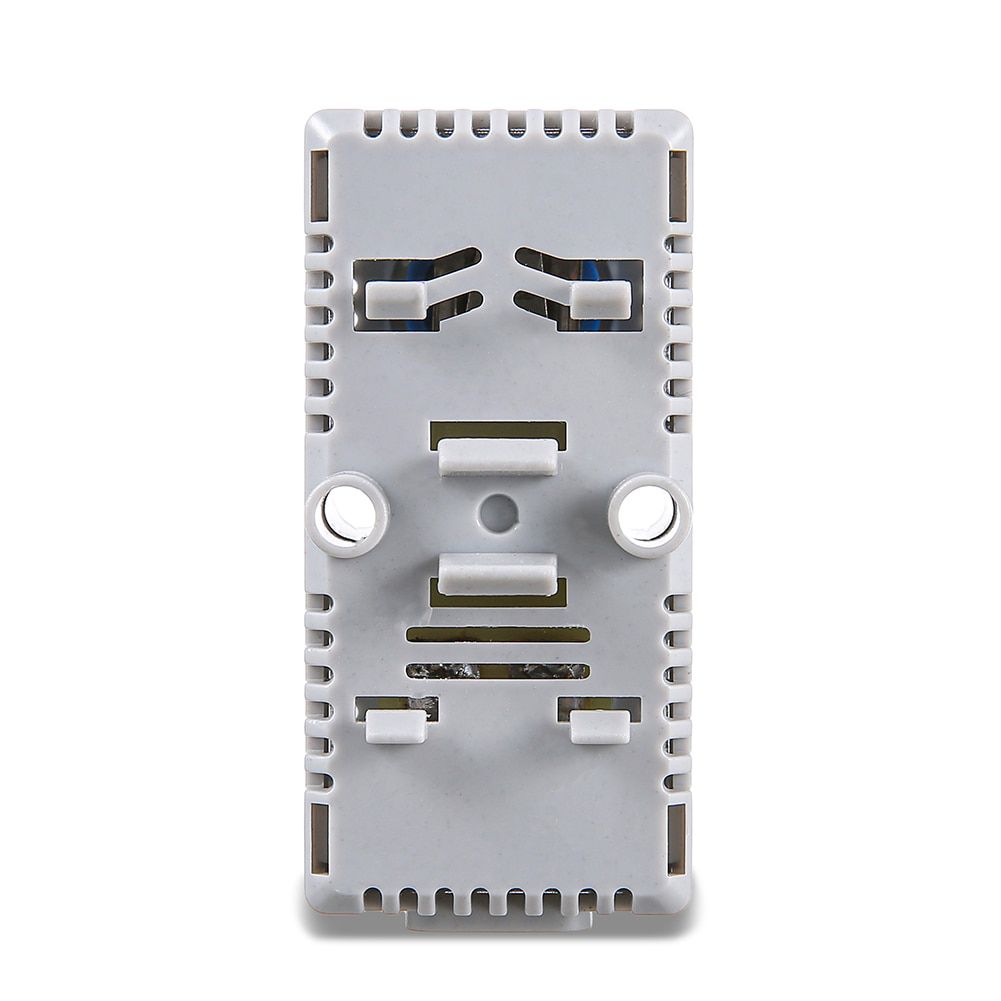

It adopts standard guide rail clamp design, 4 feet seat, easy to install and disassemble.

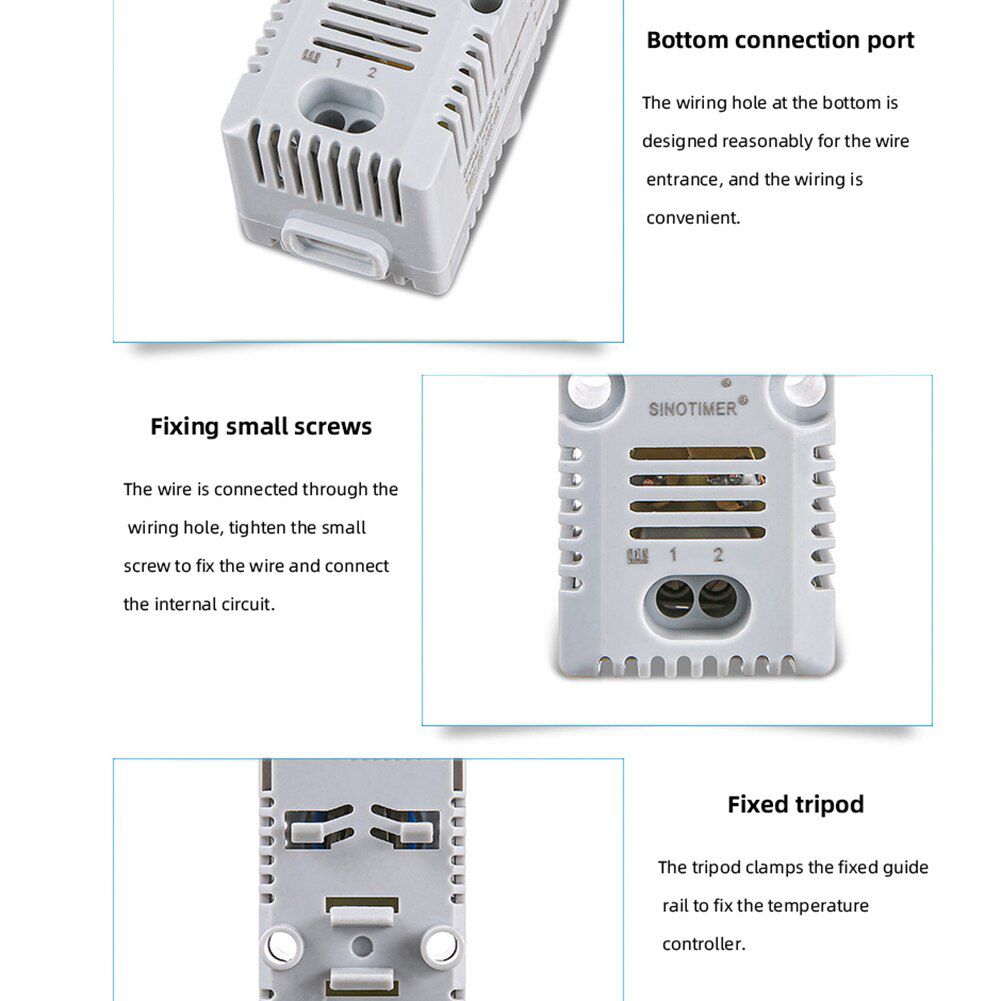

The circuit interface at the bottom of the thermostat can make the wiring firmer and safer.

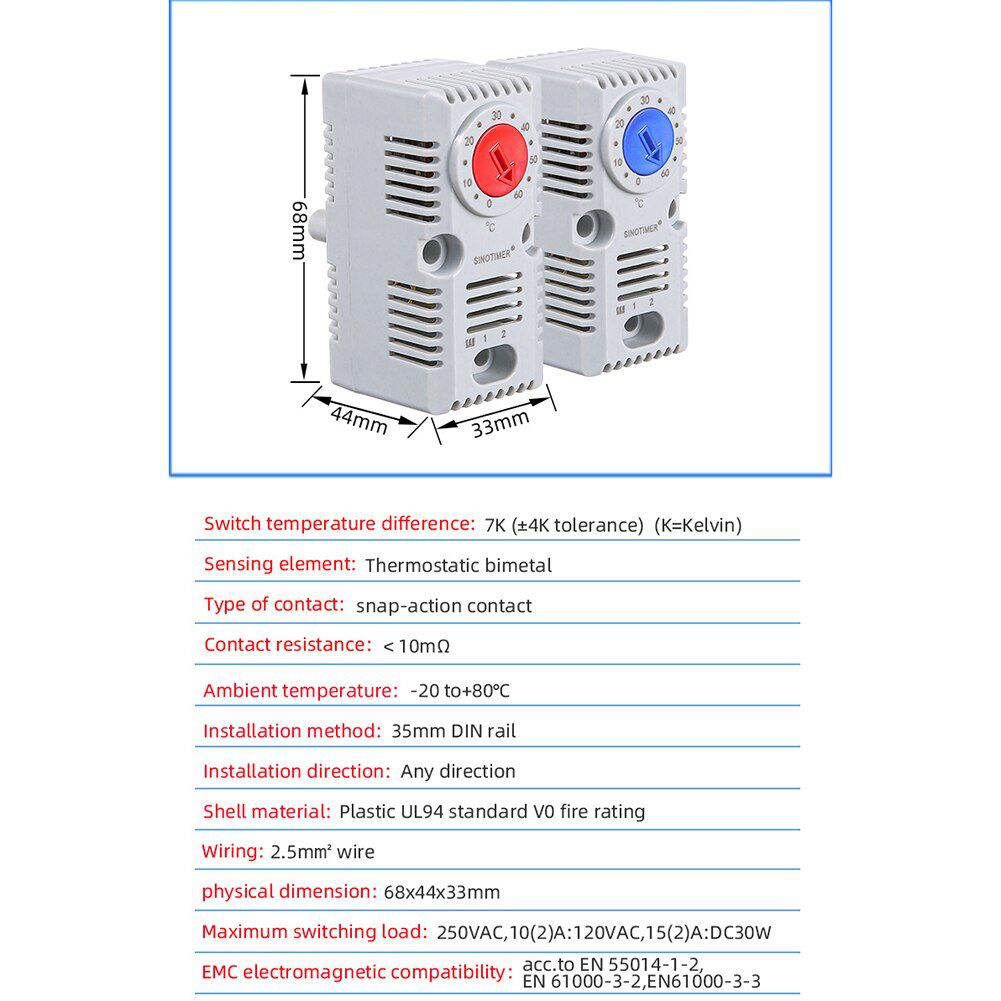

Specification:
Material: ABS + electronic components
Size: 68*44*33mm
Color: Red, Blue
Control temperature range: 0-60°C
Switch temperature difference: 7K (±4K tolerance)

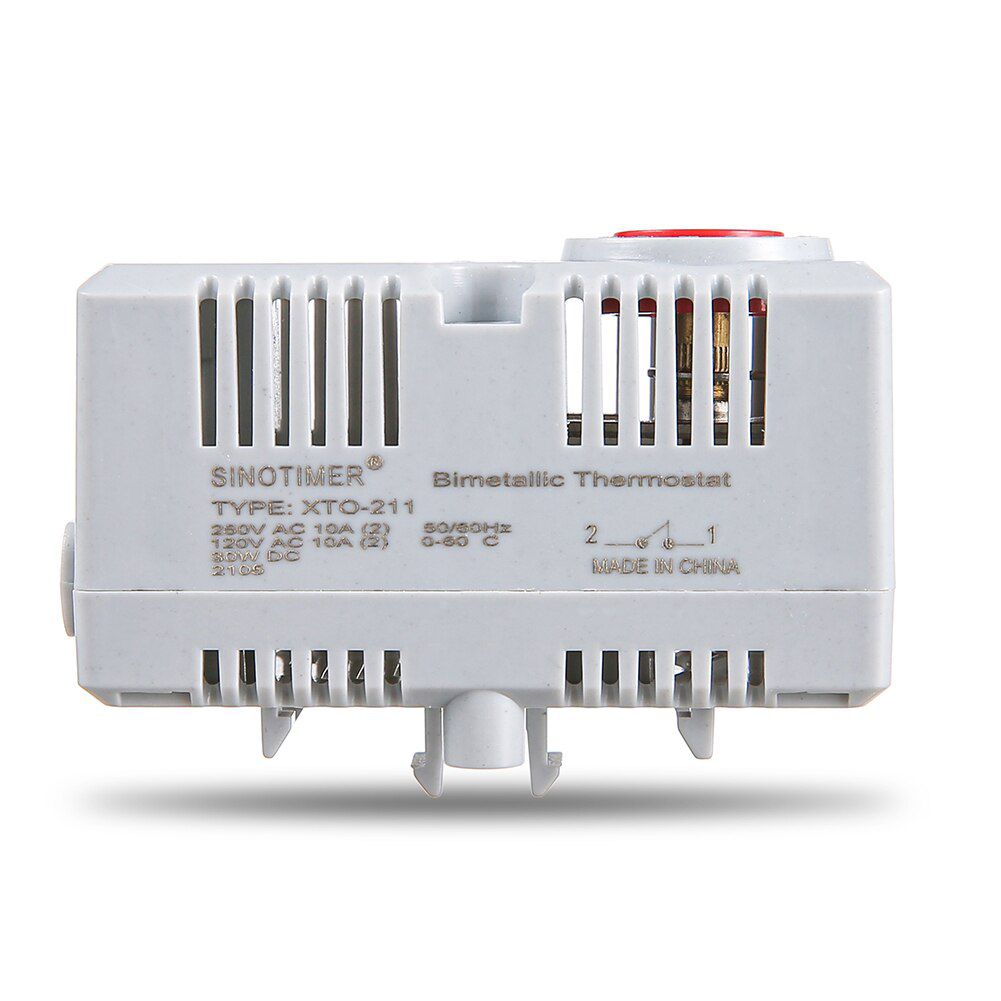

Sensor element: Constant temperature bimetal
Contact type: Snap-action contact
Service life:> 100,000 cycles
Wiring mode: Maximum clamping torque 0.5Nm: hard wire 2.5mm²; stranded wire (with wire end ferrule) 1.5mm²
Installation: for 35mm DIN rail
Shell: Plastic, light gray
Operating/storage temperature: -45 to +80°C (-49 to +176°F)
Operating/storage humidity: Maximum 90% RH (non-condensing)
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Feature:
The temperature control range is from 0° to 60°, and the thermostat shell is made of high-quality plastic material, with fine workmanship, environmental protection, safety, and durability.
The temperature controller is used to regulate heating equipment, cooling equipment, filter fans and heat exchangers.
In addition, the temperature controller can also be used as a switch contact of a signal device, as a low temperature or high temperature alarm.
Large data scale, adjustable buttons, easy and convenient to adjust and control the temperature, and the button color(red/blue) of thermostat could be choose for you.
It adopts standard guide rail clamp design, 4 feet seat, easy to install and disassemble.
The circuit interface at the bottom of the thermostat can make the wiring firmer and safer.
Specification:
Material: ABS + electronic components
Size: 68*44*33mm
Color: Red, Blue
Control temperature range: 0-60°C
Switch temperature difference: 7K (±4K tolerance)
Sensor element: Constant temperature bimetal
Contact type: Snap-action contact
Service life:> 100,000 cycles
Wiring mode: Maximum clamping torque 0.5Nm: hard wire 2.5mm²; stranded wire (with wire end ferrule) 1.5mm²
Installation: for 35mm DIN rail
Shell: Plastic, light gray
Operating/storage temperature: -45 to +80°C (-49 to +176°F)
Operating/storage humidity: Maximum 90% RH (non-condensing)
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 X Temperature Controller
