Function:
BMW F20/F30/F35/X5/X6/I3 test platform is easy to detect FEM BDC Control Module in good condition.
Working together with BMW FEM/BDC key programmer (i.e Yanhua BMW-FEM,BMW Explorer, VVDI2, CGDI BMW etc) and BMW F series FEM Blade key , FEM BDC Module Test Platform is a great helper of key programming, ECU programming and basic diagnosis.
Features:
1. No need start-stop button.
2. FEM BDC Module Testing Platform is designed with 4 ports which can connect to engine, gearbox, instrument and an extended port to connect with other modules.
3. It features in good induction, frequency resonance, the stainless steel shell (the copper wire inside it is very thick).
4. Doesn't come with a gearbox plug (Click for SK228-B: BMW F20 F30 F35 X5 X6 I3 test platform with gearbox plug)
Overall, BMW F20/F30/F35/X5/X6/I3 test platform is a must for professional locksmiths, auto electronic technicians and vehicle repairing garages.You will get free an extension cable for dashboard connection and custom coils.
Package List:

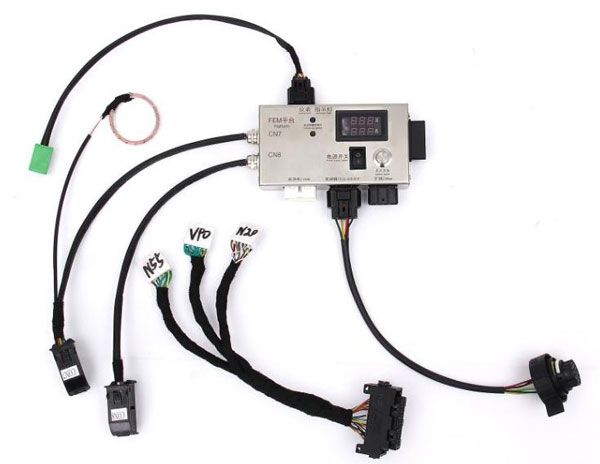

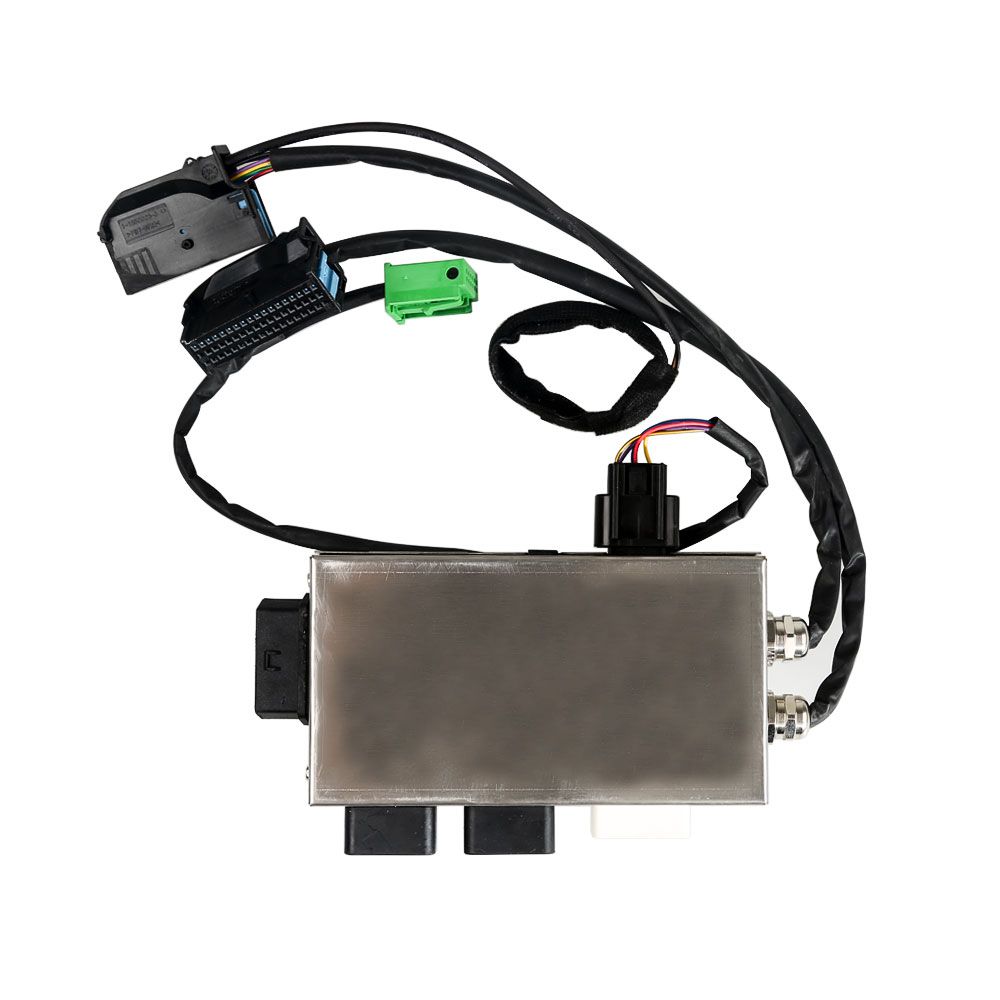

1pc x BMW FEM /BDC BMW F20 F30 F35 X5 X6 I3 test platform
How to use Test Platform to test BMW FEM BDC?

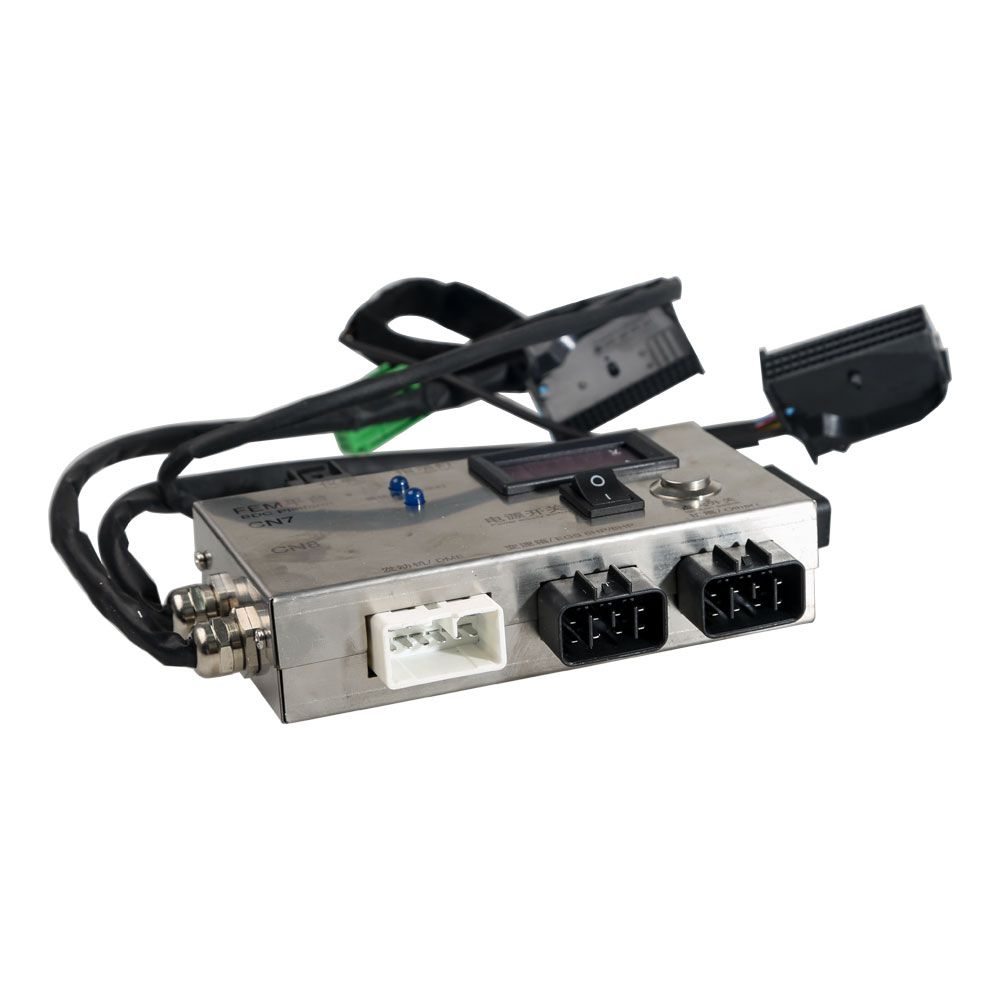

Ports display

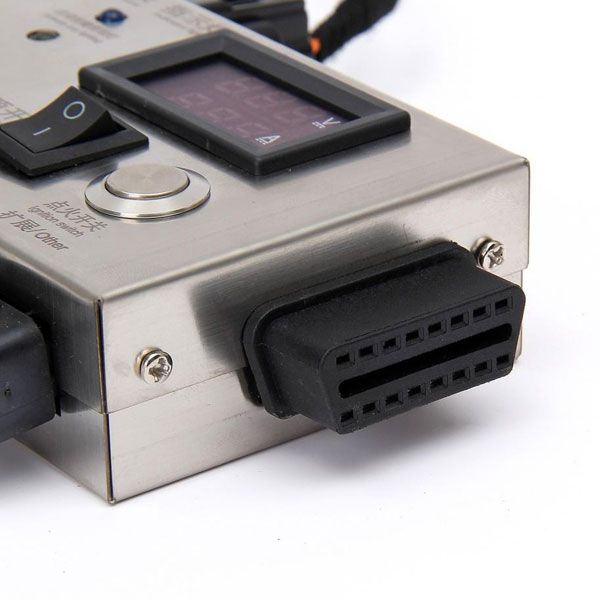

OBD port

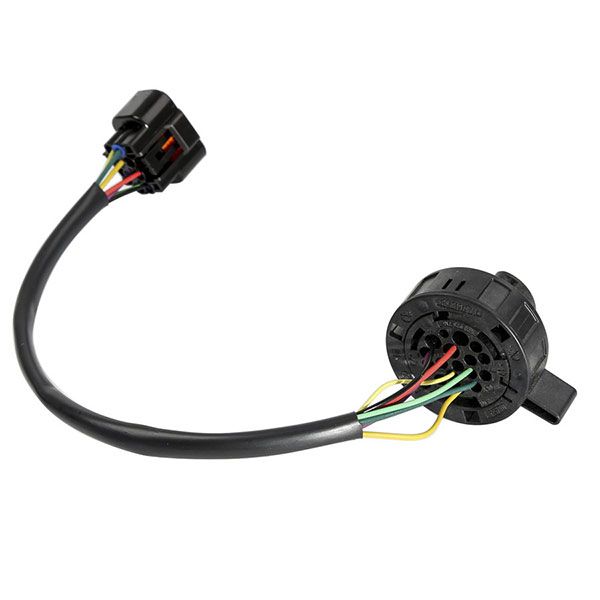

The port between KOMBI and EGS, DME plug (EGS plug, DME plug need to be purchased separately.

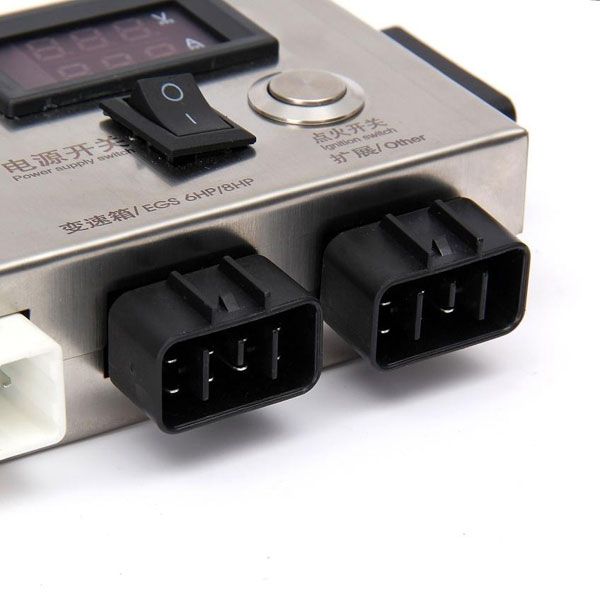

6HP 8HP EGS and additional expansion port
2.BMW FEM BDC test Platform uses instructions:

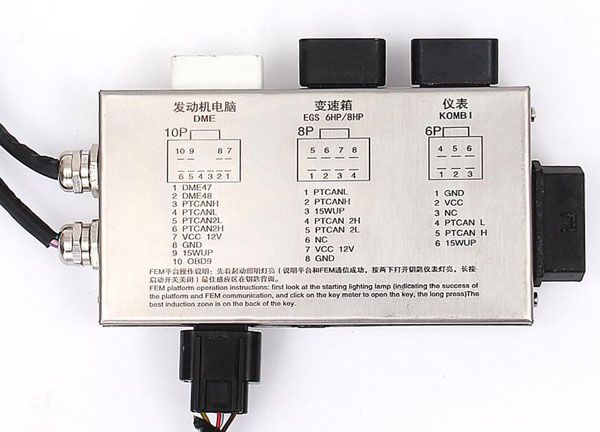

PS: the port definition is written on the back for your reference.

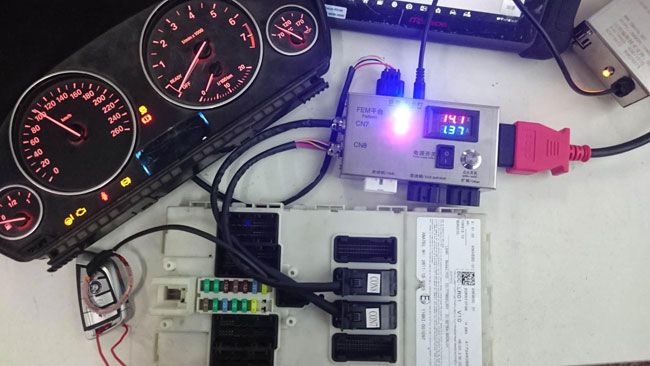

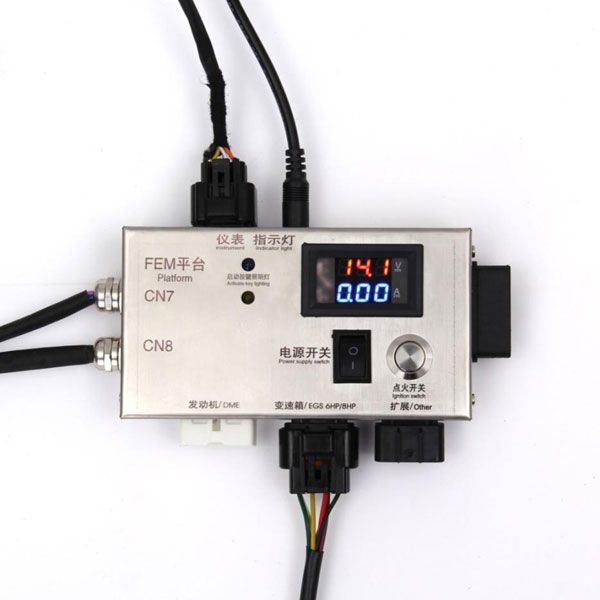

Connect well the port by following the below picture, then the power supply.

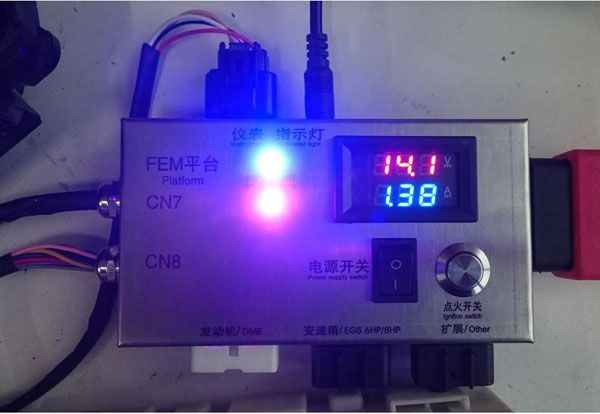

When the second yellow power indicator light flashes, put the key coil close to the back of the key. Then press the start switch for two times, and the red instrument indicator light will flash. Now you could diagnose, program, and match the keys.

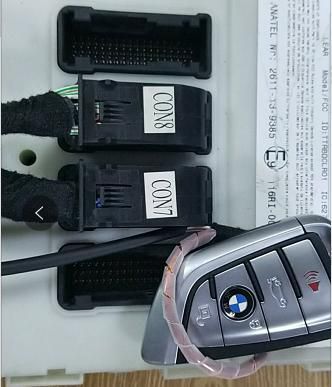

Refer to the below picture to ensure the key is put on the best sensor position.
It’s very easy to use as long as the CN7 plug and CN8 plus are connected well, also the key sensor is inside of sensor coil. press two times to open the key, the normal car is the same, long press switch to off the key.
When the instrument light on, it means it can communicate for making key.
Tip: the power supply is required to be 14V 3A or above for more stable especially when programming
