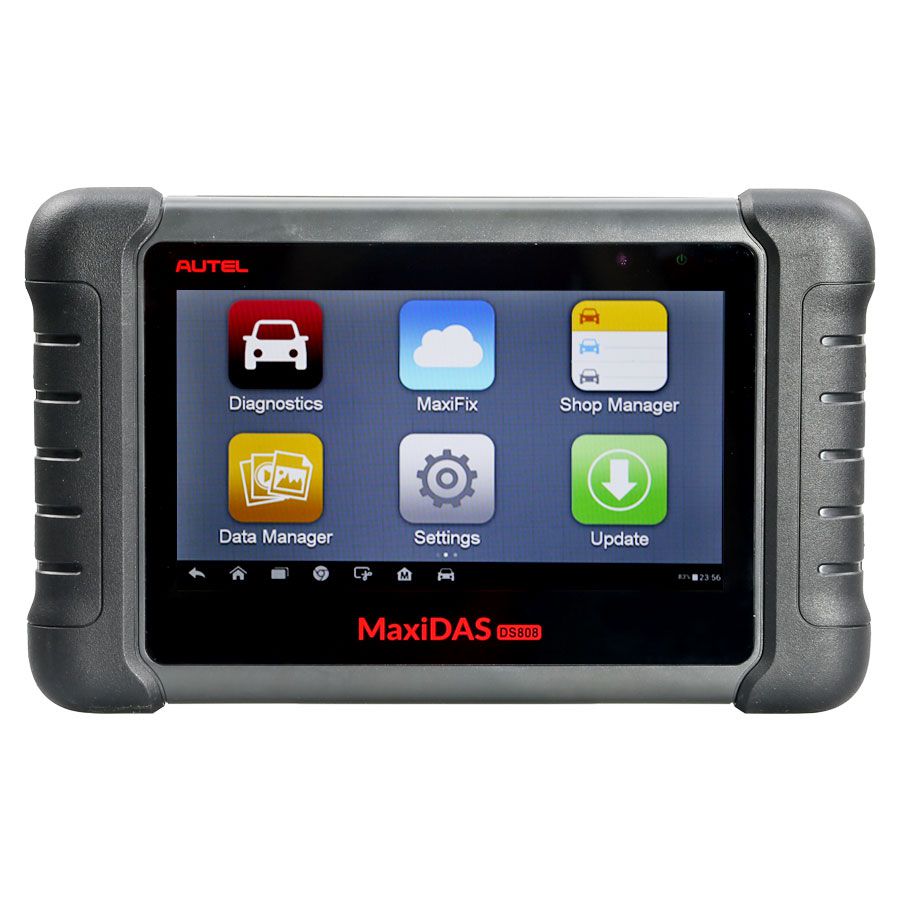

Autel Maxidas DS808 Auto Diagnostic Tool Update Version of Autel DS708

Latest AUTEL MaxiDAS DS808 Handheld Touch Screen Autel OBD Diagnostic Tools Update Online

Autel MaxiDAS DS808 Highlights:

1. Language: English

2. Update: Update online one year for free

3. Android 4.4 Operation system, 32GB Memory

4. DS808 Supports Injector coding and key coding functions (same as MS906).

MaxiDAS DS808 Features:

Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
Exceptional OE-Level system coverage for all electronic systems
Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
Smart AutoVIN technology for identifying vehicles easily
Automatic system and software updates with real-time push message notifications via Wi-Fi
Instant remote control tech support anytime, anywhere
Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Convenient data management system for managing internal program applications and reviewing data

Note: There are two options available when accessing the Diagnosis section:

1. Auto Scan – starts auto scanning for all the available systems on the vehicle.

2. Control Units – displays a selection menu of all available control units of the test vehicle.
After a section is selected and the tablet establishes communication with the vehicle, the corresponding function menu or selection menu displays.

Supported Automotive Protocols:

ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Autel Maxidas DS808 Diagnostic Function:

Retrieve ECU information,
Read & erase DTCs
View live data
Perform active tests.

The Diagnostics application can access the electronic control unit (ECU) for various vehicle control systems, such as engine, transmission, antilock brake
system (ABS), airbag system (SRS) and more.

Autel DS808 Diagnsotic Scanner Vehicle List:

1. European vehicle list:
AUDI, BENZ, BMW, DACIA, EU FORD, LANDROVER, MINI, OPEL, PEUGEOT, RENAULT, SEAT, SKODA, VW, VOLVO, SMART, JAGUAR, BENZ SPRINTER, SAAB, FIAT, ABARTH, LACIA, ALFA ROMEO, VAUXHALL, MAYBACH, BENTLEY, BUGATTI, PORSCHE.

2. USA vehicle vist:
GM, CHRYSLER, FORD

3. Asia vehicle list:
SUZUKI, KIA, DAWEOO, ISUZU, TOYOTA, SUBARU, SCION, NISSAN, MITSUBISHI, LEXUS, INFINITI, HYUNDAI, HOLDEN, HONDA, ACCURA, MAZDA.

How to update Autel DS808 software:

1. Make sure the Display Tablet is connected to a power source with stable access to the internet.

2. Tap the Update application button from the MaxiDAS Job Menu;

or tap the update notification message when received one;

or tap the Update icon on Vehicle Menu in Diagnostics application.

The Update application screen displays.

3. Check all available updates:

If you decide to update all the items, tap the Update All button.

If you only want to update one or some of the item(s), tap the Update button on the right column of the specific item(s).

4. Tap the Pause button to suspend the updating process. When you tap Continue to renew the update, the updating process will resume

from the break point.

5. When the updating process is completed, the firmware will be installed automatically. The previous version will be replaced.

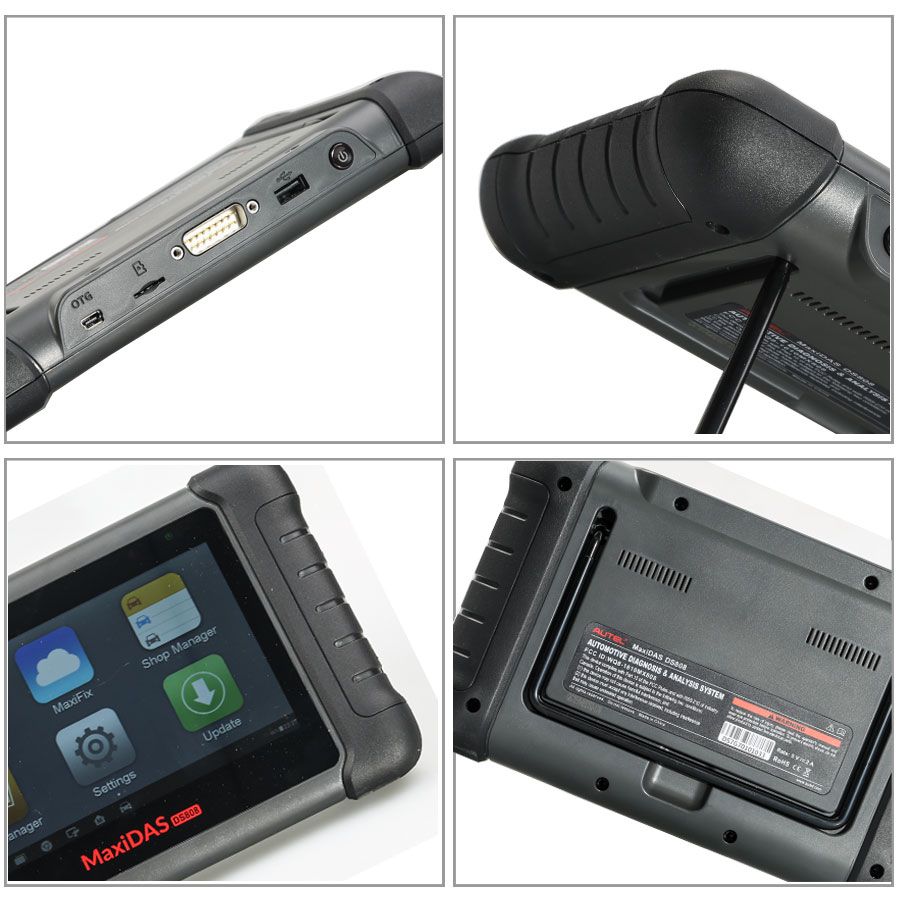

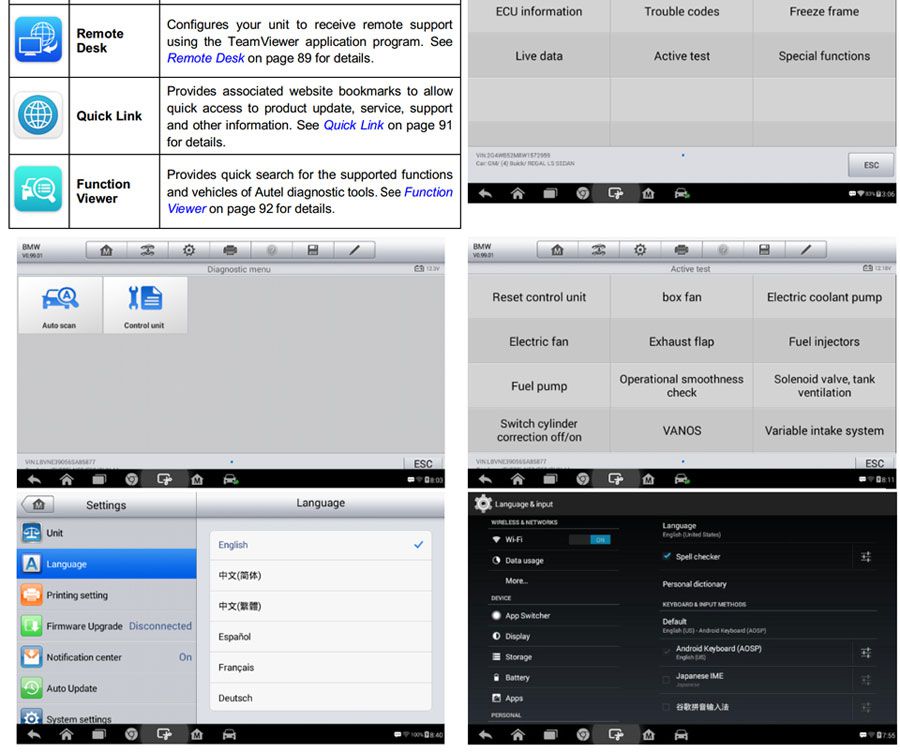

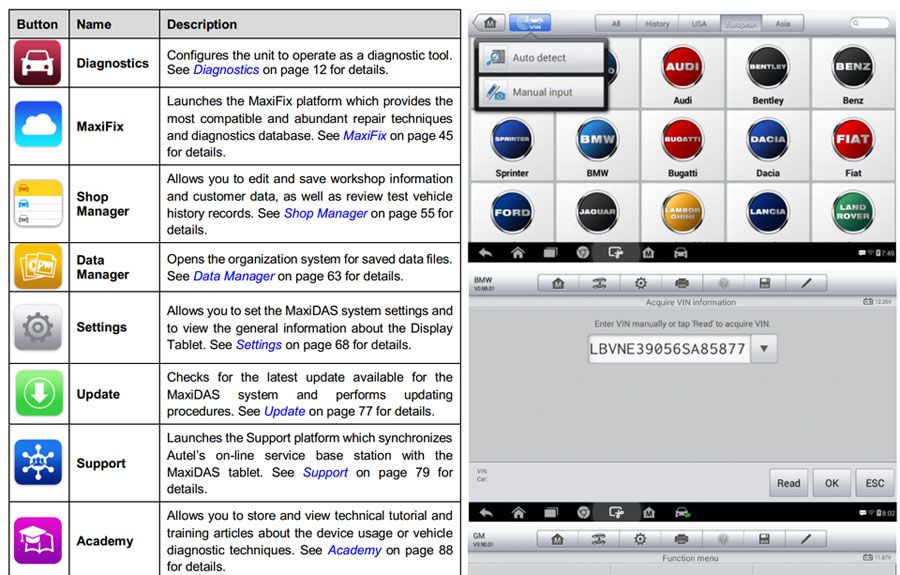

Autel MaxiDAS DS808 Scanner Feature and Screen Display:



MaxiDAS DS808 Specifications:

Recommended Use Indoor
Operating System Android™ 4.4.4
Processor Cortex-A9 processor (1.5 GHz)
Memory 32GB
Display 7-inch LCD capacitive touchscreen with 1024x600 resolution

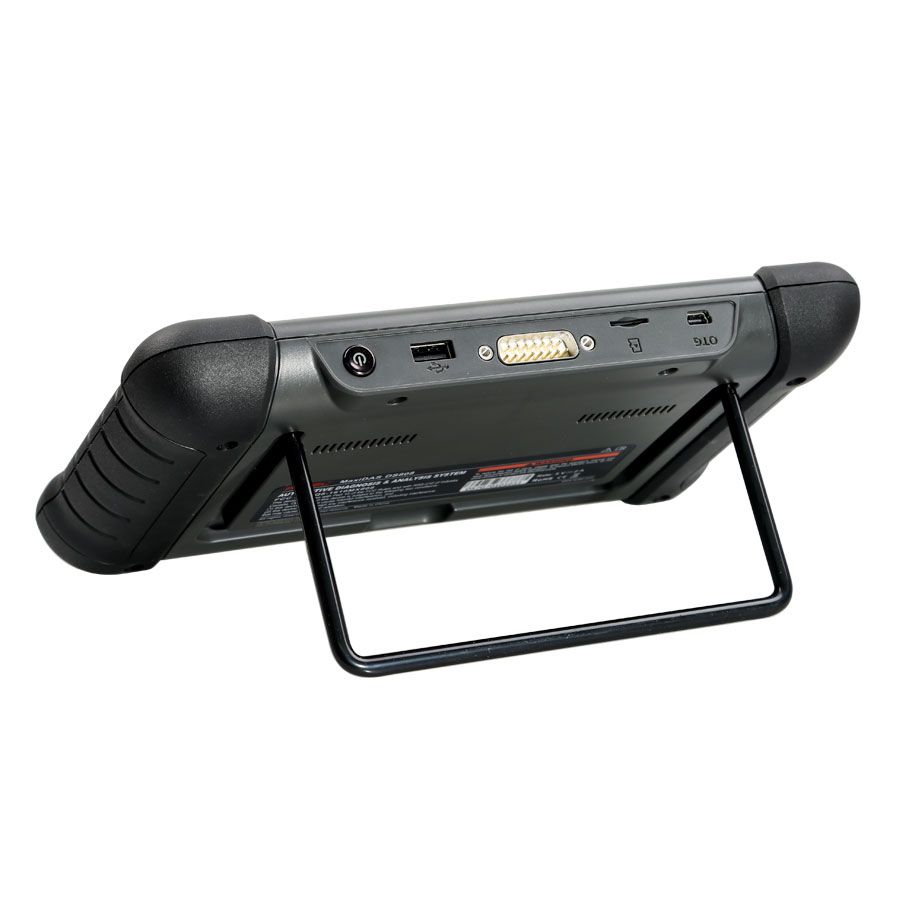

Connectivity • Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB)
Sensors Ambient light sensor for brightness auto changing
Audio Input/Output • Input: N/A • Output: buzzer
Power and Battery • 3.7 V/3200 mAh lithium-polymer battery • Charges via 5 VDC power supply
Tested Battery Life Around 4.5 hours of continuous use
Battery Charging Input 5 V/1.5 A
Power Consumption 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp. -10 to 60°C(14 to 140°F)
Storage Temp. -20 to 70°C (-4 to 158°F)
Operating Humidity 5% - 95% non-condensing
Dimensions (W x H x D) 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
Net Weight 788 g (2.42 lb.)
Supported Automotive Protocols ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed,Middlespeed,
Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Package Includes:

1pc x MaxiDAS DS808 Main Unit

1pc x USB External

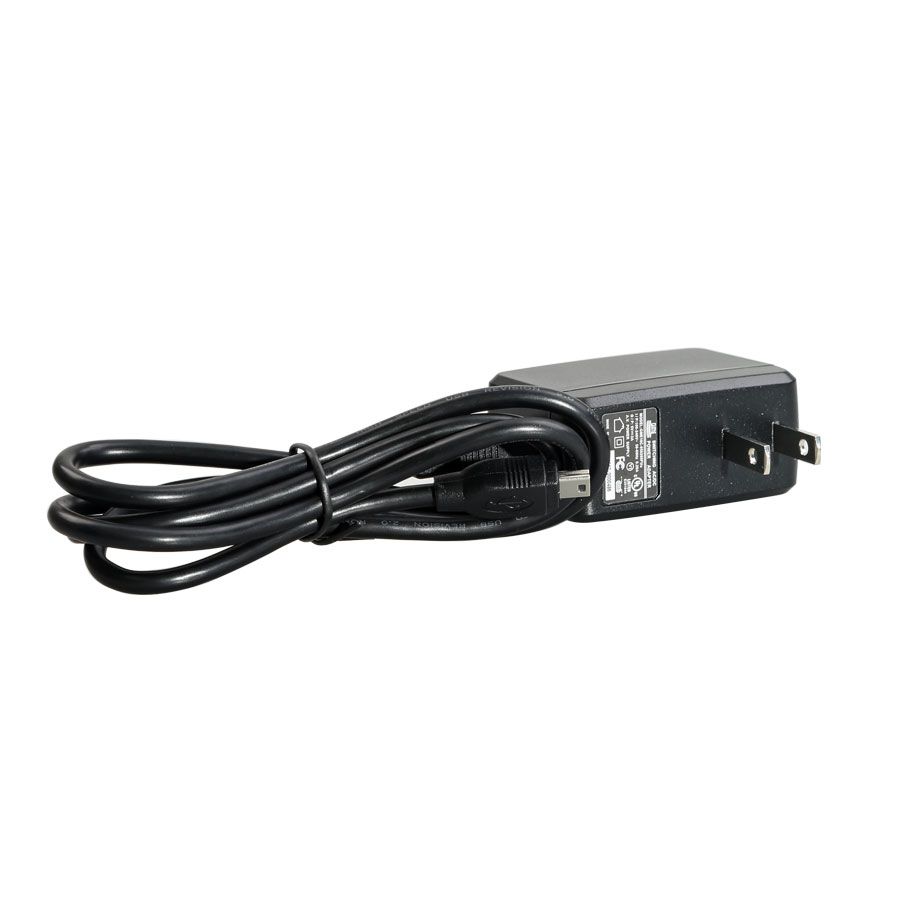

1pc x Power Adapter

1pc x USB External Power AdapterUser

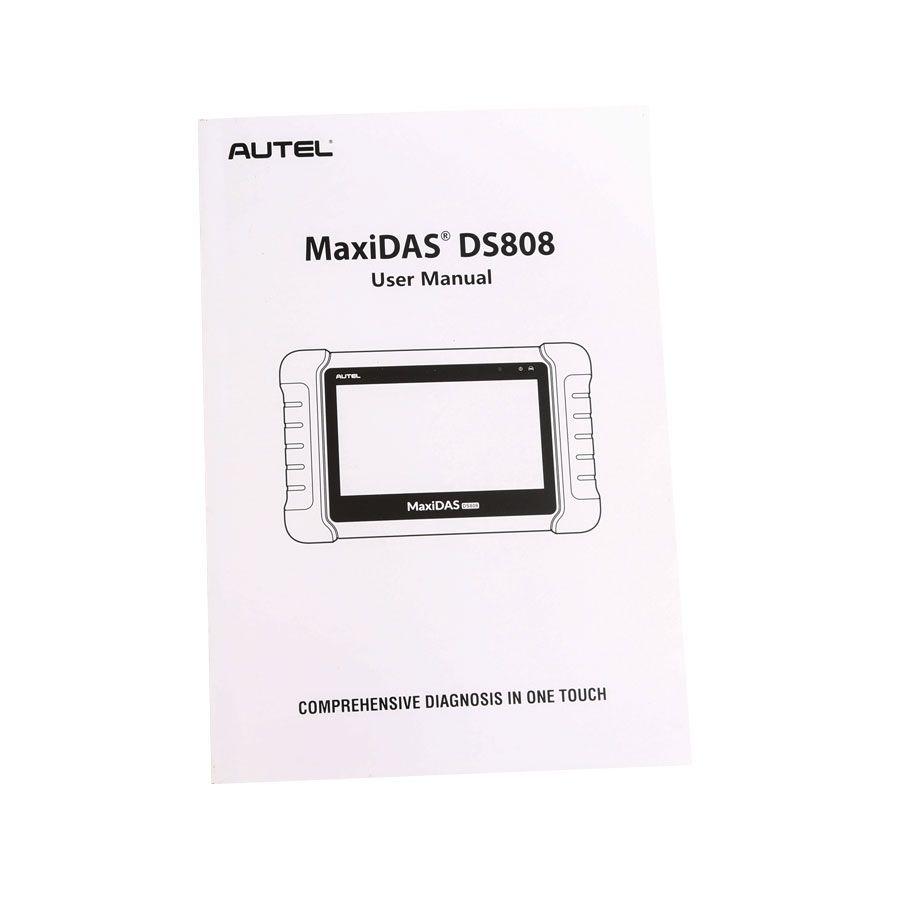

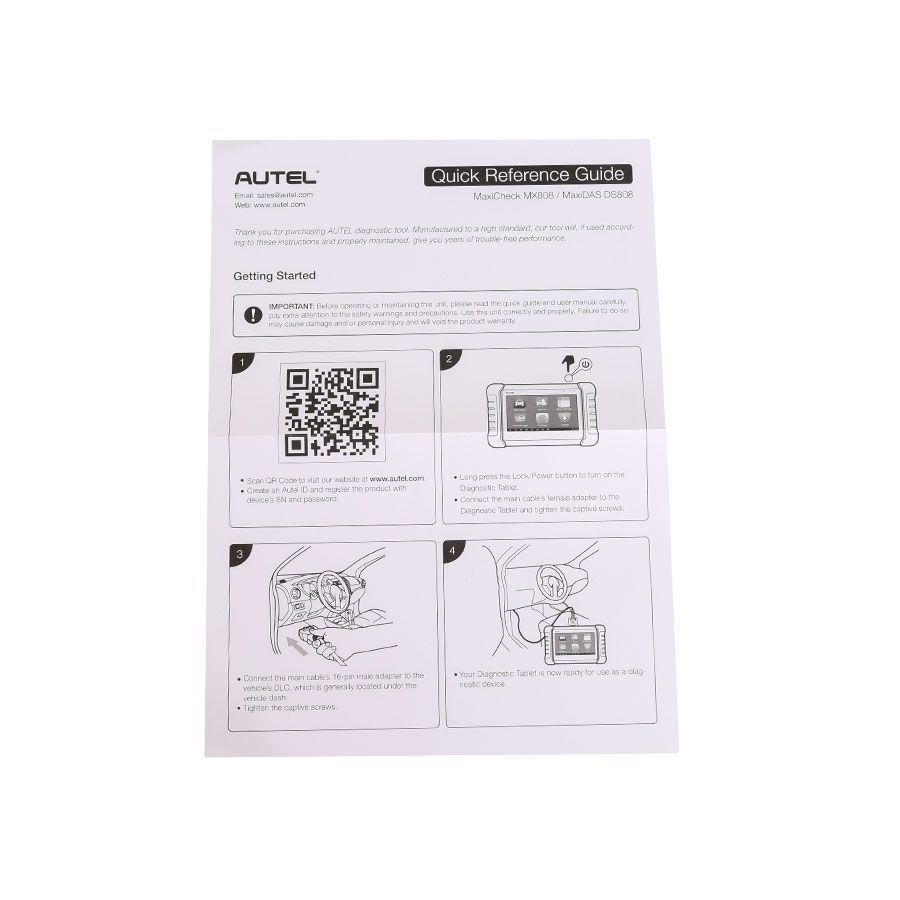

1pc x ManualQuick reference guide

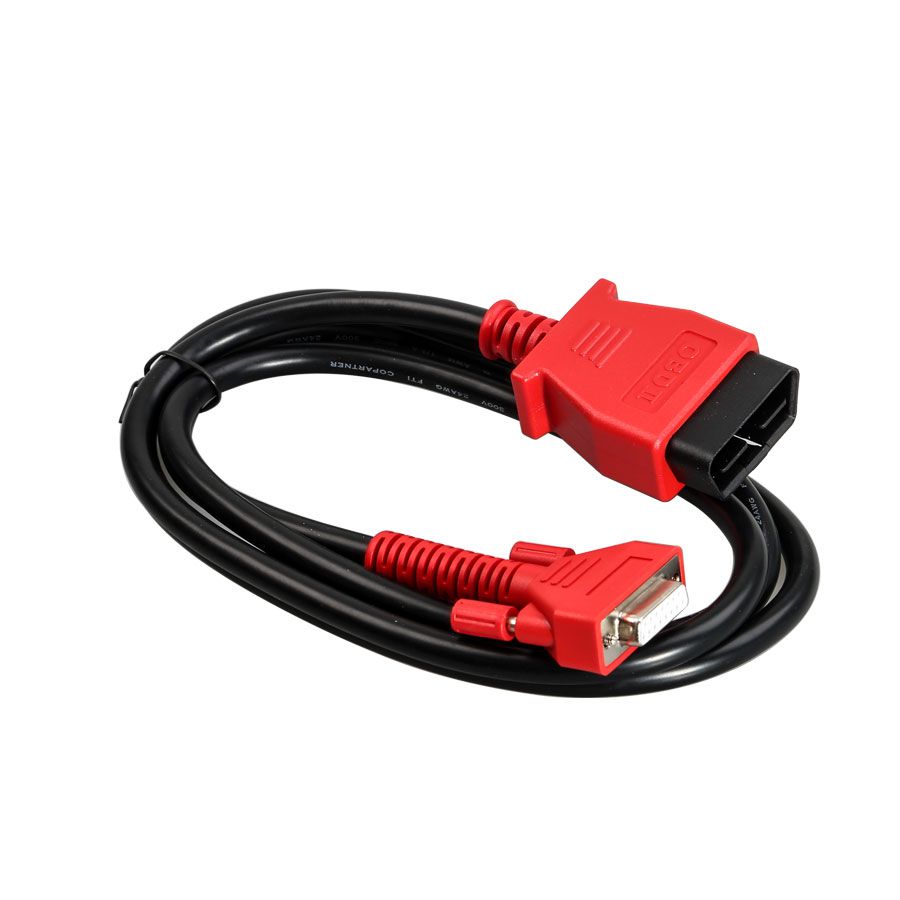

1pc x Main cable Carry case

1pc x Mini USB Cable
