New Arrival VXDAS VSP200 Power Scan Tool VSP200 Electrical System Circuit Tester

VXDAS VSP200 Power Scan Tool VSP200 Electrical System Circuit Tester

VXDAS VSP200 Power San Tool VSP200 Electrical System Diagnostics Circuit Tester is used as Power Probe for testing vehicle electrical circuit

VSP200 upgrade version:

1. The difference in interface
The new interface is more user-friendly
It’s easier to identify the values measured
2. Much more responsive
The speed of function switching increased by 20%
The speed of probe contact feedback increased by 25%
3. Much more accurate
The maximum and minimum values are displayed
The frequency value is more accurate in the frequency test
It’s more accurate in the resistance test; 10 ohm or less can also be displayed
The value is more accurate in the diode test

Comparison between VSP200 and PS100:

PS100 test without the diode but only the sound
PS100 transforms sound waveform when testing the alternating current (AC) adapter, the sound varies as waveform changes, while VSP200 directly displays that.

Comparison between VSP200 and YD208:

When testing the diode, YD208 can only display the negative while VSP200 shows the values.
When testing AC, YD208 only displays a square wave (an analog signal) while VSP200 can show the real waveform.

VXDAS VSP200 Circuit Tester Features:

1. Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation.
2. Easy to read AV0 meter allows you to read voltage, current and resistance at the fingertip.
3. With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
4. Simultaneously uses the hot lead and the found lead to activate components right in your hand.
5. Instantly identifies positive, negative and open circuits.
6. Circuit breaker protected.
7. Built-in flashlight enables you to work in the dark.
8. Audio tone indicator allows for no-look menu scrolling once user are familiar with menu tone assignment.
9. 20ft(extendable)cable provides excellent accessibility to test along the vehicle.
10.Extremely easy to use and highly reliable.

VXDAS VSP200 Circuit Tester Bullet:

20 foot jumper lead
Continuity tester
Relay and component tester
Works on 12-24v Sources
Once you connect a power probe to the power source you'll have a multitude of testers right at your fingertips
Bad ground indicator
Short circuit tester

VXDAS VSP200 with Case and Accessories

The Ultimate in Circuit Testing
The VXDAS VSP200 Circuit tester (Red) with the ability to supply Power or Ground with an indicator tone and bright-white LED headlamps.
Features Digital Voltmeter, Min/Max, Audible Circuit Monitoring, 4mm Standard Banana Jack and Auxiliary Ground for component testing.
Includes Case and 20 Foot Extension Lead and 12 Volt Power Port Adapter. Works with 12 - 24 VDC Systems.

VXDAS VSP200 Circuit Tester Specifications:

1. Display: TFT color display (160*128dpi)
2. Operating Temperature: 0 to 60 (32 to 140)
3. External Power: 12.0 or 24.0 V power provided via vehicle battery

Package including:

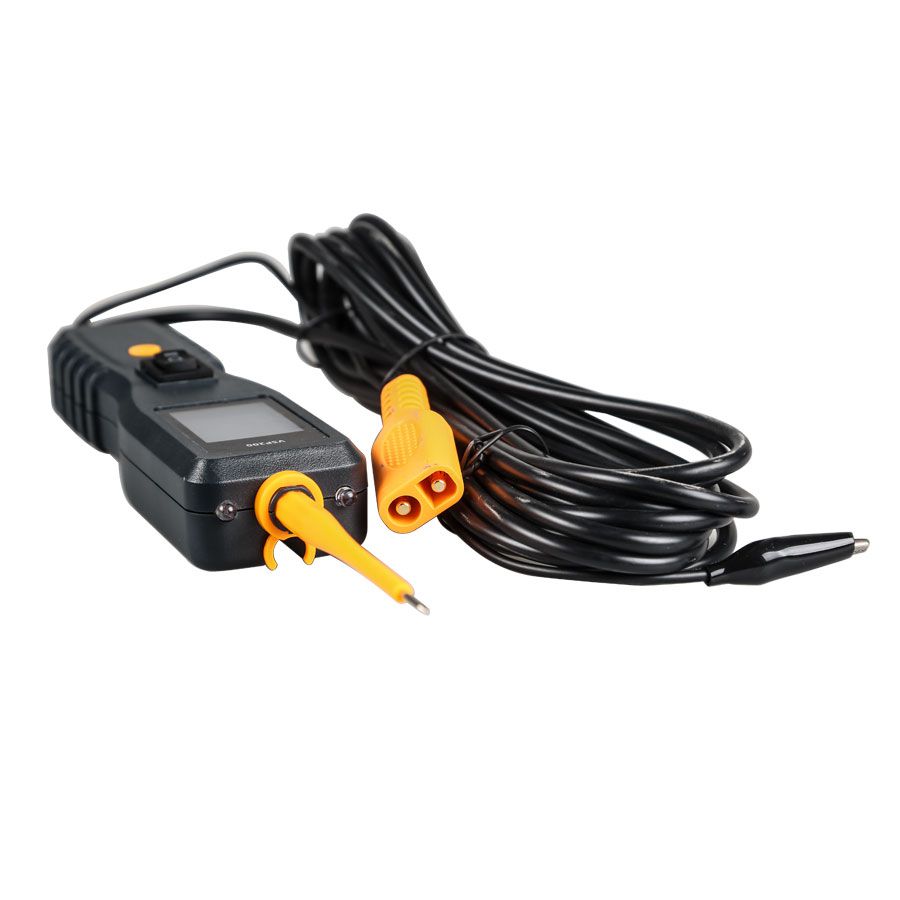

1pc x VSP200 main unit
1pc x User manual

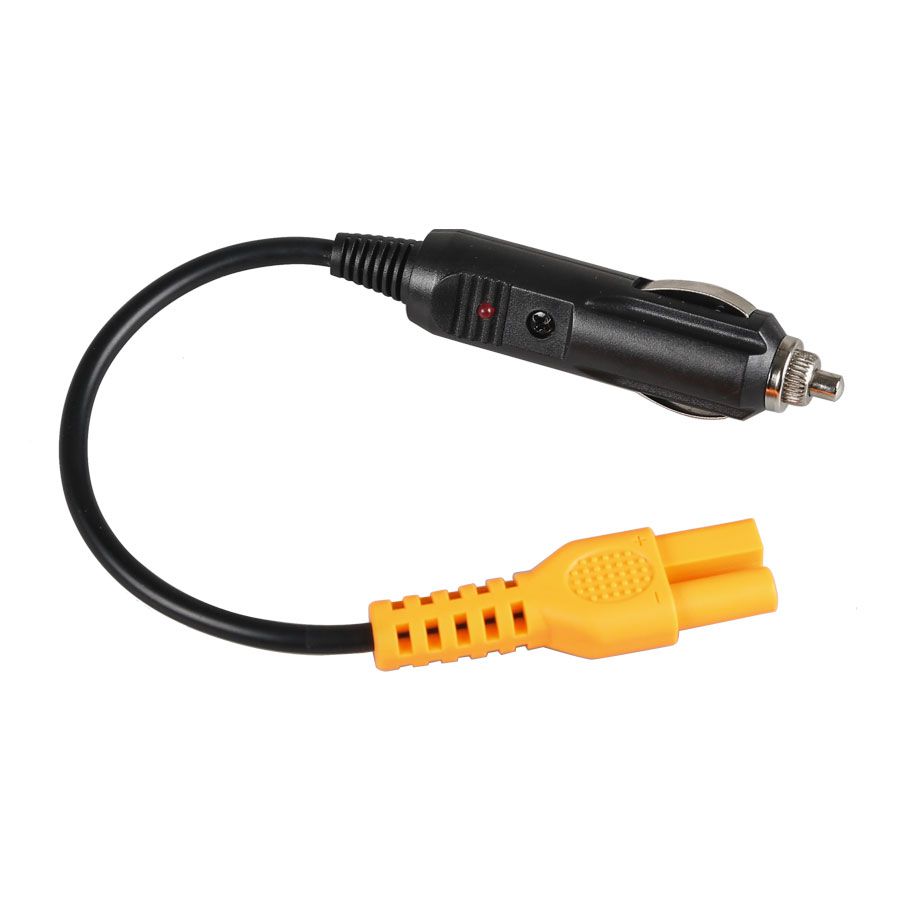

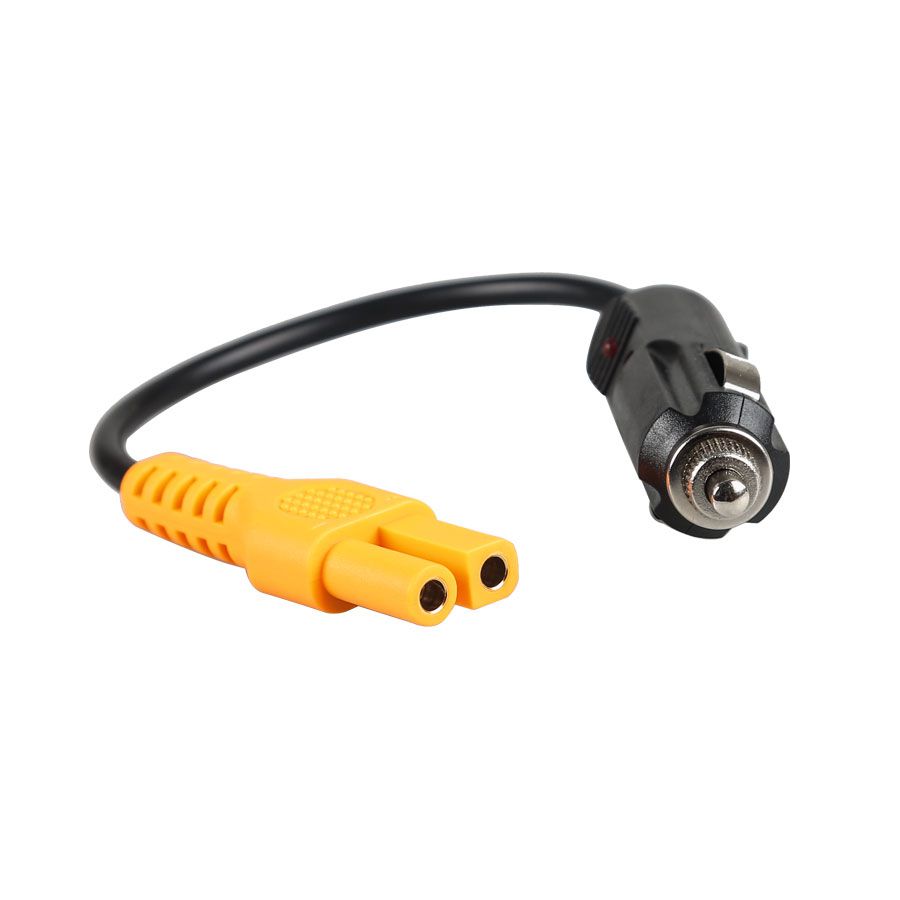

1pc x Cigarette lighter adapter

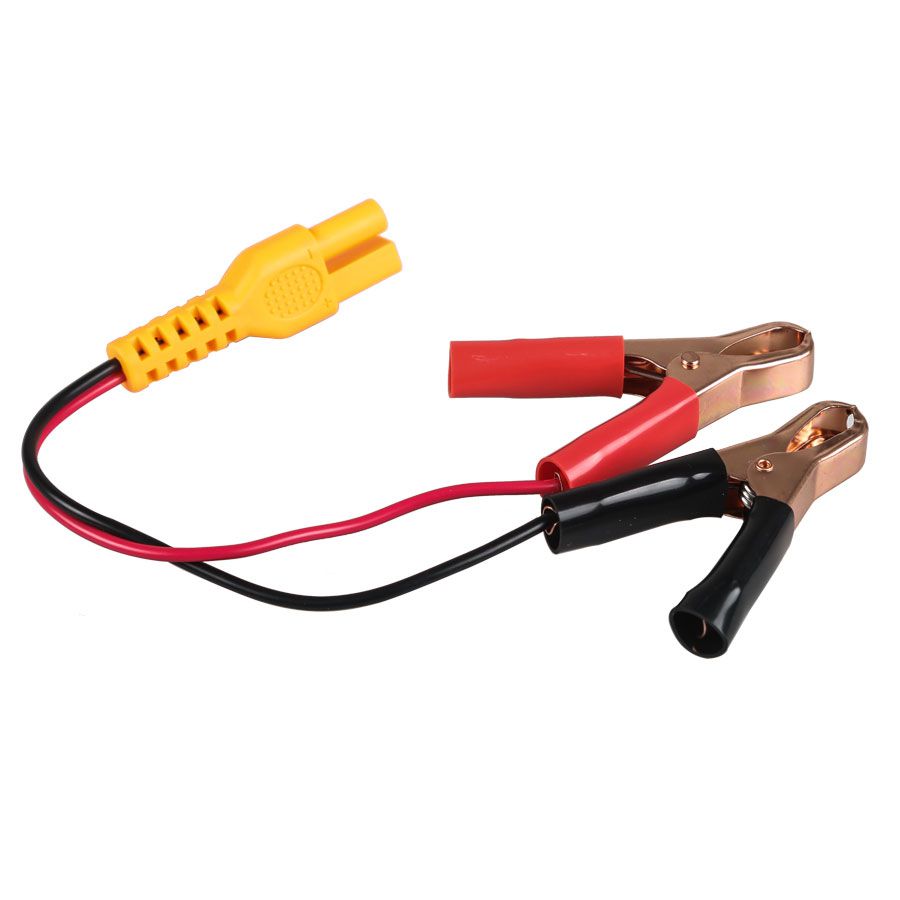

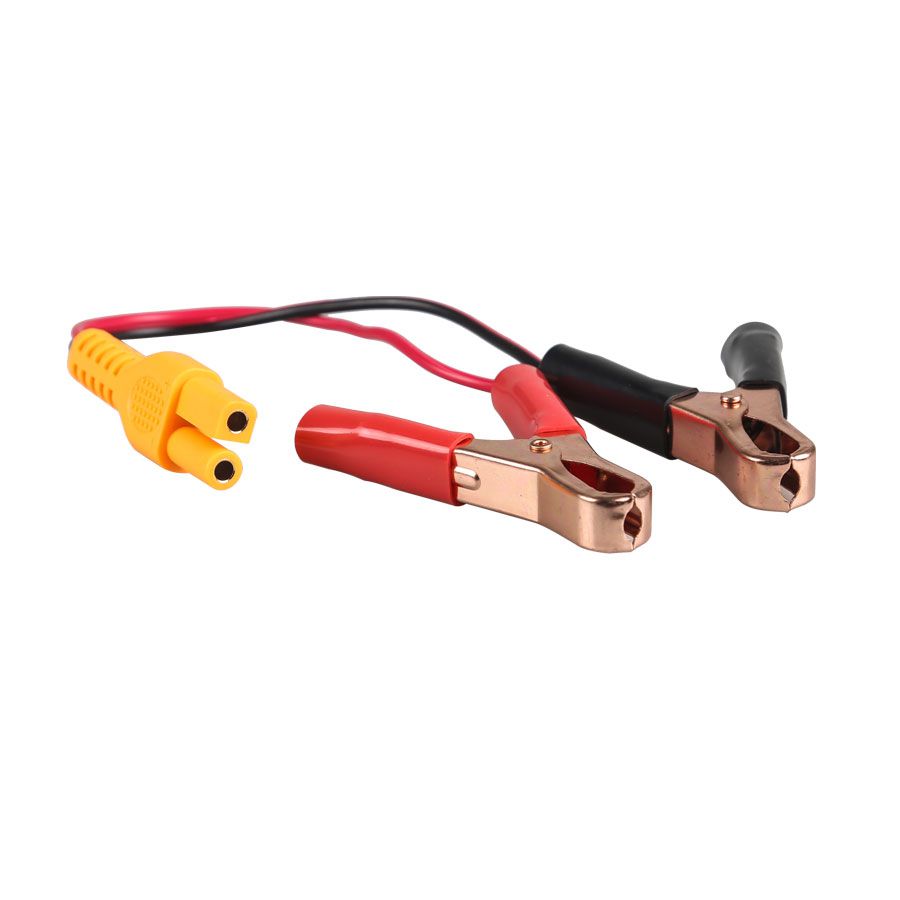

1pc x Battery hookup clips
1pc x Probe tip

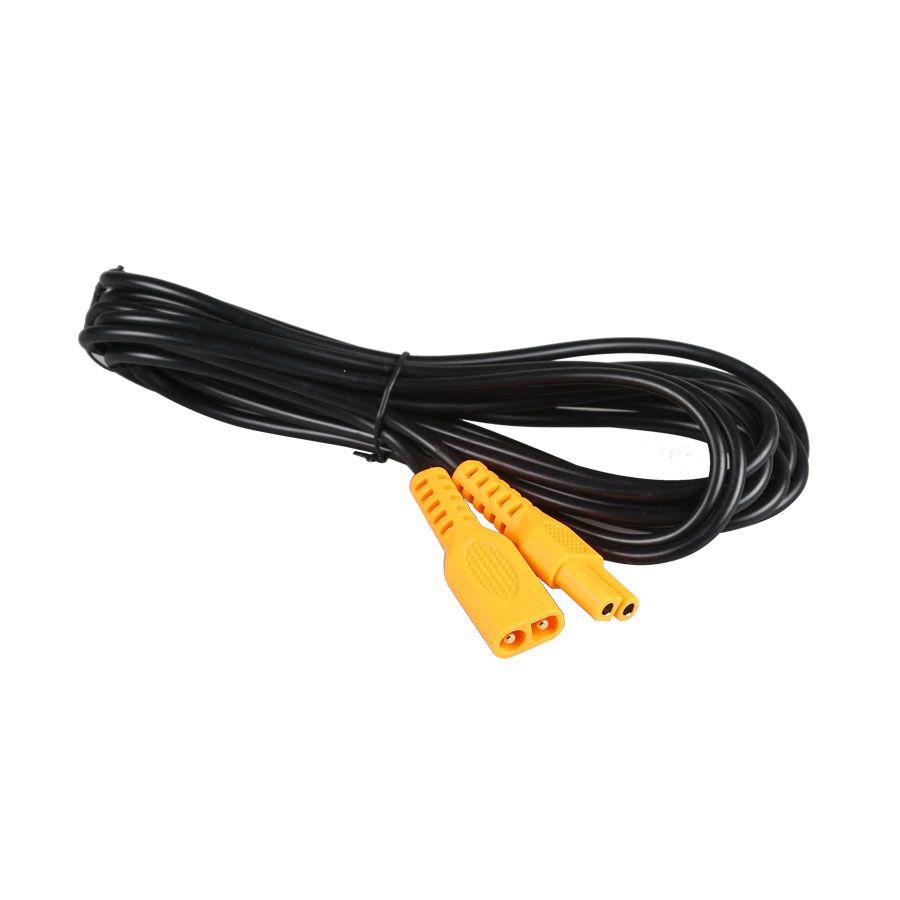

1pc x 20FT. extension cable
1pc x Rugged blow molded case
