Product Detail
V-A-G IMMO Emulator
V-A-G IMMO Emulator

V-A-G IMMO Emulator

  • Quantity
V-A-G IMMO Emulator for VW Golf III, Passat B4, VW Sharan 98,Lupo 98,Polo 98, T4, VW LT35,Audi 100, A6, A4, A8,VW B5, Golf IV, New Beate, Audi A2, A3, A4, A6 and TT.
Specifications
  • Item No.
  • COBD23554
  • Weight
  • 100g
  • Package
  • 3cm*2.5cm*1cm

You may be interested in

TOPDON T-Ninja 1000 Key Programming Tool for All Key Lost Professional Immobilizer Read Pin Delete Add Key Key Coding
TOPDON T-Ninja 1000 Key Programming Tool for All Key ...
US$599.00 / piece
OBDSTAR X300 MINI Chrysler Jeep Dodge IMMO Key and Mileage Programmer Supports Oil Reset
OBDSTAR X300 MINI Chrysler Jeep Dodge IMMO Key and M ...
US$289.00 / piece
Original Autel MaxiIM IM608 Advanced Diagnose + IMMO Tool Plus XP400 Pro Same Functionality as Autel IM608 Pro
Original Autel MaxiIM IM608 Advanced Diagnose + IMMO ...
US$2,479.00 / piece
Thinkcar Thinktool Pros+ OBD2 Scanner Professional Automotivo Car Diagnostic Tool Programmable TPMS Code Reader ECU Coding
Thinkcar Thinktool Pros+ OBD2 Scanner Professional A ...
US$1,587.00 / piece
SVCI ING Infiniti/Nissan/GTR Professional Diagnostic Support Programming Update Version of Nissan Consult-3 Plus
SVCI ING Infiniti/Nissan/GTR Professional Diagnostic ...
US$167.81 / piece
OBDII Extension cable 16 Pin Male To Female OBD2 Connector 16Pin diagnostic tool ELM327 OBD2 extended adapter 36cm
OBDII Extension cable 16 Pin Male To Female OBD2 Con ...
US$9.99 / piece
Foxwell NT680 Lite Four-System Scanner with Oil Service Reset+EPB Function
Foxwell NT680 Lite Four-System Scanner with Oil Serv ...
US$147.00 / piece
Promotion V2.51.3 SDP3 Scania VCI-3 VCI3 Scanner Wifi Diagnostic Tool for Scania
Promotion V2.51.3 SDP3 Scania VCI-3 VCI3 Scanner Wif ...
US$79.00 / piece
Foxwell NT650 OBD2 Professional Special Function Scanner Support ABS Airbag SAS EPB DPF Oil Service Reset
Foxwell NT650 OBD2 Professional Special Function Sca ...
US$209.00 / piece
Yanhua Mini ACDP Module2 BMW FEM/BDC Support IMMO Key Programming, Odometer Reset, Module Recovery, Data Backup
Yanhua Mini ACDP Module2 BMW FEM/BDC Support IMMO Ke ...
US$297.00 / piece
Thinkcar Thinkscan Max Thinkcar Thinktool Max OBD2 Scanner Professional Full System OBD2 Diagnostic Tool Car Automotive Scanner ECU Coding Active Test
Thinkcar Thinkscan Max Thinkcar Thinktool Max OBD2 S ...
US$269.00 / piece
Foxwell NT624 Elite OBD2 EOBD Automotive Scanner Full System Code Reader EPB Oil Reset OBD 2 Auto Scanner Car Diagnostic Tool
Foxwell NT624 Elite OBD2 EOBD Automotive Scanner Ful ...
US$179.00 / piece
GODIAG GT100 Breakout Box ECU Tool with BMW CAS4 CAS4+ and FEM/BDC Test Platform Full Package
GODIAG GT100 Breakout Box ECU Tool with BMW CAS4 CAS ...
US$169.00 / piece
Original Autel MaxiIM IM508 Advanced IMMO & Key Programming Tool Plus XP400 Pro Key and Chip Programmer
Original Autel MaxiIM IM508 Advanced IMMO & Key Prog ...
US$1,179.00 / piece
FOXWELL NT510 Elite Multi-System Scanner SAS DPF Injector BRT Oil 13 Reset Service OBD2 Diagnostic Tool
FOXWELL NT510 Elite Multi-System Scanner SAS DPF Inj ...
US$129.00 / piece
HEX-V2 HEX V2 Dual K & CAN USB VAG Car Diagnostic interface Support Multi-function Online Updated Version for Volkswagen Audi Seat Skoda
HEX-V2 HEX V2 Dual K & CAN USB VAG Car Diagnostic in ...
US$89.00 / piece
Description

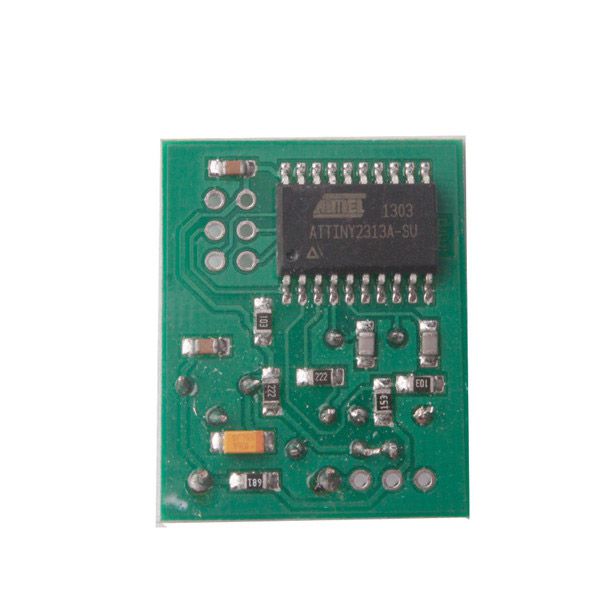

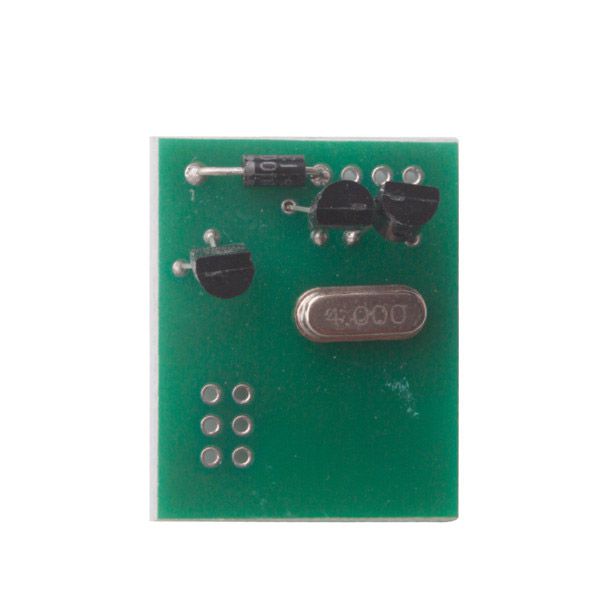

V-A-G IMMO Emulator
Connection diagram:
vag immo emulator
For cars with separated immobilizer box, short W and K lines and remove immobilizer box.
For cars with dashboard immobilizer, cut W line from dashboard

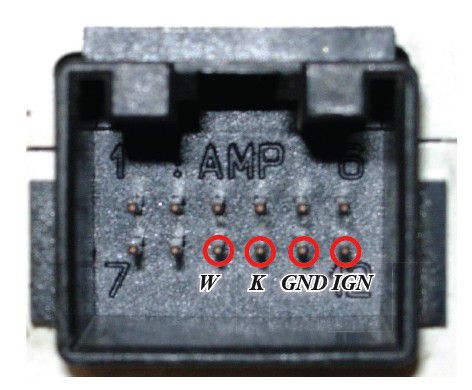

VW Golf III, Passat B4
Immobilizer box side

vag immo emulator connection

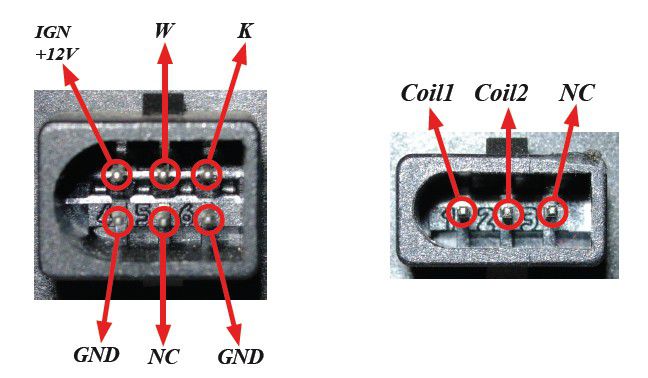

VW Sharan 98, Lupo 98, Polo 98, T4
Immobilizer box side
vag immo emulator display

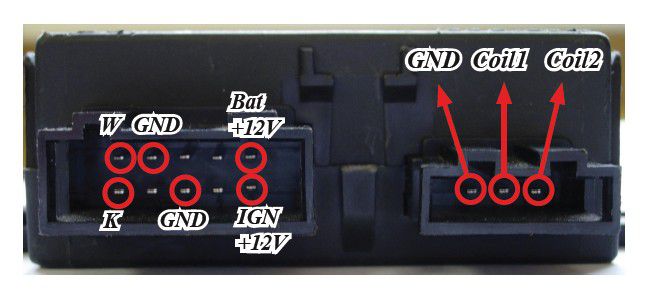

VW LT 35
Immobilizer box side

VAG IMMO Emulator cable connection

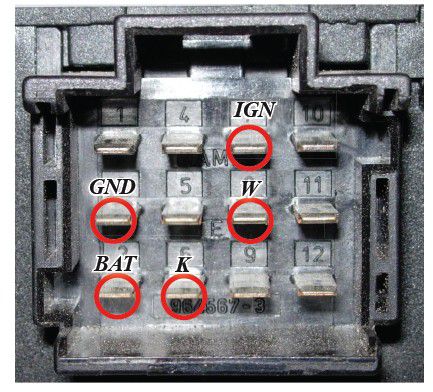

Audi 100, A6, A4, A8

VAG IMMO Emulator cable

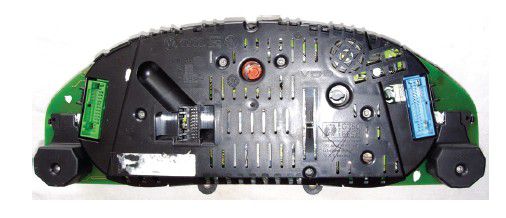

VW B5, Golf IV, New Beate, Audi A2, A3, A4, A6, TT

VAG IMMO Emulator

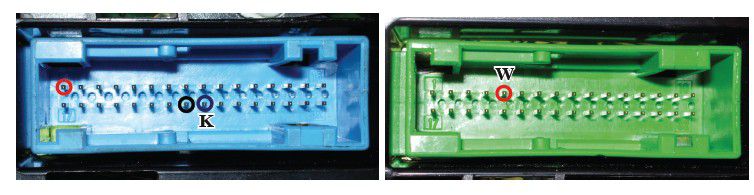

GND --- Dashboard Blue connector pin 24
K --- Dashboard Blue connector pin 25
W --- Dashboard Green connector pin 5
IGN +12V --- Dashboard Blue connector pin 1

VAG IMMO Emulator 2
Package including:
1pc x V-A-G IMMO Emulator
Tags: vag immo emulator emulator for vw immo emulator for passat emulator for luo emulator for polo audi emulator emulator vag emulator for tt
