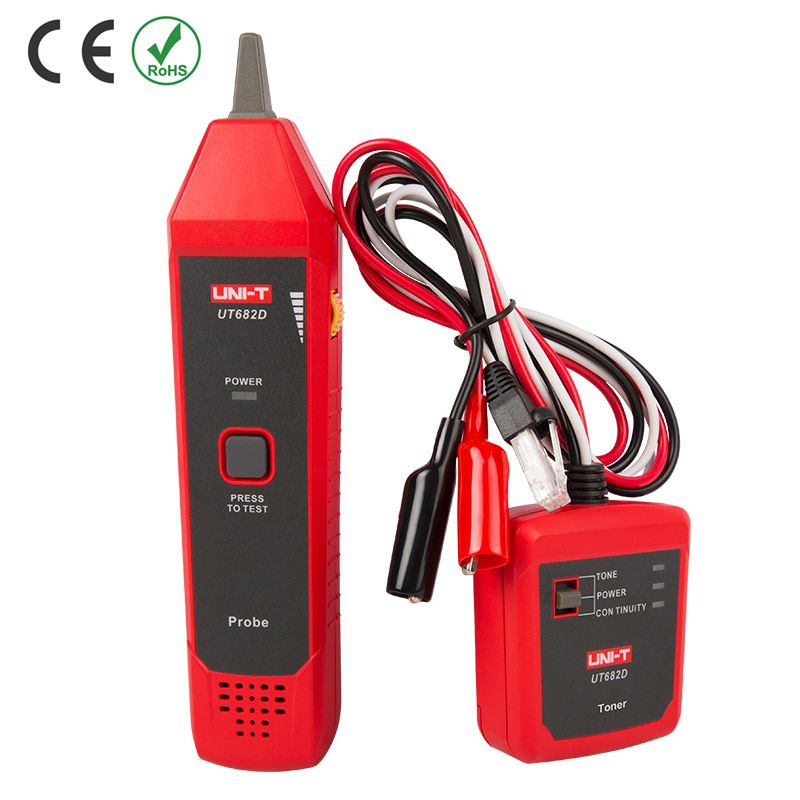

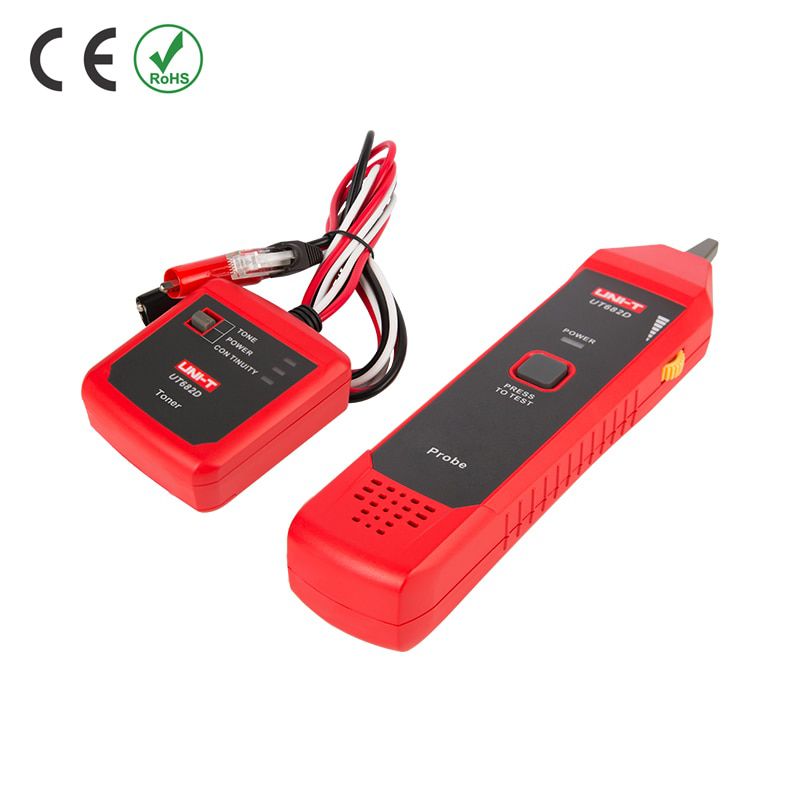

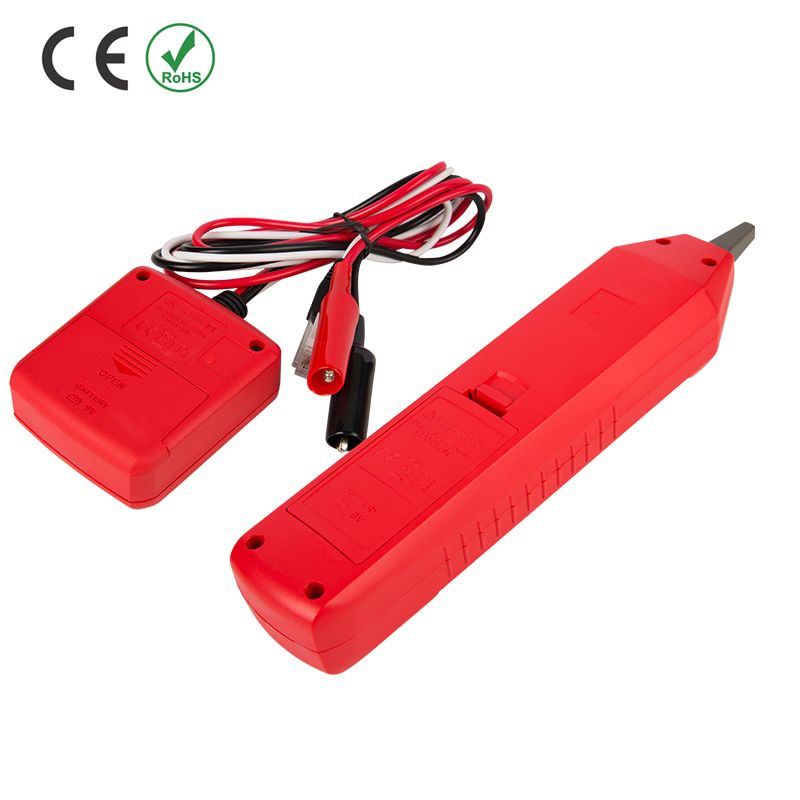

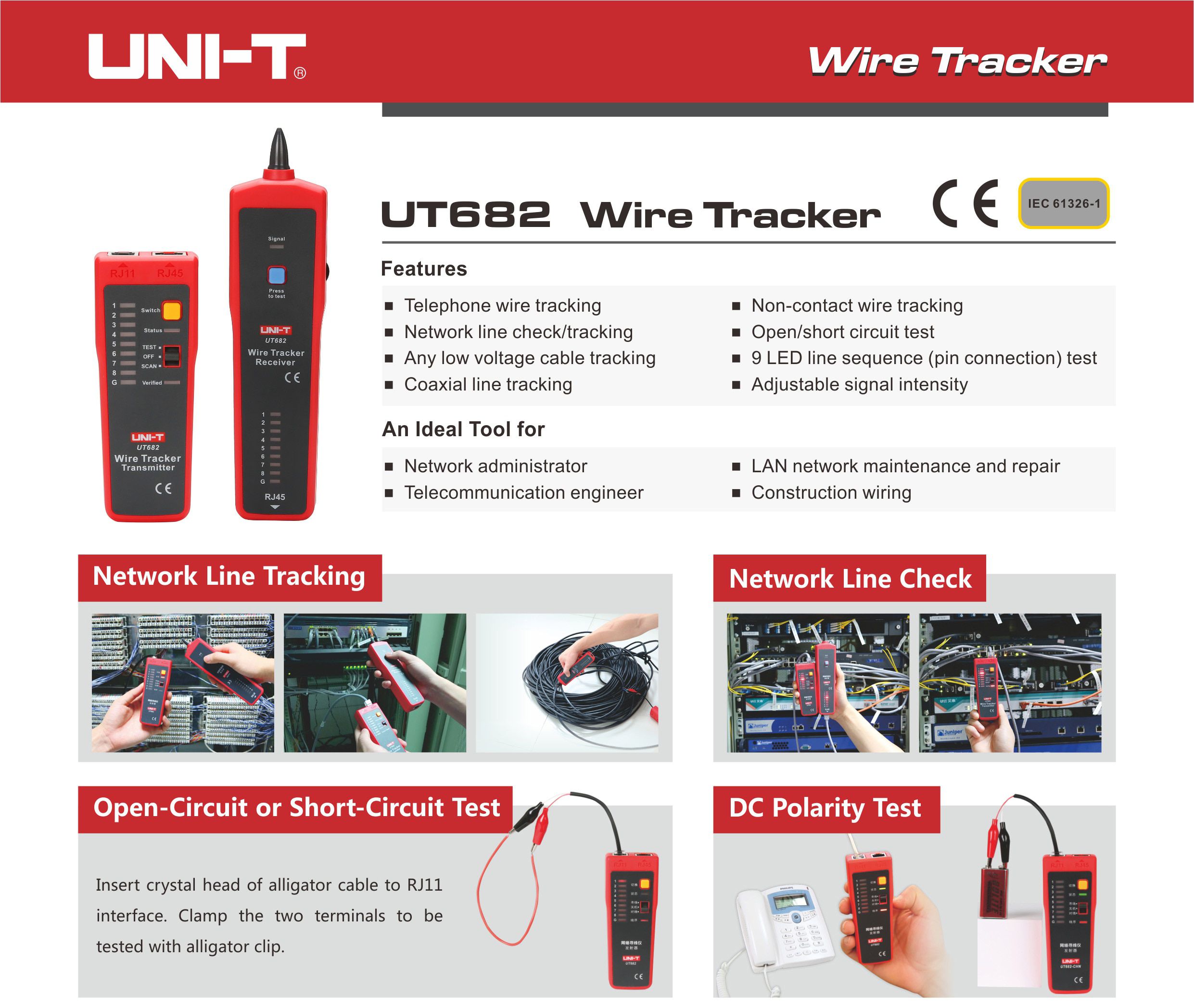

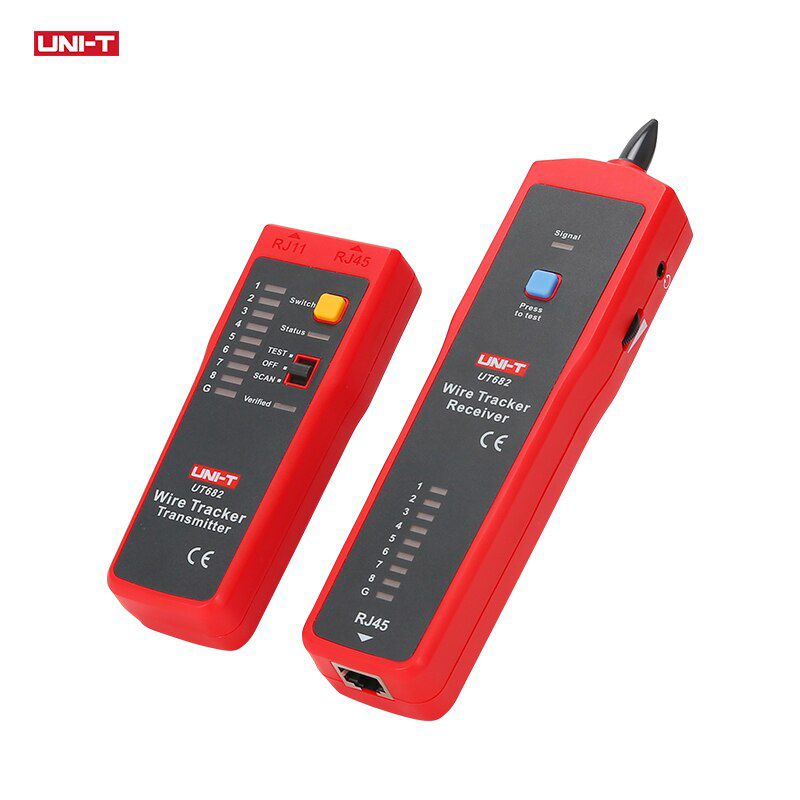

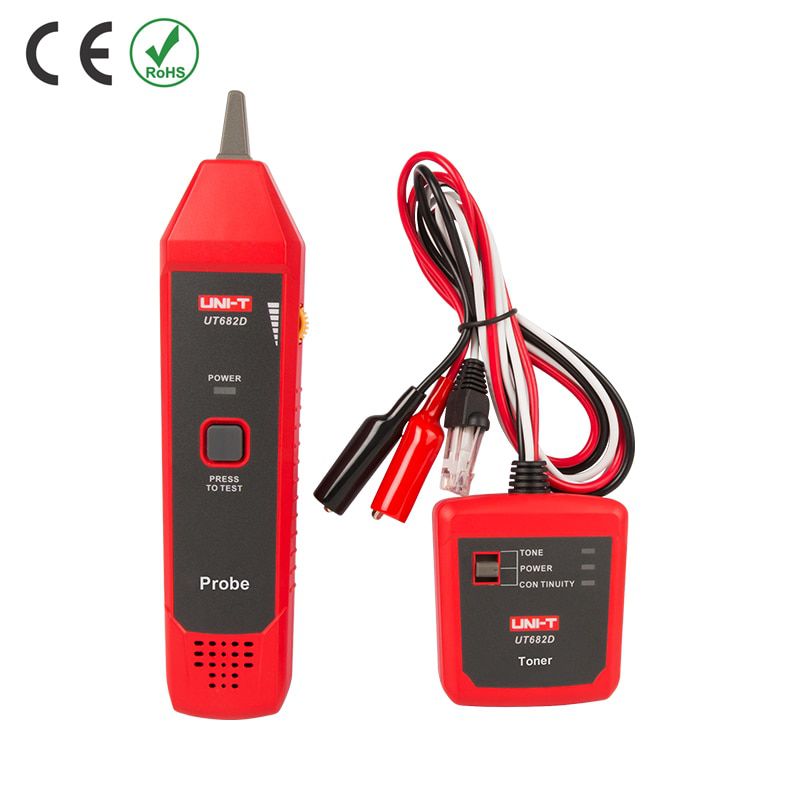

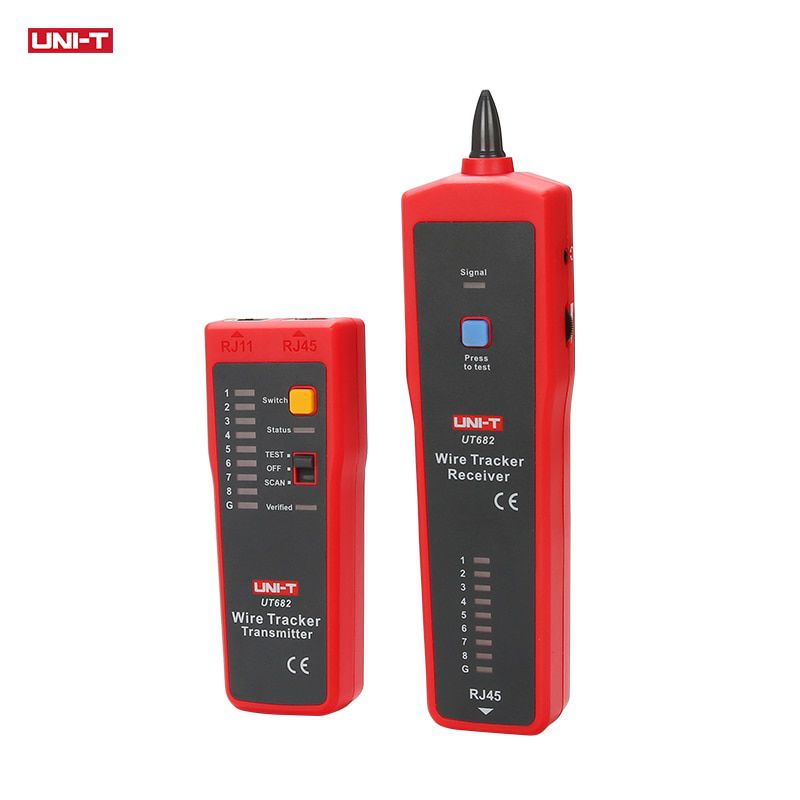

UT682 Series Wire Tracker/Tone and probe

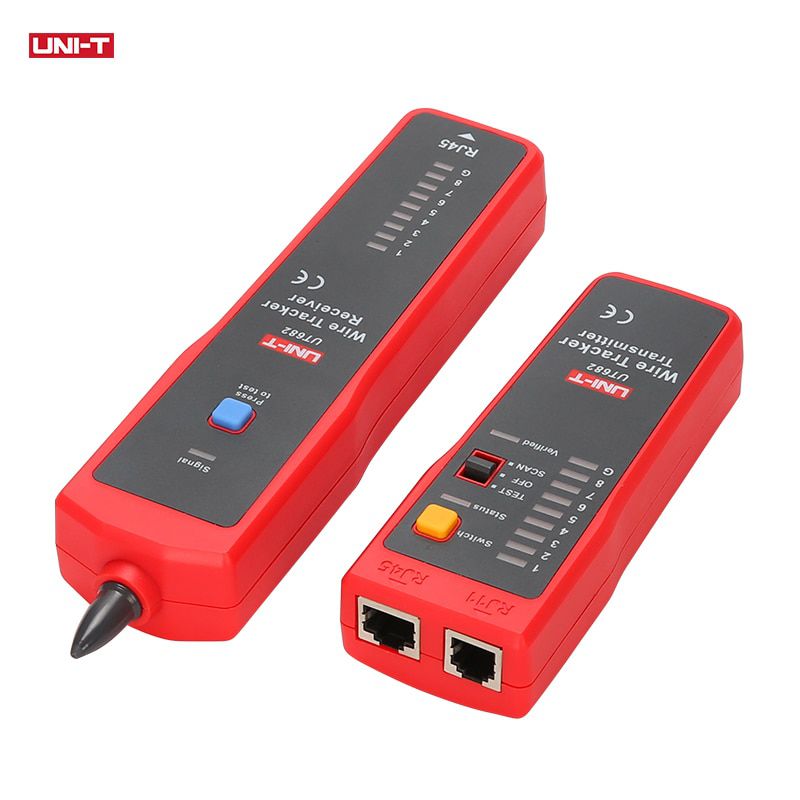

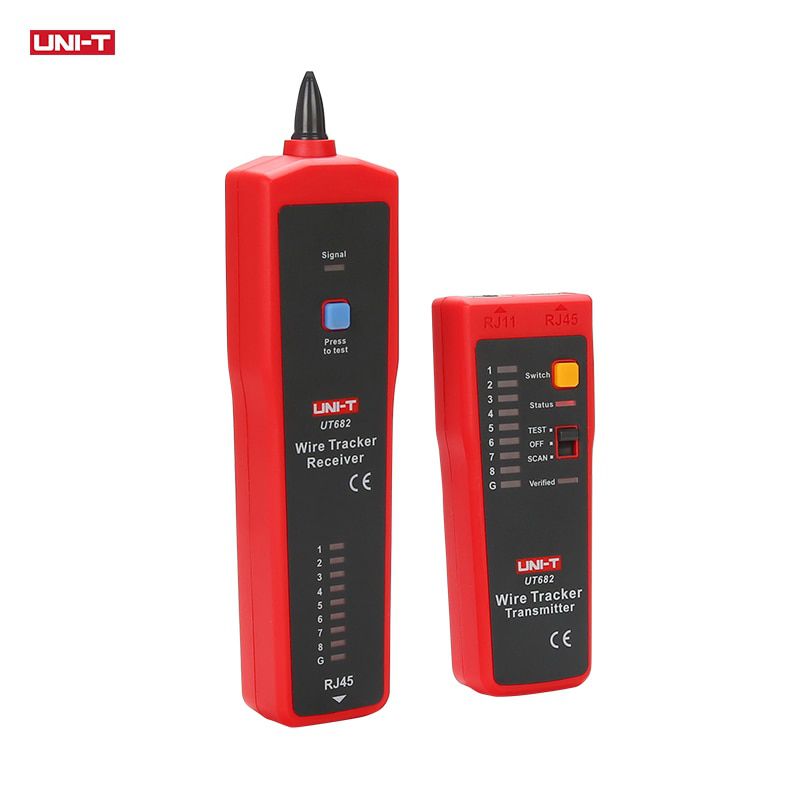

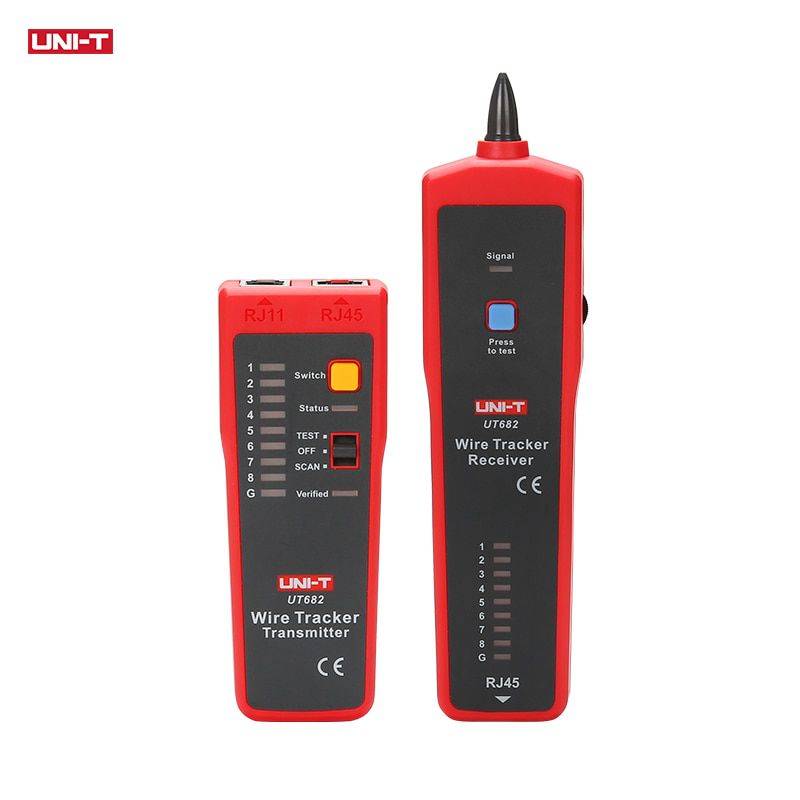

UT682 wire tracker consists of transmitter and a receiver, it is able to track ethernet, telephone,power cables without opening their insulation.
UT682 can troubleshoot ethernet cables and is a recommended tool for debugging communication cables and audio video cables

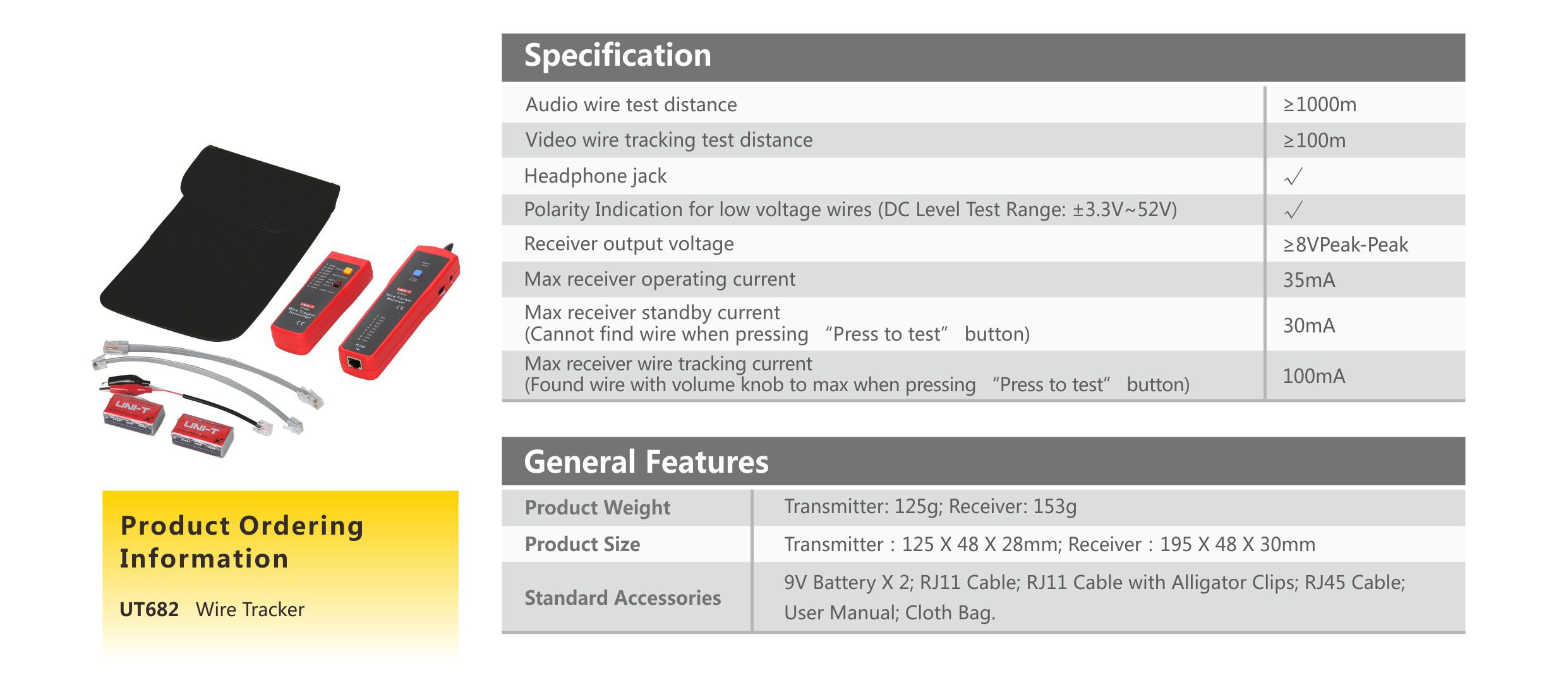

| Specifications | Range | UT682 | UT682D | |
| Wire tracking features | Wire types | LAN cable\telephone line\coaxial cable\electric wire | Telephone line\twisted- | |
| Indication light for signal strength | √ |
| ||
| Live switchboard wire tracing | √ |
| ||
| Switchboard wire tracing distance | ≥100m |
| ||
| Telephone lines tracking distance | ≥3000m | ≥3000m | ||
| Unshielded cables tracking distance | ≥320m |
| ||
| Shielded cables tracking distance | ≥320m |
| ||
| Open and short circuit test | √ |
| ||
| Polarity indication for | DCV function, range: | √ | √ | |
| Telephone lines and LAN cables distinction | Jacks distinction | √ | √ | |
| Broken wire tracking | √ |
| ||
| Transmitter output voltage | ≥12V peak-peak | 8V DC with a new battery | ||
| Transmitter low battery indication | 6.6V±0.5V |
| ||
| Transmitter power supply | 9V battery | √ | √ | |
| Max transmitter working current | 25mA |
| ||
| Headphone jack for receiver | √ |
| ||
| Receiver power supply | 9V battery | √ | √ | |
| Max receiver standby current | ~10mA | √ | √ | |
| Max receiver operating current | <40mA (AC, RMS) | √ | √ | |
| Wire alignment | Line sequence measurement | 9 LEDs (LED1~LED8, LED_G) | √ |
|
| Line sequence measuring speed | Fast and slow selectable | √ |
| |
| LAN cable: shielded/unshielded indication | √ |
| ||
| Transmitter input |
| 52V DC | 60V DC | |
| Operating environment | Operating temperature: 0~40℃; Storage temperature: -10~50℃ | |||
| General Characterisitics | ||||
| Product color | Red and grey | |||
| Product net weight | UT682: Transmitter-125g, receiver-153g; UT682D: Transmitter-150g, Receiver-130g | |||
| Product size | UT682: Transmitter-125mm x 48mm x 28mm, receiver-195mm x 48mm x 30mm | |||

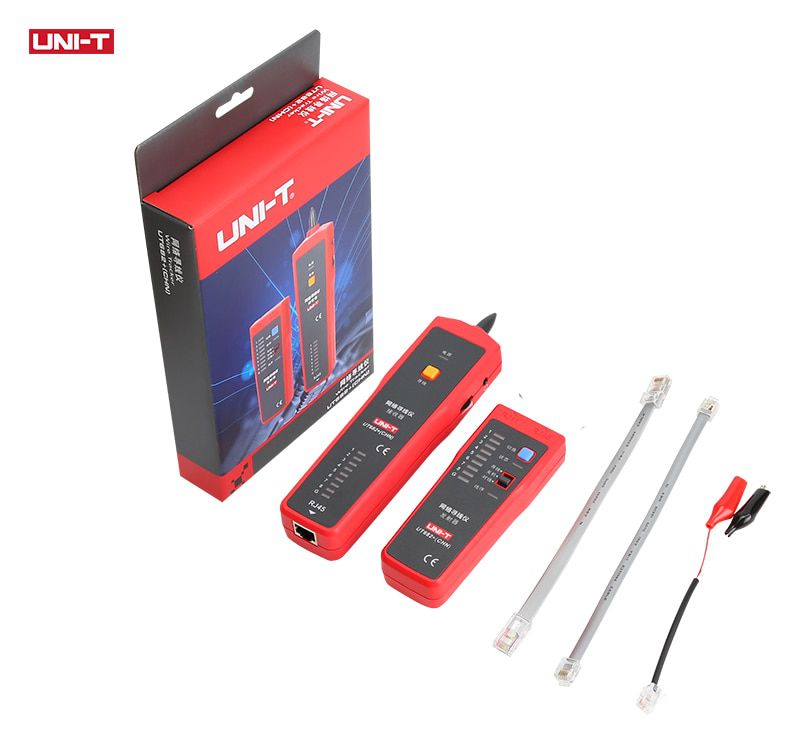

| Standard accessories | 9V battery x 2, RJ11 cable (UT682), RJ45 cable (UT682), RJ11 cable with alligator clips (UT682) | |||
| Standard individual packing | Blister (UT682), carrying bag (UT682), gift box (UT682D), English manual | |||
|
|
| |||
