Description

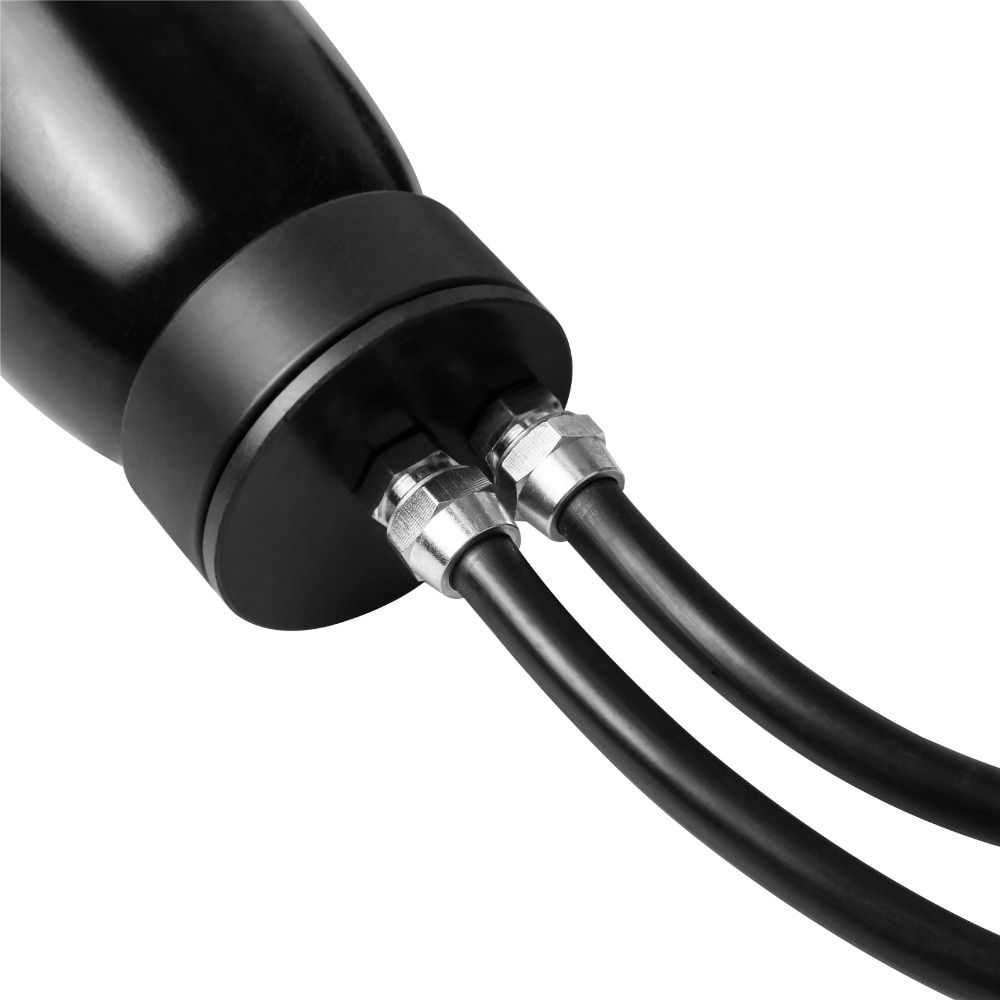

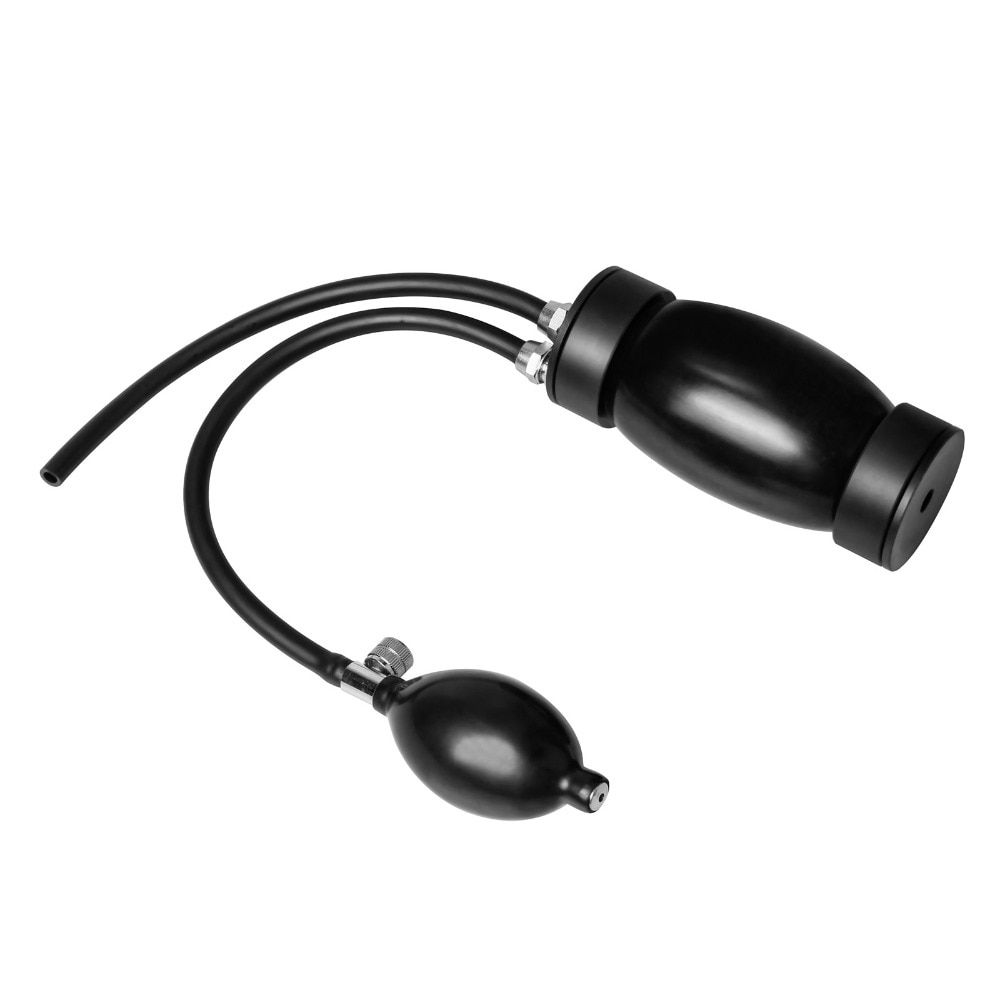

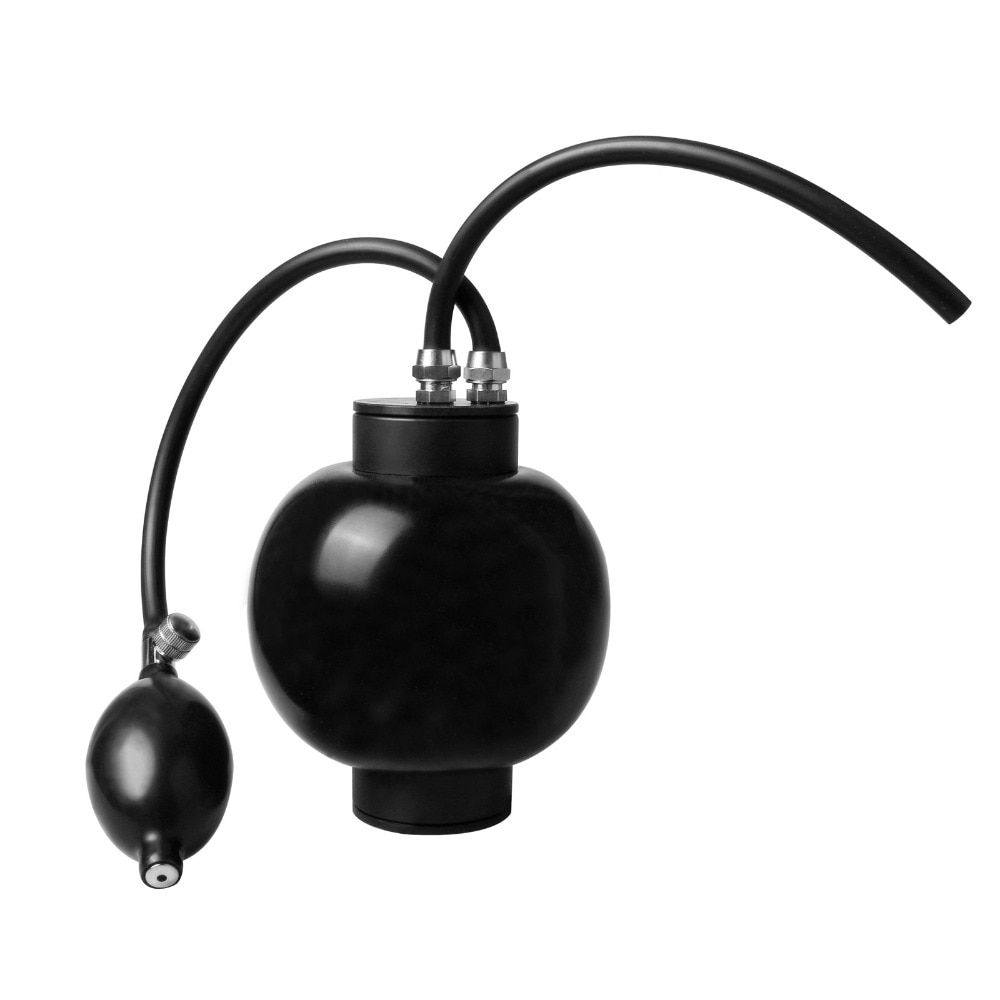

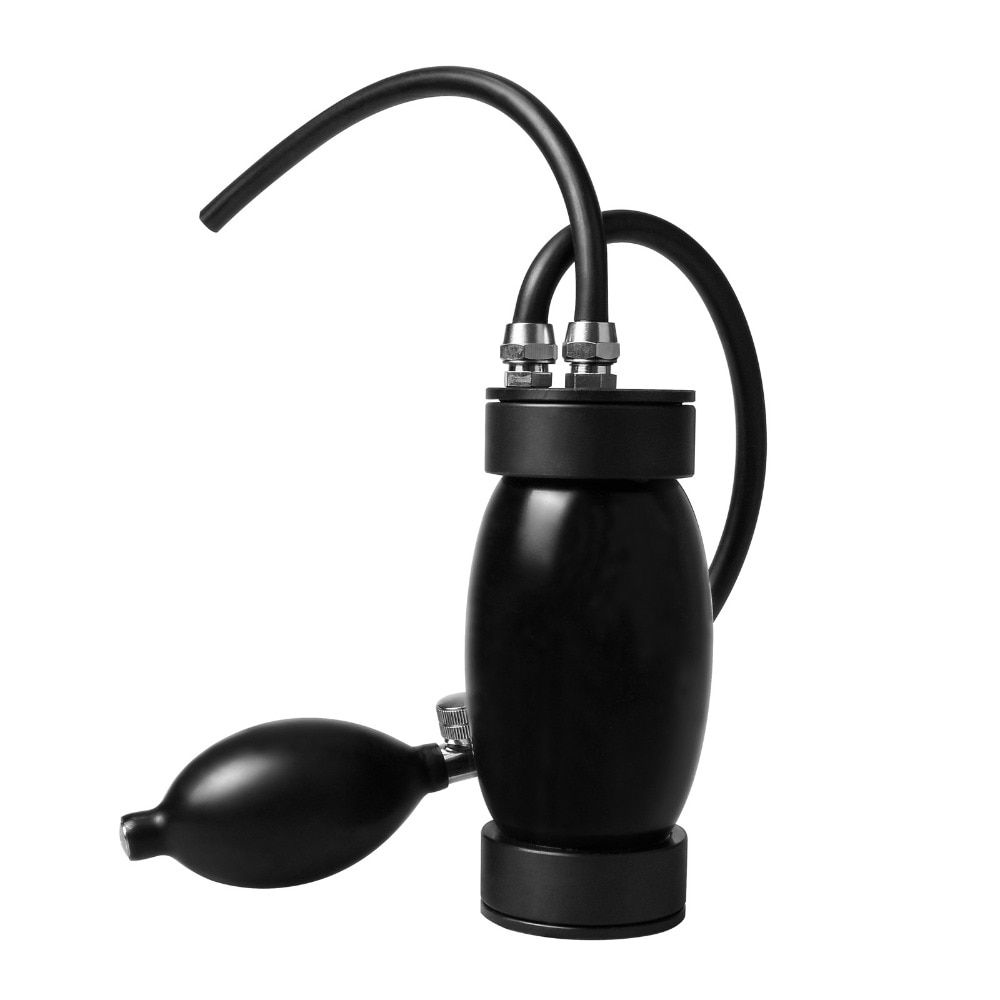

Universal intake adaptor is an inflatable block off bladder with a pressurized vapor pass-through that allows technicians to test an entire intake or exhaust systems quickly and easily.
Universal intake adaptor can be used with any brand of smoke machine or diagnostic leak detector to reduce workload on a leak check.
Block off bladder conforms to any shape of intake / exhaust: Round, oval, square, rectangular and even severely angled and hard to reach intake / exhaust systems, while allowing vapor to pass through for fast diagnostics.
Compatible with any smoke machine, It fits 100% of automobiles, from passenger car to heavy-duty trucks, to quickly leak test the integrity of the entire induction system with one simple procedure.
Universal inatake Adapter:
100% fit all cars and light trucks
Quick seal intake/exhaust easily
Reduce workload in a leak check
Fits any shape of intake/exhaust:round,oval,square,rectangular and even severelly angled and hard to reach intake/exhaust systems
Work with any brand of smoke machine or diagnostic leak detectors
Quick Start Instruction:
1 Clean the inner wall of the intake opening while the Air Filter, and the Throttle connections are removed,so as not to scratch the adapter.
2 Close the Pressure Relief Valve(A) next to the Hand Pump(B).
3 Put the Rubber Component(C) into the intake opening.

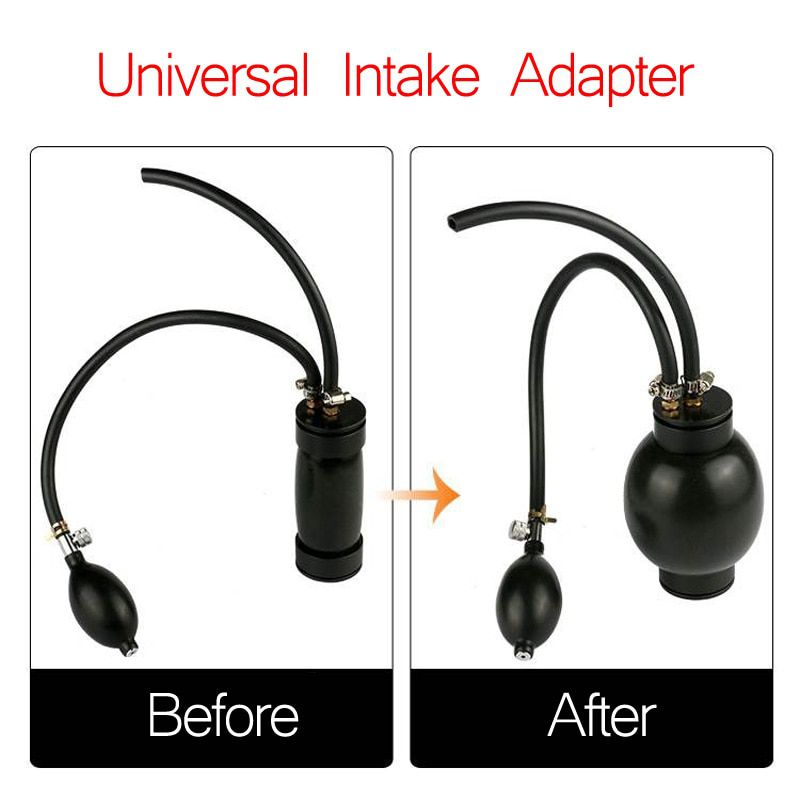

4 Inflate the Rubeber Component(C) by pressing the Hand Punm(B) till the intake opening is tightli sealed.
5 Now the system is ready to test,introduce air/smoke into the system by plug the smoke nozzle into the Tube Opening(D).
6 After test,pull off the smoke nozzle,release the inflated air by open the Pressure Relief Valve(A) next to the Hand Pump(B).
7 Clean the adapter for storage,avoid contact with corrosive liquids.
