4 " Smart Voice HEAD UP DISPLAY with OBD2 Interface KM/h & MPH Speeding Warning W03 (with OBD line) Do Not Support Bluethooth
4 " Smart Voice HEAD UP DISPLAY with OBD2 Interface KM/h & MPH Speeding Warning W03 (with OBD line) Do Not Support Bluethooth
4 " Smart Voice HEAD UP DISPLAY with OBD2 Interface KM/h & MPH Speeding Warning W03 (with OBD line) Do Not Support Bluethooth
4 " Smart Voice HEAD UP DISPLAY with OBD2 Interface KM/h & MPH Speeding Warning W03 (with OBD line) Do Not Support Bluethooth
4 " Smart Voice HEAD UP DISPLAY with OBD2 Interface KM/h & MPH Speeding Warning W03 (with OBD line) Do Not Support Bluethooth
4 " Smart Voice HEAD UP DISPLAY with OBD2 Interface KM/h & MPH Speeding Warning W03 (with OBD line) Do Not Support Bluethooth
4 " Smart Voice HEAD UP DISPLAY with OBD2 Interface KM/h & MPH Speeding Warning W03 (with OBD line) Do Not Support Bluethooth
4 " Smart Voice HEAD UP DISPLAY with OBD2 Interface KM/h & MPH Speeding Warning W03 (with OBD line) Do Not Support Bluethooth
4 " Smart Voice HEAD UP DISPLAY with OBD2 Interface KM/h & MPH Speeding Warning W03 (with OBD line) Do Not Support Bluethooth

4 " Smart Voice HEAD UP DISPLAY with OBD2 Interface KM/h & MPH Speeding Warning W03 (with OBD line) Do Not Support Bluethooth

  • Quantity
W03 project the important information to the front windshield with human voice reminding. It can help novices to do speed judgment to control driving speed, and avoid over-speeding in most situations with speed limitation
Specifications
  • Item No.
  • COBD23672
  • Weight
  • 300g
  • Package
  • 17.5cm*13.5cm*6.5cm
Description
4 " Smart Voice HEAD UP DISPLAY with OBD2 Interface KM/h & MPH Speeding Warning W03 (with OBD line) Do Not Support Bluethooth

It can make drivers focus the vision on the way meanwhile it can be easy to know the status of vehicle, maintain the best observation all the time.

Functional Characteristics
1. OBD cable connection.
2. Outstanding definition by using white light LED
3. Common USB port good for software upgrade
4. Great for reading with accurate big screen
5. Multiple function display and automatic power on & off
6. Time display function
7. Real humanity speaking and reminding
8. Time recording of driving and parking
9. Auto adjusting the brightness when light source changing
10. Auto matching the parameter when starting the vehicles.

hud06 display

How to install:
1. Place the mat to the front desk of the diver under the front windshield with adhesive surface.
2. Place the HUD on the mat, adjust the view angle and position and make sure your vision clear.
3. Connect the OBD cable with vehicle OBD16 diagnostic port.
4. Connect OBD 12 pin USB port with the host,when the host was powered on, the setting icon will light on.
5. Start the car, then HUD power on, system will play the voice at the same time, monitoring data output
How to work:
It is using optical reflection principle, reflect the important driving data to the front glass of the vehicle. This device are placed under the windscreen of the vehicle, via OBD cable to receive the vehicle ECU data, timely and accurate read the speed/rotation speed/fuel data and so on. Then, project it onto the front windshield so that drivers no need to look down and can be read real time!

how to work


Technical indicators:
1. Working conditions:
Ambient temperature - 20 degrees to + 80 degrees
Relative humidity 10%- 95%
Environmental noise < = 60 db (A)
2. Alarm sound level = 30 db (A)
3. Working voltage: 5 v / 1.2 A
4. Product size, Host: 106 x68x18. 5 mm
5. Product weight: 95 g

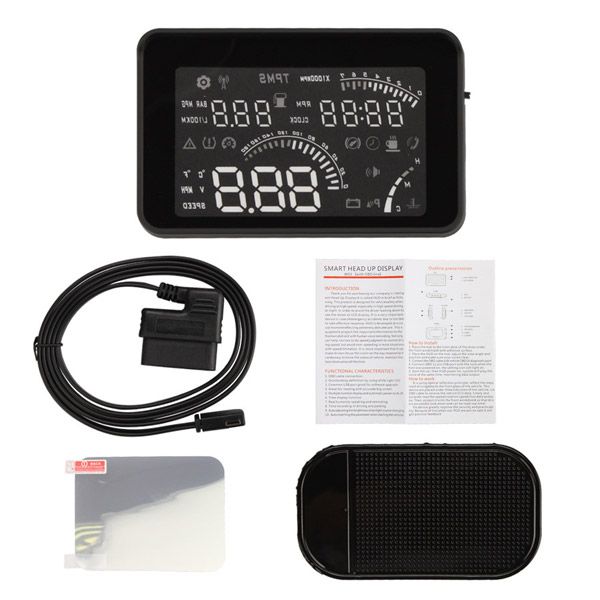

Package including:
1pc x Host machine of HUD

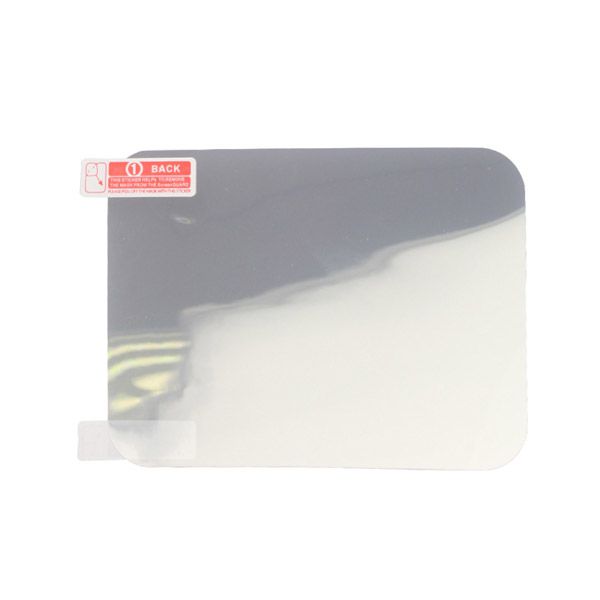

1pc x Reflecting film

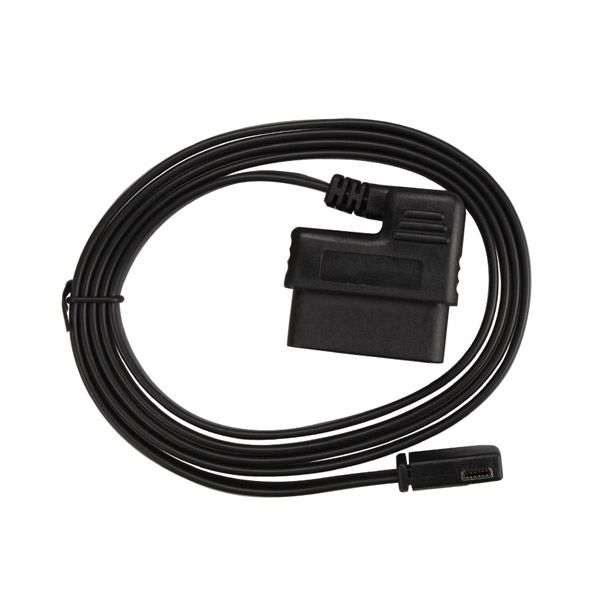

1pc x OBD2 Connecting line
1pc x Instruction Manual

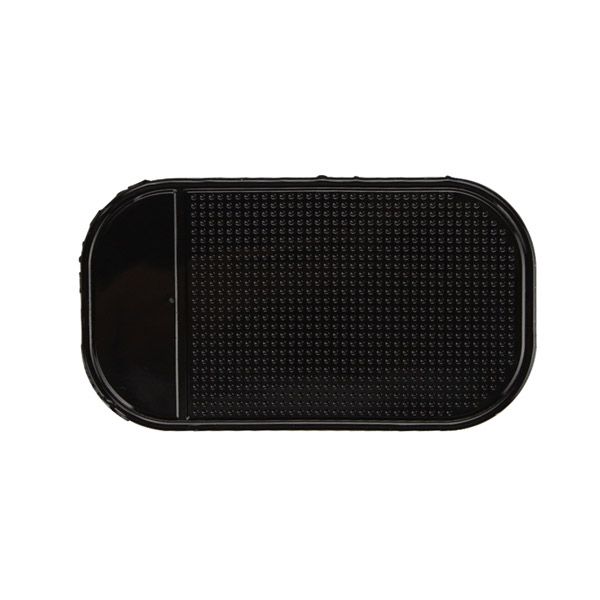

1pc x Non-slip mat
1pc x Warranty card

Product Display:

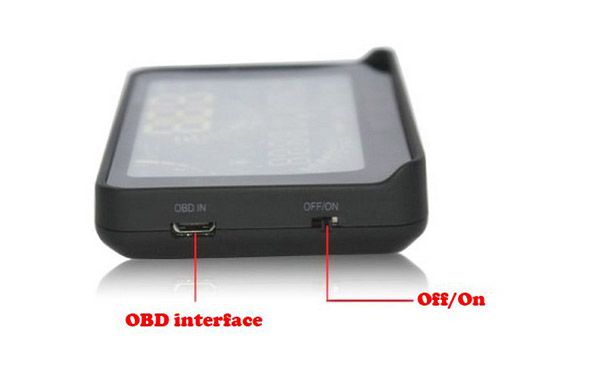

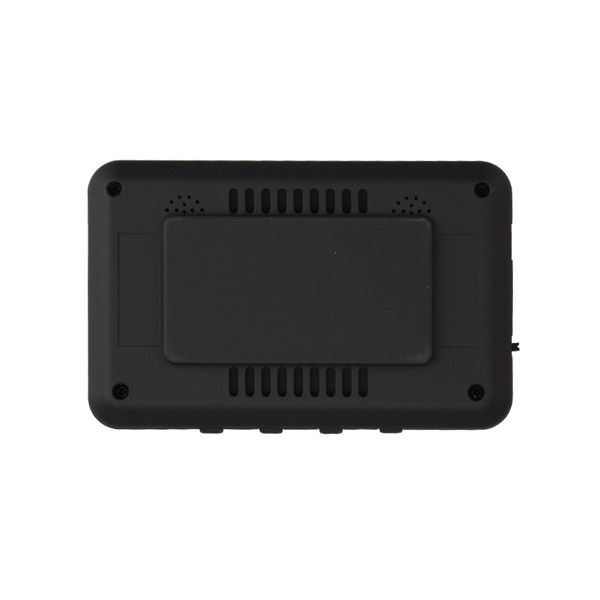

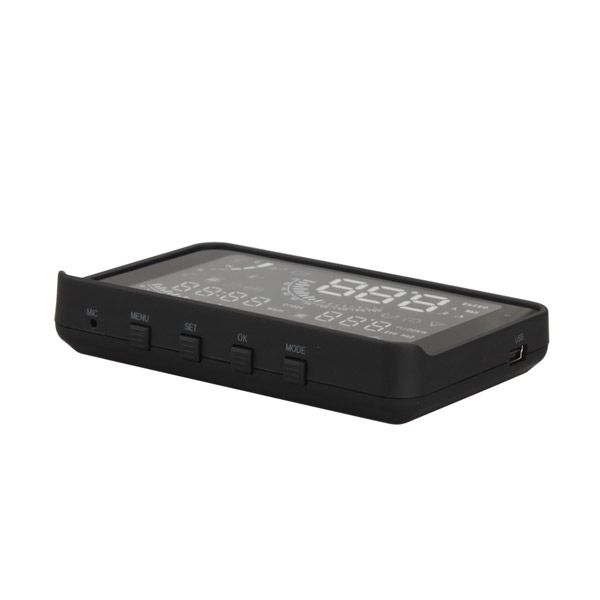

main unit
head up interface display
