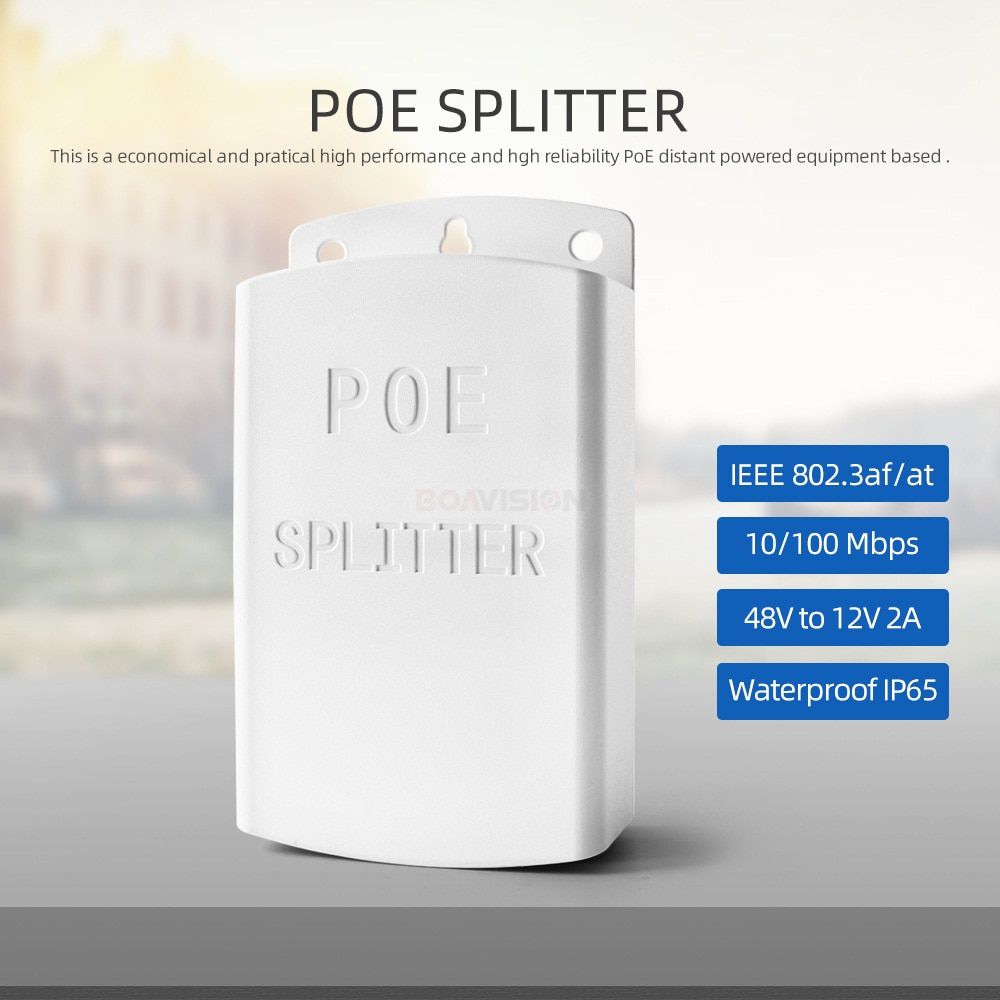

POE Splitter

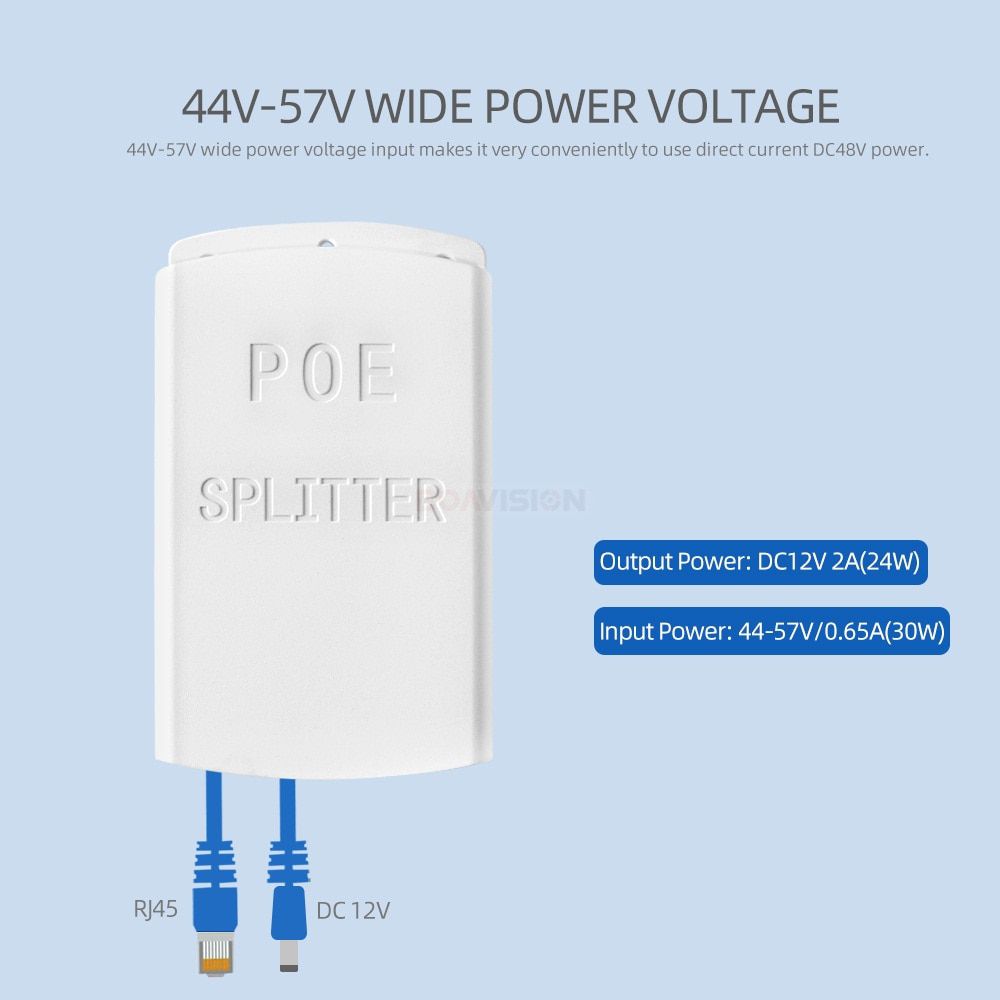

44V-57V Wide Power Voltage

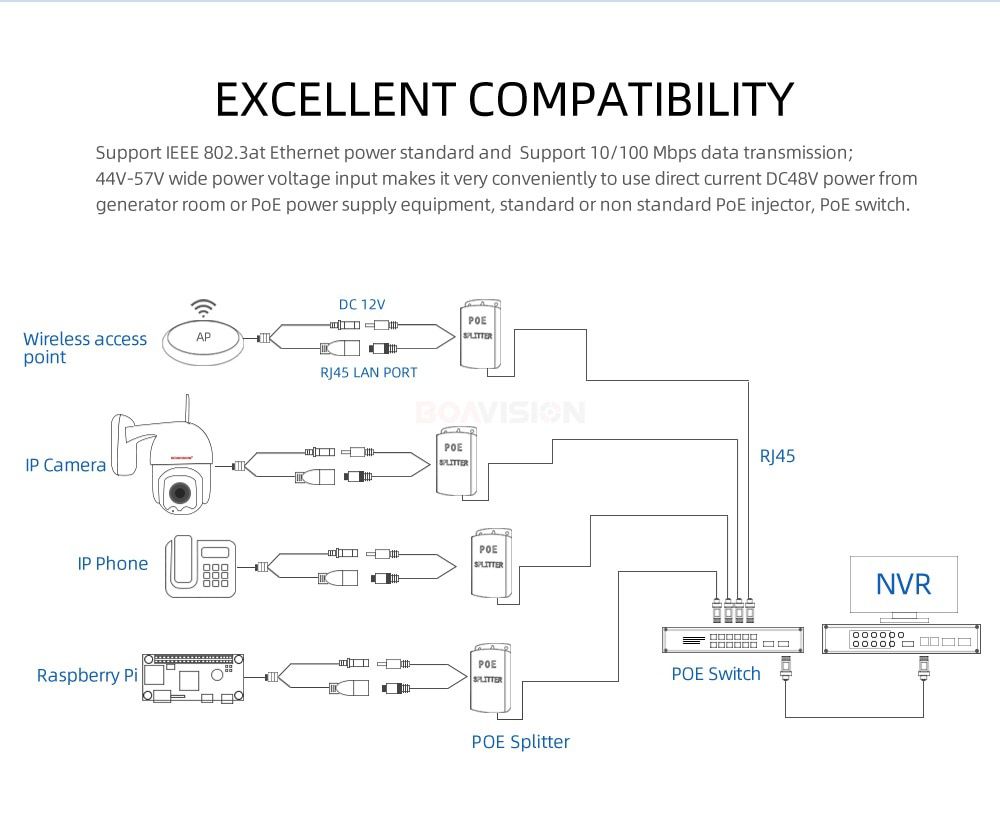

Excellent Compatibility

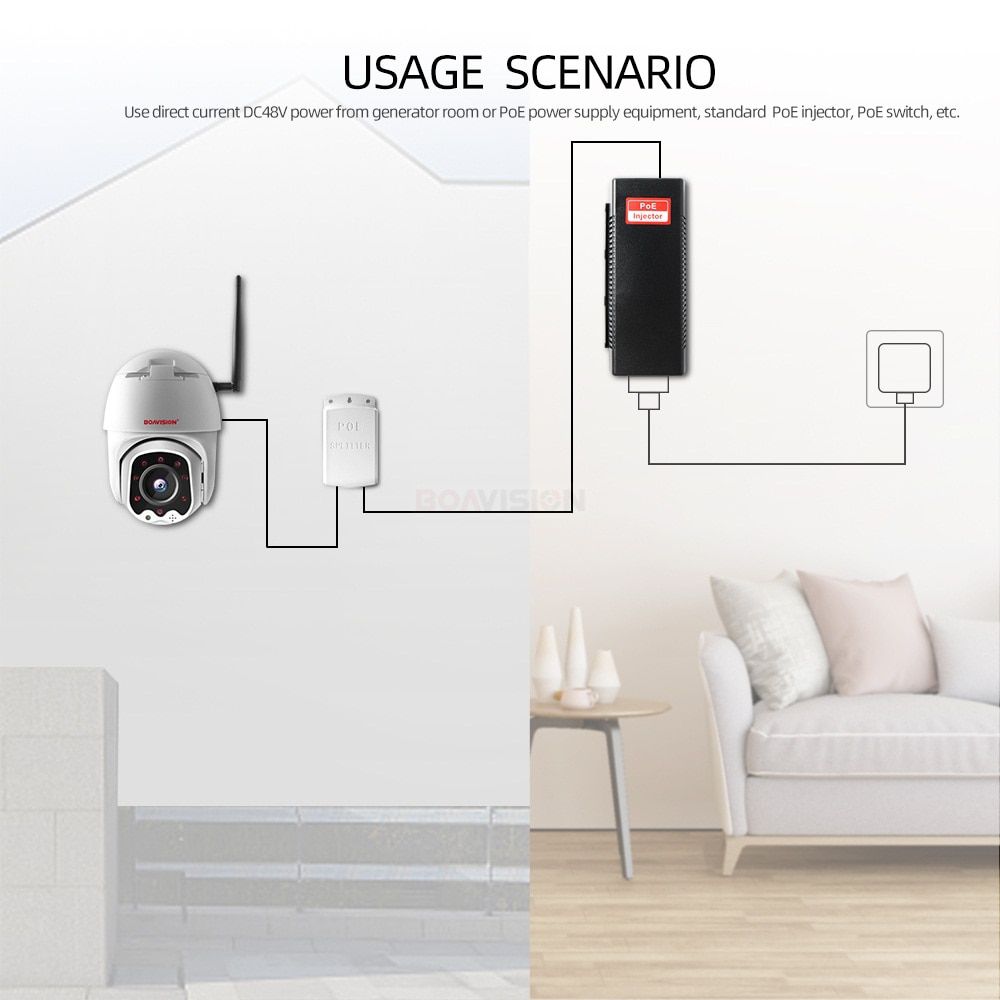

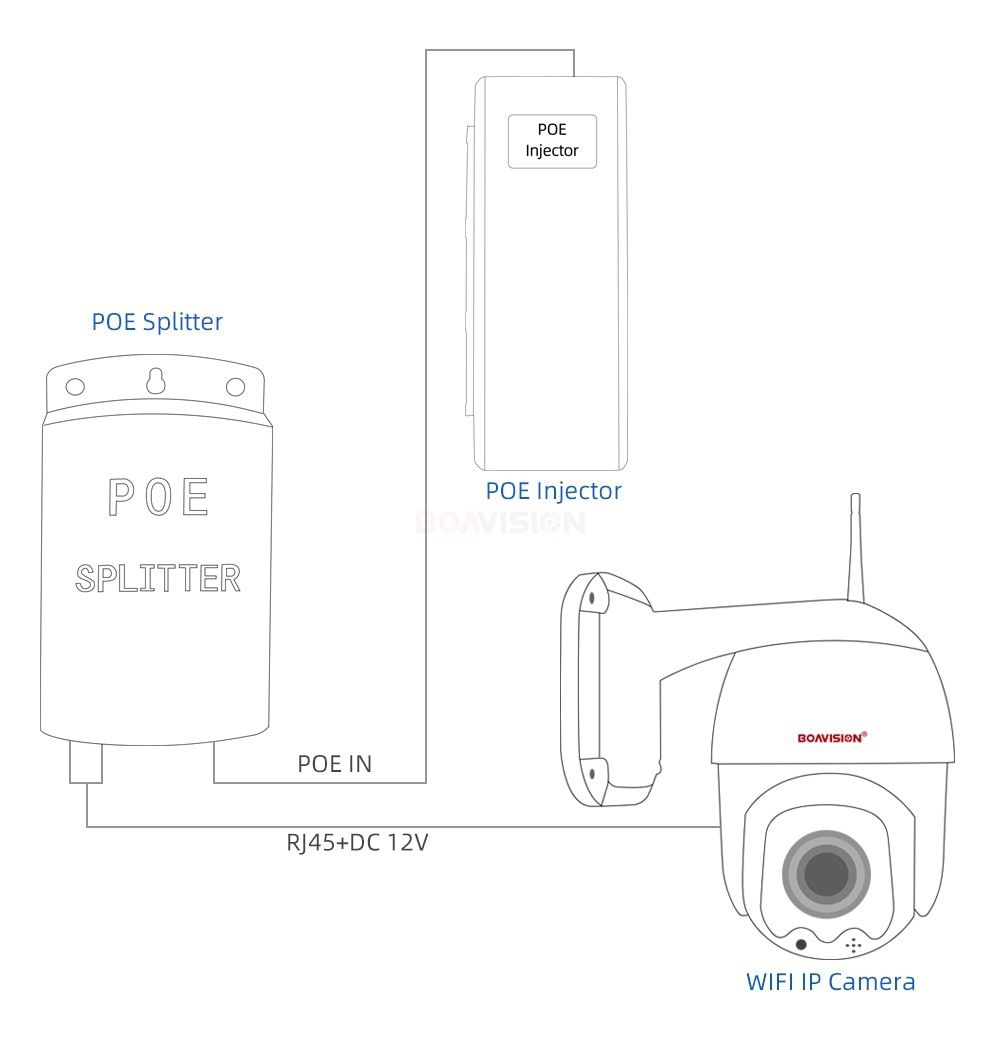

Usage Scenario

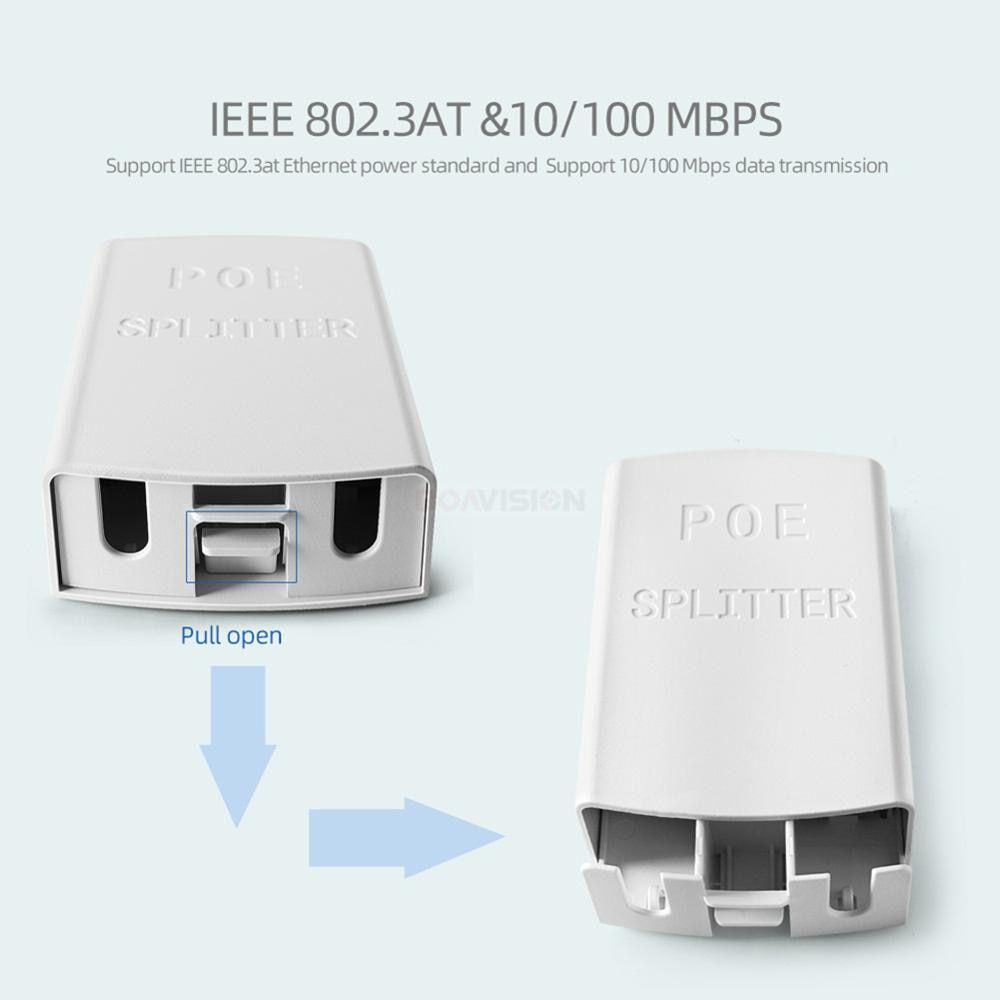

IEEE 802.3AT & 10/100 MBPS

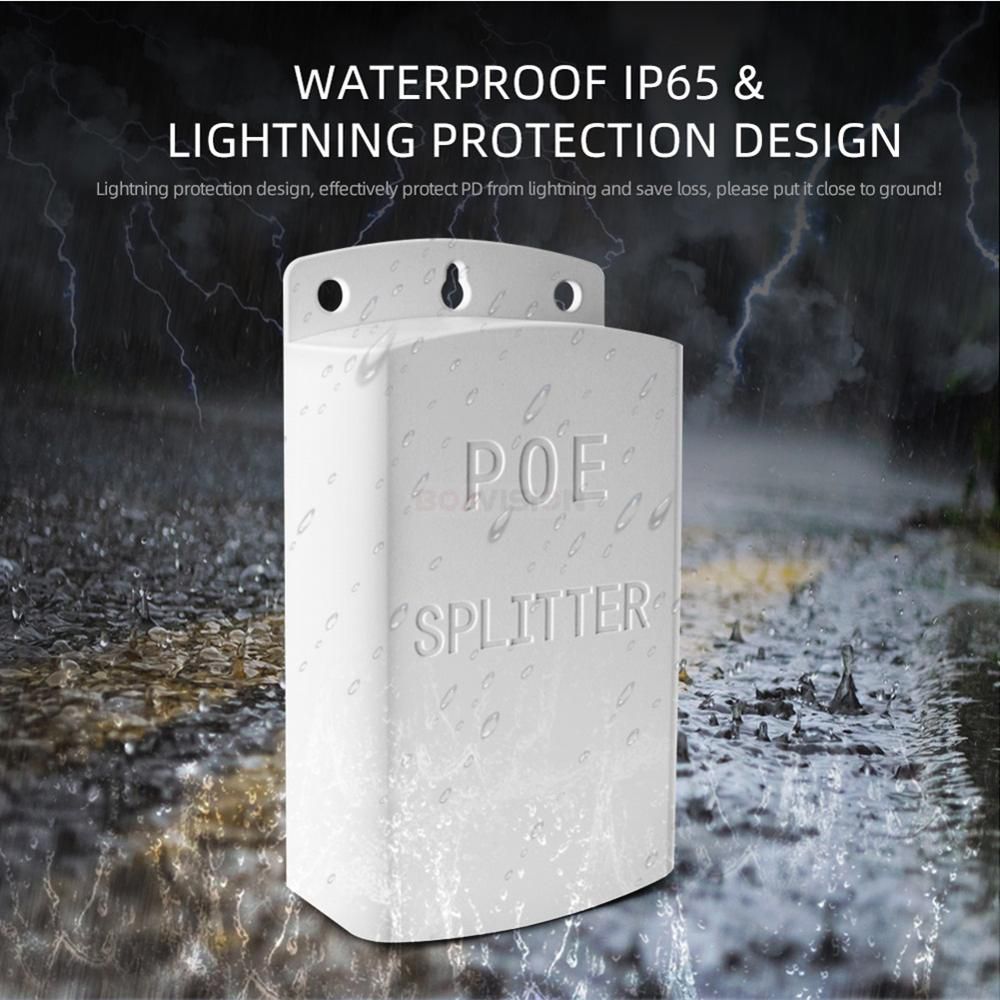

Waterproof IP65 & Lightning Protection Design

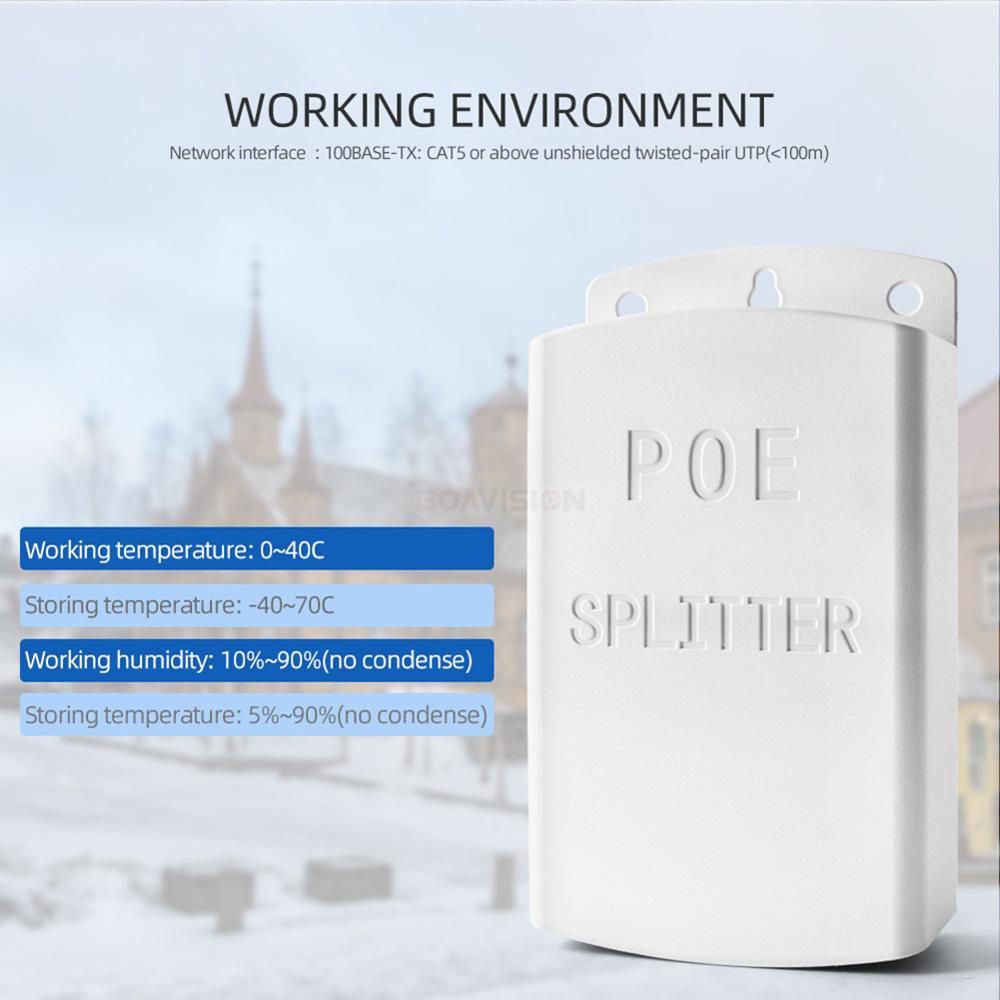

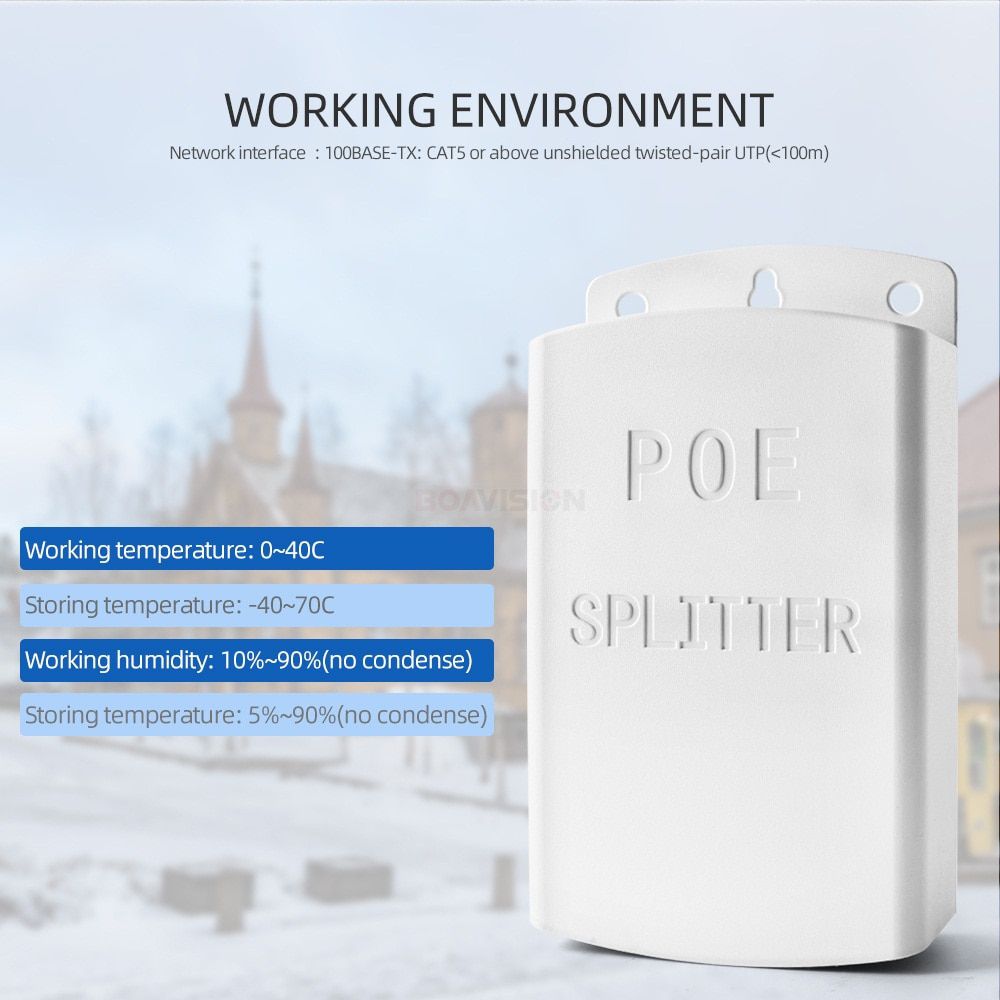

Working Environment

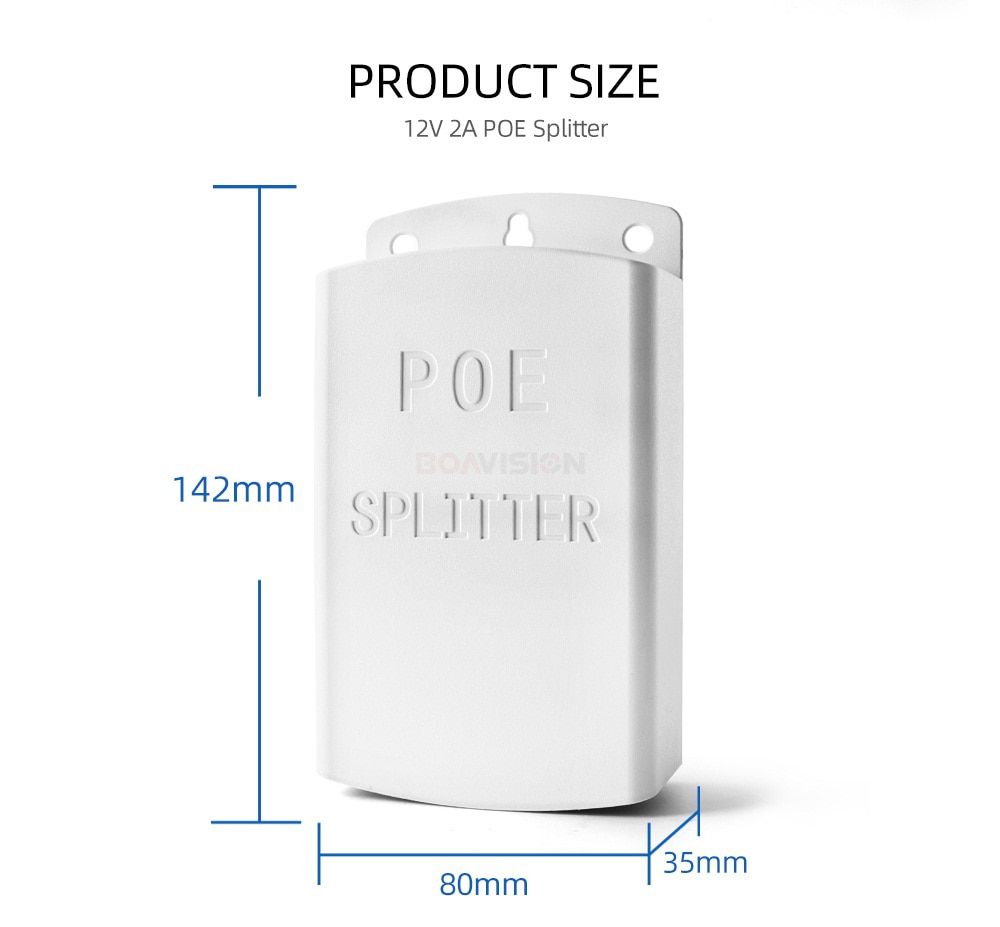

Product Size
Model:PS312AT
Main Features:
This is a economical and pratical high performance and hgh reliability PoE distant powered equipment based on IEEE 802.3at standard, it can divide the power and data signal from network cable, can be used with power supply equipment(PoE injector) which is compatible with IEE802.3af, and supply power and data for Non PoE network equipment.
(1) Support IEEE 802.3at Ethernet power standard and Support 10/100 MBps data transmission
(2) 44V-57V wide power voltage input makes it very conveniently to use direct current DC48V power from generator room or PoE power supply equipment, standard or non standard PoE injector, PoE switch, etc.
(3) Supply DC12V power, which is very suitable for small network equipment.
(4) Lightning protection design, effectively protect PD from lightning and save loss, please put it close to ground!
(5) High quality design ensure the equipment work stably and reliably.
(6) Waterproof IP65, Outdoor Use
| Model nuMBer | PS312AT |
| Port | 1CH 10/100M self-adaption RJ45 port |
| 1CH RJ45 port support PoE | |
| Network interface | 100BASE-TX: CAT5 or above unshielded twisted-pair UTP(<100m) |
| Power input | 44-57V/0.65A(30W) |
| Power output | DC12V 2A(24W) |
| POE protocol | Standard IEEE 802.3af/at |
| POE Pin | 1,2(+), 3,6(-)/4,5(+), 7,8(-) |
| Lightning protection | Yes |
| Working Environment | Working temperature: 0~40C |
| Storing temperature: -40~70C | |
| Working humidity: 10%~90%(no condense) | |
| Storing temperature: 5%~90%(no condense) | |
| Dimension | 142x80x35mm |
Packing List
1 x 12V 2A PoE Splitter
