Description

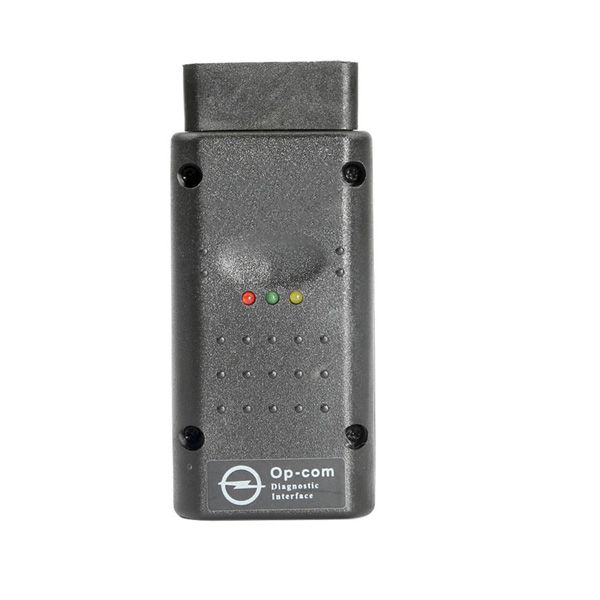

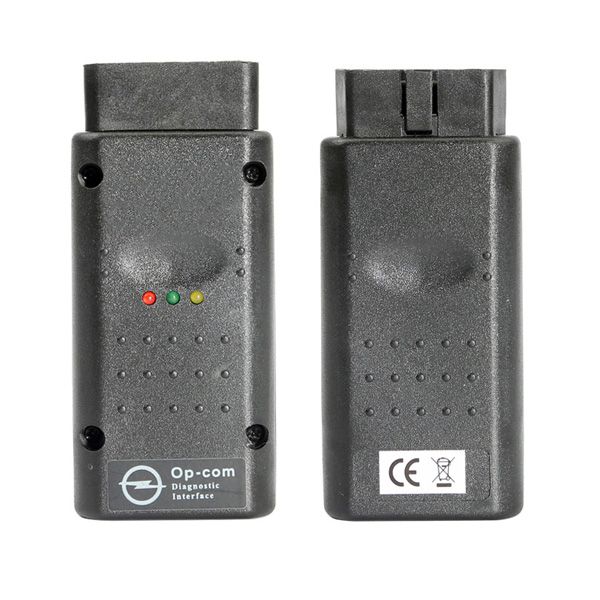

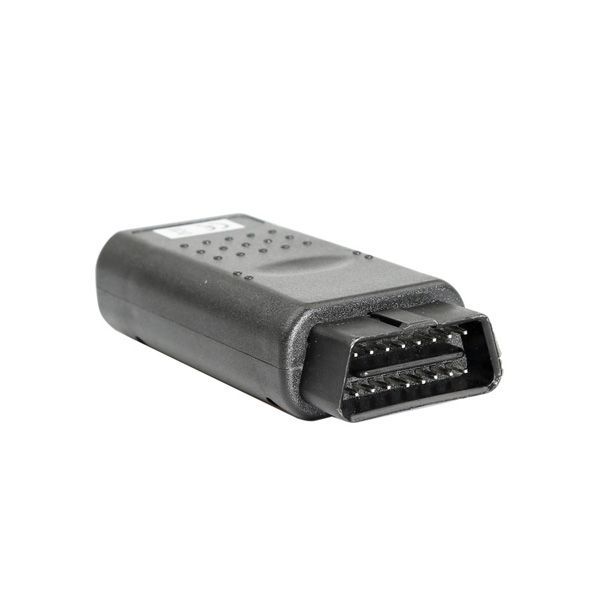

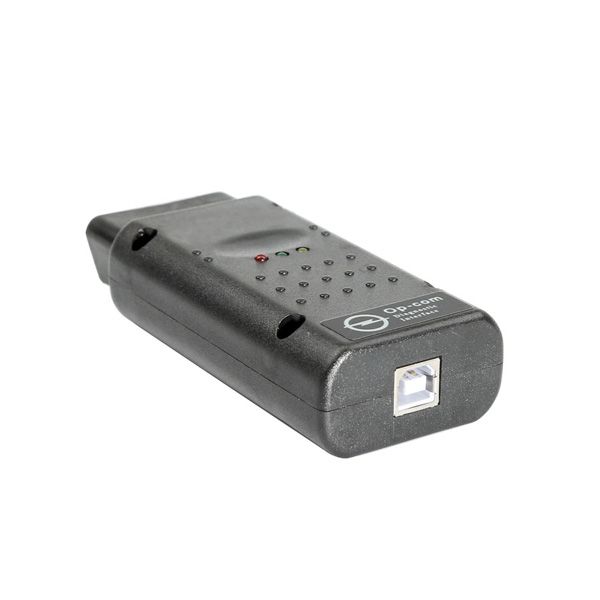

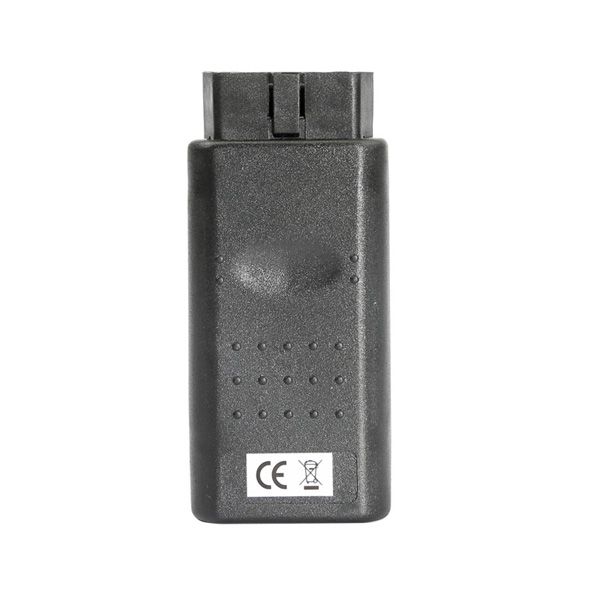

Opcom OP-Com 2014 V Can OBD2 Opel Firmware V1.45 with PIC18F458 chip
Software VERSION: 2014V
Firmware version: 1.45
OPCOM 2014 Function, Workable Vehicle and Control System:
OP-COM is a PC-based diagnostic program, it can read out and clear detailed fault codes, read live data, and perform output test on many control units (e.g. Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, etc.) for almost all Opel cars even the new CAN-BUS protocol cars such as Vectra-C, Astra-H and Zafira-B, etc.
Note:
Since Opel cars are built with many pins in the OBD connector, you need select the appropriate pin for communication with diagnostic interface:
PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)
OPCOM 2014 Feature:
1) Full status information (Present, Not present, Intermittent)
2) You can print out, save, or copy the fault codes to any other application. From the fault codes interface, you can go directly to the measuring blocks interface.
3) The program shows you measuring block information on many control module, but you can choose anything from the list on your own.
4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate mostly depends on the communication protocol. For example, the older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while the newer Multec, or Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!
You can also run output tests on many controllers.
PIN6-PIN14
PIN3-PIN11
PIN1
HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps
MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps
SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

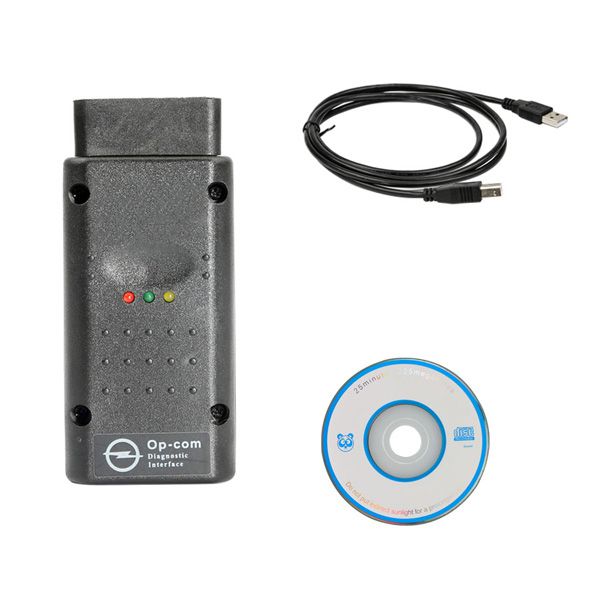

Package List:
1pc x OP COM Interface

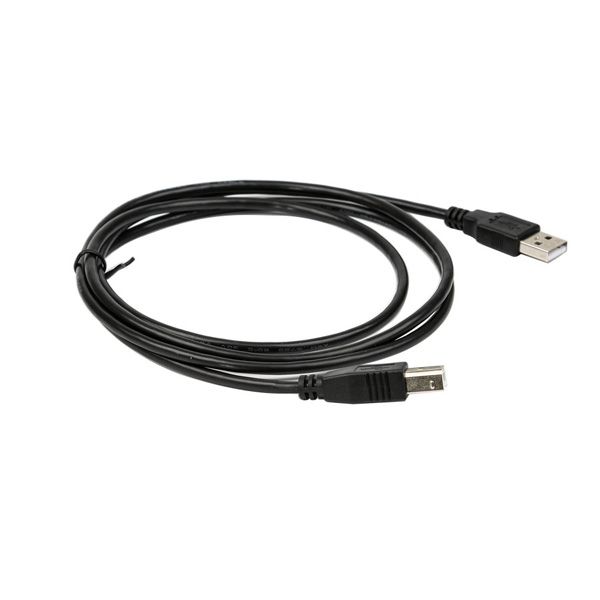

1pc x USB Cable
1pc x Software and Drivers CD
