MS2008B Auto Manual Range Digital Clamp AC Volt Current Res Cap Temp Freq Meter
Please note:send without battery
Introduction
This meter 3 3/4 digits with steady operations,fashionable structure and highly reliable measuring instrument.

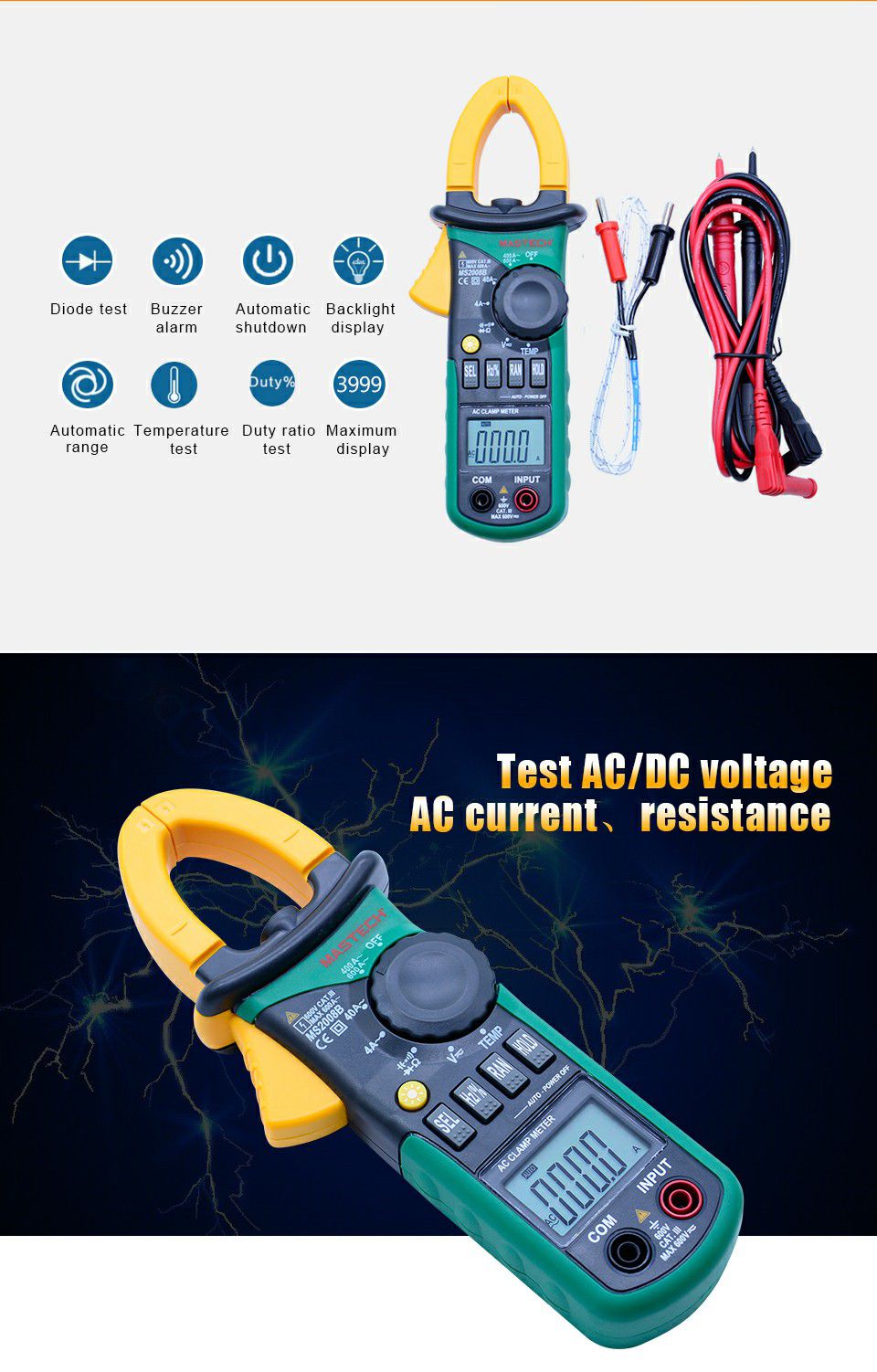

The Meter uses large scale of integrated circuit with double integrated A/D converter as its core and hasfull range overload protection.The meter can perform measurements of AC current, AC/DC voltage, resistance,capacitance as well as continuity and diode test.
Features
1.Maximum voltage including transient overvoltage between any terminals and grounding: CATⅢ 600VDC or 600V AC peak
2.Display :LCD screen, max reading 3999
3.Measurement principle:double integrated A/D converter
4.Range mode:Auto Range or manual Range
5.Measurement Speed:(2.5~3 times)/ Second
6.Unit display:Sign
7.Polarity Display:－
8.Overloading:'OL'
9.Data hold and Low Battery indication display

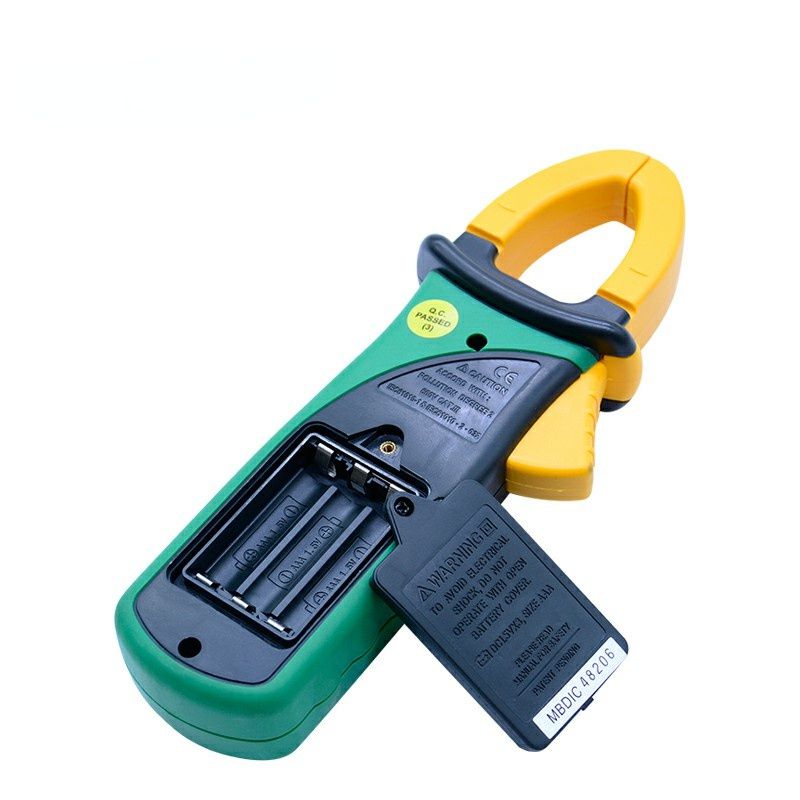

10.Power supply: DC1.5V Х3 SIZE AAA battery (Not Included)

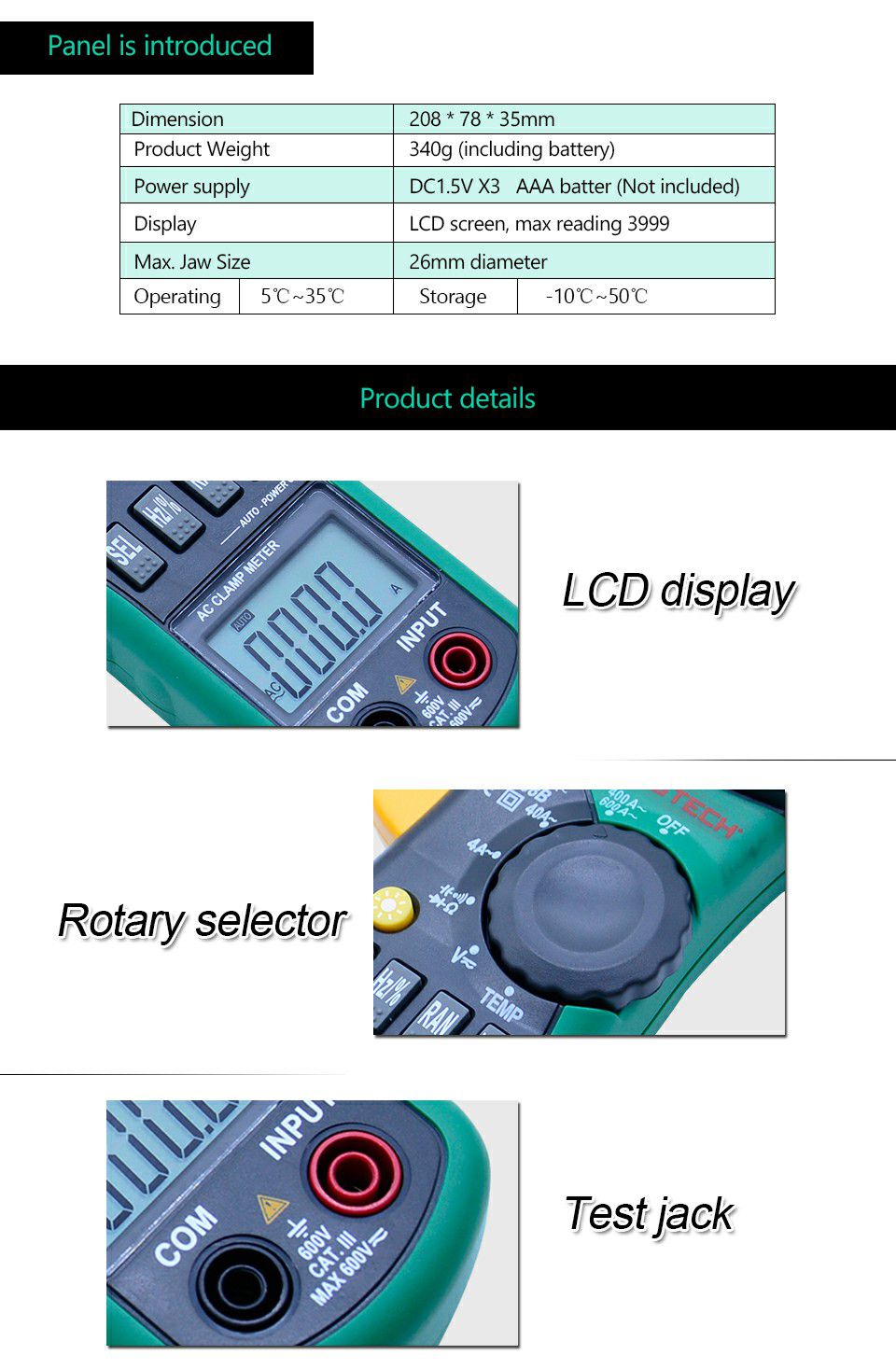

11.Dimensions :208mm×78mm×35mm

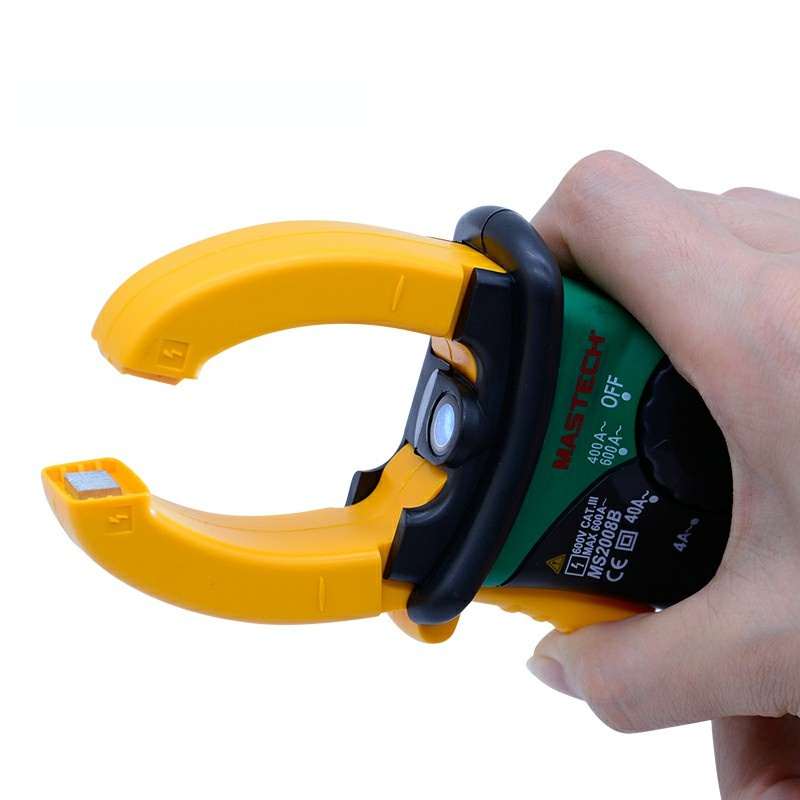

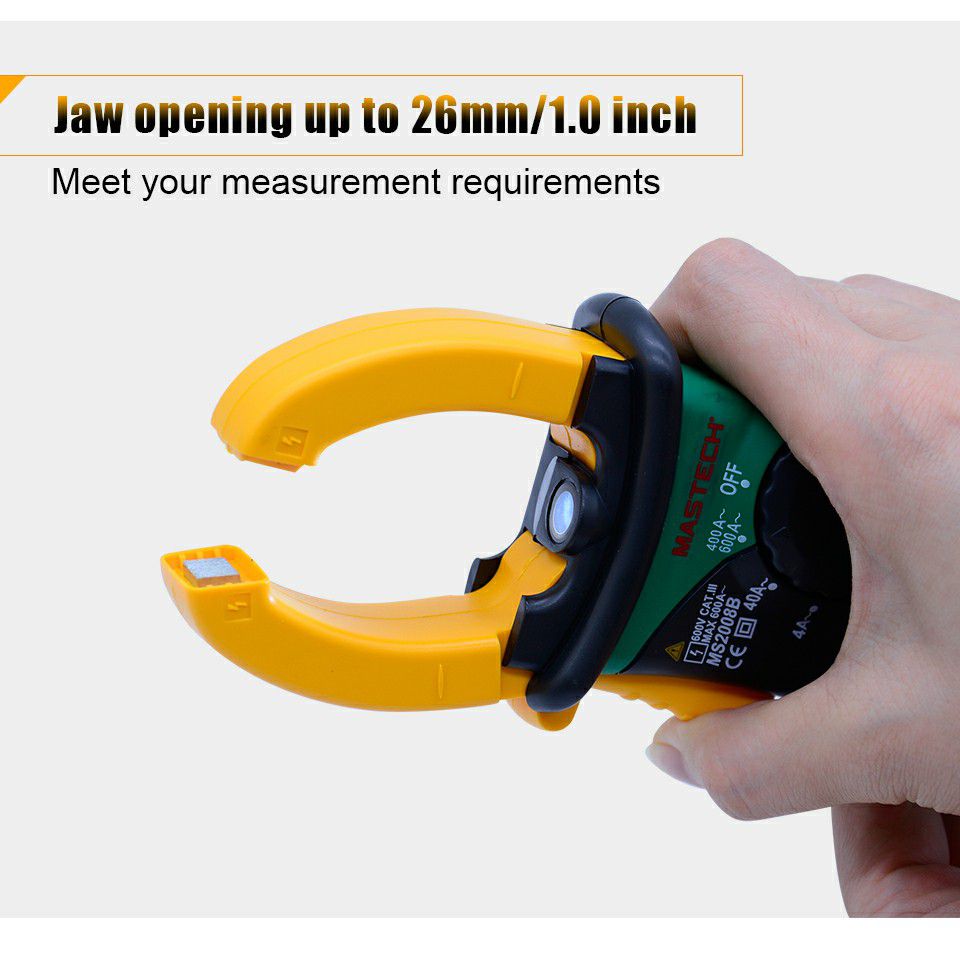

13.Max. Jaw Size:26mm diameter
14.Operating:5°~35° ,Storage:-10°~50°

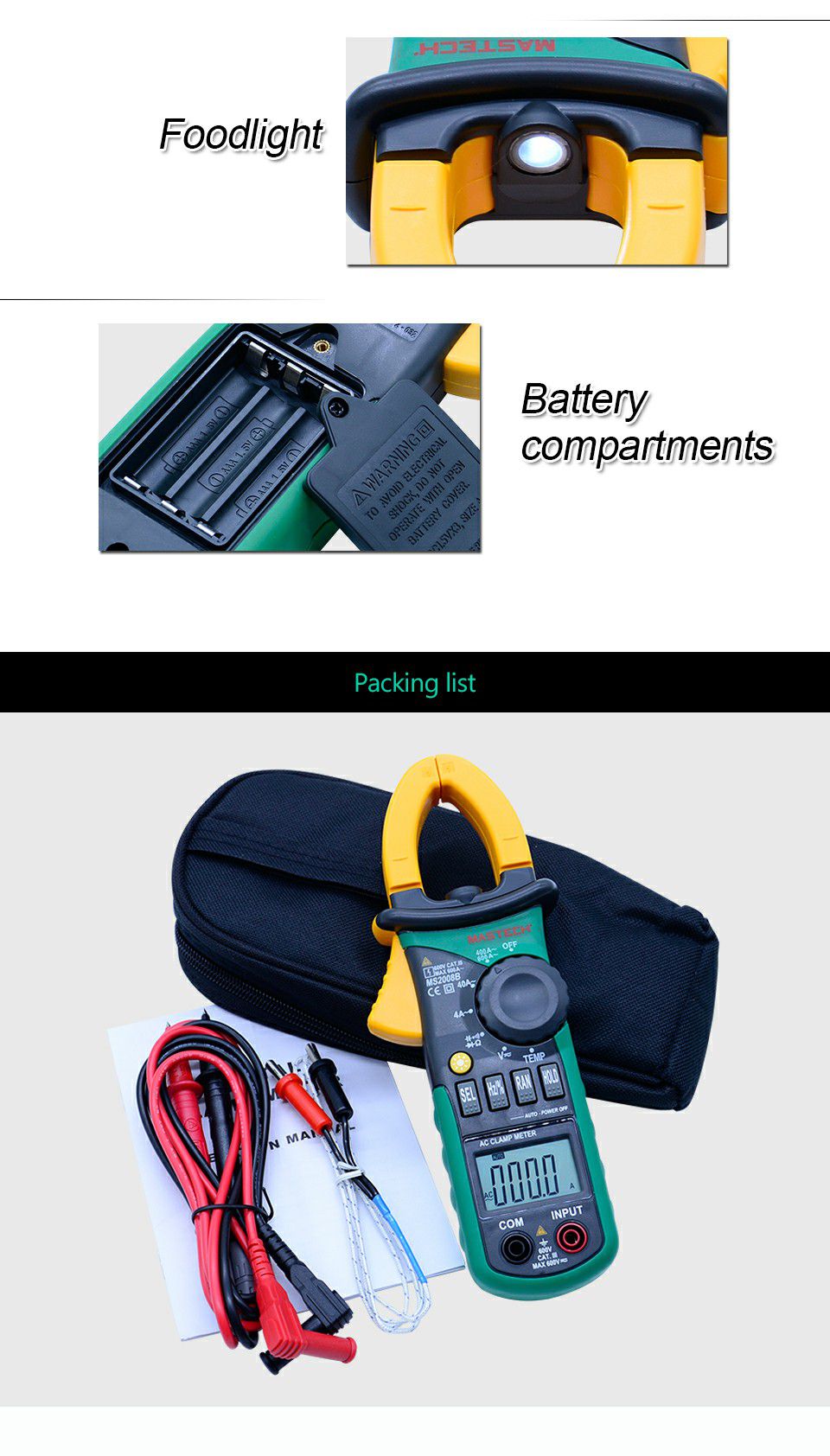

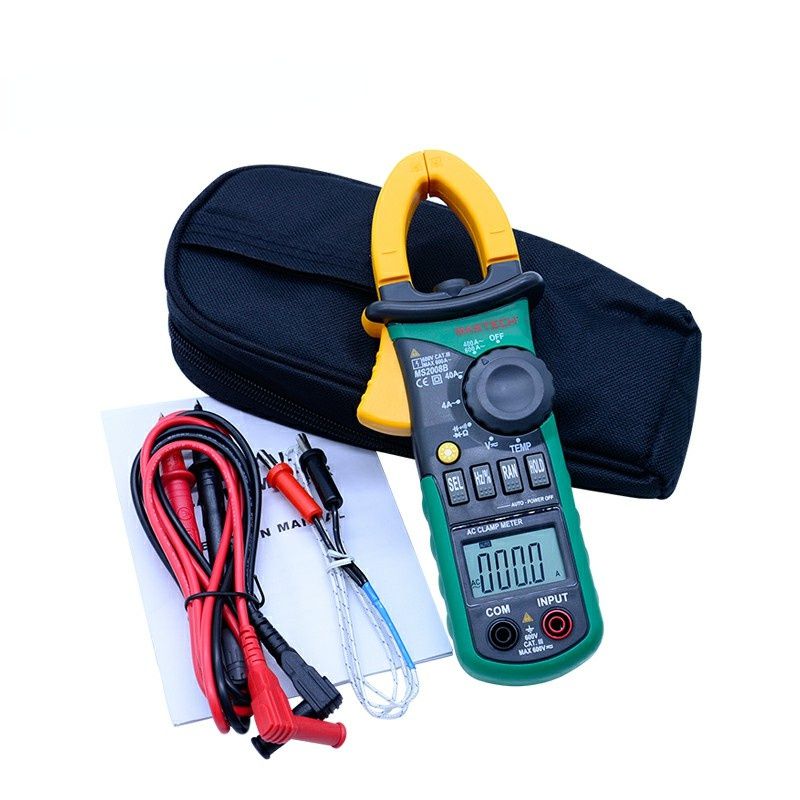

Package List
1*Digital multimeter clamp MS2008B
1*English user manual
1*Bag
2*Test pen
1*Thermocouple

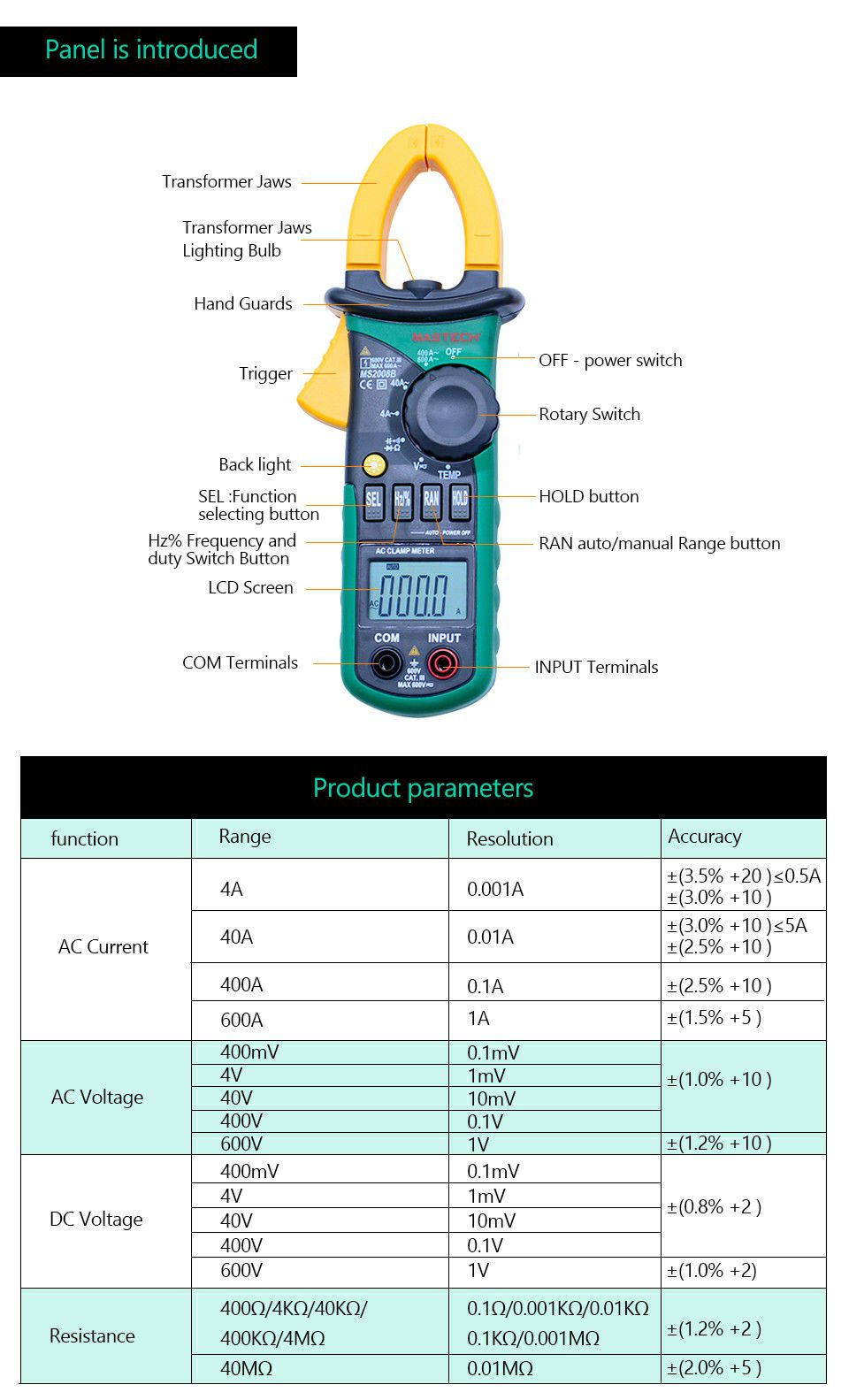

Specifications
| Function | Range | Resolution | Accuracy |
| AC Current | 4A | 0.001A | ±(3.5%+20)≤0.5A ±(3.0%+10) |
| 40A | 0.01A | ±(3.0%+10)≤5A ±(2.5%+10) | |
| 400A | 0.1A | ±(2.5%+10) | |
| 600A | 1A | ±(1.5%+5) | |
| AC Voltage | 400mV | 0.1mV | ±(1.0%+10) |
| 4V | 1mV | ||
| 40V | 10mV | ||
| 400V | 0.1V | ||
| 600V | 1V | ±(1.2%+10) | |
| DC Voltage | 400mV | 0.1mV | ±(0.8%+2) |
| 4V | 1mV | ||
| 40V | 10mV | ||
| 400V | 0.1V | ||
| 600V | 1V | ±(1.0%+2) | |
| Resistance | 400Ω/4kΩ/40KΩ/ 400KΩ/4MΩ | 0.1Ω/0.001KΩ/0.01KΩ/ 0.1KΩ/0.001MΩ | ±(1.2%+2) |
| 20MΩ | 0.01MΩ | ±(2.0%+5) |
