YIHUA 8509 Micro Hot Air Gun Soldering Station with 3.5/3/2.5/2 mm Nozzle Temperture Adjustable SMD Rework Station Welding Tools
YIHUA 8509 Micro Hot Air Gun Soldering Station with 3.5/3/2.5/2 mm Nozzle Temperture Adjustable SMD Rework Station Welding Tools
YIHUA 8509 Micro Hot Air Gun Soldering Station with 3.5/3/2.5/2 mm Nozzle Temperture Adjustable SMD Rework Station Welding Tools
YIHUA 8509 Micro Hot Air Gun Soldering Station with 3.5/3/2.5/2 mm Nozzle Temperture Adjustable SMD Rework Station Welding Tools
YIHUA 8509 Micro Hot Air Gun Soldering Station with 3.5/3/2.5/2 mm Nozzle Temperture Adjustable SMD Rework Station Welding Tools
YIHUA 8509 Micro Hot Air Gun Soldering Station with 3.5/3/2.5/2 mm Nozzle Temperture Adjustable SMD Rework Station Welding Tools

YIHUA 8509 Micro Hot Air Gun Soldering Station with 3.5/3/2.5/2 mm Nozzle Temperture Adjustable SMD Rework Station Welding Tools

  • Option 1
  • Quantity
Low noise design: When in max air volume, the noise from the detector is less than 60DB, similar to normal indoor conversation soun, wholesale YIHUA 8509 Micro Hot Air Gun.
Specifications
  • Item No.
  • COBD29897
  • Weight
  • 4.50KG
Description

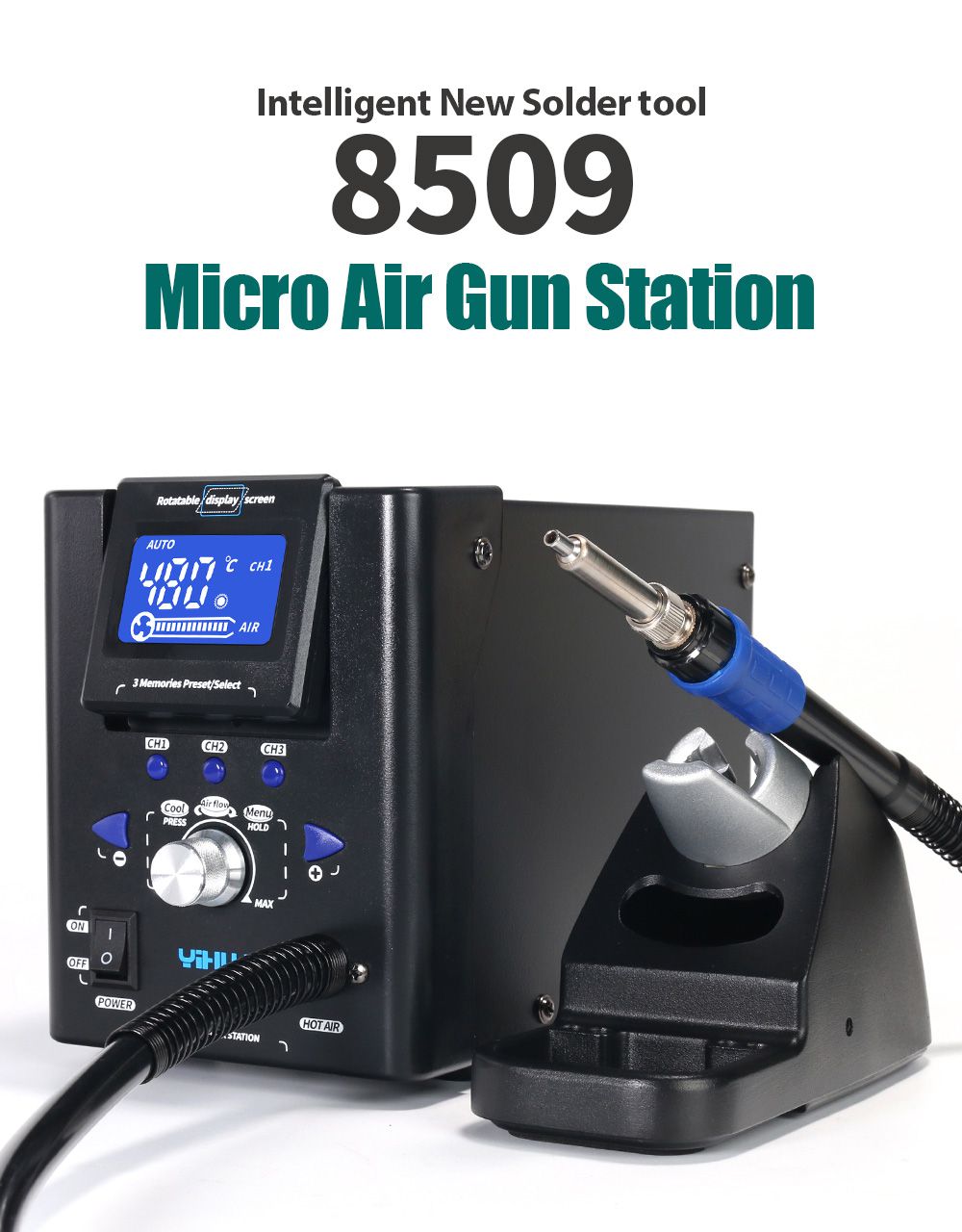

Model: 8509

Parameter:

Voltage: 220V~240V/AC, 50Hz; 110V-127V/AC,60Hz
Maximum power:200W
Rated power:82W
Airflow type: Air Pump
Wind Speed:<55dB(tester in one-meter distance
Temperature range:100℃~480℃/212 ℉~896℉
Display form:LCD liquid crystal display
Handle length:≥100cm (including handle length)
Working environment:35%~45%
Storage environment:-20~80°C/-4~176°F

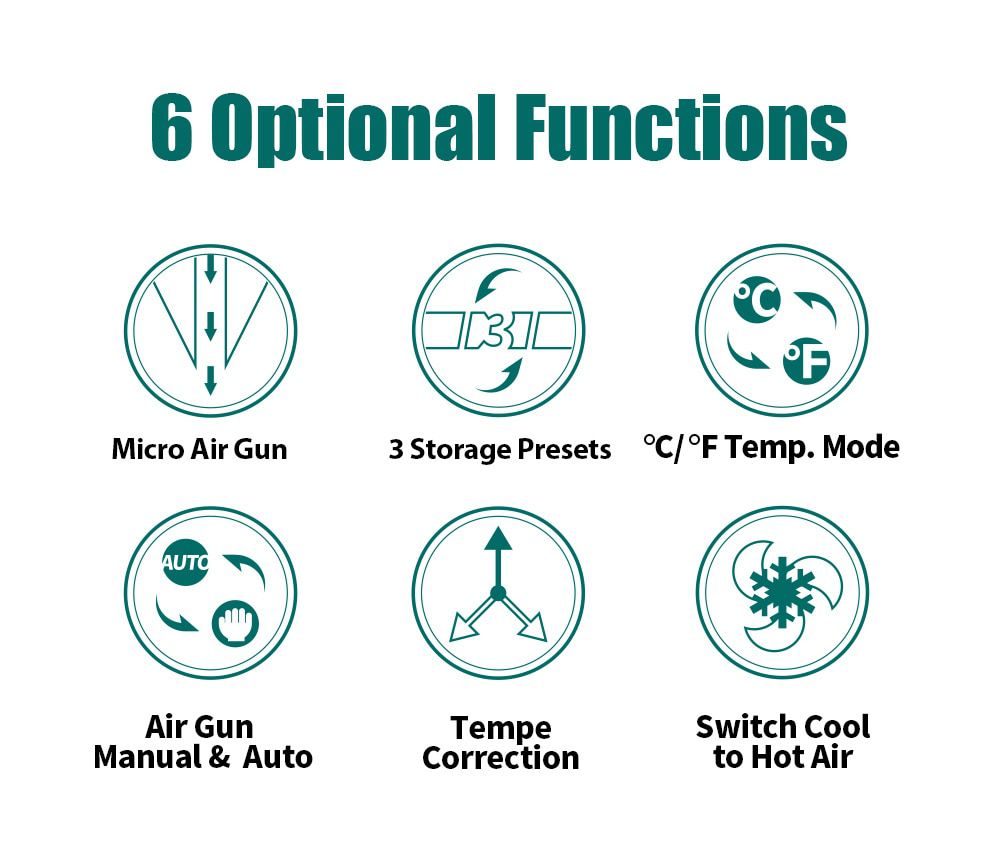

Function:

1. Low noise design: When in max air volume, the noise from the detector is less than 60DB, similar to normal indoor conversation sound.

2. Automatically cool-down function: In automatic mode, the temperature will cool down to 100℃ when the hot air handle is put in the holder because the holder is equipped with an automatic sensor. When in manual mode, this automatic function will be stopped.

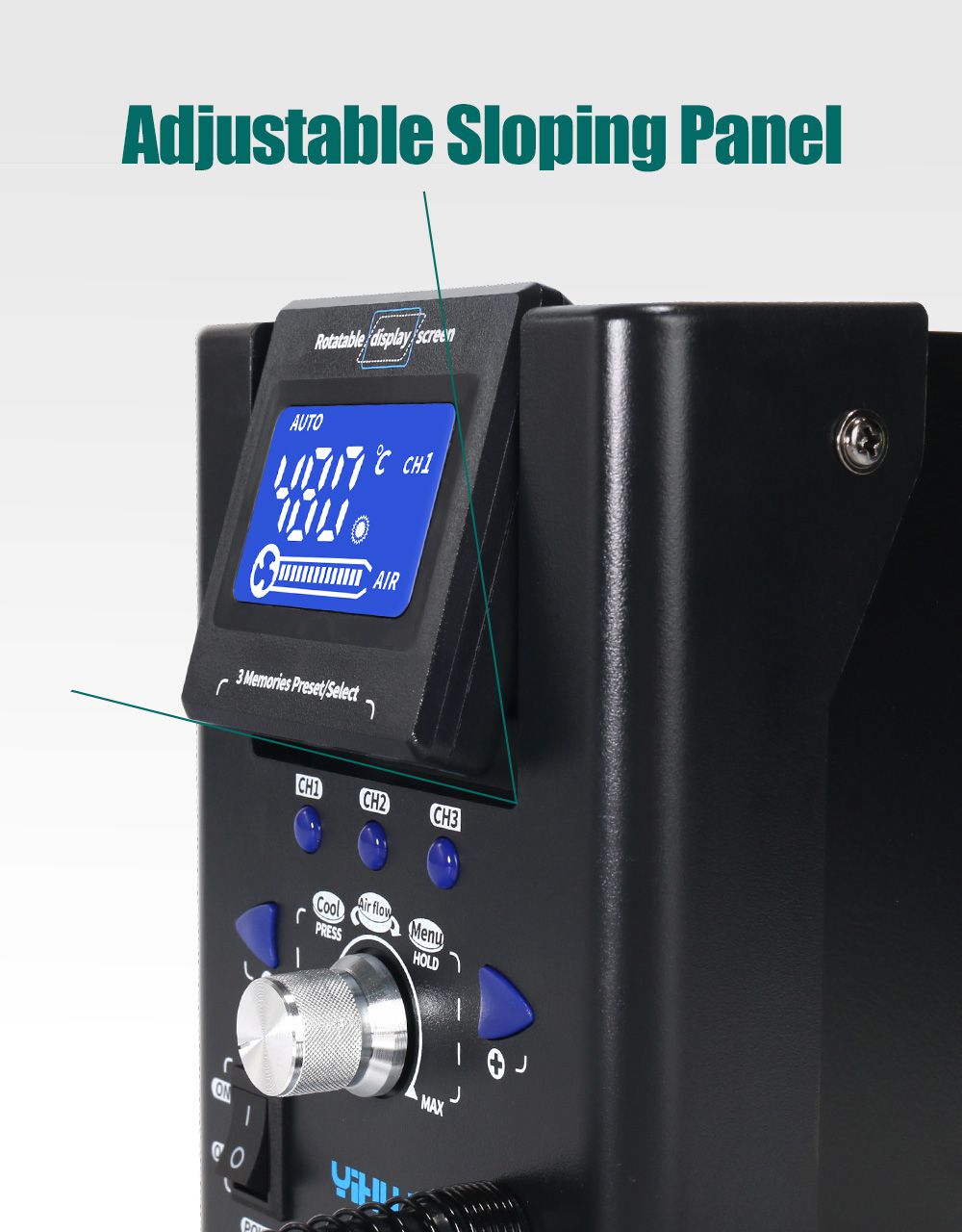

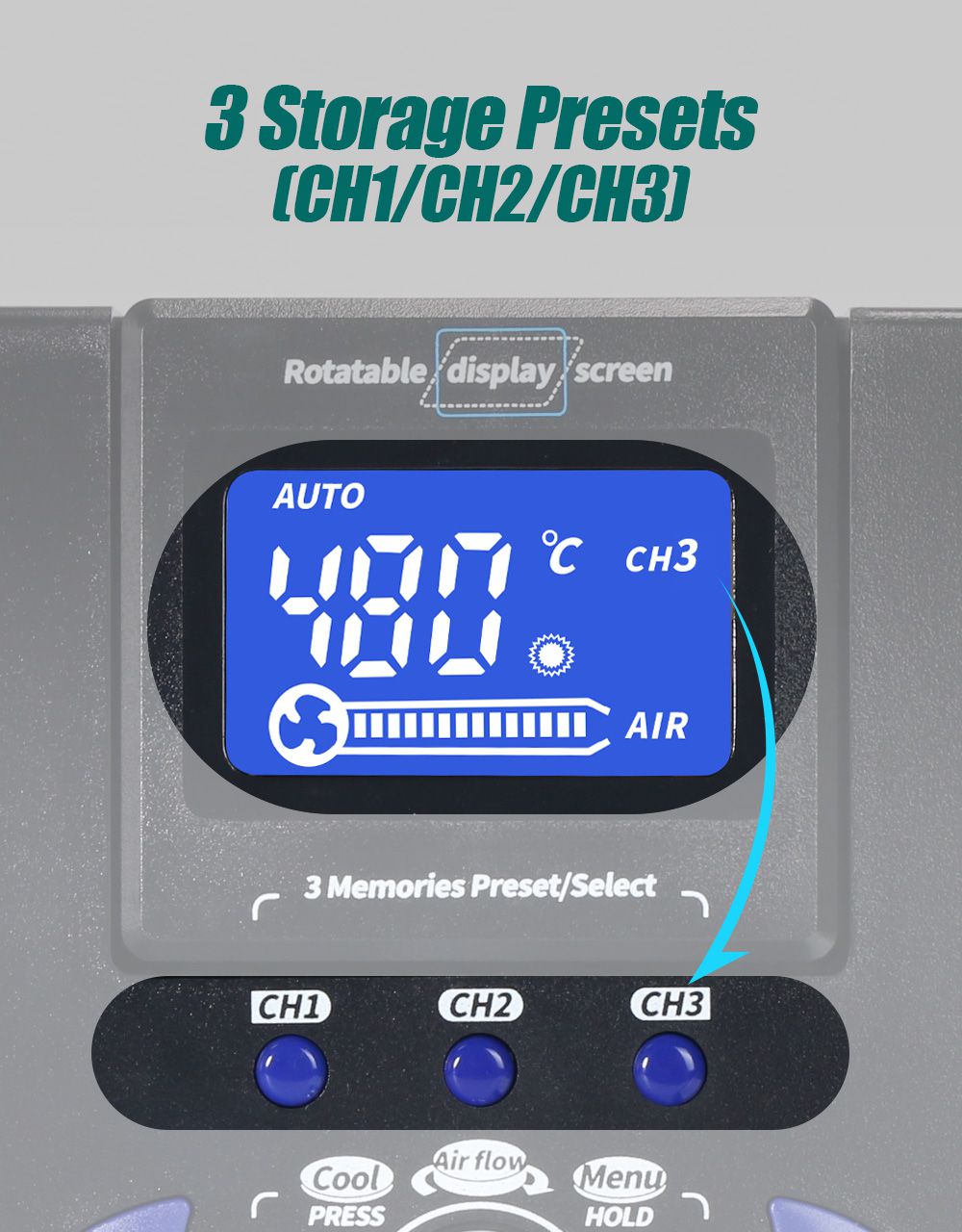

3. Rotatable display screen: It is convenient to adjust the display screen position via a slight press

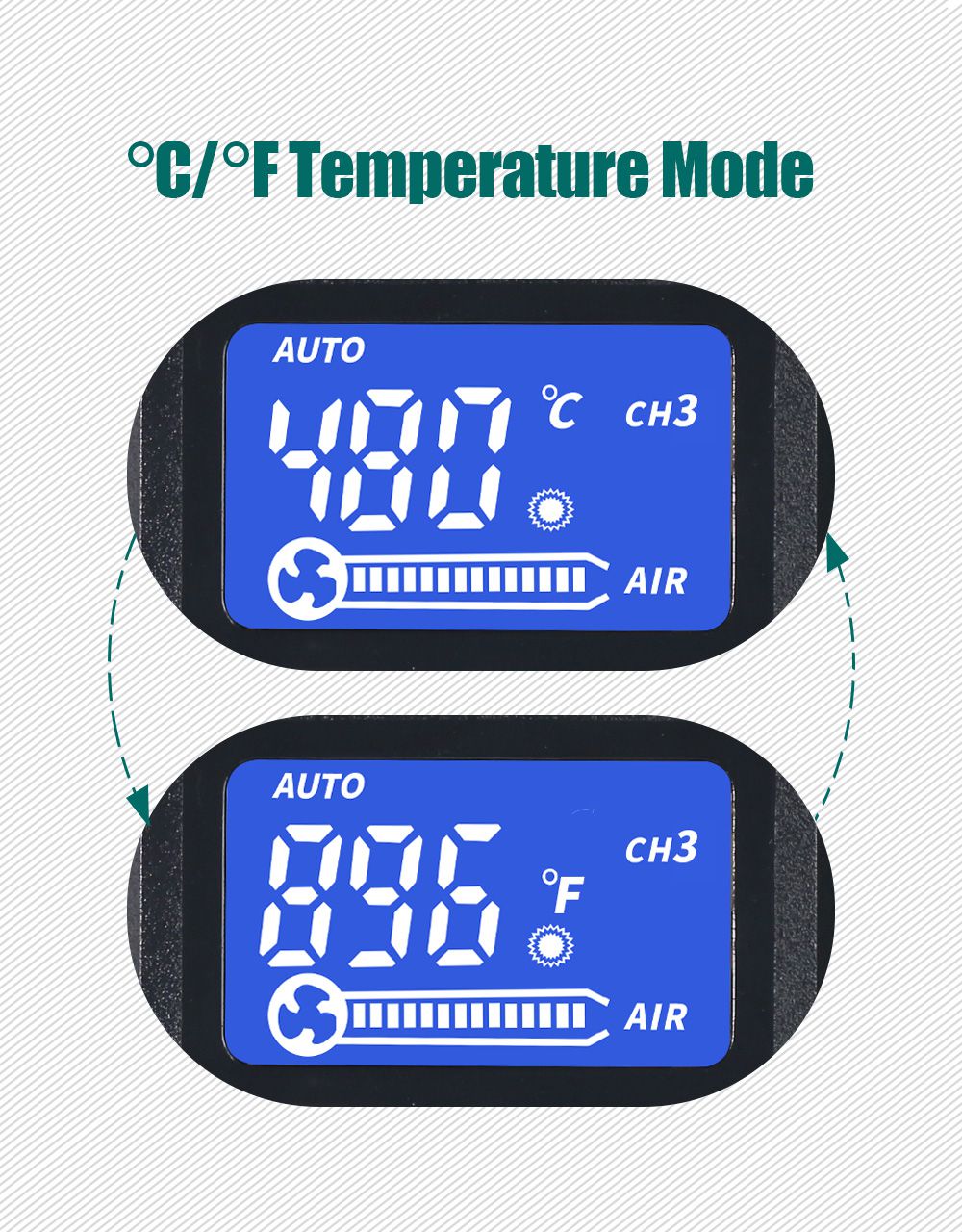

4. ℃ and ℉ conversion function.

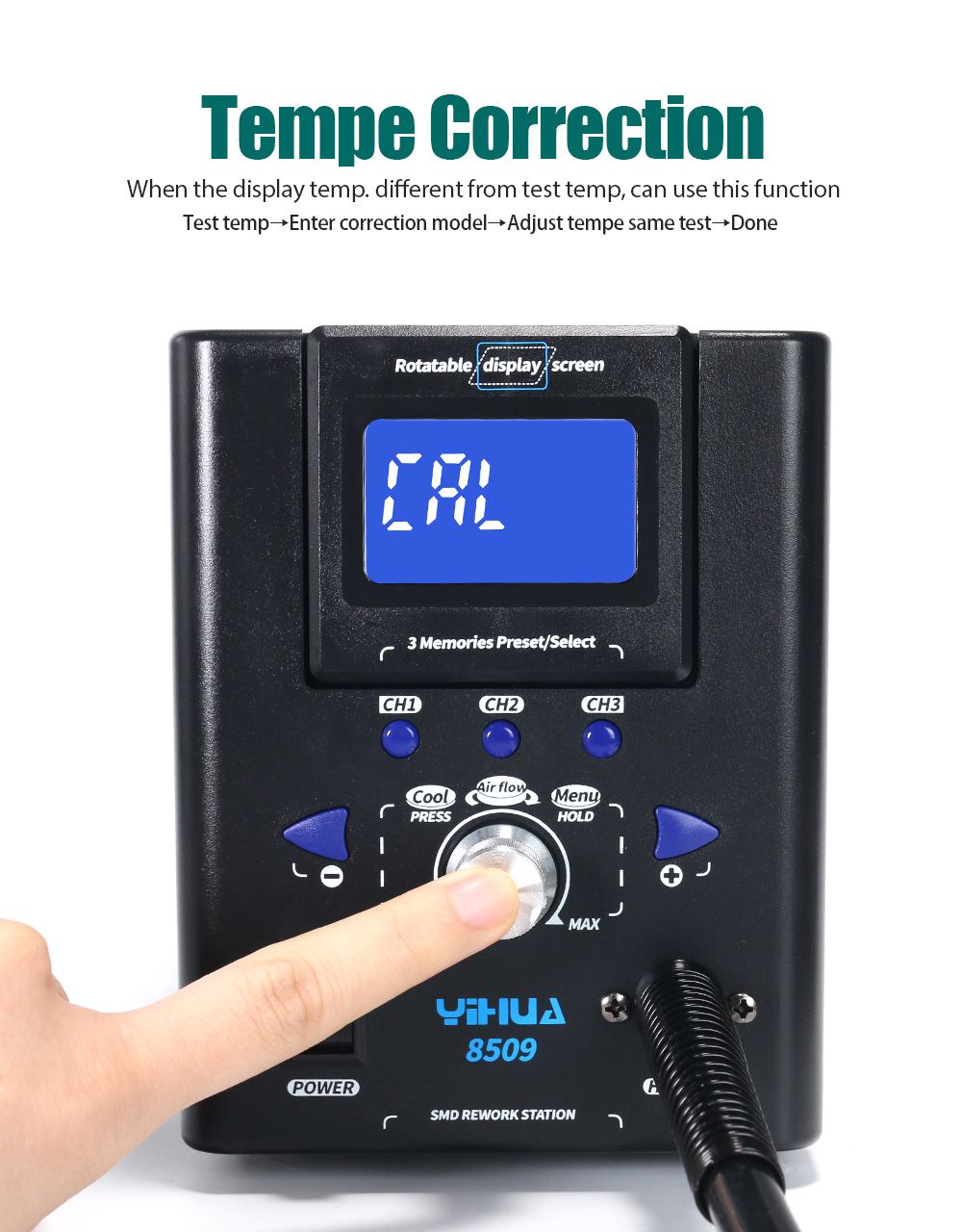

5. Temperature correction function.

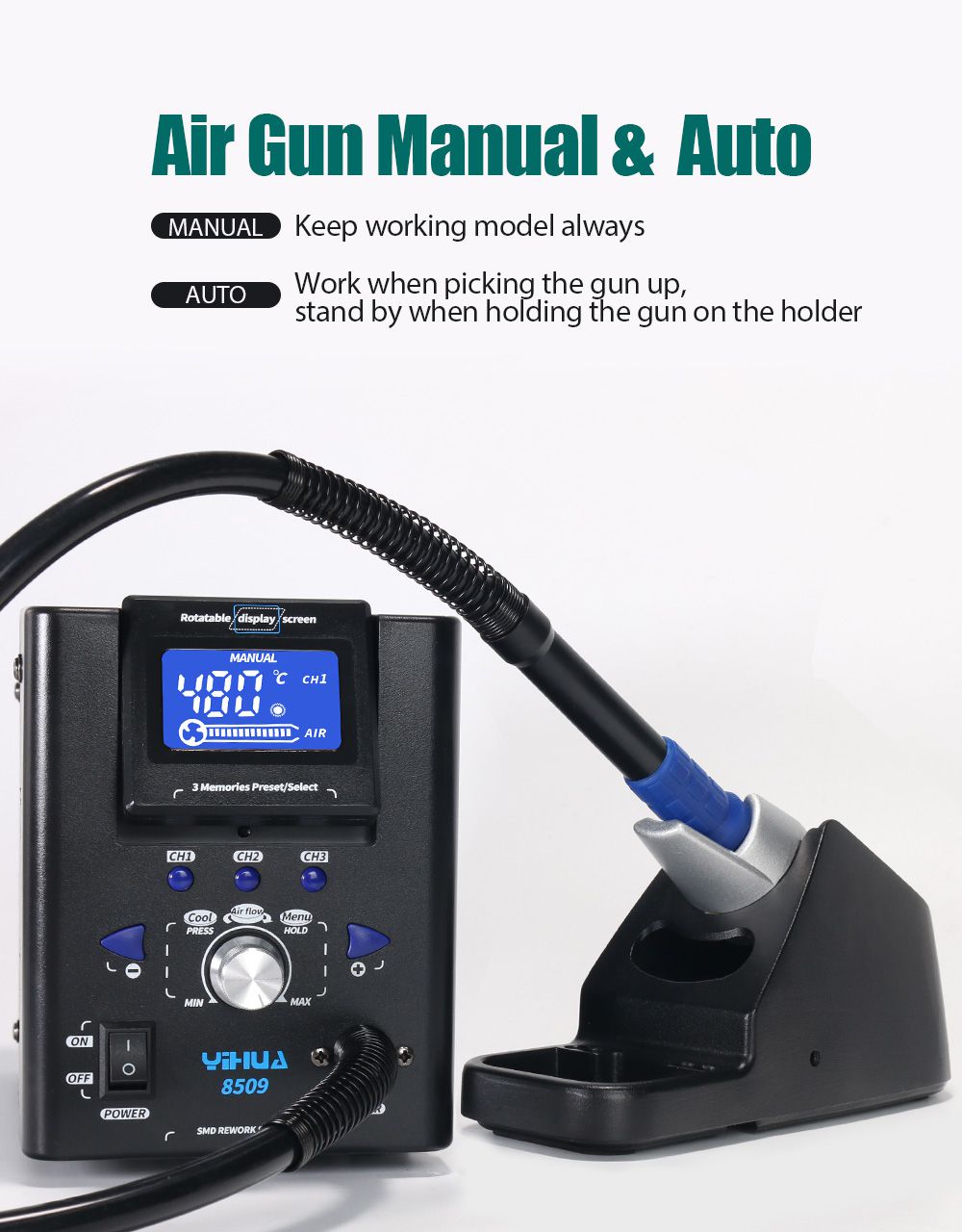

6. Air gun auto. and manual conversion function

How to use:

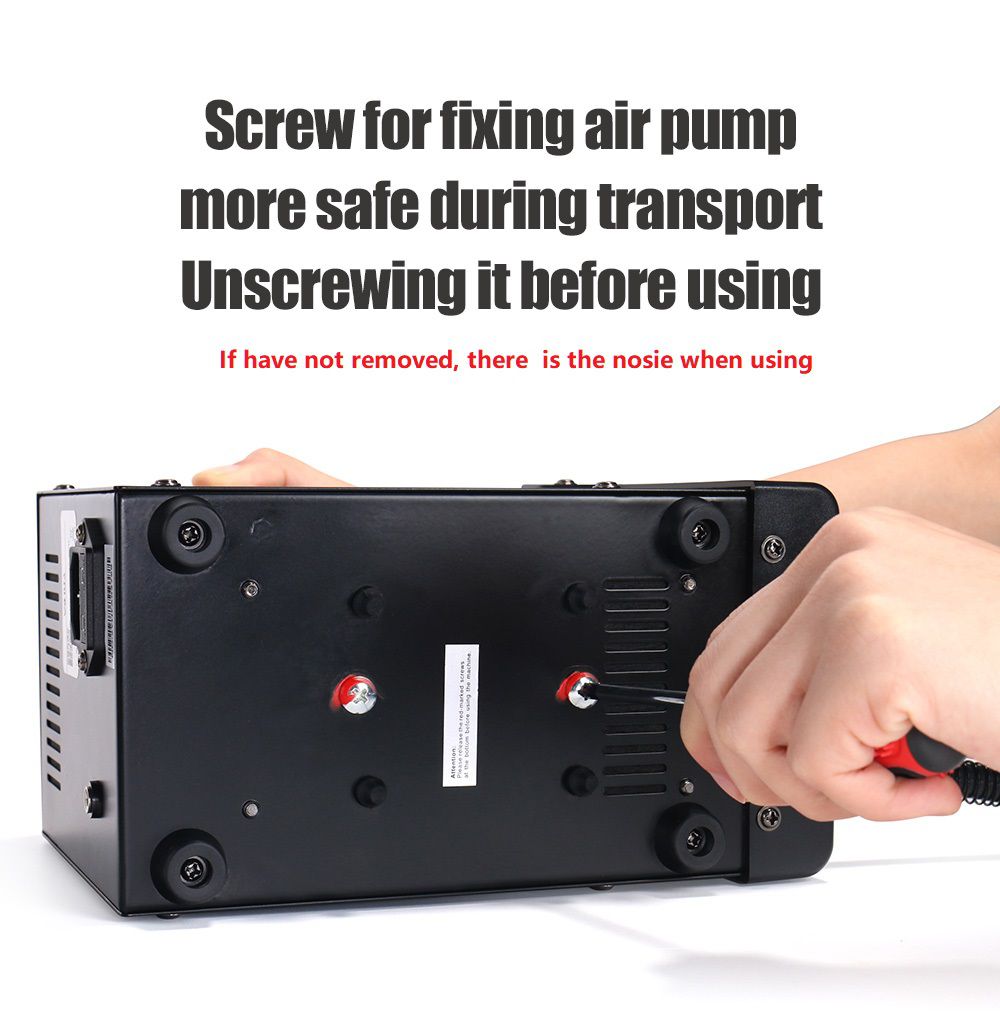

Please remove the screw at the bottom before use

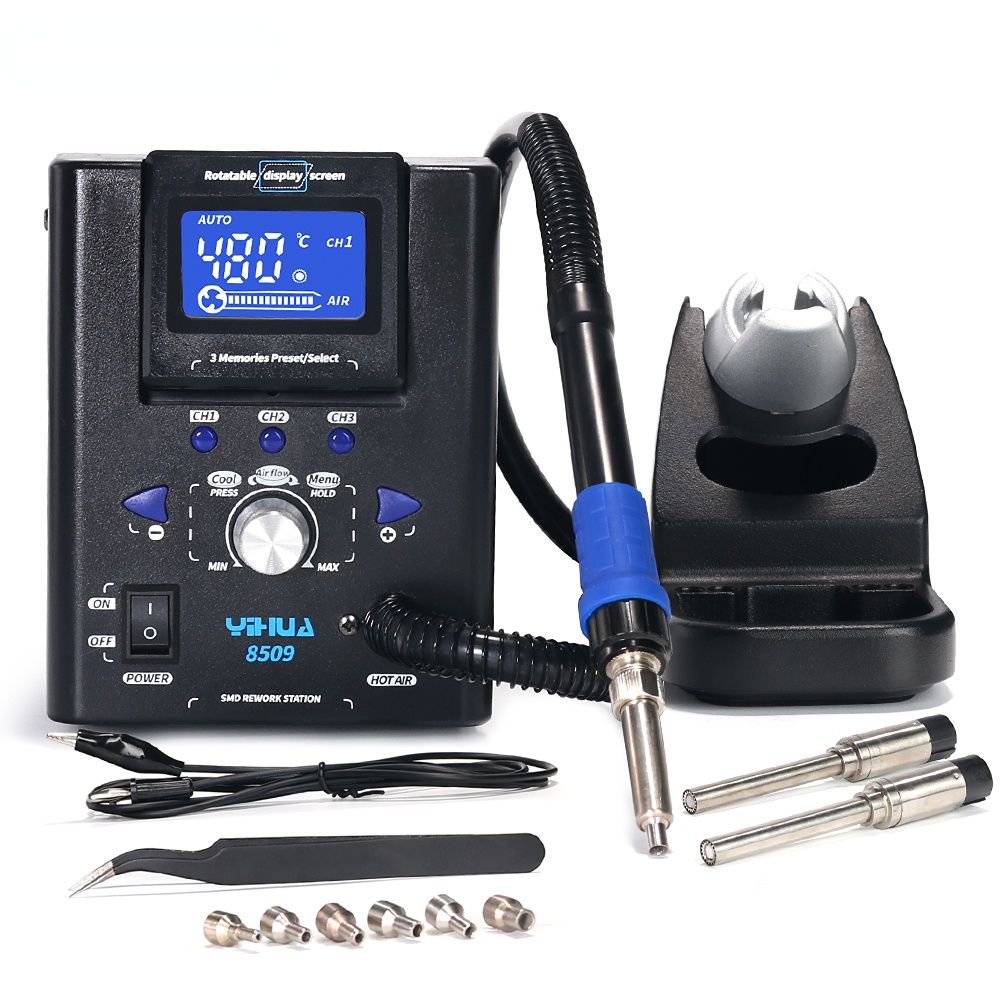

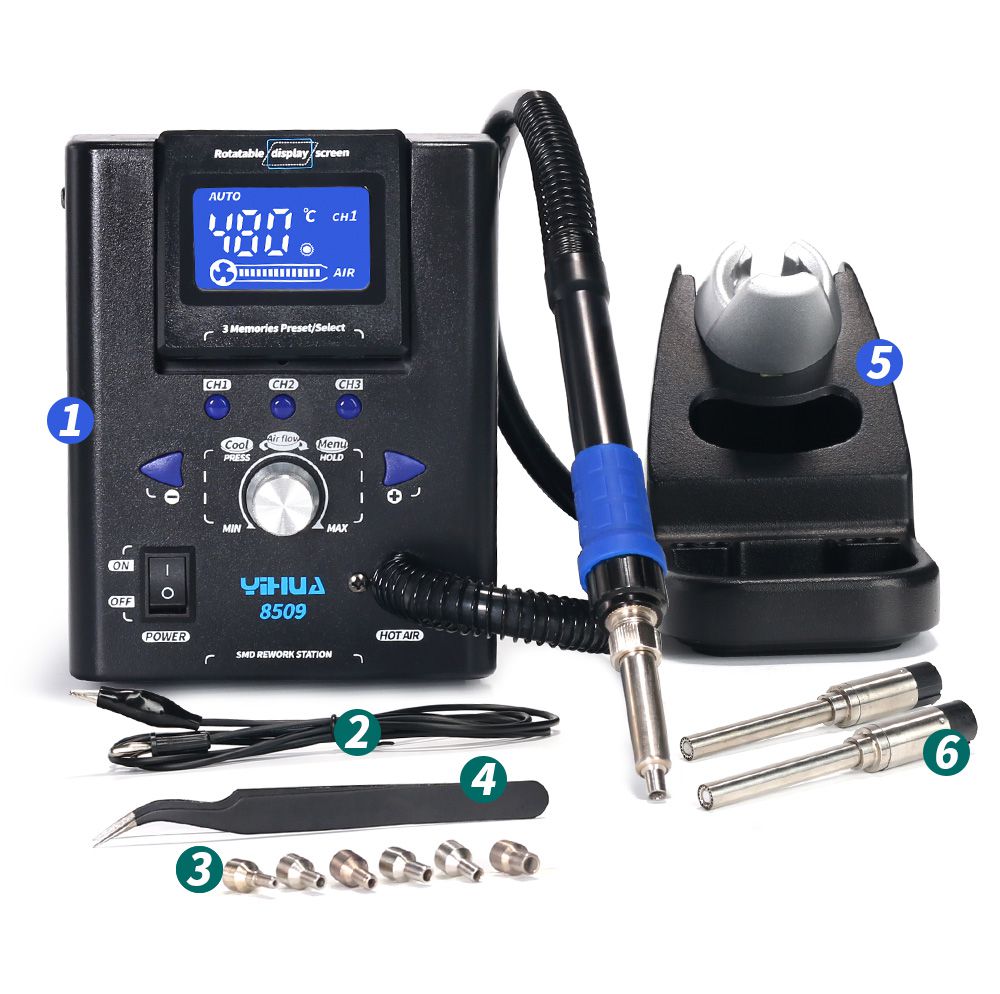

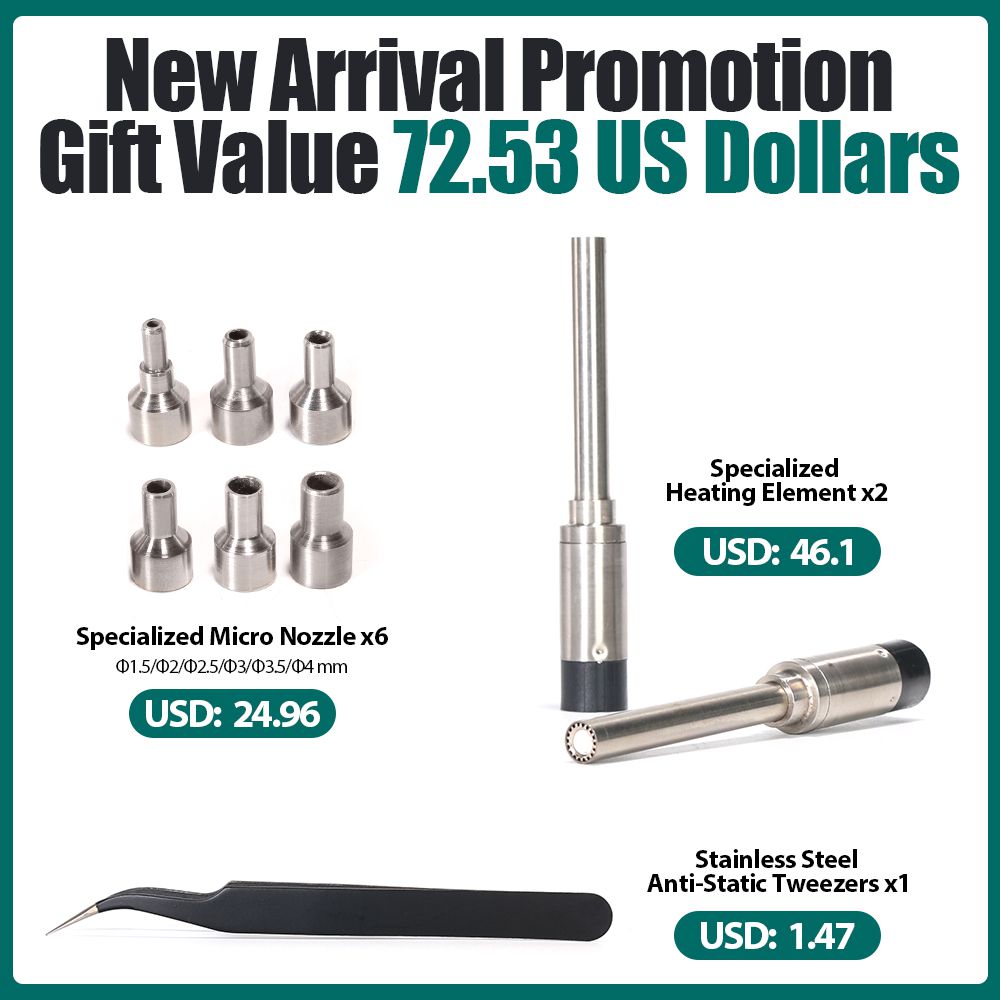

8509 Package Content:

1. YIHUA8509 soldering station

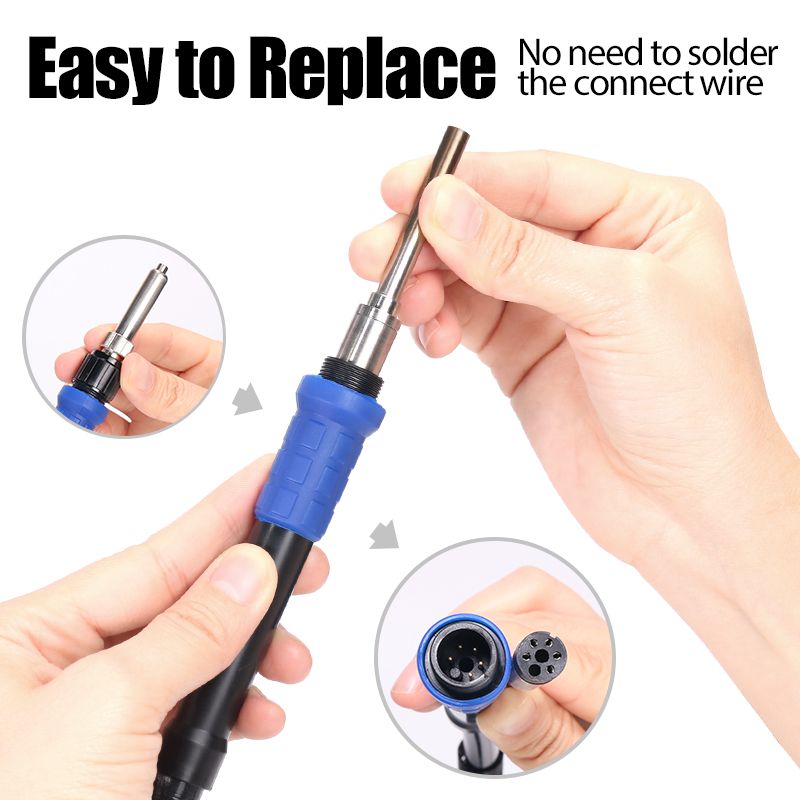

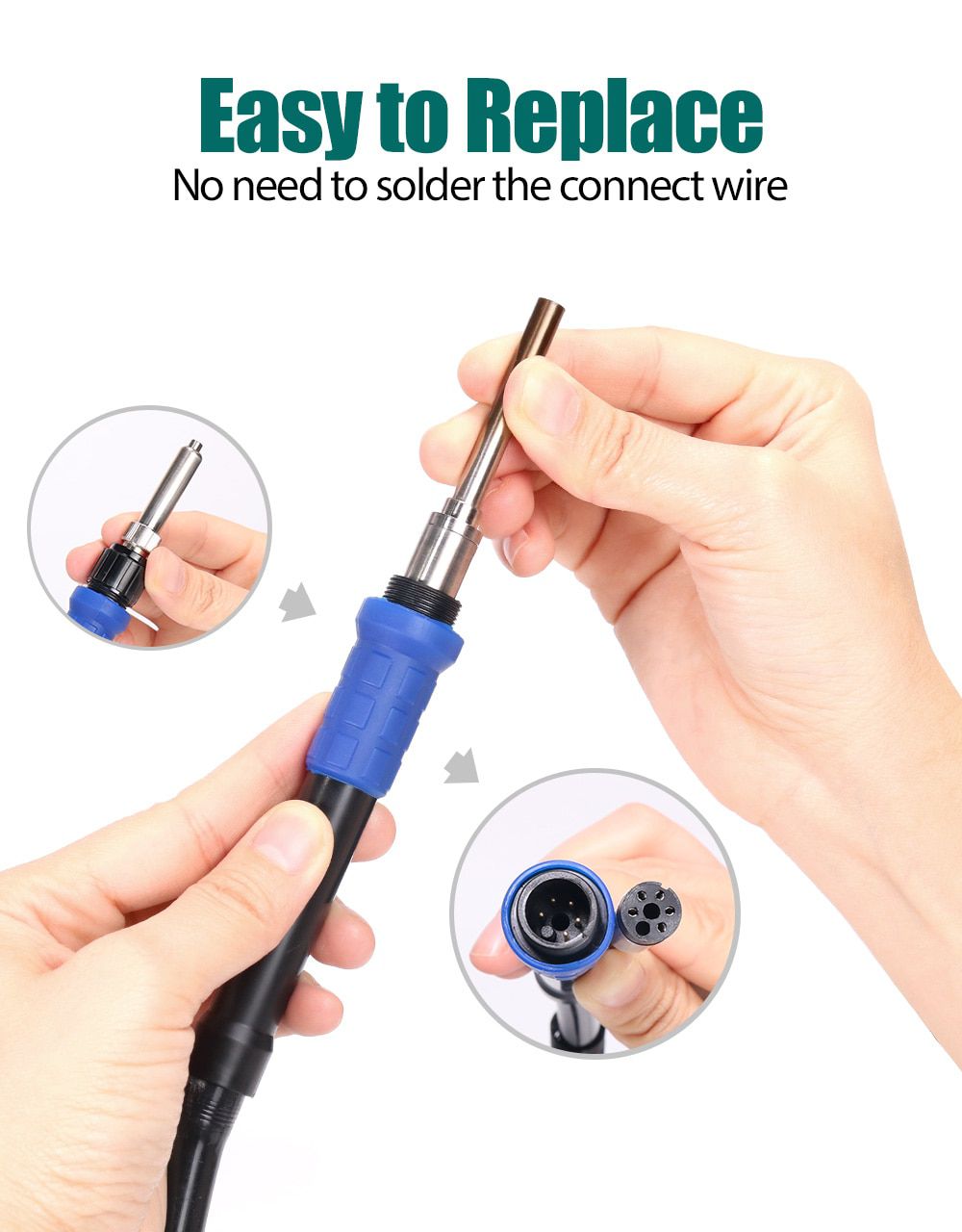

2. 8509 heating elements (2 pcs)

3. tweezer (1 pcs)

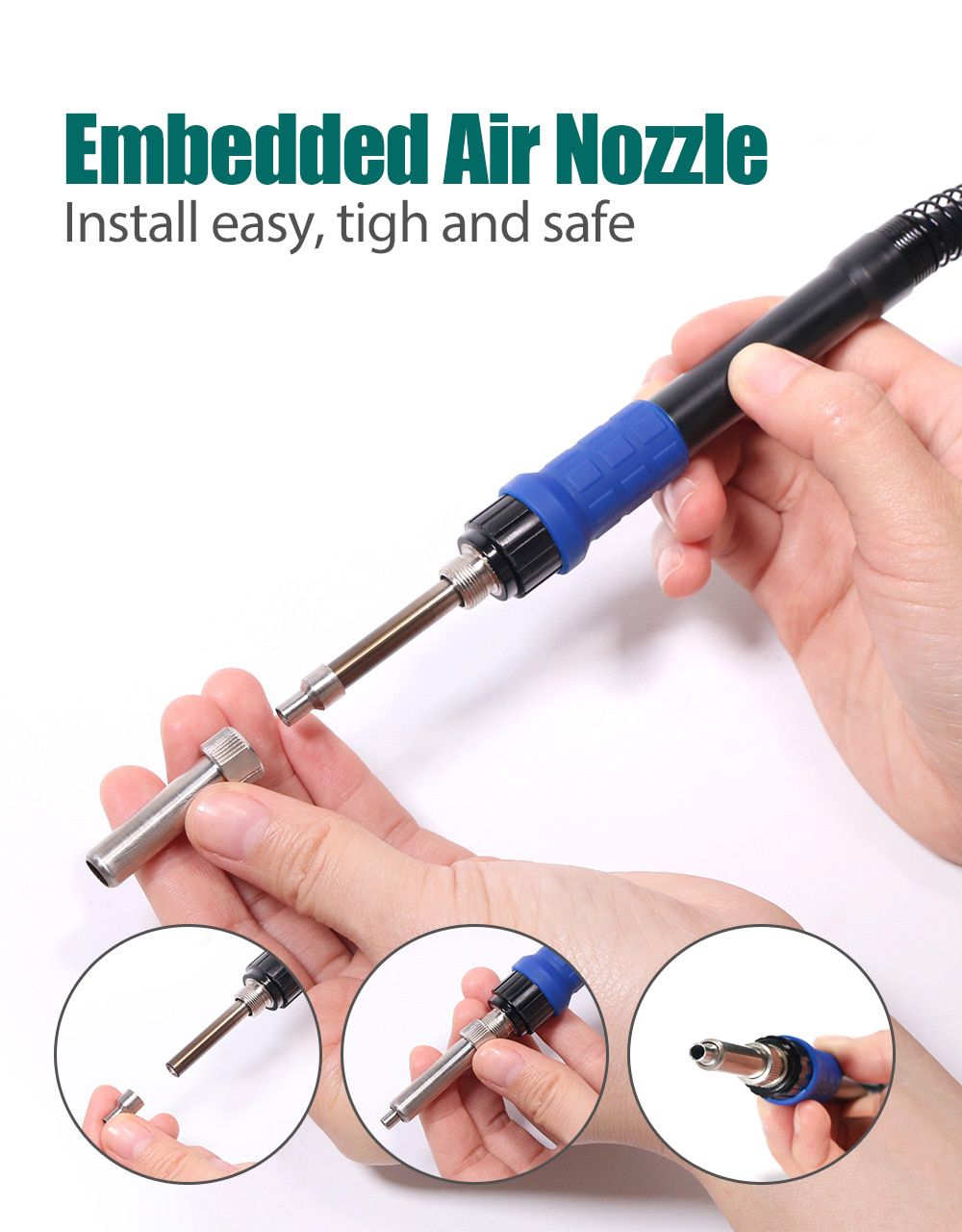

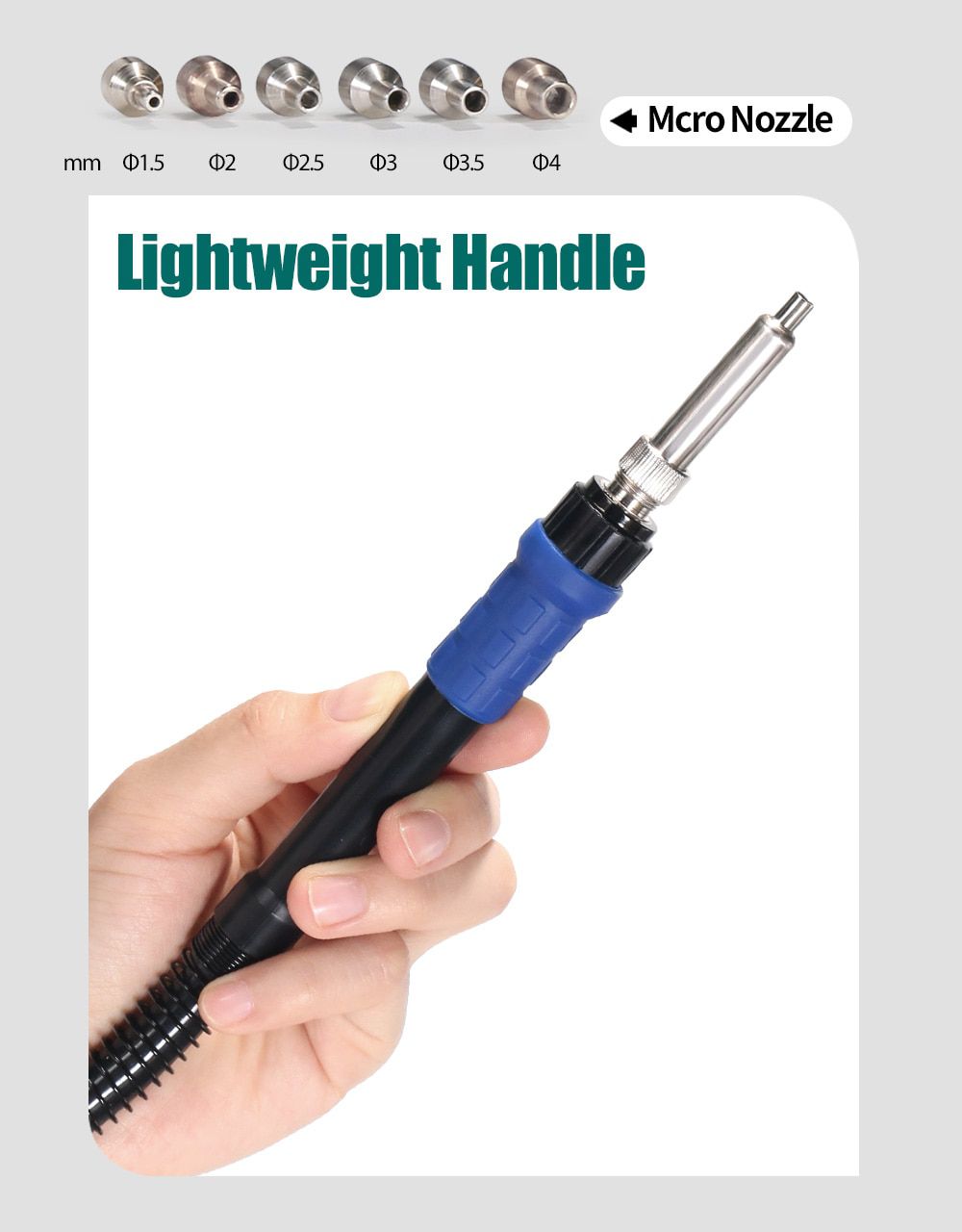

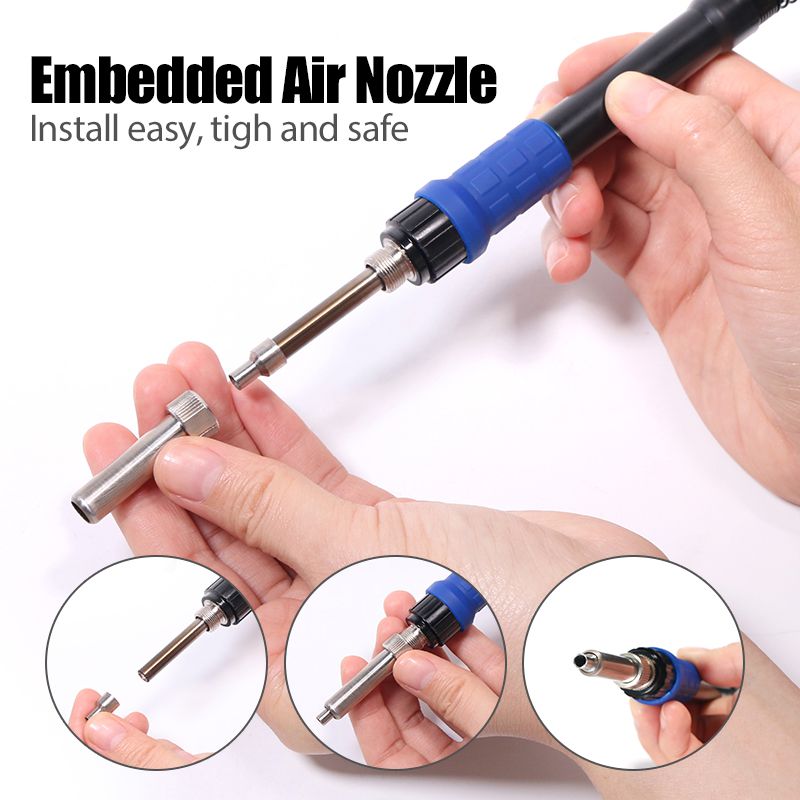

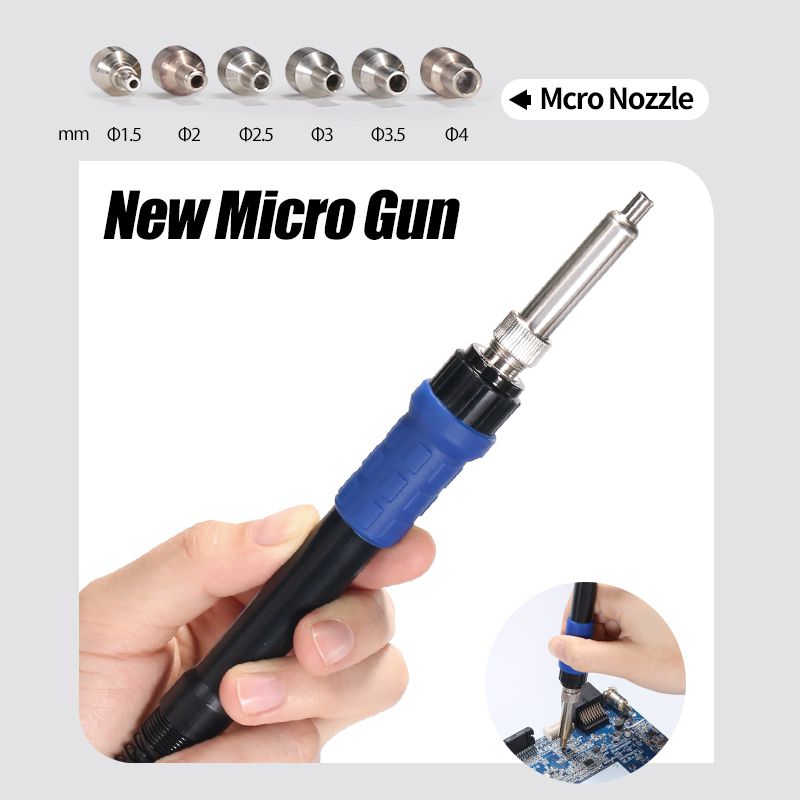

4. micro nozzles: 4mm nozzles,3.5mm nozzle, 3mm nozzle, 2.5mm nozzle, 2mm nozzle, 1.5mm nozzle (6 pcs)
