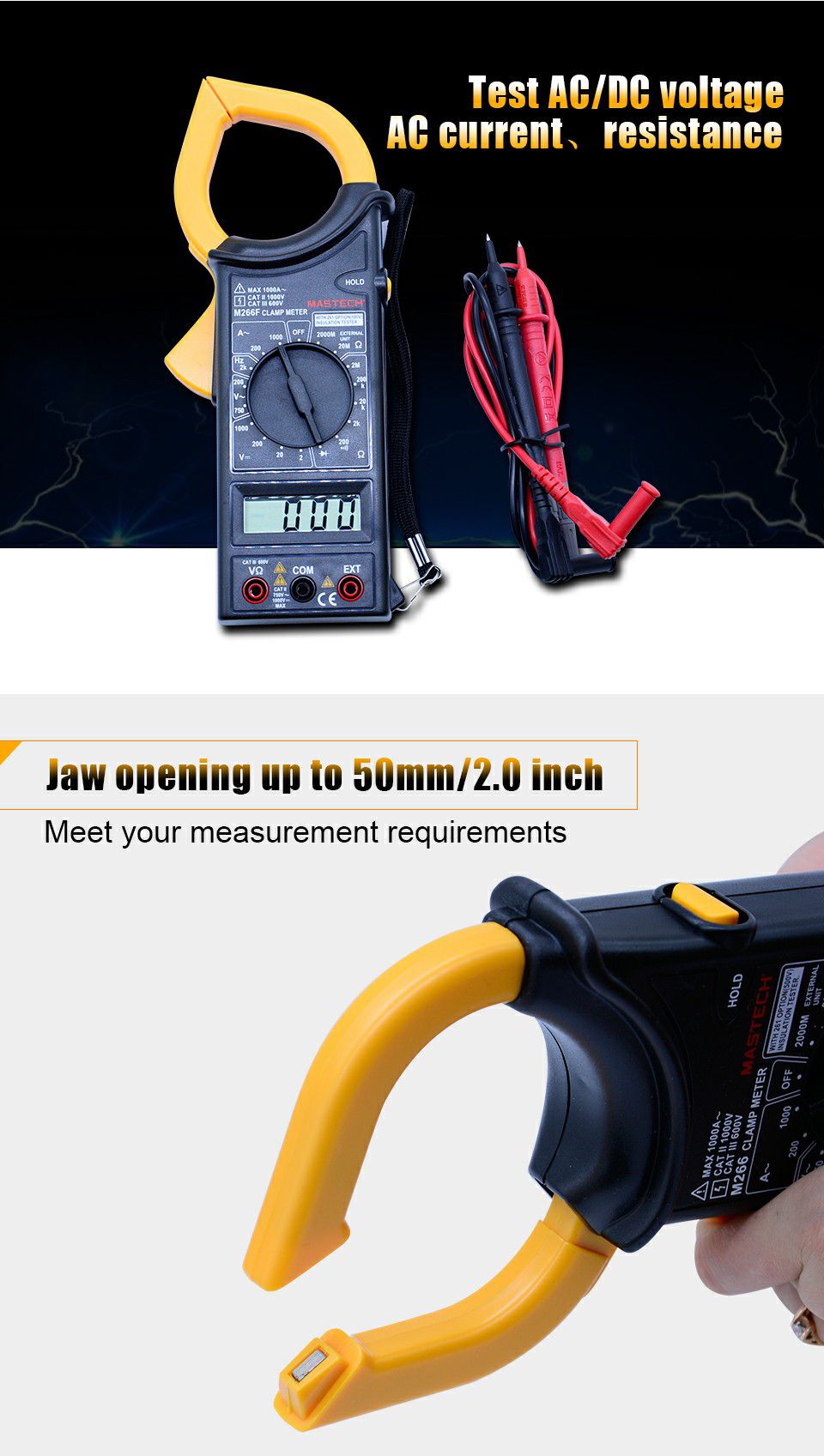

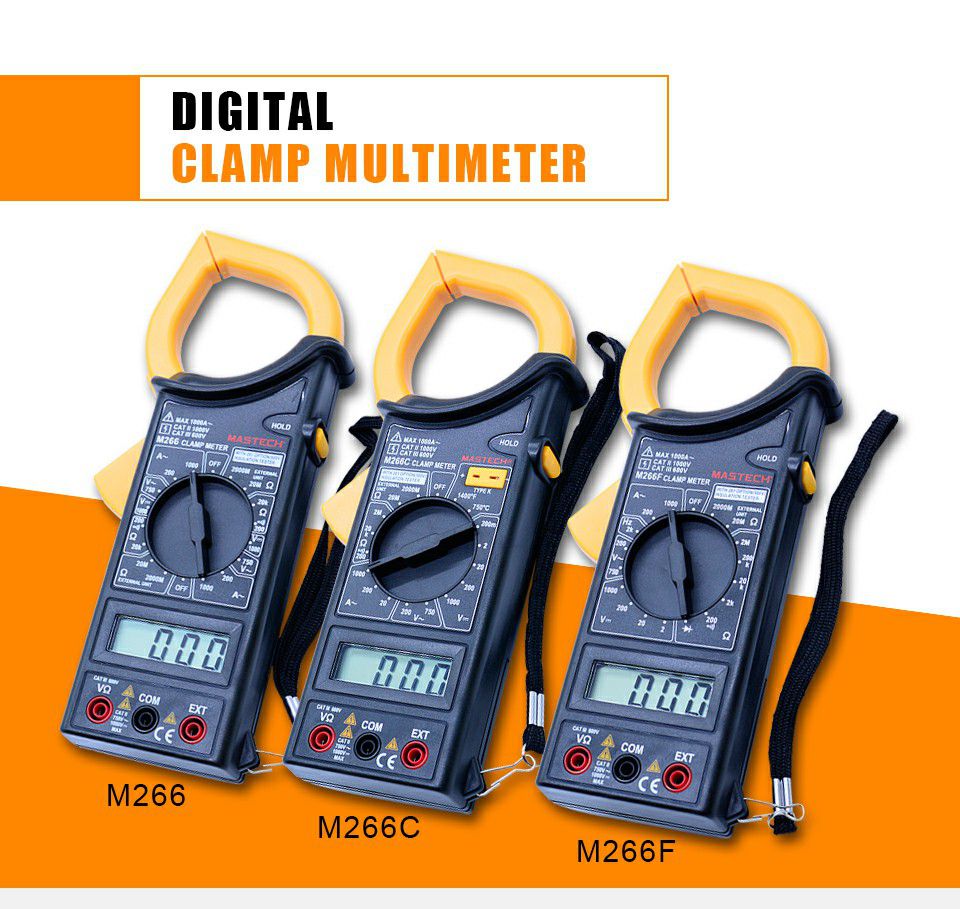

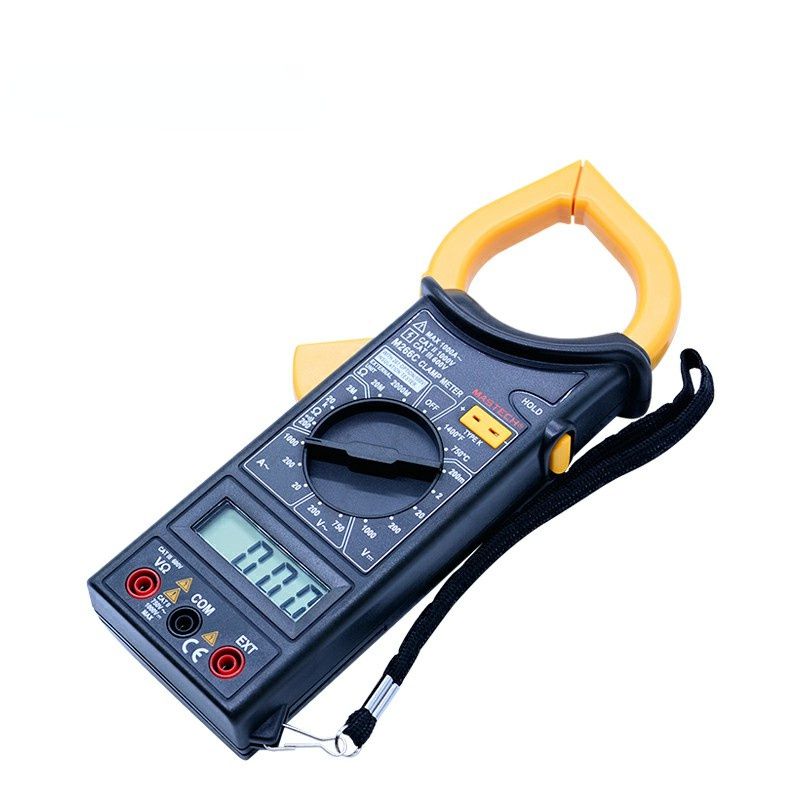

MS266C Digital Clamp Meter Voltmeter Ohmmeter ACVoltage AC Current Resistance Temp Tester Detector with Diode multimeter
Please Note:Not included battery and Color box.
Introduction:

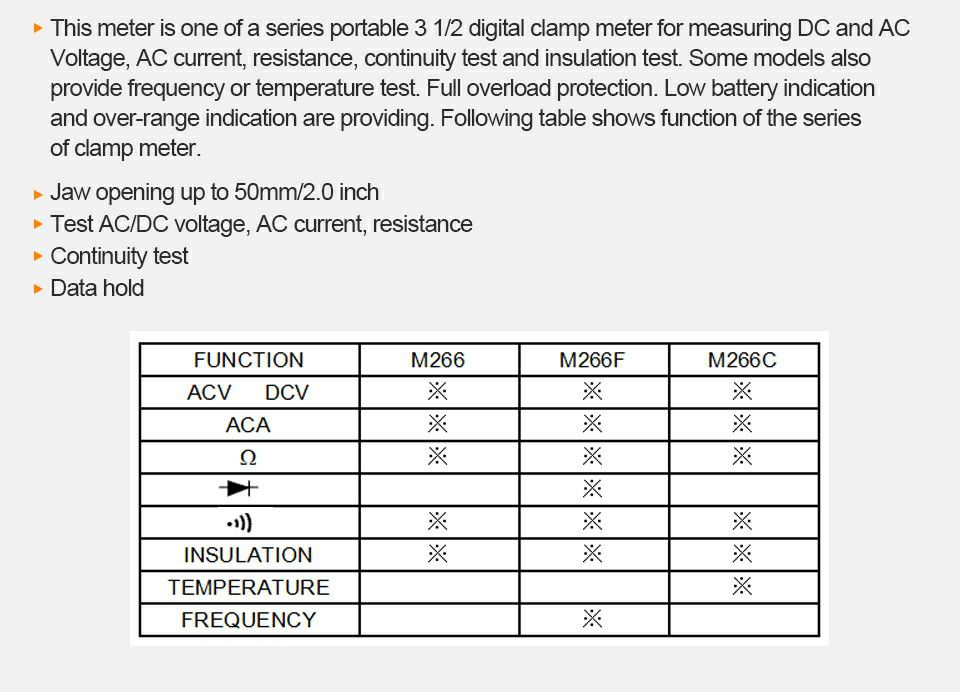

The meter is completely portable, LCD, 3 1/2 digit clamp meter with insulation test function (with option 500V insulation tester unit). It has been designed according to IEC1010-1 IEC1010-2-032 concerning electronic measuring instruments with an overvoltage category (CAT II 1000V & CAT III 600V) and pollution 2 and safety requirements for hand-held current clamps for electrical measurement and test.

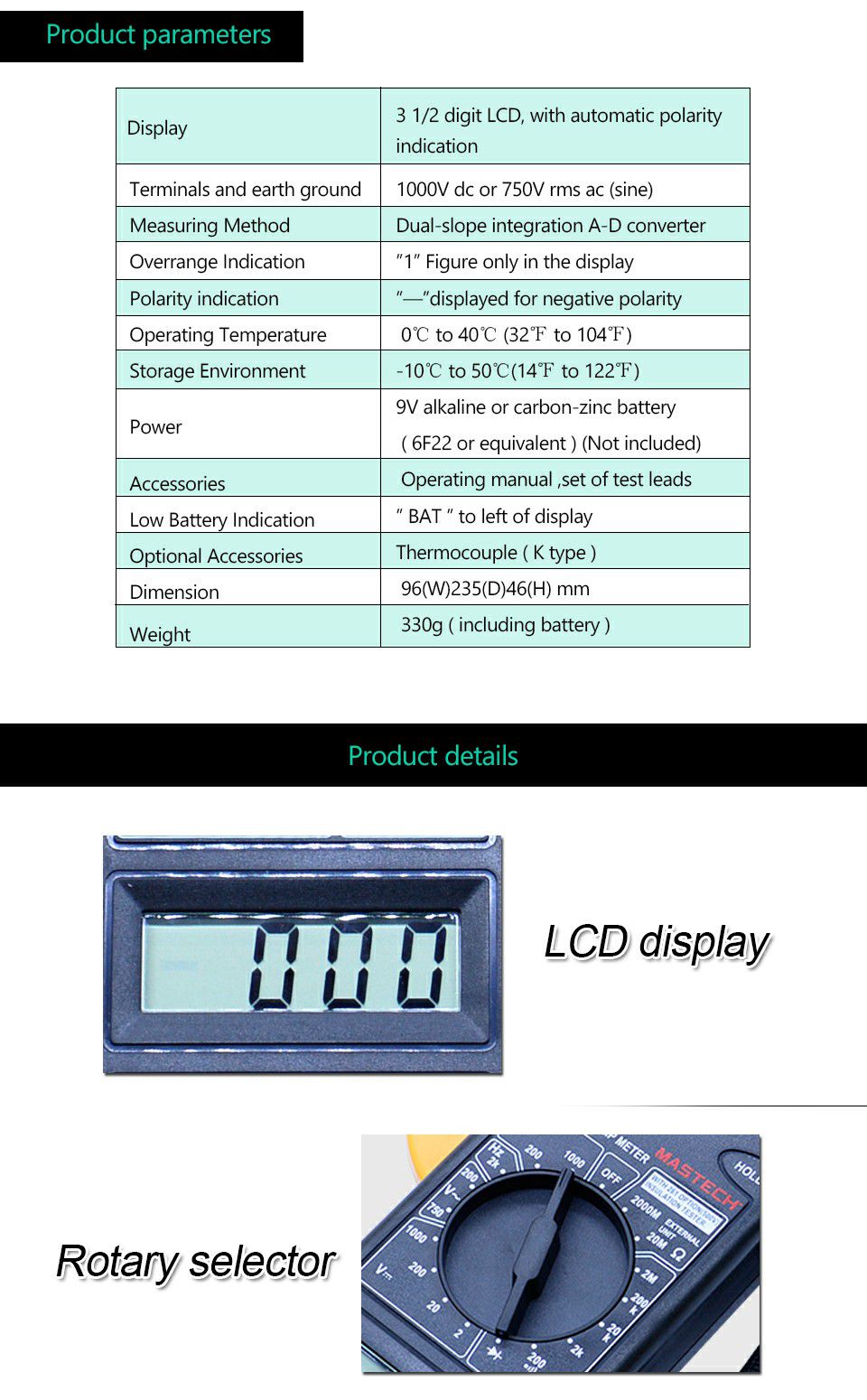

| General | |

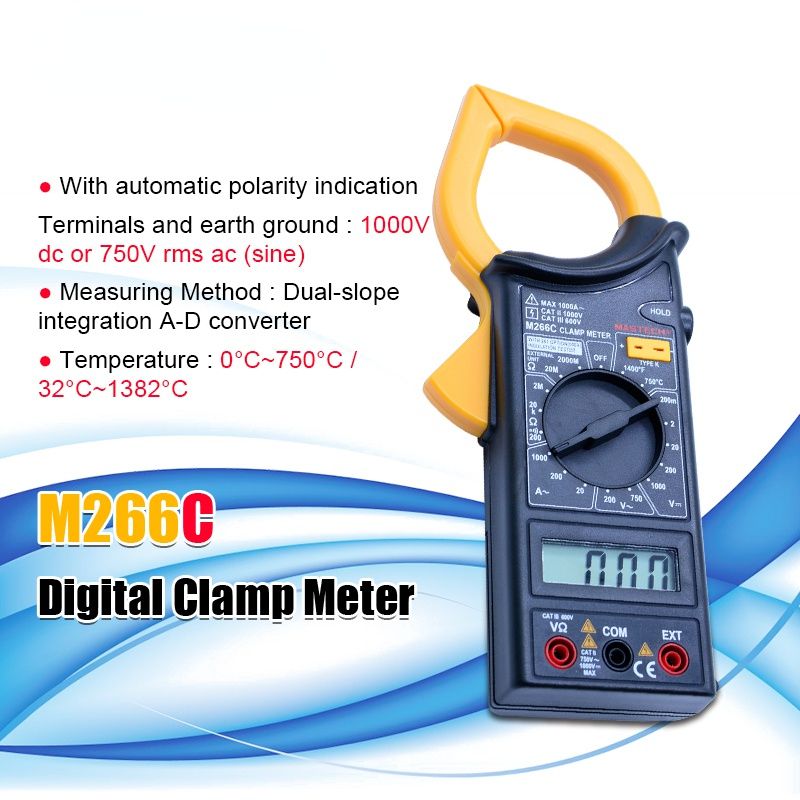

| Display | 3 1/2 digit LCD, with automatic polarity indication |
| Terminals and earth ground | 1000V dc or 750V rms ac (sine) |
| Measuring Method | Dual-slope integration A-D converter |
| Overrange Indication | ”1” Figure only in the display |
| Polarity indication | ”―”displayed for negative polarity |
| Operating Temperature | 0° to 40° (32° to 104°) |
| Storage Environment | -10° to 50°(14° to 122°) |

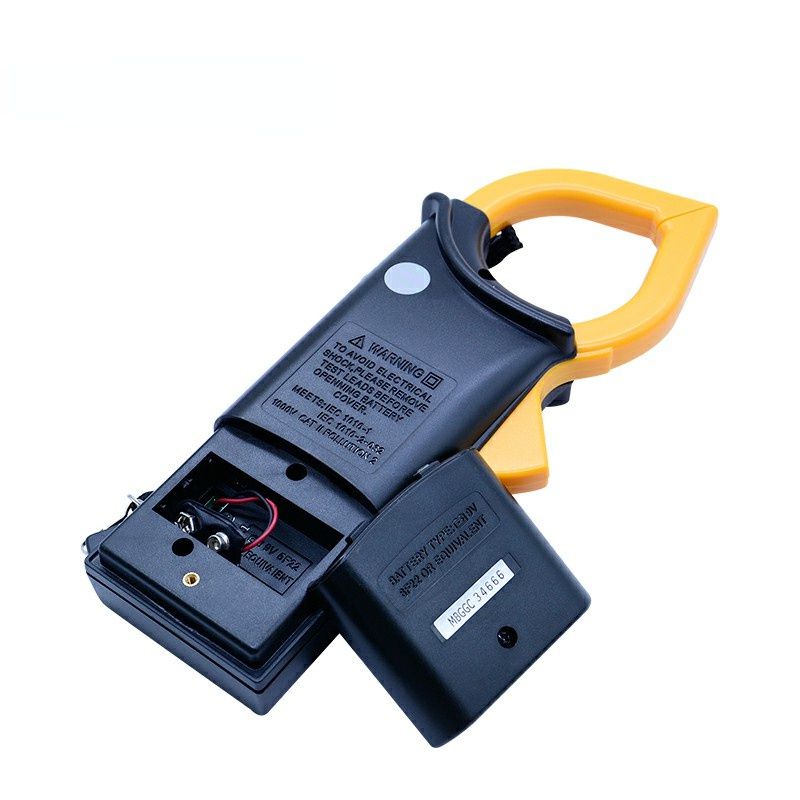

| Power | 9V alkaline or carbon-zinc battery |
| ( 6F22 or equivalent ) | |
| Accessories | Operating manual ,set of test leads |
| Low Battery Indication | ” BAT ” to left of display |
| Optional Accessories | Thermocouple ( K type ) |
| Dimension | 96(W)´235(D)´46(H) mm |
| Weight | 330g ( including battery ) |

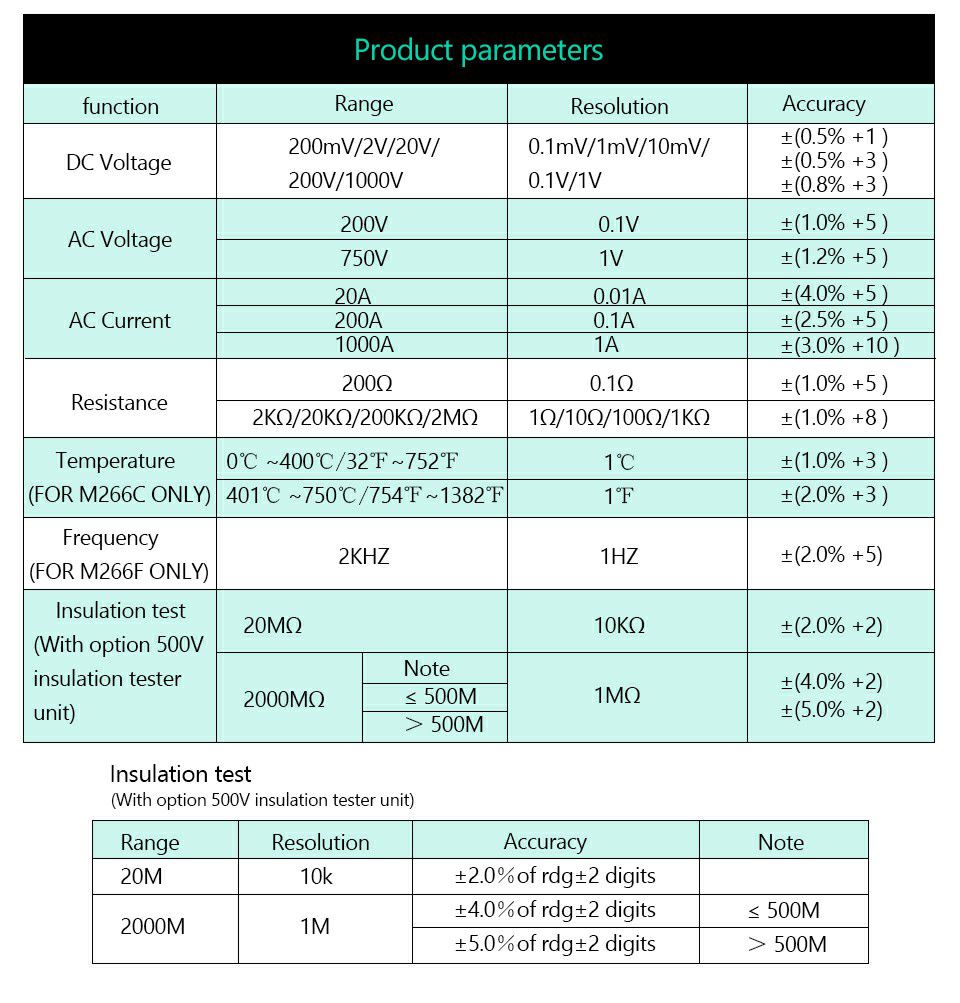

| Specifications | ||
| Range | Accuracy | |
| ACA | 20A | ±4.0％of rdg±5 digits |
| 200A | ±2.5％of rdg±5 digits | |
| 100A | ±3.0％of rdg±10 digits | |
| ACV | 200V | ±1.0％of rdg±5 digits |
| 750V | ±1.2％of rdg±5 digits | |
| DCV | 200mV | ±0.5％of rdg±1 digit |
| 2V/20V/200V | ±0.5％of rdg±3 digits | |
| 1000V | ±0.8％of rdg±3 digits | |
| Resistance | 200W | ±1.0％of rdg±5 digits |
| 2kΩ/20kΩ/200KΩ/2MΩ | ±1.0％of rdg±8 digits | |
| Temperature | 0° to 750°/ 32° to 1382° | 1.0% of rdg 3 digits |
| Frequency | 2kHz | ±2.0％of rdg±5 digits |

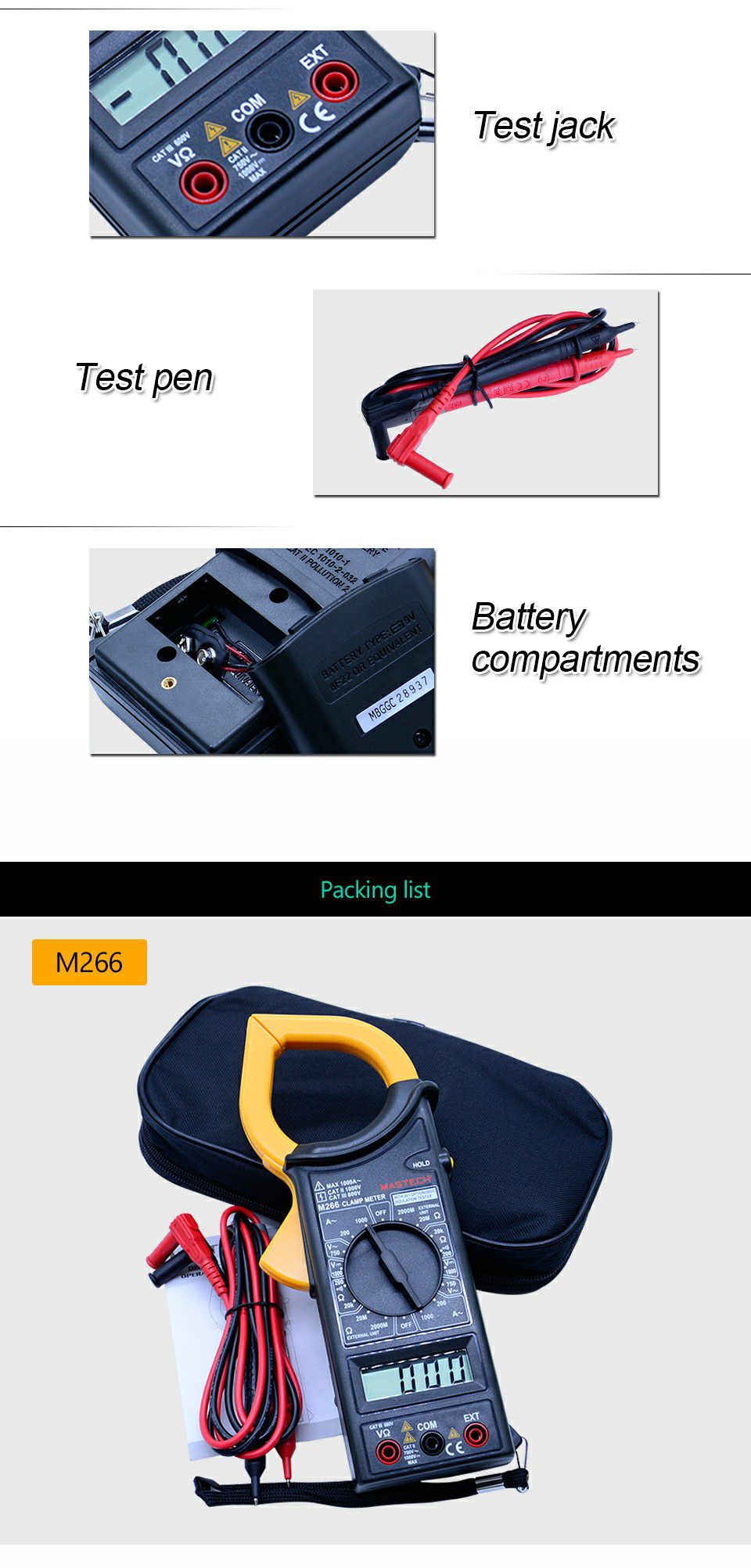

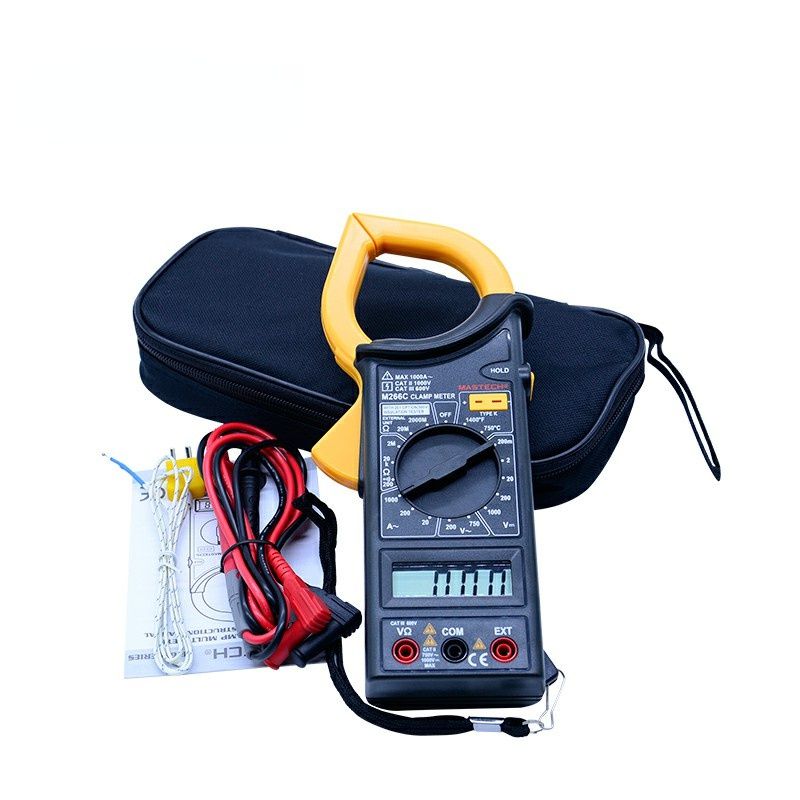

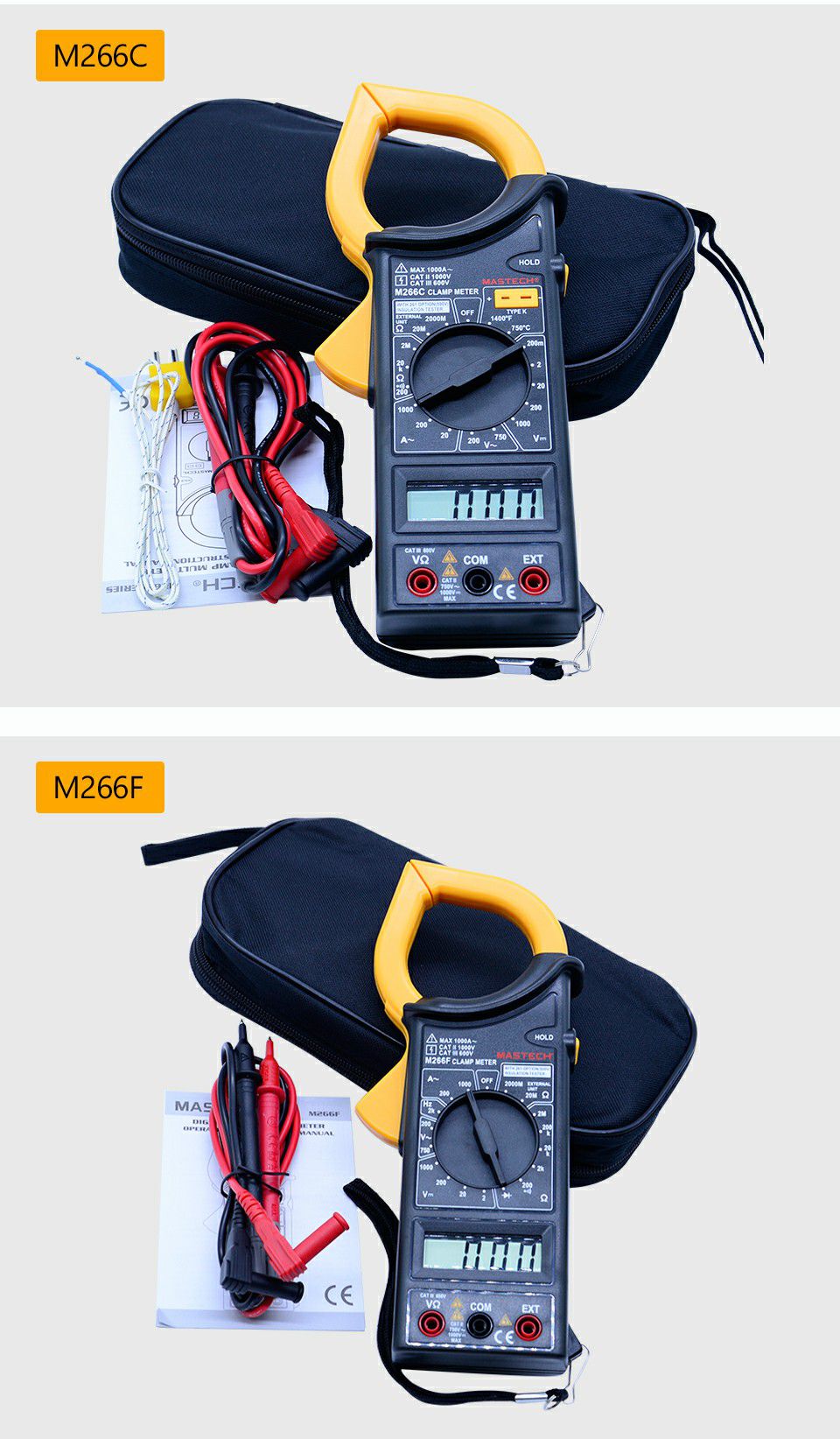

Packing List:
1*Digital clamp meter M266C
1*Pair Test leads
1*English user manual
1*Thermocouple
