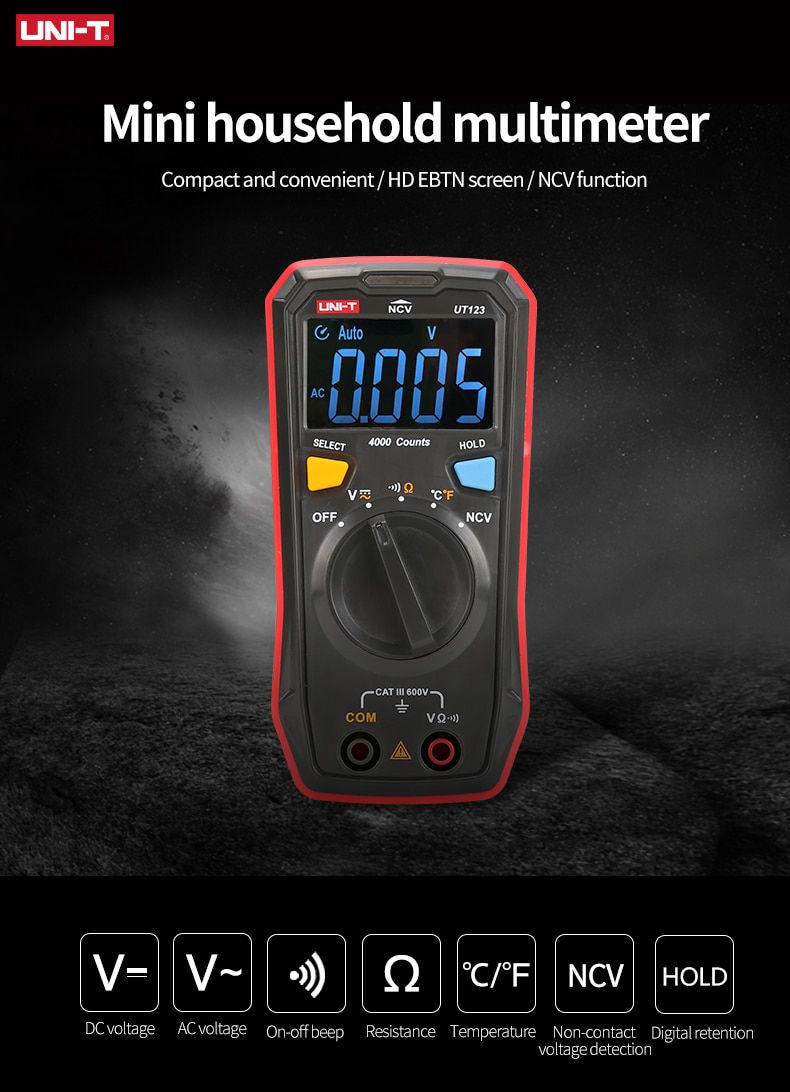

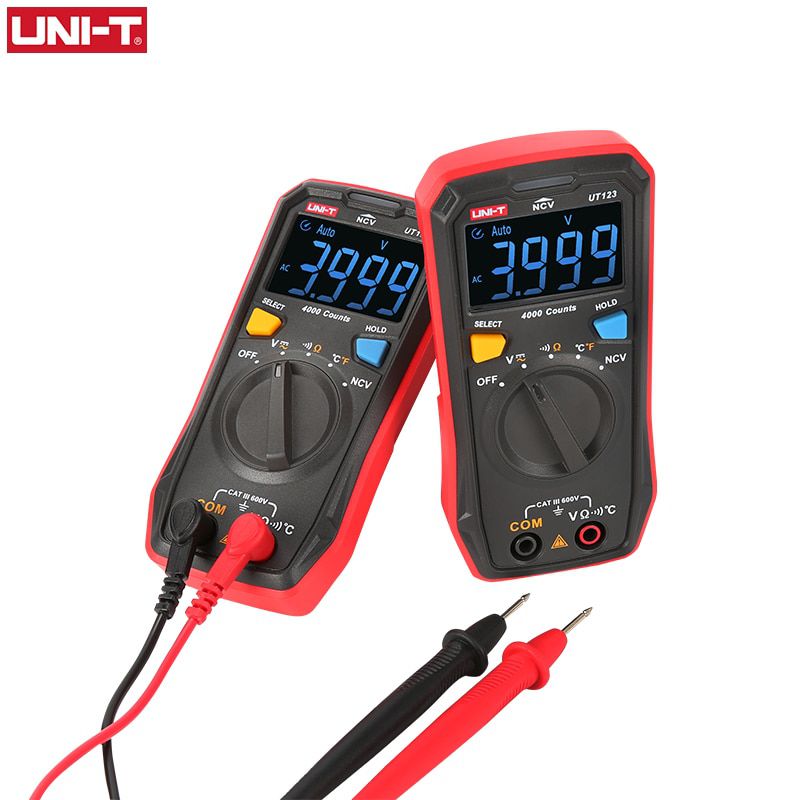

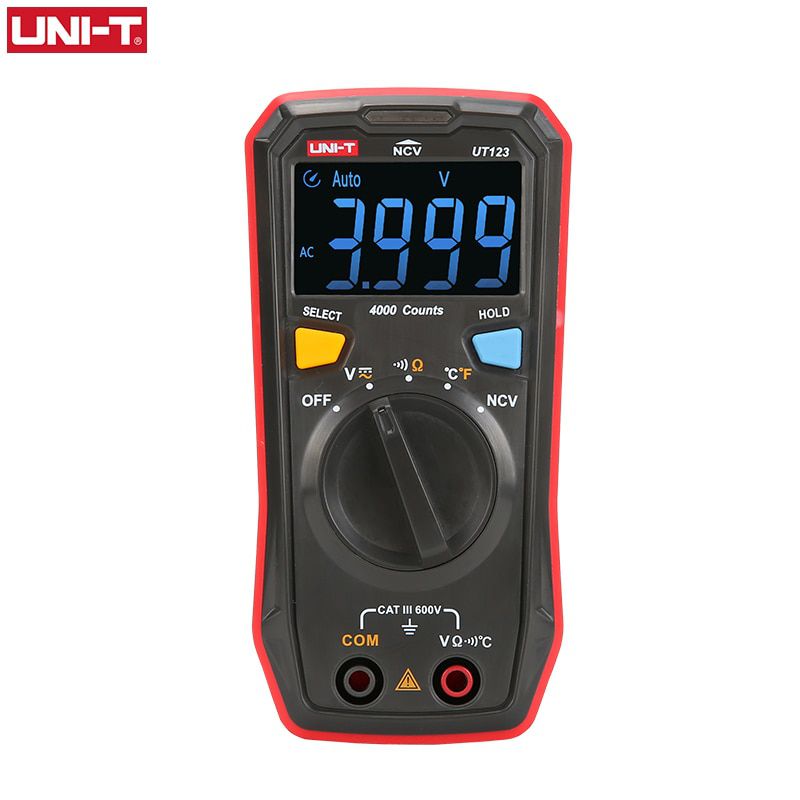

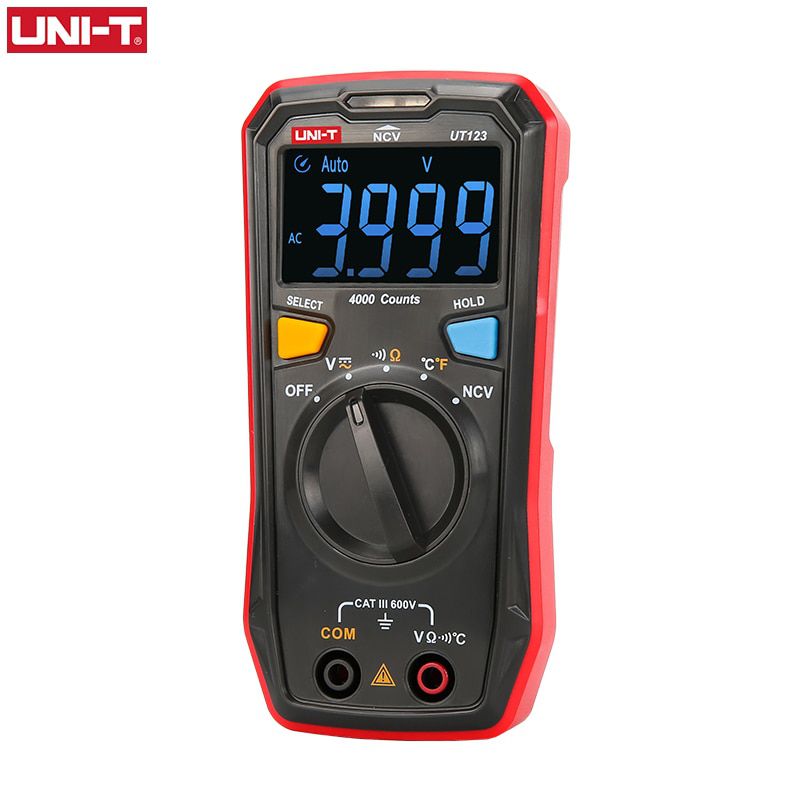

UNI-T Auto Range Mini Digital Multimeter Temperature Tester UT123 Data hold AC DC Voltmeter Pocket Voltage Ampere Ohm Meter
-
HD EBTN color screen
-
Mini size,portable,high accurancy
-
Household multimeter，designed specially for DIY users
-
Function: AC voltage,DC voltage,resistance,Continuity，°C/°F temperature test，NCV, Alarm, full range protection
| Basic Parameter | Range | Accuracy |
| DC Voltage | 4.000V/40.00V/400.0V | ±(0.5%+2) |
| 600V | ±(0.7%+3) | |
| AC Voltage | 4.000V/40.00V/400.0V/600V | ±(1.0%+3) |
| Resistance | 400.0Ω | ±(1.0%+2) |
| 4.000kΩ/40.00kΩ/400.0kΩ | ±(0.8%+2) | |
| 4.000MΩ/20.00MΩ | ±(1.2%+3) | |
| Celsius temperature | -40~40°C | ±4°C |
| 40~300°C | ±(1.0%+5) | |
| Fahrenheit | -40~104°F | ±6°F |
| 104~572°F | ±(2.0%+6) | |
| Frequency response | 40Hz-400Hz | |
| Continutity test | √ | |
| NCV Test | √ | |
| Display Counts | 4000 counts | |
| Auto power off | 15Min (press the button can wake up) | |
| Low voltage indication | LED indication | |
| Data Hold | √ | |
| LCD display | EBTN HD screen | |
| Backlight | √ | |

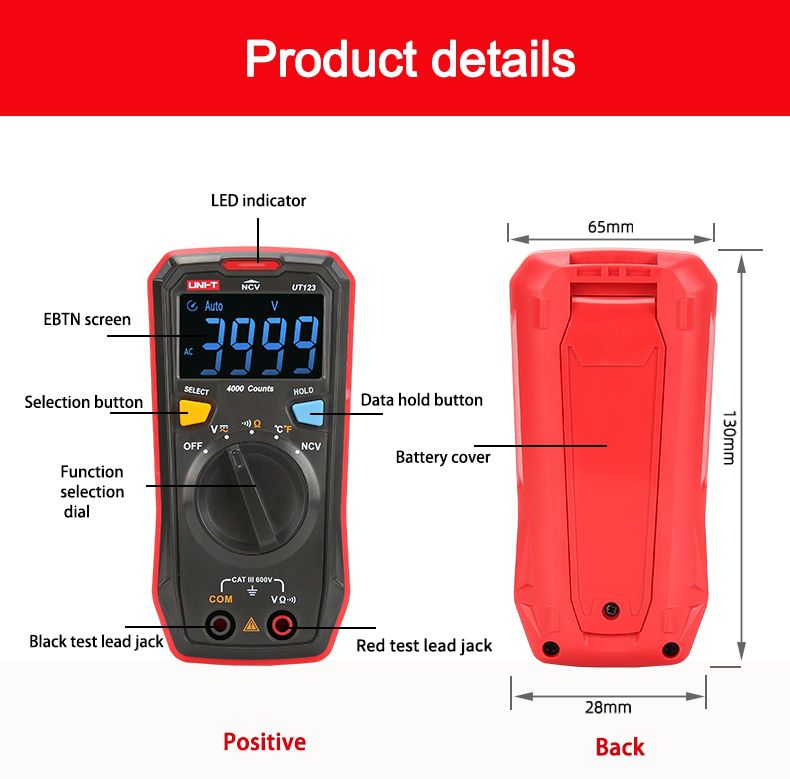

| Size | 130*65*28mm | |
| CAT Rating | Full range protection CAT III 600V |

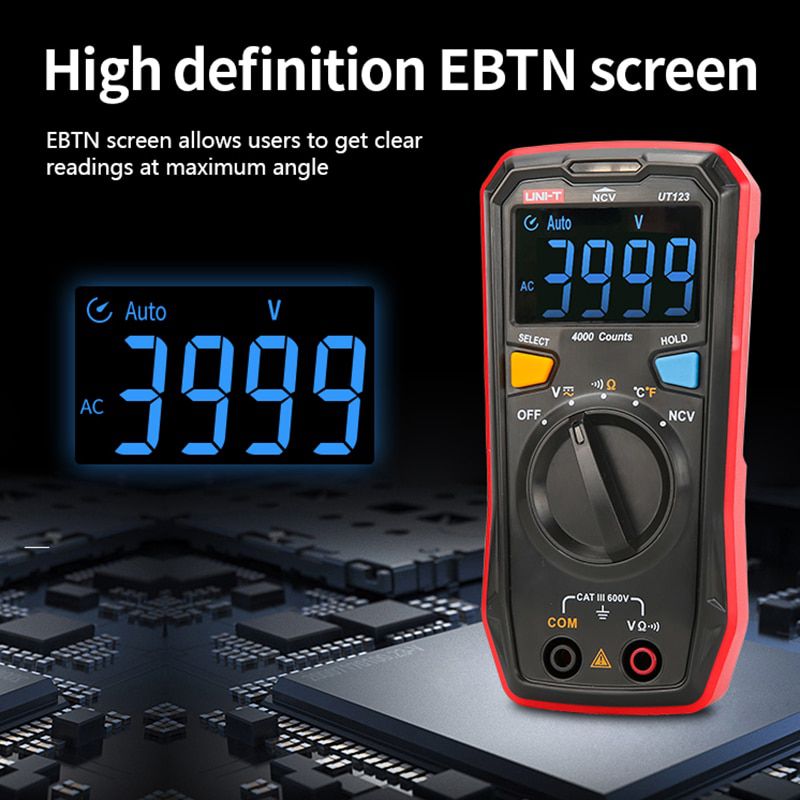

HD EBTN Color screen display,
Broader vision, higher contrast and clear display
Minimum operation temperature :-10 °C

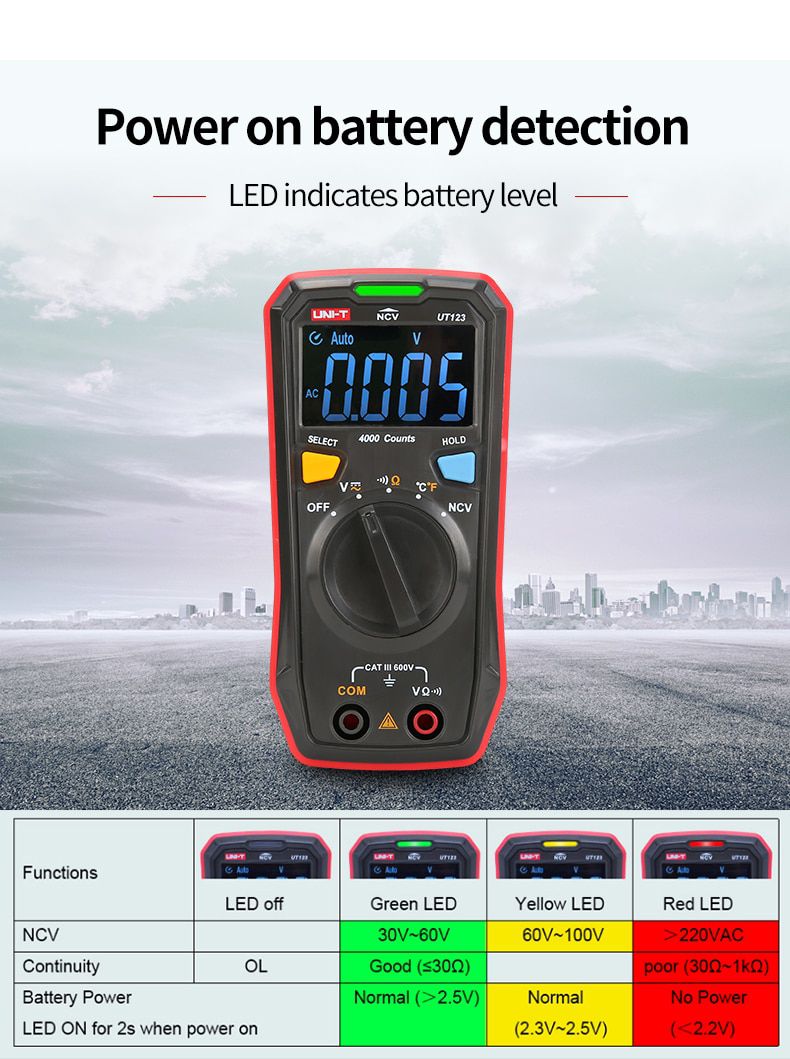

LED Indicates battery level
LED on for 2s when power on :
Red color -indicates power off, need to replace battery
Green Color-indicates power enough, can go ahead to measure
Yellow color-indicates low power, have to replace battery as soon as possible

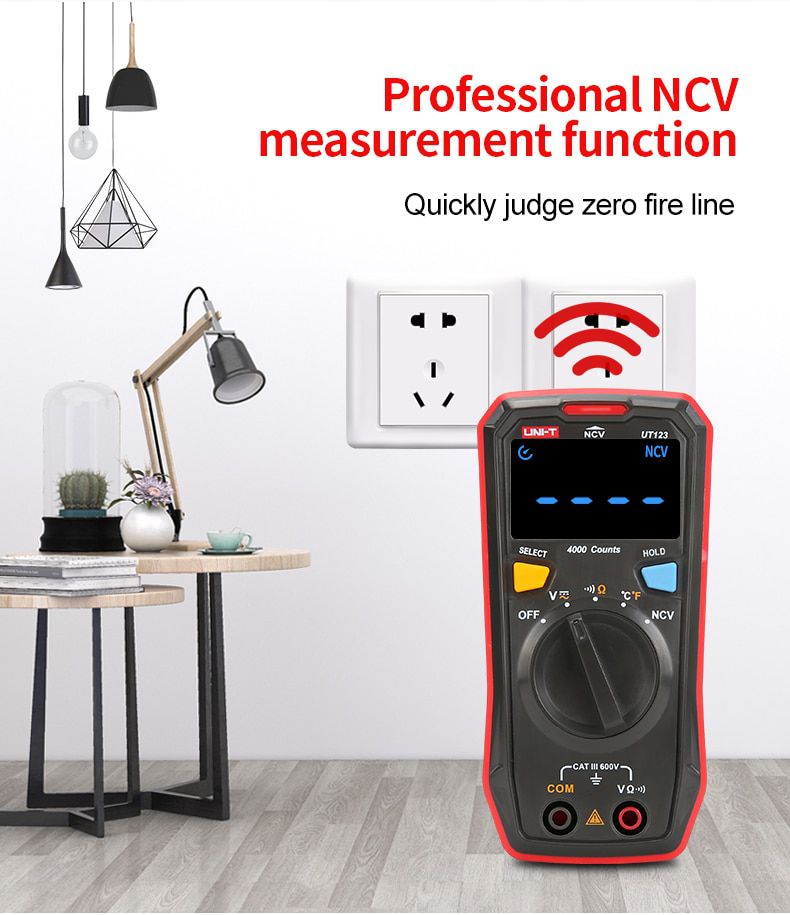

Professional NCV measurement,quickly distinguish weak electric field by green light, strong eletric field by yellow light ,supper strong electric field by red light

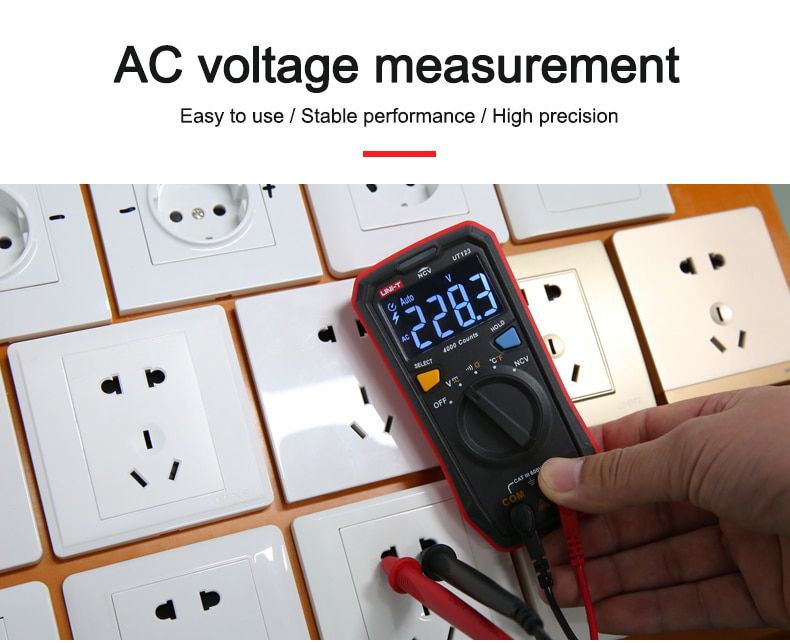

AC Voltage measurement :Easy operation , stable and high precision performance

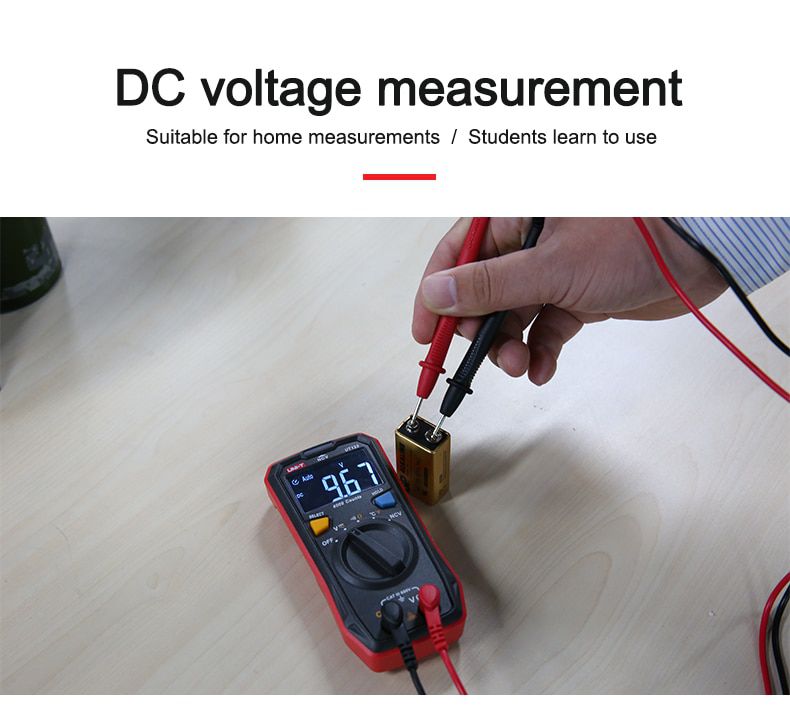

DC voltage measurement: suitable for home eletric maintenance and student study

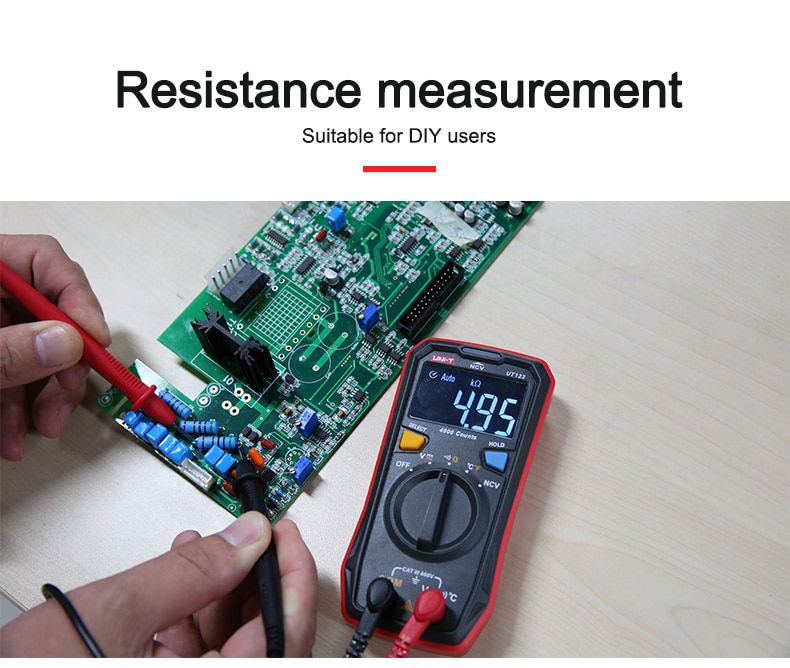

Resistance measurement: Suitable for DIY users

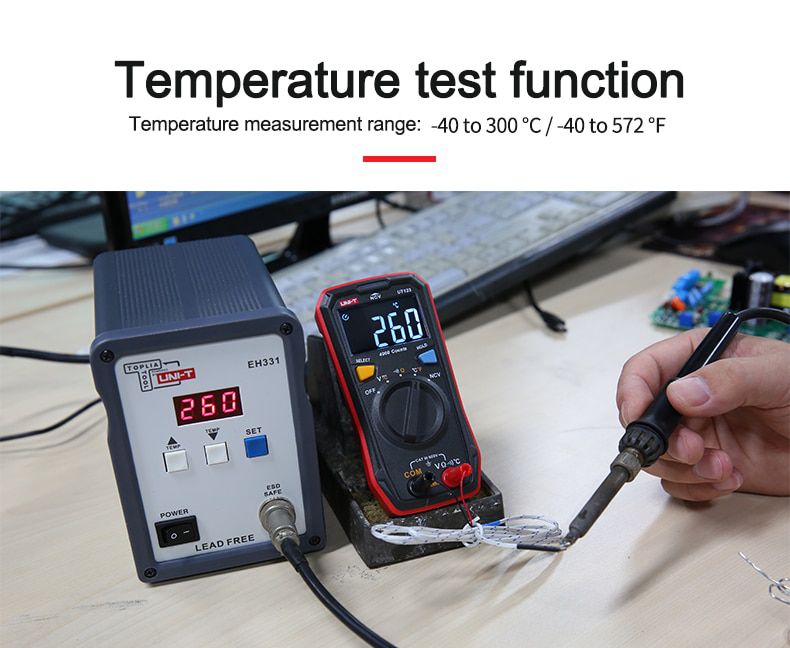

Temperature test:measurement range -40-300°C,-40-572°F

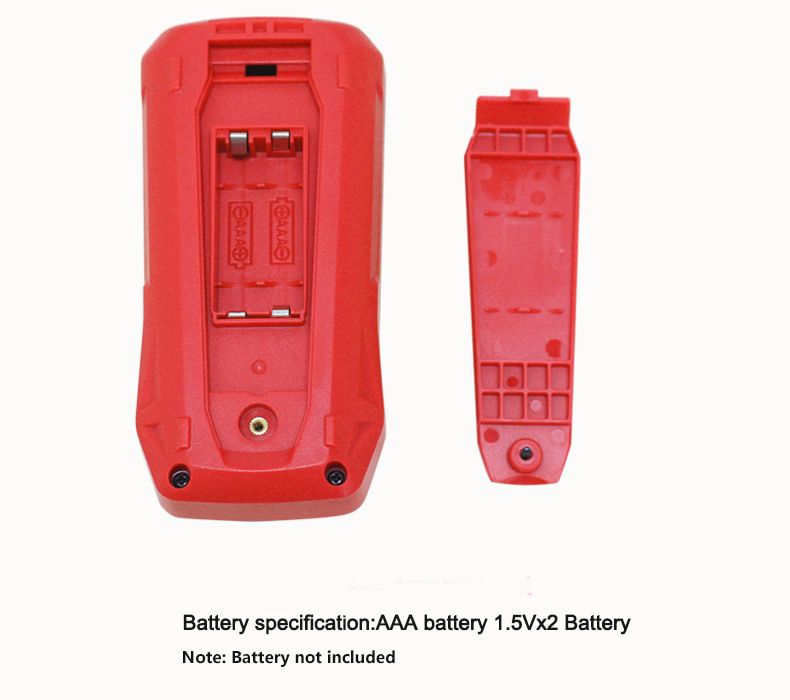

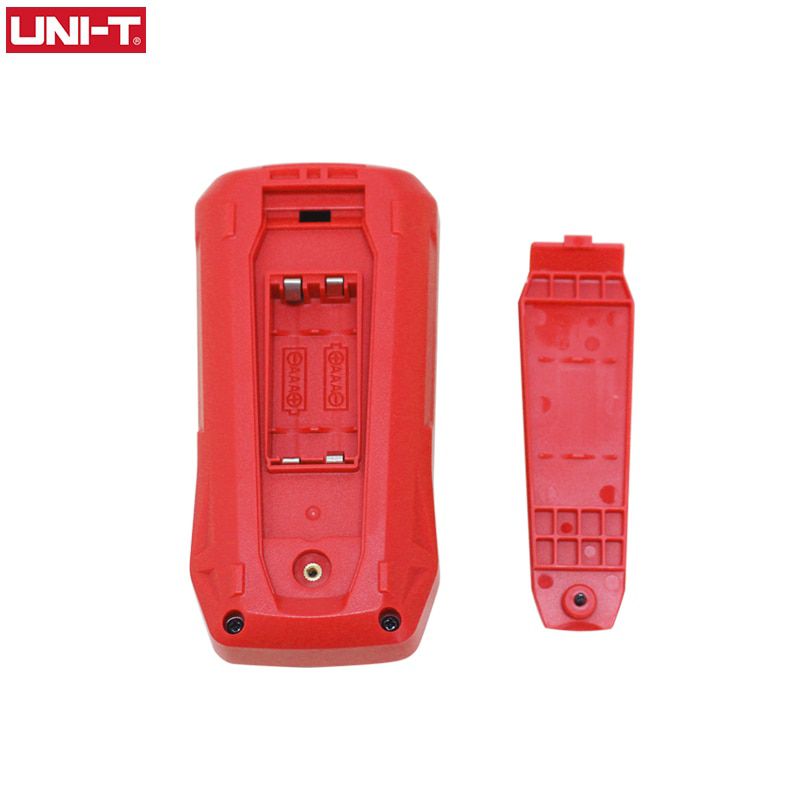

Battery:AAA battery 1.5Vx2 (Notice please : battery is not included)
