SMART SENSOR DIGITAL TACHOMETER AS926
Product Features
Technical Details
| Product Specifications | ||||
| Brand Name | Smart Sensor | Model | AS926 | |
| Material: | ABS PLastic | Display: | LCD Backlight Display | |
| Temperature Range: | 0℃~50℃ / 32℉~122℉ | Measuring Range: | 100RPM ~ 30000RPM | |
| Resolution: | 0.1RPM at 100~999.9RPM, 1RPM at 1000~30000RPM | Accuracy: | ±(0.05%+1 digit) | |
| Measuring Distance: | 50~400mm / 2~16in | Time Base: | 6MHz Crystal Oscillator | |
| Test Range Select: | Automatic Switching | Sampling Time: | 0.8s(over 60RPM) | |
| Power Consumption: | Approx. 50mA | Power Supply: | 3 x1.5V AAA Battery(not Included) | |
| Working Temperature: | 0℃~50℃(32℉~122℉) | Data Clearing | Yes | |
| Data Hold,/Data Storage | Yes | MAX. Value, Min. Value | Yes | |
| Battery Status Indication | Yes | Power Consumption: | Approx. 50mA | |
| Product Weight/Size | 69g/ 50* 26*135mm | Packing Weight/Size | 101g/ 21.5 * 14.5 * 3.3cm | |

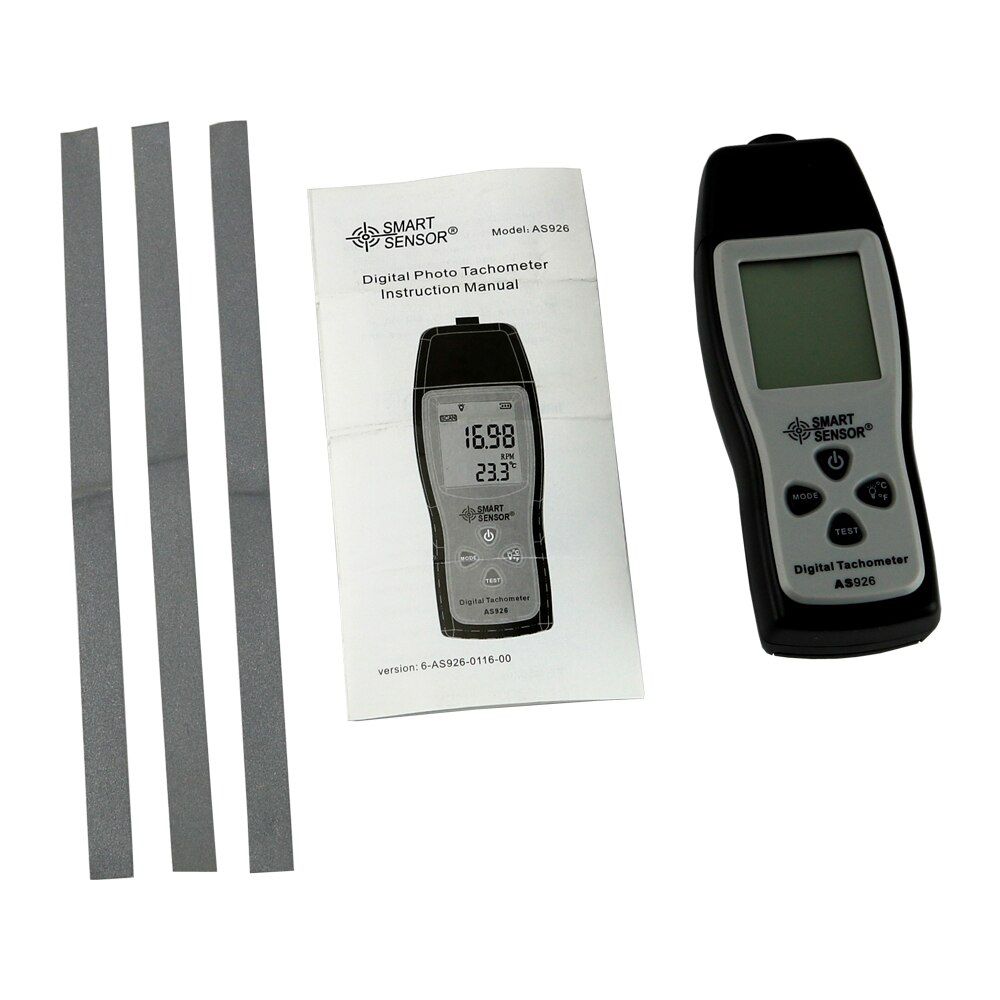

| Packing Contents: | 1 * Digital Tachometer 3 * Reflective Tape Marks 1 * User Manual(English) | |||
| Diagram Description | ||||
|

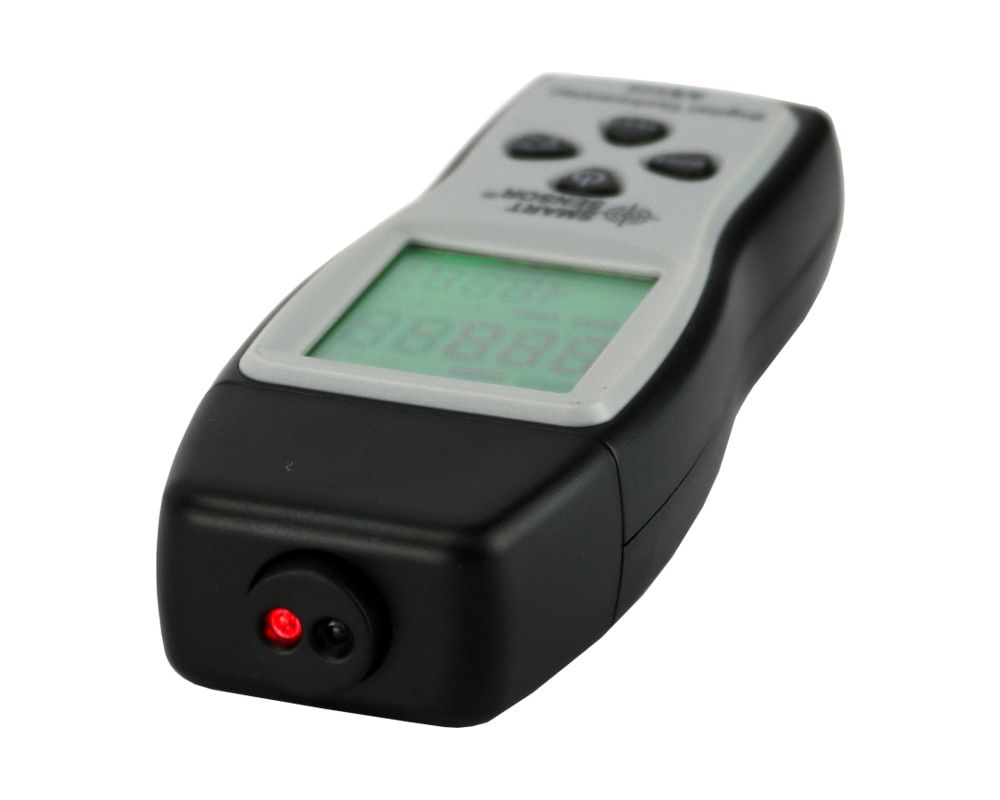

| 1.Laser Beam | |||

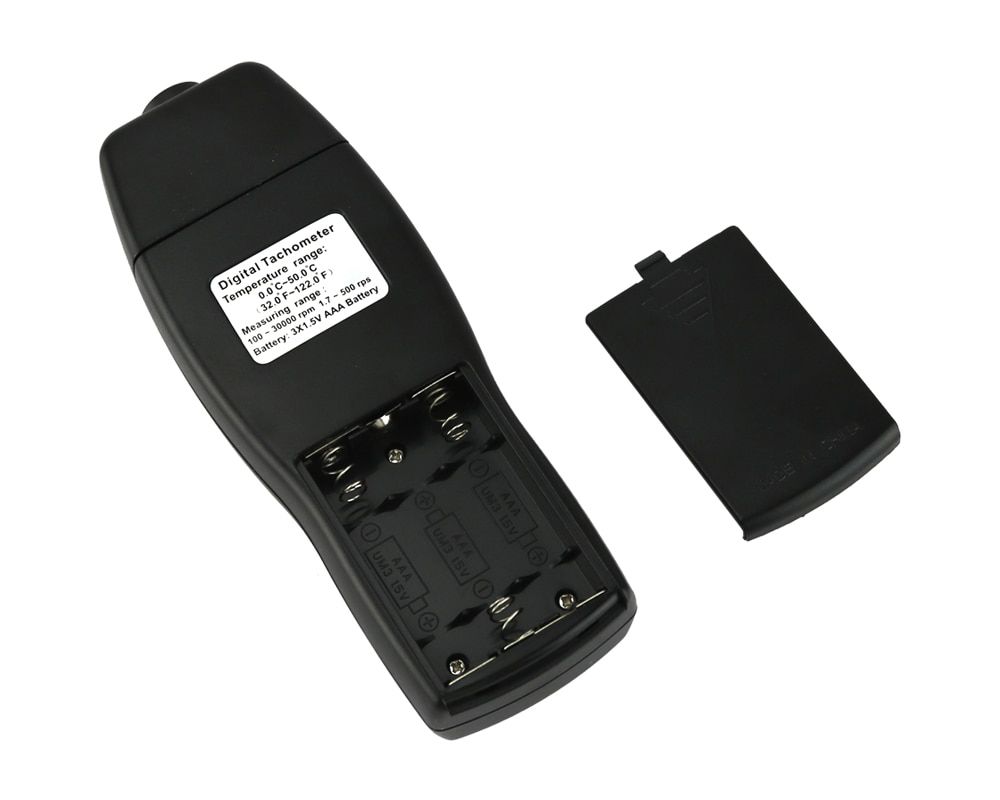

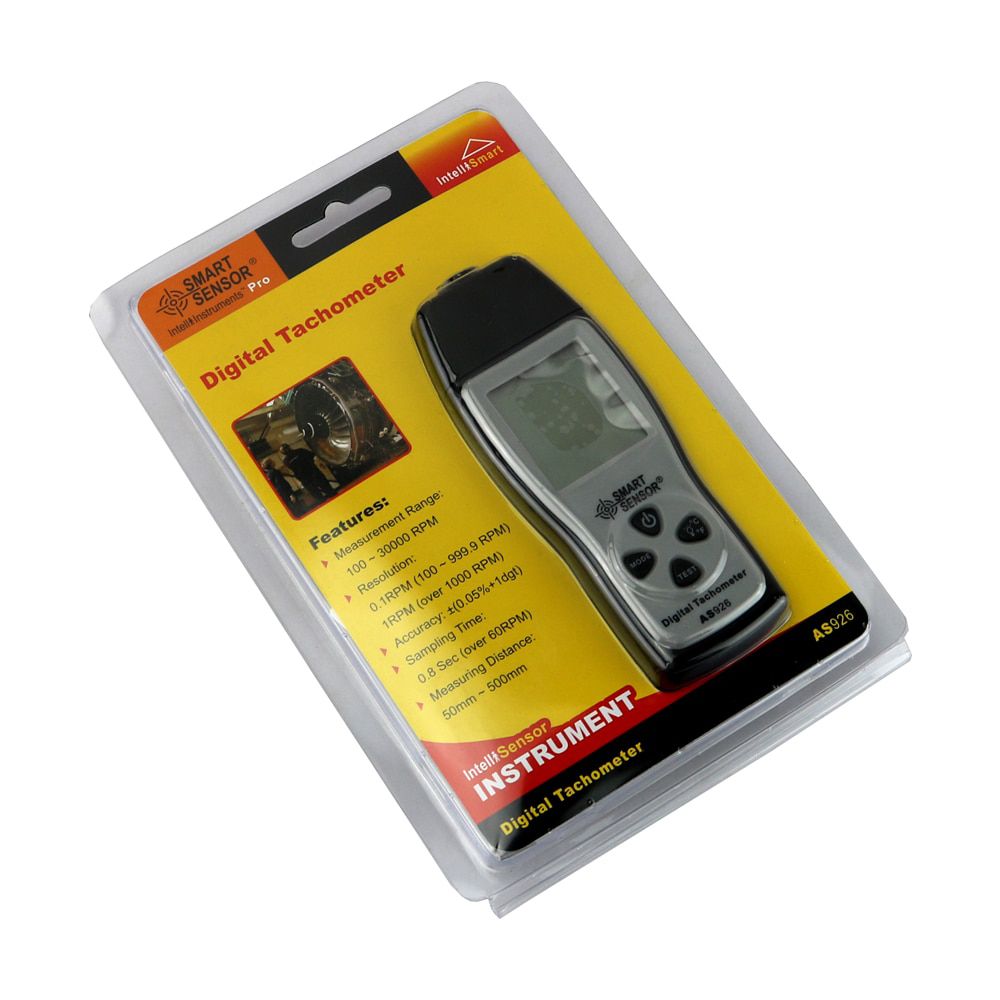

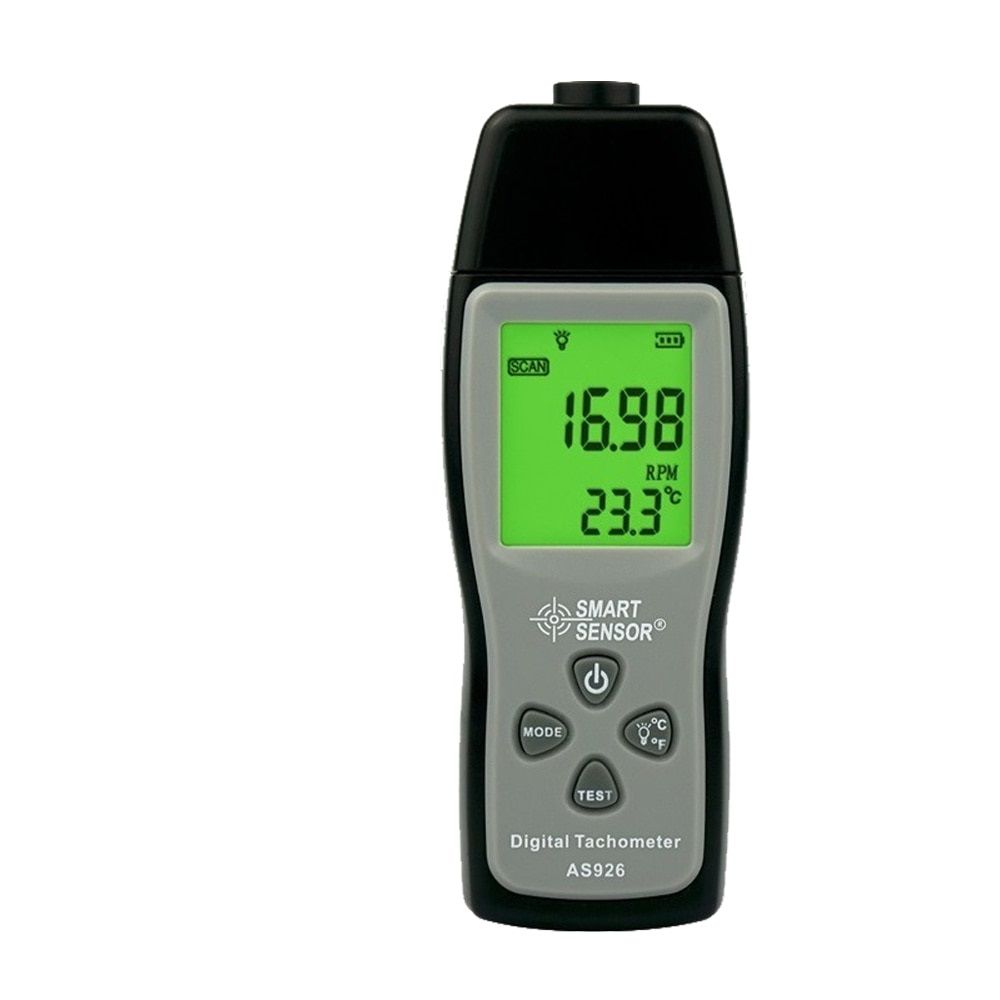

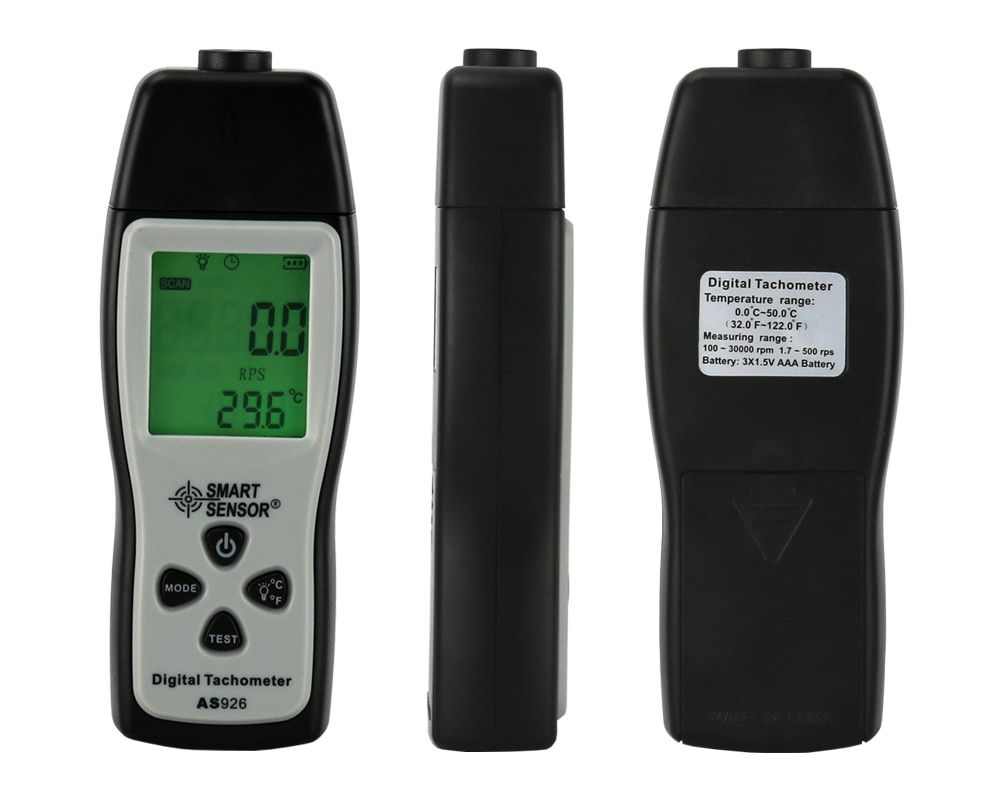

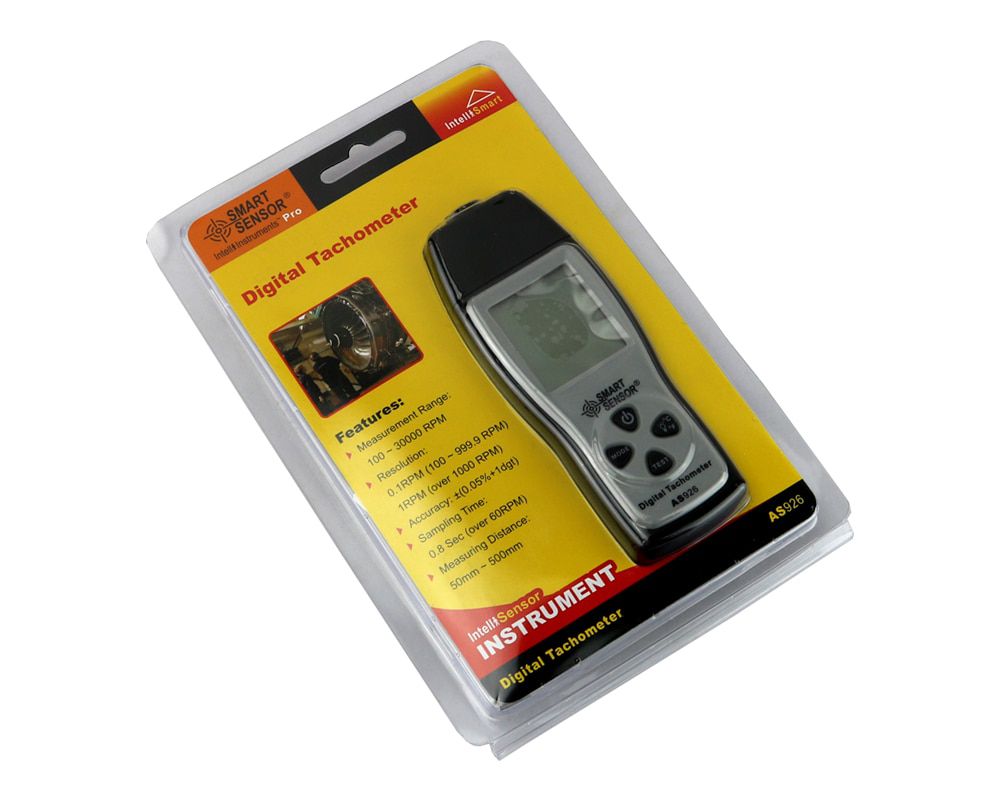

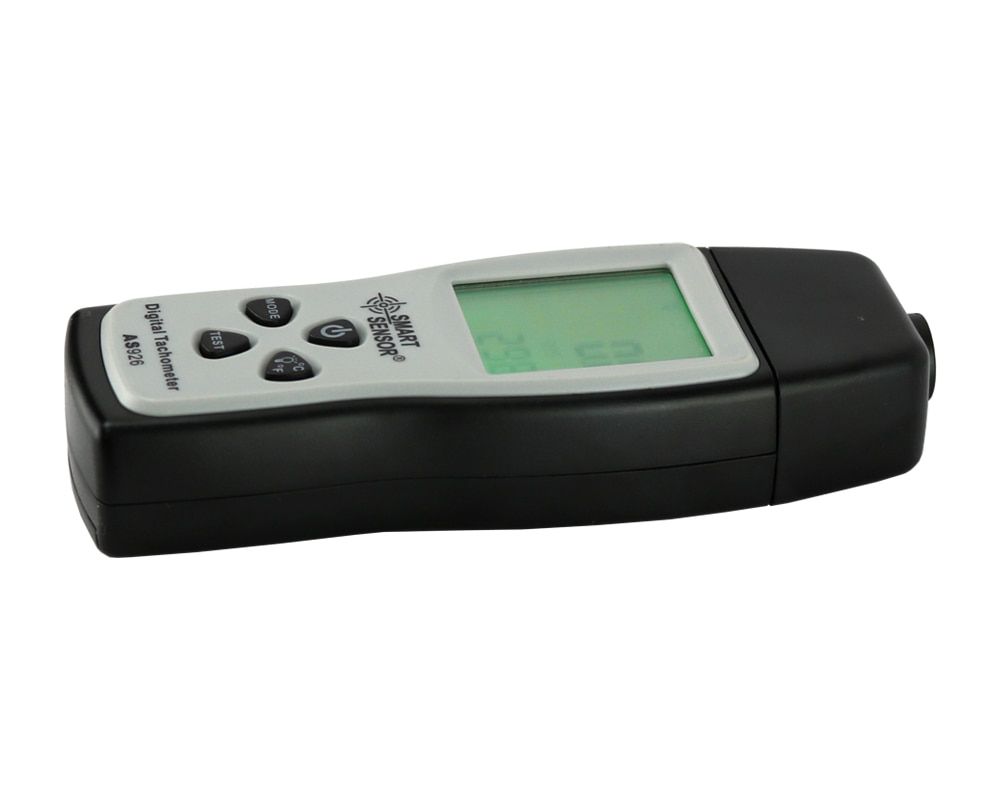

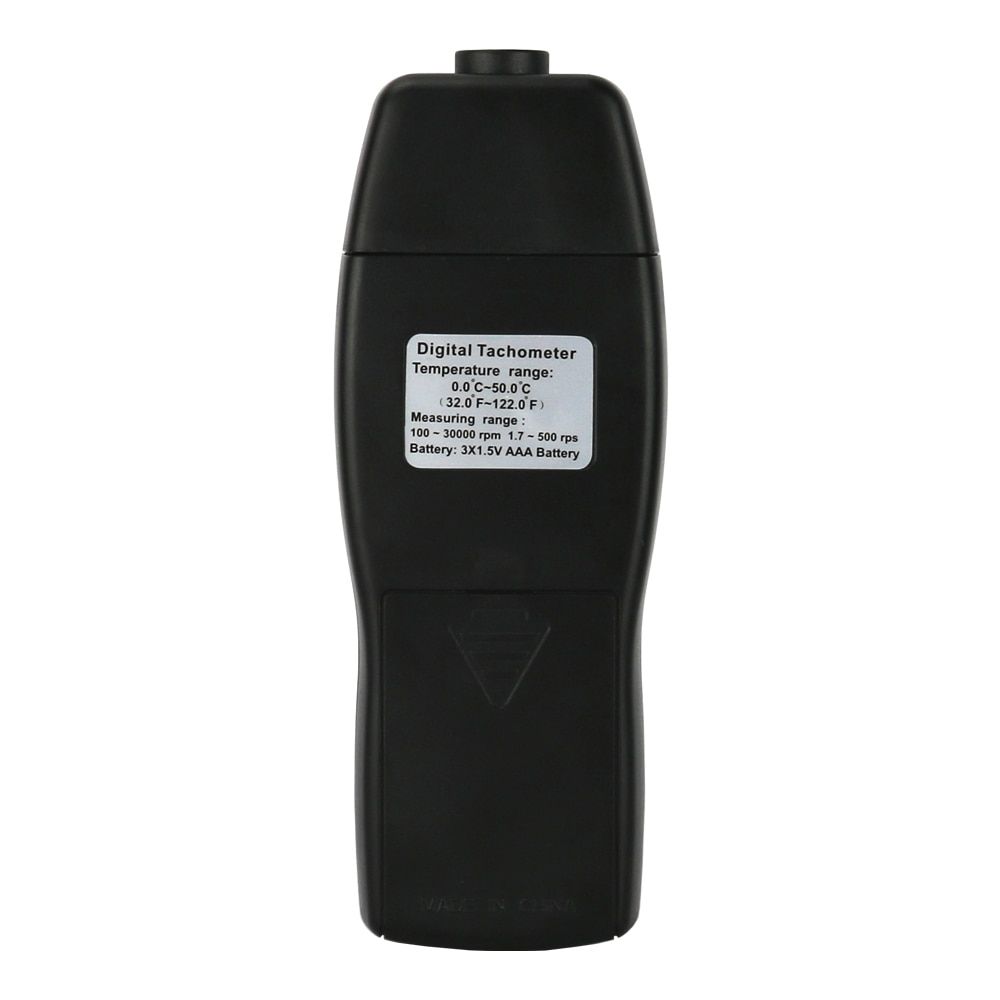

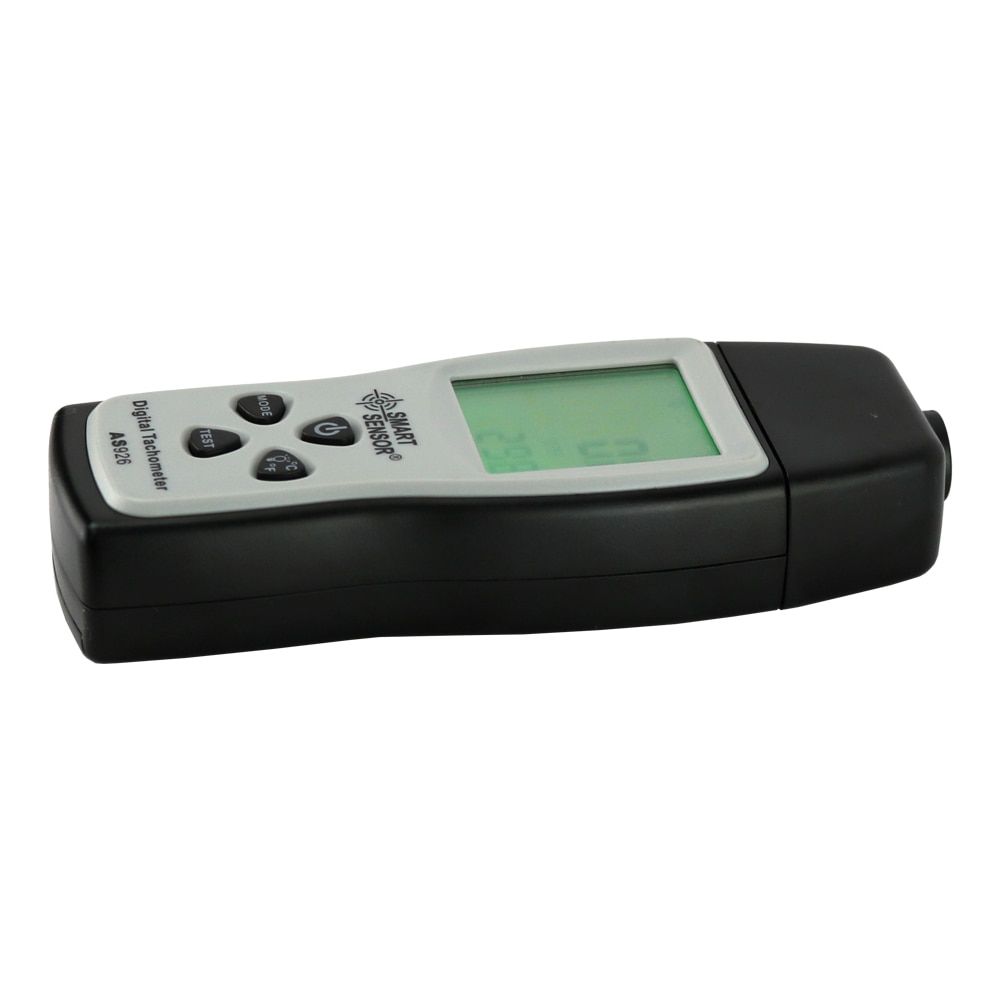

Product Photos
