Description

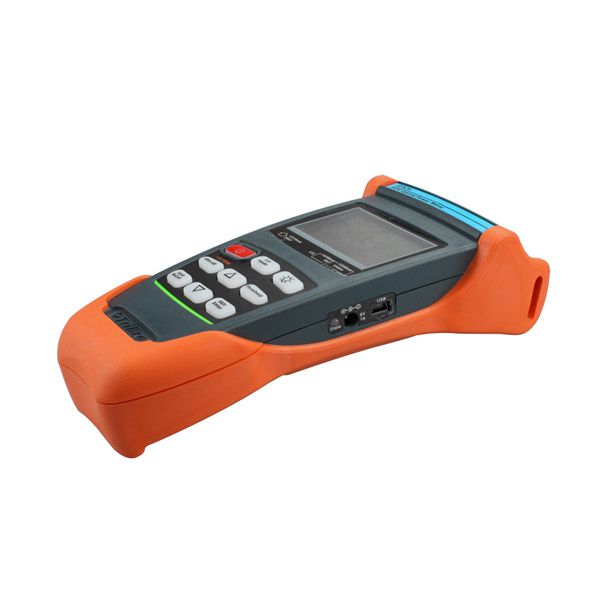

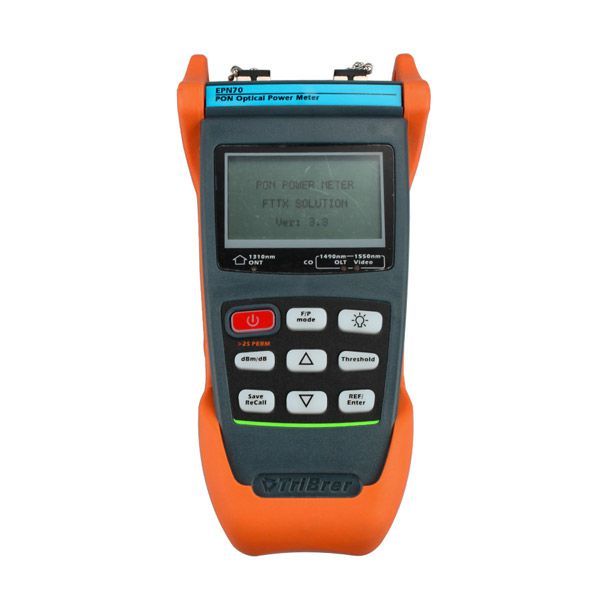

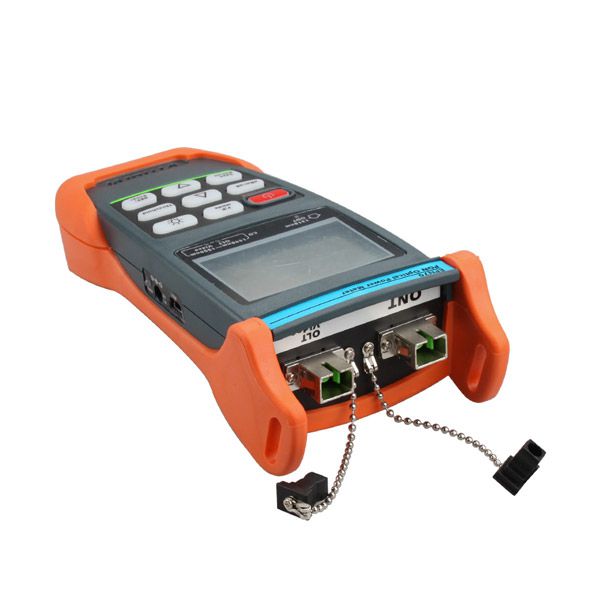

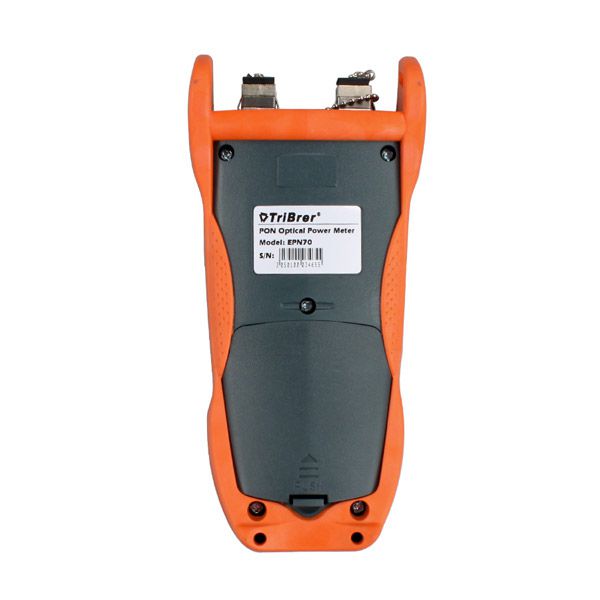

Digital EPN70 Singlemode PON Optical Power Meter Cable Tester
Specification:
1. Providing distinct power values for 1310 nm, 1490 nm and 1550 nm
2. Pass through measurement
3. Simultaneously measures and displays voice, data and video signals on different PON architectures
4. Manual calibration
5. Energy save mode: about 10 minutes of no operation will cause the device to auto power off (can be cancelled)
6. Reference value set for each wave
7. Full energy can support above 36 hours operation
Digital EPN70 Singlemode PON Optical Power Meter Cable Tester
Specification:
1. Providing distinct power values for 1310 nm, 1490 nm and 1550 nm
2. Pass through measurement
3. Simultaneously measures and displays voice, data and video signals on different PON architectures
4. Manual calibration
5. Energy save mode: about 10 minutes of no operation will cause the device to auto power off (can be cancelled)
6. Reference value set for each wave
7. Full energy can support above 36 hours operation
| Measurement range | 1310 nm: +10 ~ - 35 dBm |
| 1490 nm: +10 ~ - 50 dBm | |
| 1550 nm: +25 ~ - 45 dBm | |
| ORL | APC: 55 dB; UPC: 35 dB |
| Pass through insertion loss | < 1.5 dB |
| Accuracy | ± 0.5dB (burst signal) |
| ± 0.2dB | |
| Threshold sets | 10 |
| Data Storage | 100 |
| Connector | SC/PC (can customise other connectors) |
| Auto Power Off | No operation in 10 minutes (can be cancelled), Low battery energy |
| Battery Charge | Yes |
| Operate Time | Above 36 hours |
| Storage Temperature | -20 -- +60 °C, 90%RH |
| Operating Temperature | -10 -- +50 °C, 90%RH |
| Power Supply | 3 * AA batteries or AC/DC adapter(battery not include) |
| Size | 190mm * 90mm *40mm |
| Weight | About 450g |

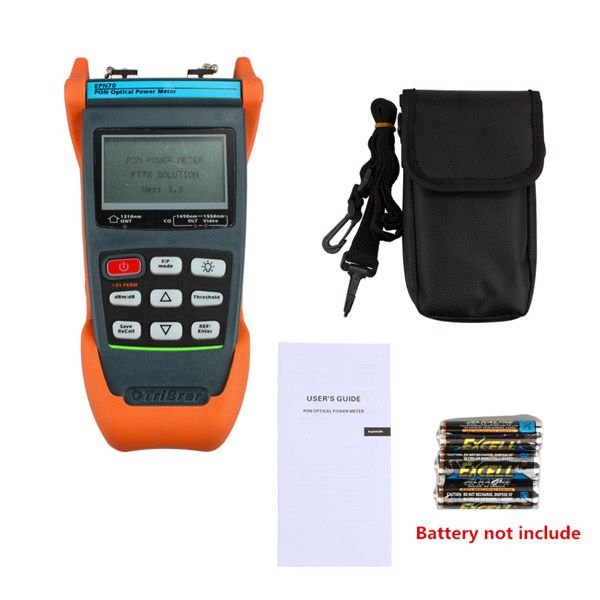

Package include:
1pc x EPN70 PON Singlemode Power Meter
1pc x Packing Box
1pc x Engligh Manual
