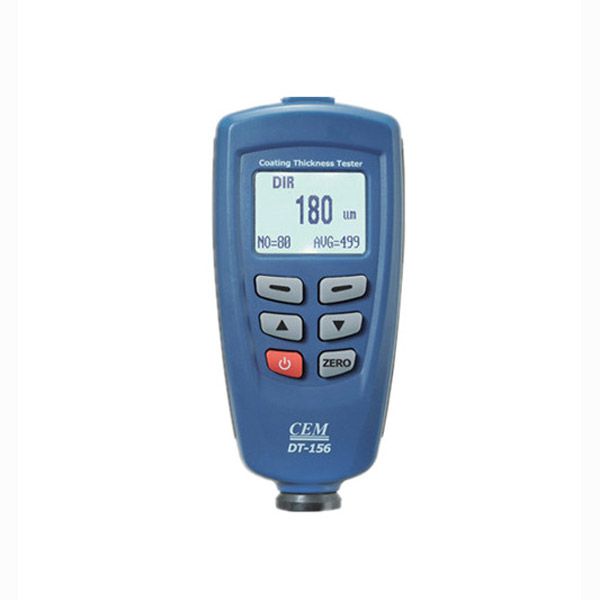

CEM DT-156 Paint Coating Thickness Gauge Meter Auto F/NF Probe 1250μm V-groove
It works either on the magnetic induction principle or the eddy current principle, depending on the type of sensor probe selected (Fe or No Fe).
With the two types of probe equipped, only one gauge is required to measure non-magnetic coatings on a magnetic substrate (ferrous, Fe) or insulating coatings on a non-magnetic conductive substrate (non-ferrous, NFe).
The V-groove in the sleeve of the probe facilitates reliable measurements on small cylindrical parts.
DIRECT mode is recommended for simple, quick and occasional measurement while GROUP mode permits storage of maximum 400 data for statistical analysis. It provides statistic functions including AVG, MAX, MIN, S.DEV. USB cable and software CD are included for connection and work with PC.
Other important features are backlight LCD, high/low alarm, auto power off and calibration foils included.
CEM DT-156 Specifications:
|
Sensor Probe |
F |
No Fe |
|
Working Principle |
Magnetic induction |
Eddy current principle |
|
Measuring Range |
0~1250µm 0~49.21mils |
0~1250µm 0~49.21mils |
|
Guaranteed Tolerance (of reading) |
0~850µm (±3%+1µm) 850µm~1250µm (±5%) |
0~850µm (±3%+1.5µm) 850µm~1250µm (±5%) |
|
0~33.46mils (±3%+0.039mils) 33.46mils~49.21mils (±5%) |
0~33.46mils (±3%+0.059mils) 33.46mils~49.21mils (±5%) |
|
|
Precision |
0~50µm(0.1µm) 50µm~850µm(1µm) 850µm~1250µm (0.01mm) |
0~50µm(0.1µm) 50µm~850µm(1µm) 850µm~1250µm (0.01mm) |
|
0~1.968mils (0.001mils) 1.968mils ~33.46mils (0.01mils) 33.46mils ~49.21mils (0.1mils) |
0~1.968mils (0.001mils) 1.968mils ~33.46mils (0.01mils) 33.46mils ~49.21mils (0.1mils) |
|
|
Minimum Curvature Radius |
1.5mm |
3mm |
|
Diameter of Minimum Area |
7mm |
5mm |
|
Basic Critical Thickness |
0.5mm |
0.3mm |
|
Working Temperature |
0°C ~40°C (32°F~104°F) |
|
|
Working Relative Humidity |
20%~90%RH |
|
|
Item Size |
110 x 50 x 23mm |
|
|
Item Weight |
100g |
|
