Description
Carworth C100-D 24V Diesel Universal OBDII Scanner
Top 5 Reasons to get C100-D OBDII Scanner:
1. Support for all standard models of OBD-II interface
2. Support trouble shooting all electrical control systems.
3. By reading the trouble code feature, you can quickly and accurately obtain the reasons of electronic control system (ECU) fault lights reasons.
4. A key to the elimination of the electronic control system (ECU) temporary failure exists, fault light extinguished.
5. Real-time display condition information, including engine speed, intake air pressure, acceleration performance, coolant temperature, oxygen sensor voltage and other information in order to analyze the reasons for failure in the technician or vehicle owner Product packaging and appearance.
5. Real-time display condition information, including engine speed, intake air pressure, acceleration performance, coolant temperature, oxygen sensor voltage and other information in order to analyze the reasons for failure in the technician or vehicle owner Product packaging and appearance.
Vehicle coverage:
Carworth can diagnose all kinds of diesel control systems quickly and easily, especially available for China, Europe, America, Japan and Korea and so on,build-in high/low speed CAN-Bus to satisfy all Can-Bus vehicles;
It can test the vehicles including: International, Freightliner, Sterling, Western Star, Detroit, Daf, Erf, Kenworth, Man, Mitsubishi, Scania, Isuzu, Mark, Hino, Volvo, BENZ, UD, Renault,and Foton, Faw, CNHTC, and all other Chinese Heavy duty trucks , Bus...
Support ECU Manufacturers including:
Bosch, Cummins, Caterpillar, Denso, Siemens, Motorola, Zexel, VITO, NanYue, Delphi, Wabco...
Suppored Function:
Read DTC, Read Engine Model, Read Computer Edition Information, Read QR code, Read System parameter number, Read Data Stream, Clear DTC, Read-in QR Code, Component test, Cut off Cylinder Test, Compression Test, Injector Test, Maintenance Help, Study on line and so on some/ most models .
Supported Engine:
Ankai,Arf,Astra,BENZ,Foton,Cat,Chaochai, Sinotruck,Dacai,Daf,Dfm,Dongfeng,Doosan,VW Jetta,JMC,CUMMINS,LAIYANG,MACK,MAN,IVECO,QUANC,Renault,SANY,SCANIA,SUNLONG,TOYOTO,UD,Volvo,WEICHAI,xce,xicai,Nissan,YUCAI
Excavator: Altas,BOBCAT,CASE,KOBELCO,DASIN,DBC,HITACHI,HYUNDAI,INISCE,KATO,XIAGONG,SUNTON,SUMIT
Supported protocols
ISO14230 (KWP2000)
ISO9141
SAE J1850 (PWM)
SAE J1850 (VPW)
J1939 (CAN)
IS014229 (UDS CAN)
BENZ-9BIT
Flash Code Protocol
SAE J1708
Technical Parameters
Host Parameters
1. CPU dual-core architecture CORTEX M3 + ARM9 400M clocked
2. built-in Built-in high-capacity 8G TF card
3. Power supply 9-36(VDC)
4. Port OBD16
5. System Memory 64M SDRAM
6. Monitor 2.8-inch TFT LCD true color touch
7. Resolution 320 × 240,24-bit
8. weight 0.3kg
9 . Dimensions 13.2×8.6×2.0cm
10. Storage Temperature -30~45℃
11. Operating Temperature -10~45℃
12. Humidity ＜90

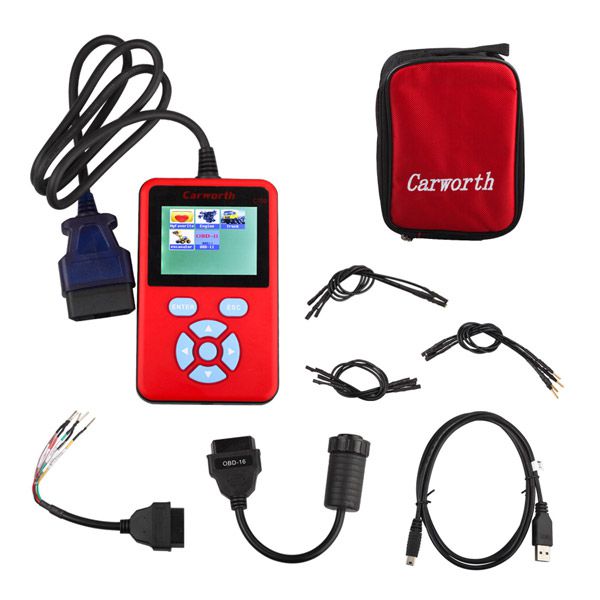

Package including:

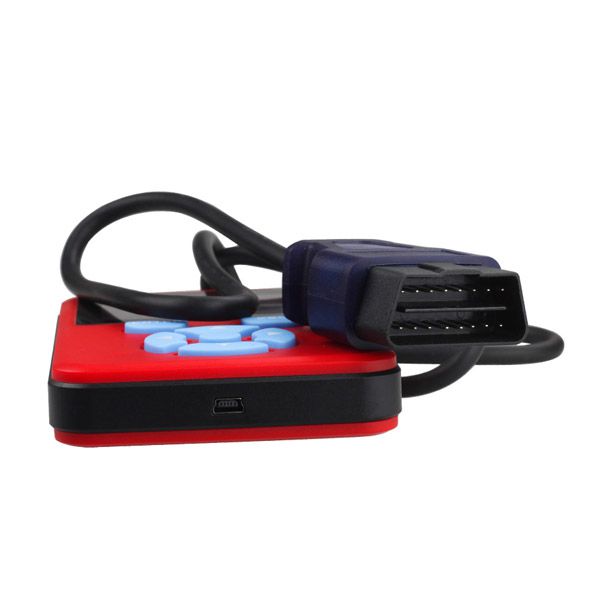

1pc x C100-A Main unit

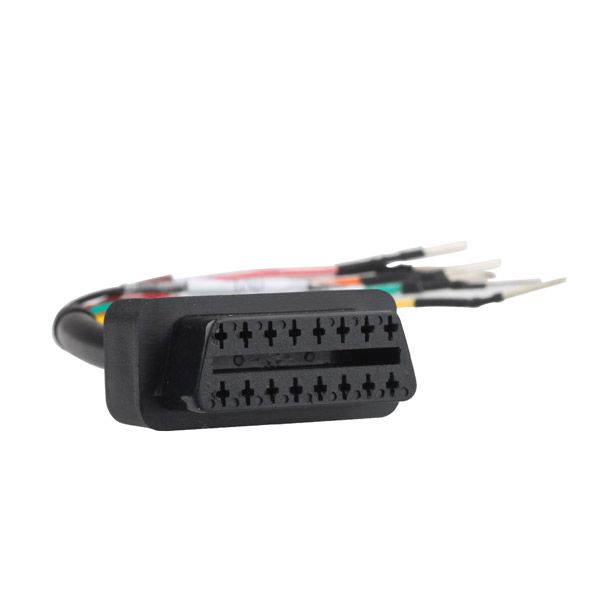

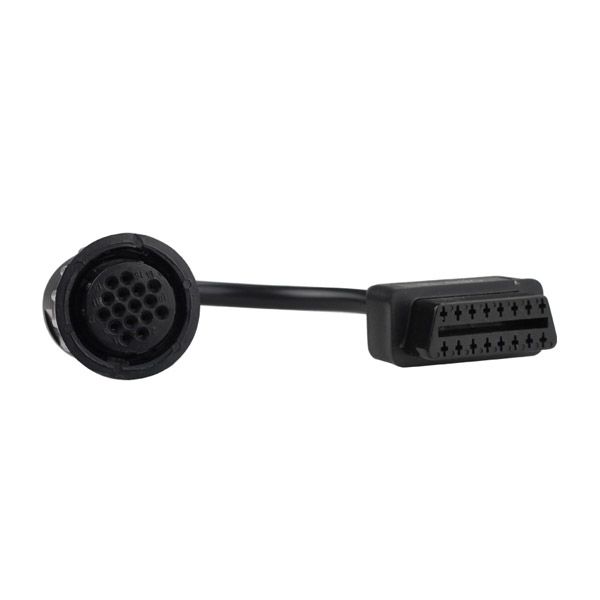

1pc x OBD2 Cable for Heavy duty

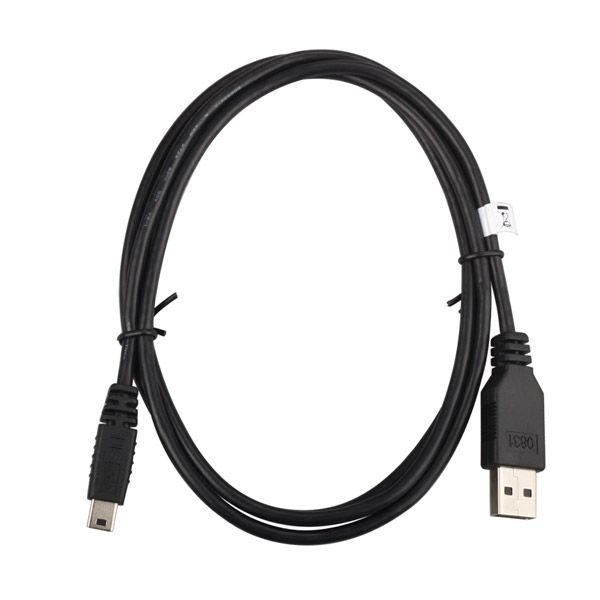

1pc x USB Cable

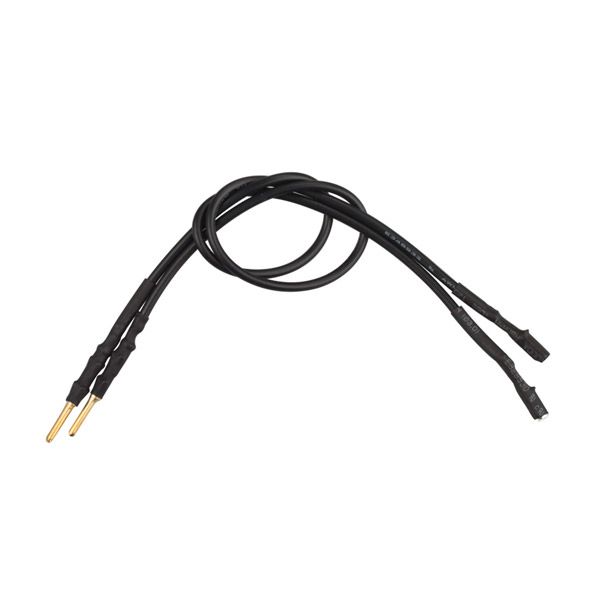

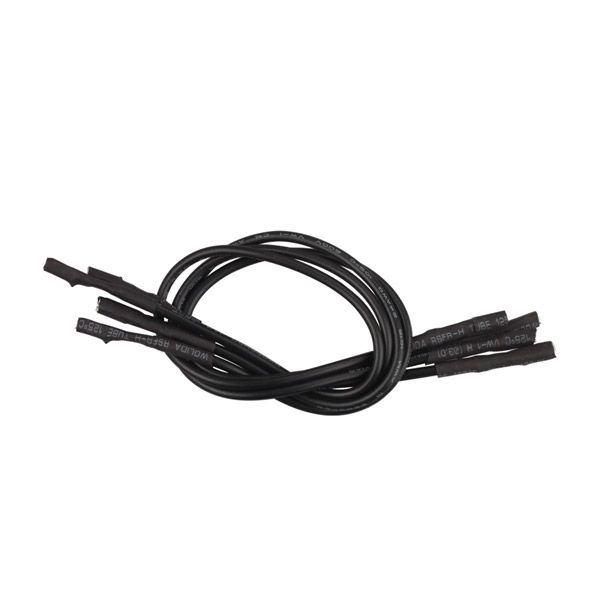

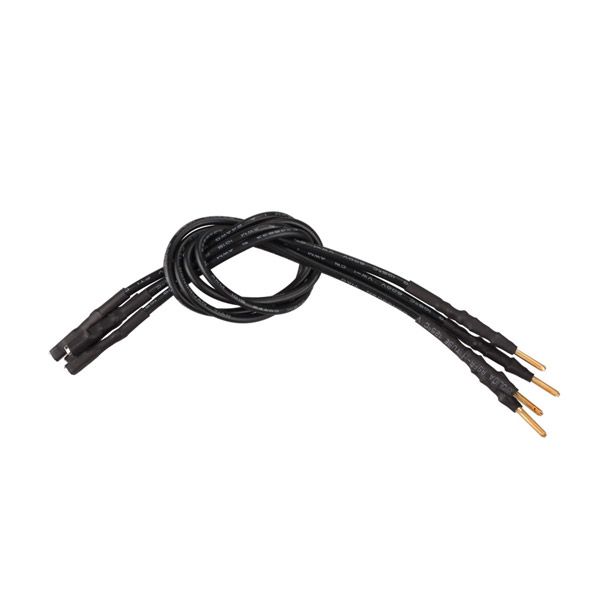

5pcs x Connect Cable
1pc x Carry Bag
