Benz ME9.7 ECU ECM Engine Computer with Renew Cable & V2.25 KTAG Firmware V7.020 EU Online Version Red PCB

Mercedes ME9.7 ME 9.7 ECU ECM Engine Computer Programming with Renew Cable & V2.25 KTAG EU Online Version Firmware V7.020 Red PCB

With this package, you can read ,write and program new ecu .


Mercedes ME9.7 ME 9.7 ECU ECM Engine Computer Compatible with Follow Vehicles :

Series	Models	Chassis NO	Engine Model（ME9.7）
C Series	C230	203.052	272.920
C Series	C280	203.054	272.940
C Series	C280	204.054	272.947
E Series	E350	211.056	272.964
E Series	E280	211.054	272.943
E Series	E300	12.054	272.952
E Series	E350	207.356	272.961
CLK cars	CLK280	209.354	272.940
CLK cars	CLK350	209.356	272.960
CLS sports cars	CLS350	219.356	272.964
CLS sports cars	CLS300	219.354	272.943
SLK sports cars	SLK280	171.454	272.942
SLK sports cars	SLK350	171.456	272.963
S Series	S350	221.56	272.965
S Series	S4100	221.195	272.974
M Series	ML350	164.186	272.967
M Series	ML300	164.182	272.945
R Series	R350	251.165	272.967
R Series	R300	251.154	272.945
GLK cars	GLK300	204.981	272.984
GLK cars	GLK350	204.987	272.971

Meanwhile, compatible with all series of 237 engine 4.6L 4633CC V8/ 5.5L5641CC V8

Supports online programming, renewing ECU repeatedly with a special cable instead of dismantling the shell

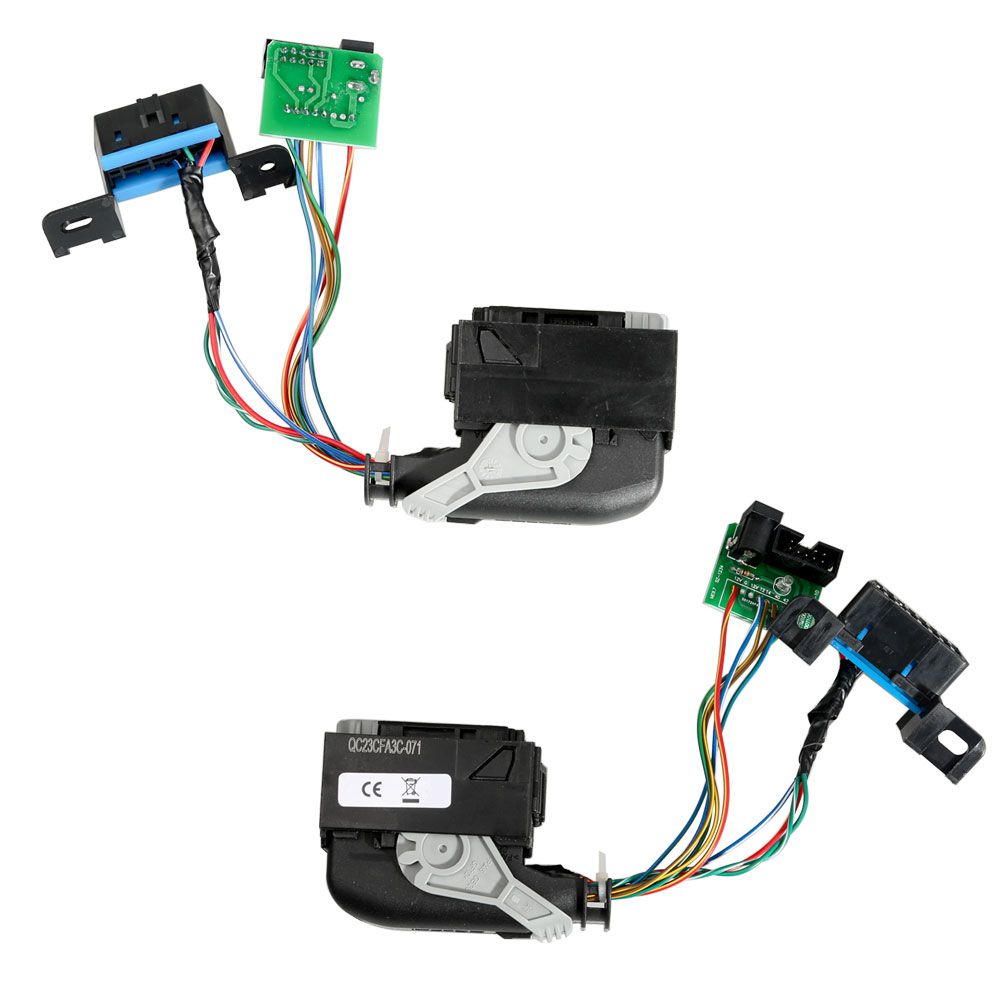

Mercedes Benz ECU ME9.7/272-273/ Renew Cable For KTM100 KTAG ECU Programming





Usage:

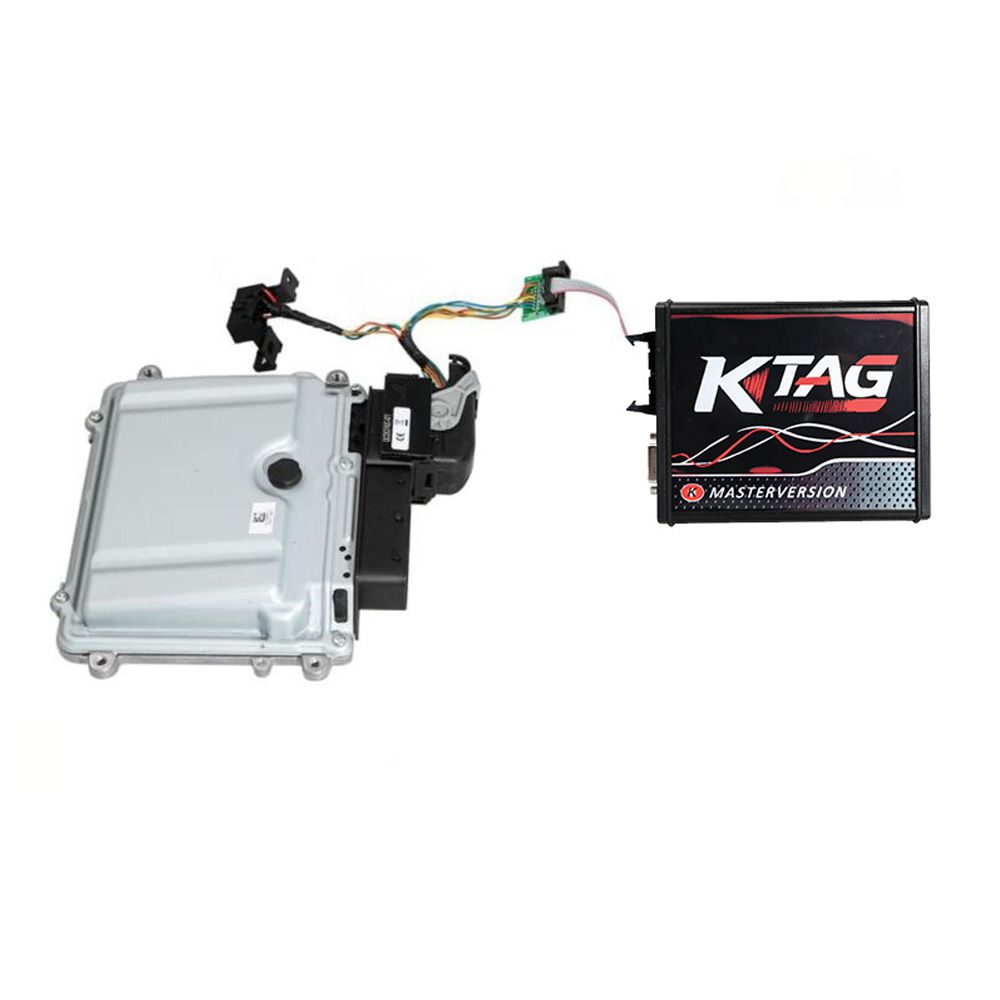

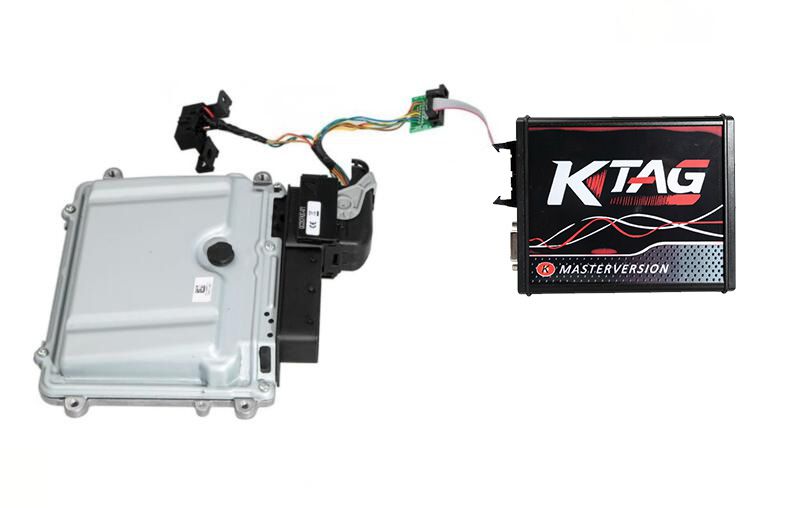

When you have the original ECU data, just use this renew cable to connect to KTAG to write to Mercedes ME9.7 ME 9.7 ECU.
With this cable, you won't need to open the ECU to write data anymore.

***********************************************************************
V2.25 KTAG EU Online Version Firmware V7.020 K-TAG Master with Red PCB No Tokens Limitation

What's new with KTAG Master fw V7.020 sw V2.25?

-Many encrypted new car models works I.E Toyota 76FXXX, PSA 17.4.4, Ford E83, VW 17.5.5 (1766), Mercedes-Benz 276ECU, Toyota 76F, etc.
-100+ ECU types added
-Software version: V2.25
-Hardware version: V7.020

Multi-Language available: Italian Deutsch English French Portuguese Spanish
Support BDM Function Well, no checksum error, available Protocols BDM MOTOROLA MPC5xx
Support both Car, Motorcyle and Truck ECU Programming
Add New File type (FENDT/JCB/VALTRA TRACTOR BOSCH EDC17CV41 SISU ENGINE CAN

Update: By CD or Download link only. (I can give you a link to download newest version of KTAG software)

Using tips:
1. Please Only Use Our Software
2. Operating System: Better to Use Win XP
3. Tip (Very important): During operation, disable the internet connection; otherwise the software may get damaged.

1. What's main different between Our K-TAG KTAG 7.020 and others?

-Mainly Different : Our K-TAG 7.020 add a GPT cable to support GPT Functions ( GPT is new password algo cryptography that is implemented in new Tricore microcontrollers. our KTAG v7.020 can easily read and decrypt the secret password and it automatically unlocks/unprotects the Tricore sectors so it can read and write both Flash and Eeprom )
-No reset button ,no USB Dongle. NO Tokens Limited!!!
-REAL VERSION OF KTAG 7020 EURO ALL ACTIVATED VERSION!!!

2. What is the advantage of KTAG V7.020 over than other EUC Chip Tuning Tools in the market?

-Supports online full protocols ,fully activated,without tokens limited.
-There are lot ECU that need to disassemble from the car and open and this is the case for all the ECU that need to be programmed with Jtag, BDM and Boot protocols, so KTAG is needed,as the new generation ktag master,KTAG 7.020 is the best choice.
-K-TAG 7.020 can work For Toyota Hilux kun26 and new added 100+ ECU types & supports new car models e.g. Toyota 76FXXX, PSA 17.4.4, Ford E83, VW 17.5.5 (1766), Mercedes-Benz 276 ECU, Toyota 76F, etc.
-KTAG V7.020 add a cable with GPT Functions.
-Online operation supported.
-Best PCB With Murata filters.
-Multi-Languages Supported .
-With a great performance and tested by many tuners and was regarded as one of the best ECU Programmer for Trucks ,heavy duty,boat.
-No tokens limited, no years limited.
-No USB Dongle,No reset button.

3. KTAG v7.020 Red PCB ECU Tuning Tool Install/User Note

-The KTAG you received will with latest software 2.25 and hardware 7.020 ,so Never update it online.We will send you free update link in future.
-We don't sell SD card and chips alone,sorry.
-We offer free Transdata dimsport software for KTAG 6070,but no install help in this free gift.
-Our KTAG 7.020 can be used online,no reset button need.No tokens limited

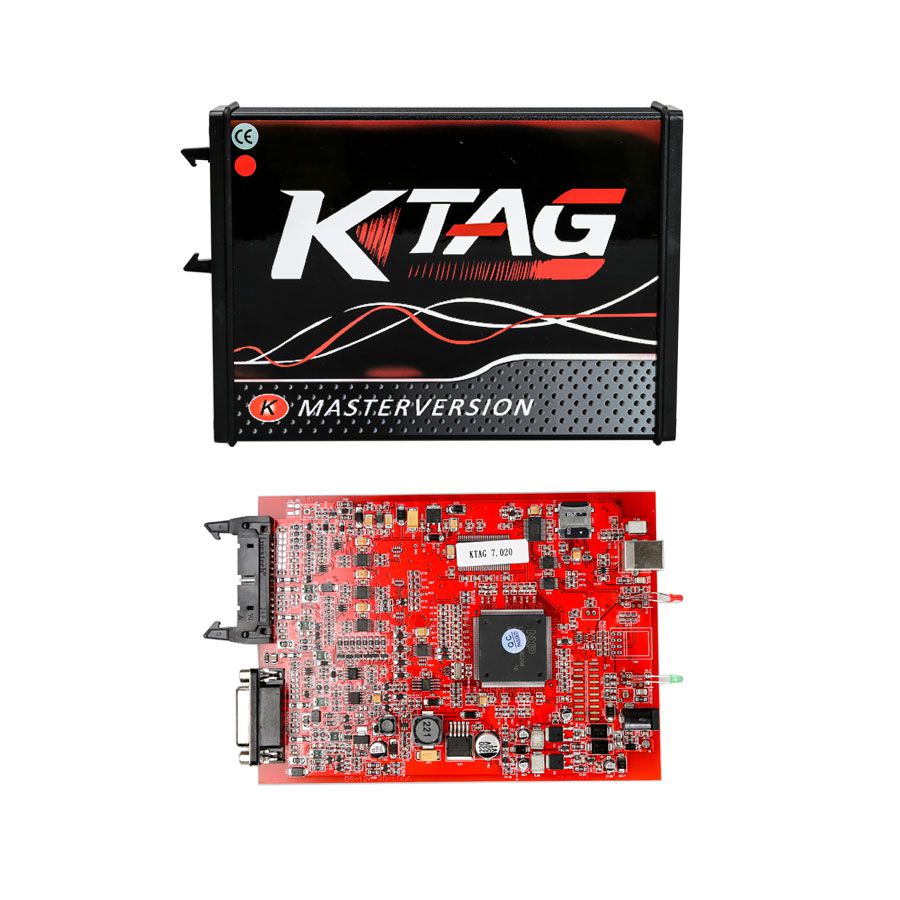

KTAG 7.020 Red PCB OBD2 Manager Tuning Kit PCB Display

K-TAG red PCB EU Version PCB Component!

1. use of imported Japanese Murata NFE61PT472C1H9L filters
2. 2.8x WFs = Infineon, BCR112 NPN Digital Transistor
3. 3.7x 27E = ON Semiconductor NUP2105LT1G
4. 4.8x 6DW = NXP BC817215 NPN Bipolar Transistor
5. 5.3x A6c = MMUN2113LT1G / MMUN2113LT3G check your KTAG PCB may already have 3 x A6c
6. 6.2x K5B = BC807-25-7-F PNP Bipolar Transistor

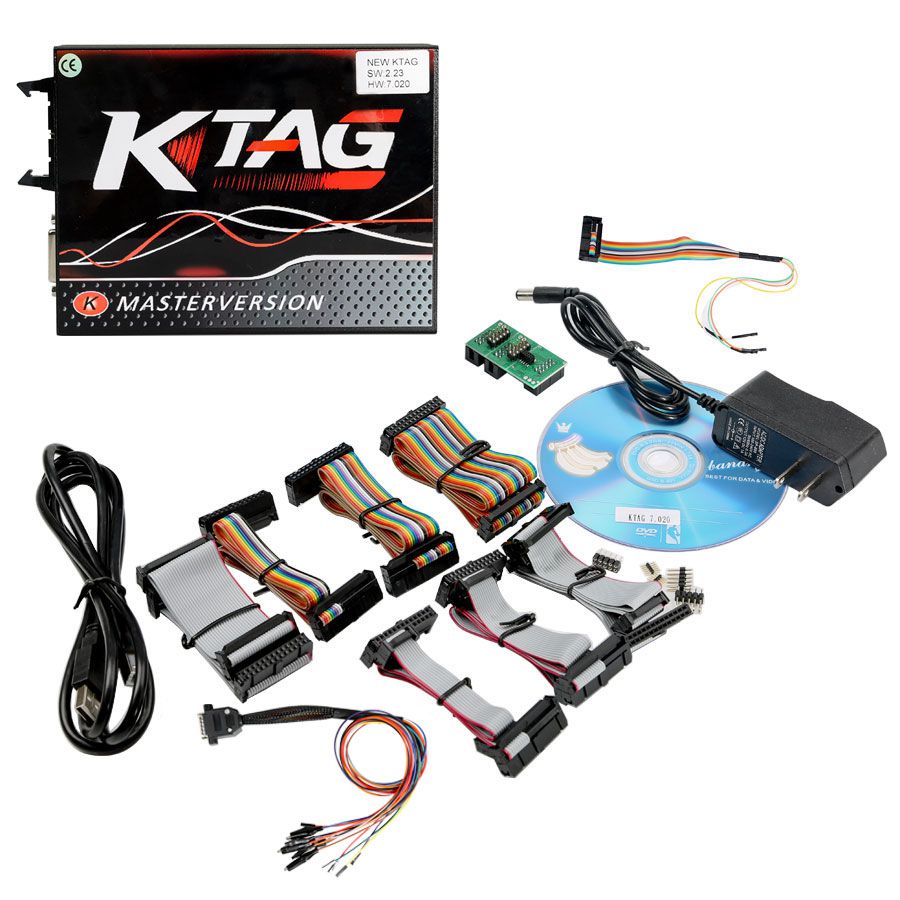

Package includes:

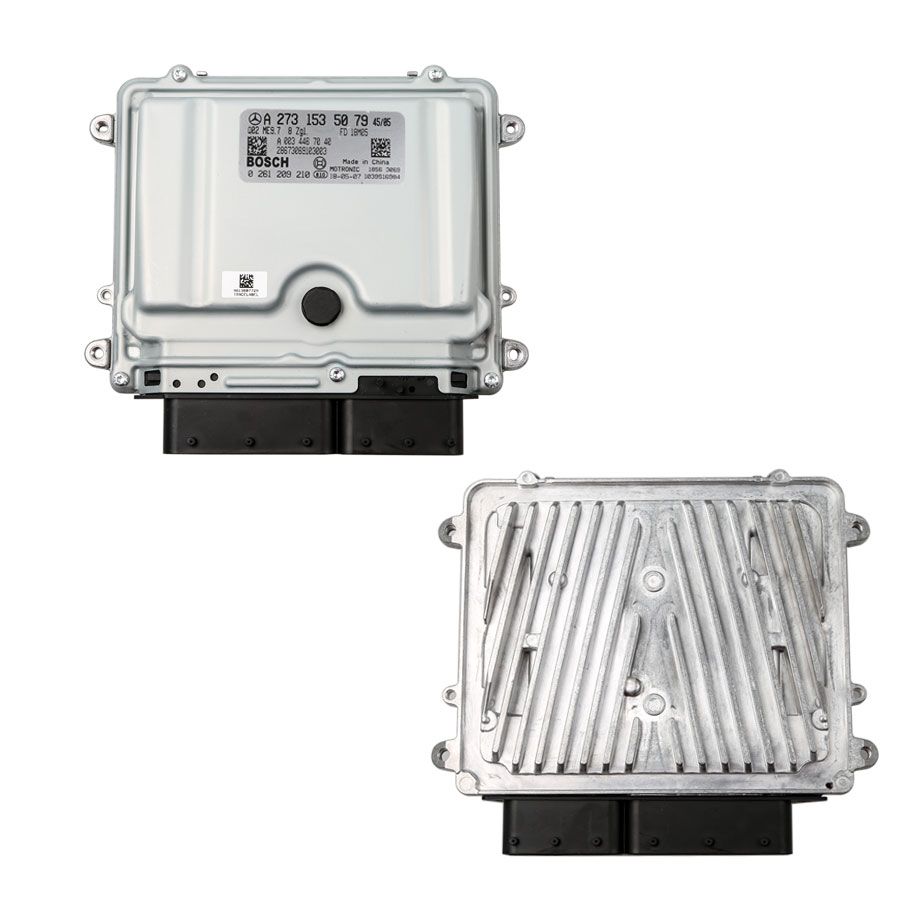

1pc x Mercedes ME9.7 ME 9.7 ECU ECM Engine Computer Programming
1pc x Mercedes Benz ECU ME9.7/272-273/ Renew Cable

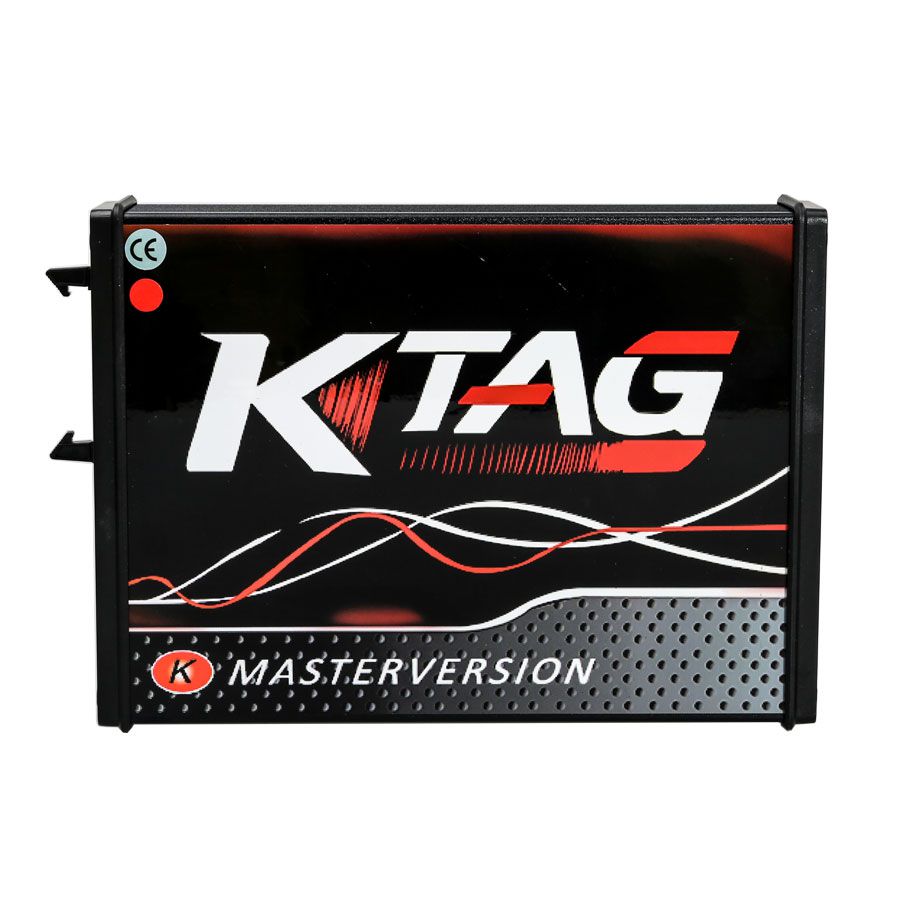

1 x KTAG 7.020 Main Unit
1 x 144300T 104
1 x 144300T 103
1 x 144300T 101
1 x 144300T 106
1 x 144300T 102
1 x 144300T 105
1 x 144300T 100
3 x Chips Inside
1 x Multi-Color Cable
1 x USB Cable
1 x Power Adapter
1 x CD
